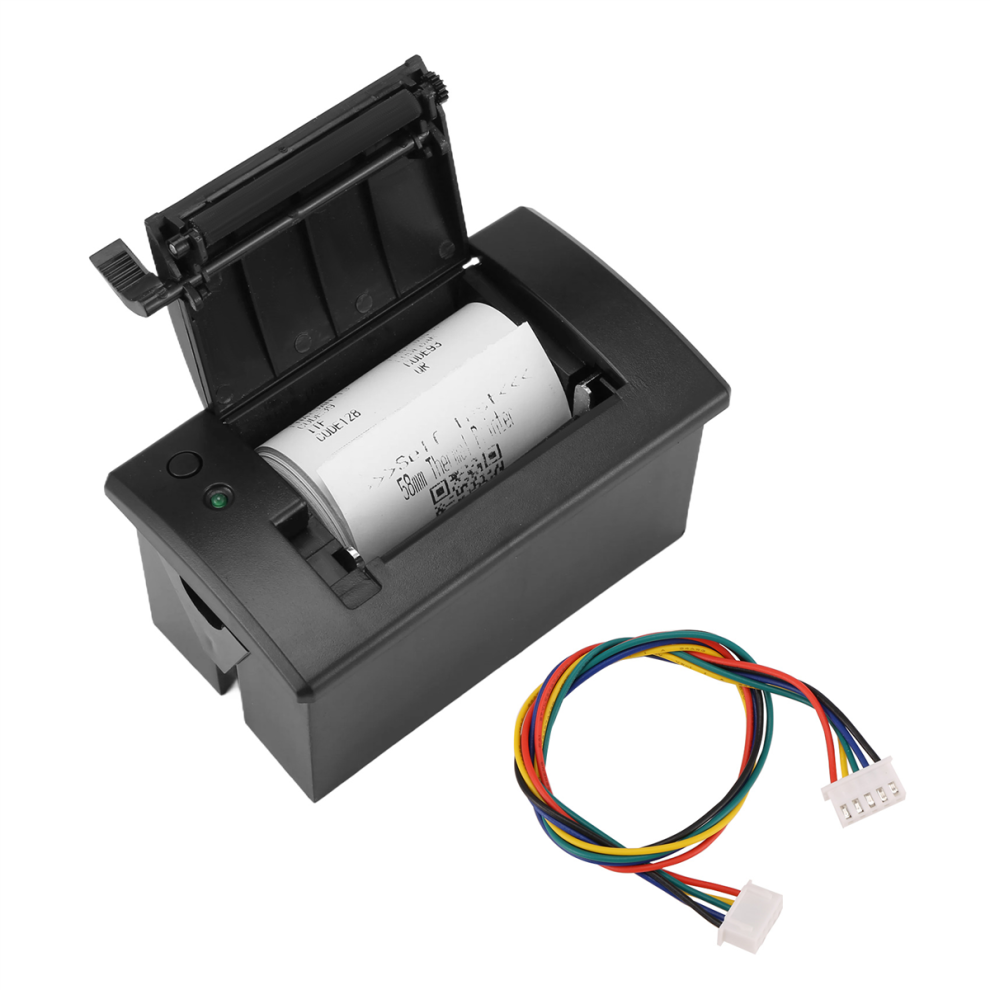

Mini 58Mm Embedded Receipt Thermal Printer Rs232 Supports Esc/Pos Print Dot Printing

Mini 58Mm Embedded Receipt Thermal Printer Rs232 Supports Esc/Pos Print Dot Printing Description

With excellent connectivity, it is widely used in shopping malls, supermarkets, hospitals, restaurants, , gas stations, road and bridge toll station.Easy to set up and operate, it work perfectly with your devices, make printing more convenient than before.
Features at a glance: Beautiful appearance with mini shape, practical and convenient.Easy paper structure and replace the paper body from the front panel, easy for operation.Low noise thermal printing, do not bother the others, create a quiet environment
Optional different interfaces
Very easy to embed in a variety of different instruments
Supports ESC/POS print instruction set
Parameters:
Printing method: Thermal dot printing
Printing speed: 50 - 80mm/s
Resolution: 8 points/mm, 384 points/line
Effective print width: 48mm
Character set: ASCII, GB2312-80 (Chinese)
Print font: ANK: 8 x 16, 9 x 17, 9 x 24, 12 x 24, Chinese: 16 x 16, 24 x 24
Paper type: Thermal paper 57 x 30
Paper width: 57.5 +/- 0.5mm
Roll diameter: 39mm (max.)
Interface: Serial RS232/parallel/USB
Embed depth: 50mm
Power: DC 5V - 9V/12V
Operating temperature: 5 Celsius - 50 Celsius
Working humidity: 10 percent to 80 percent
Storage temperature: -20 Celsius - 60 Celsius
Storage humidity: 10 percent to 90 percent
How to roll:
1. Open the printer cover;
2. The paper roll is placed on the reverse side;
3. Cover the printer cover so that the paper is slightly exposed.
Type: Thermal Sensitive Resistance
colour:black
Material:plastic

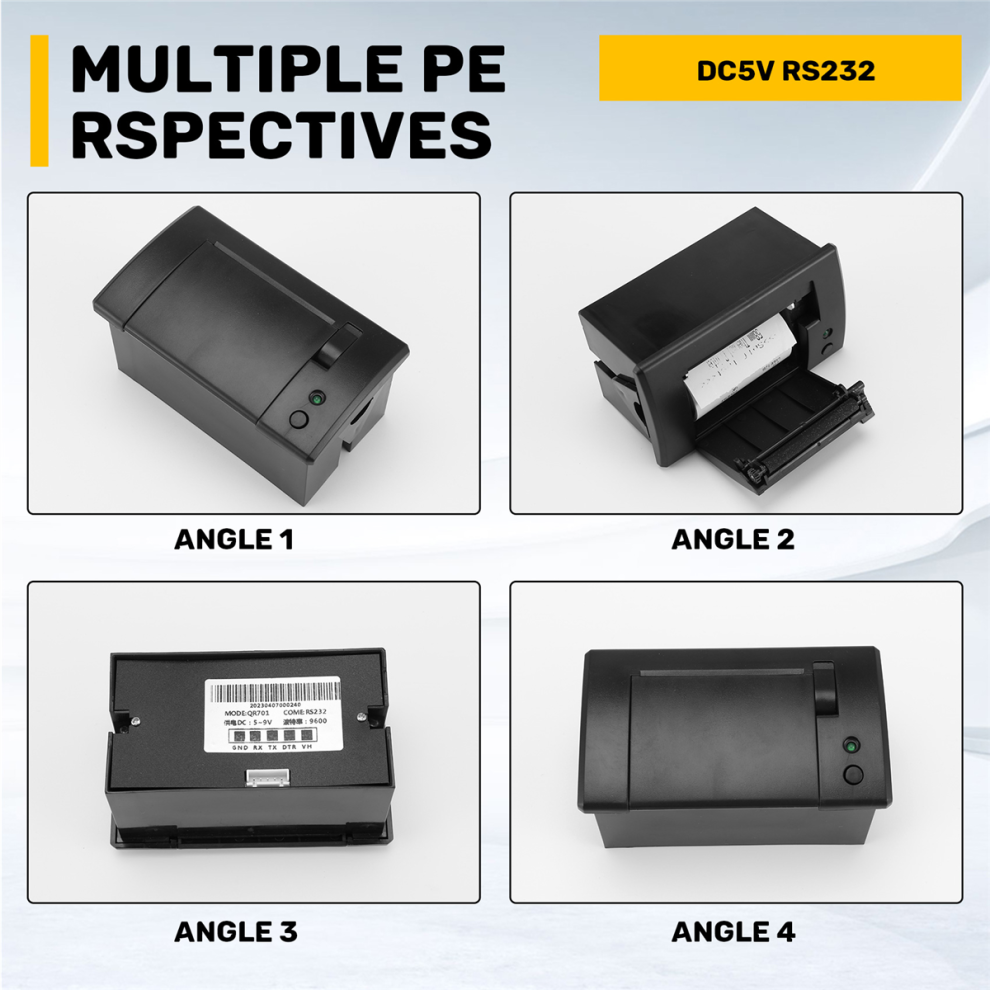

size:Product Size(L x W x H) 11.10 x 6.50 x 5.70 cm / 4.37 x 2.56 x 2.24 inches
Mounting port size: 103 x 57mm

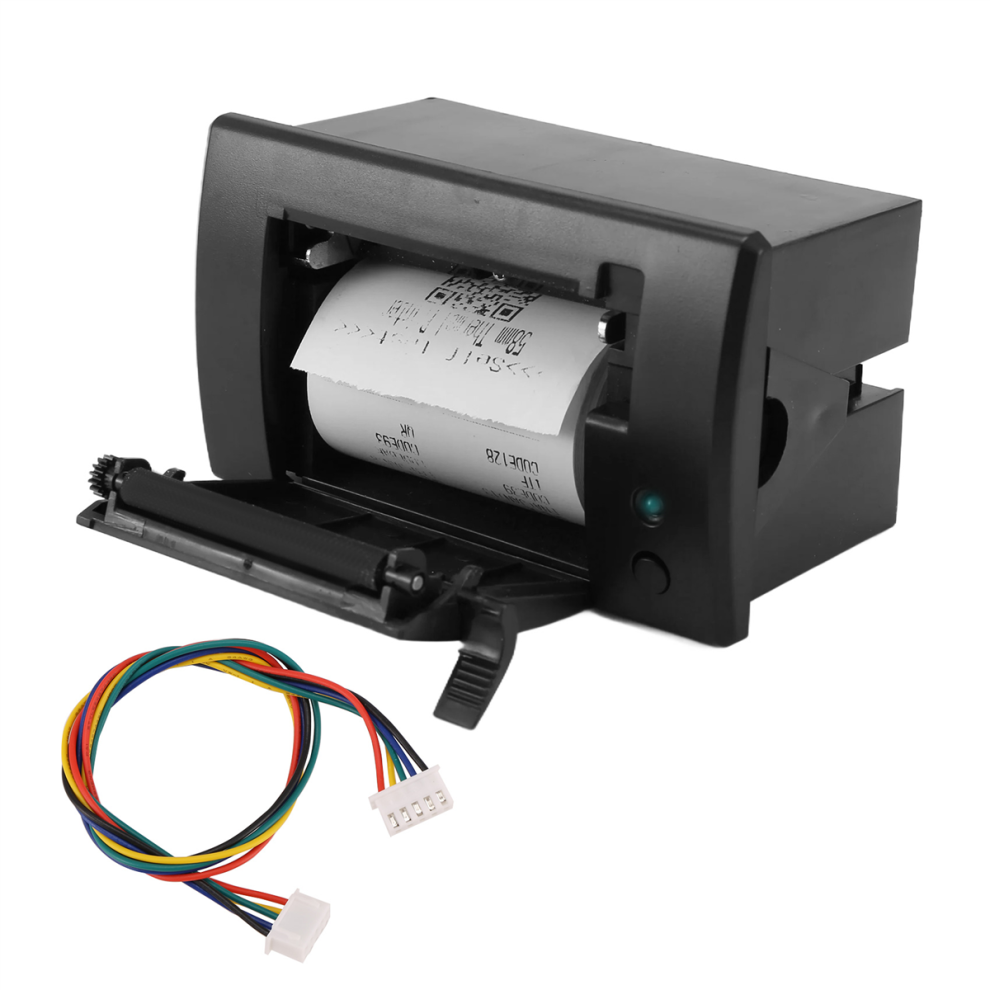

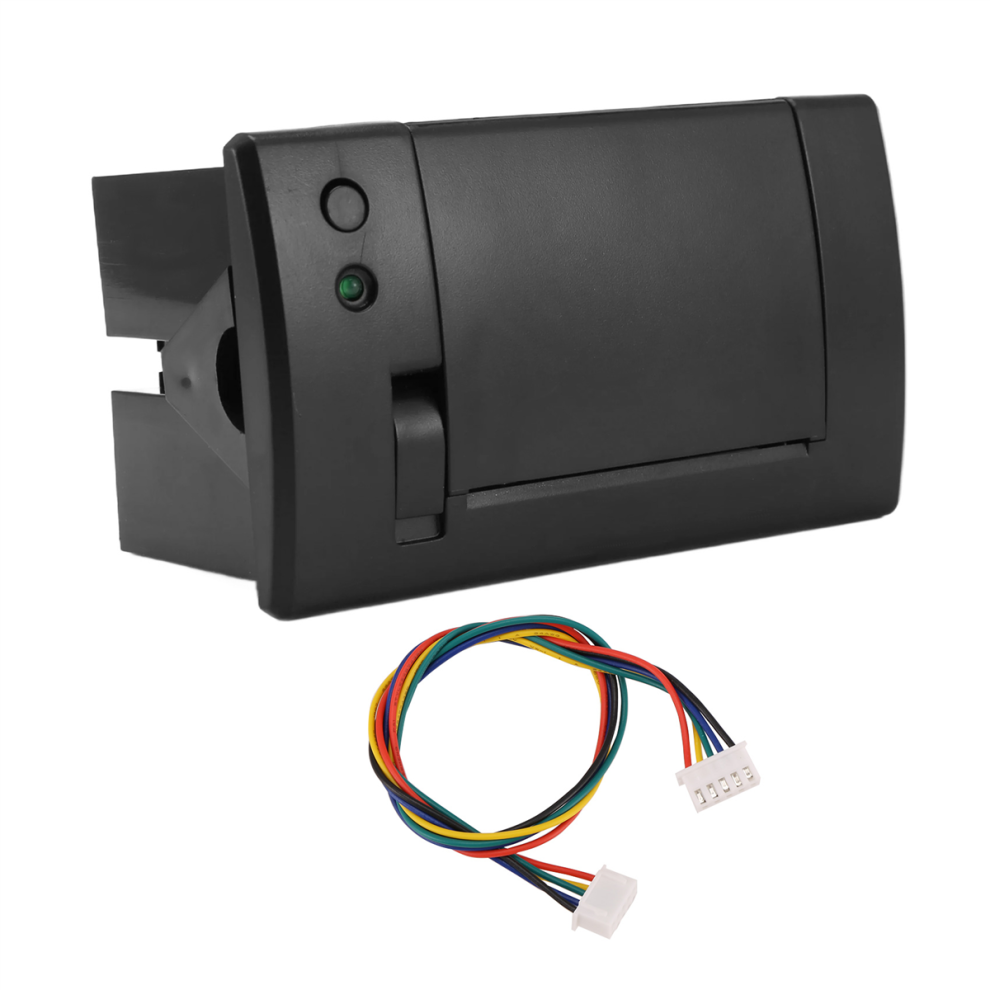

Package Contents:
1* printer
1* data line
1* disc
1* instruction manual
Note:
Before installing the printing paper, tear off the adhesive tape on the paper roll to prevent any foreign matter from remaining to protect the print head.
Only the above package content, other products are not included.
