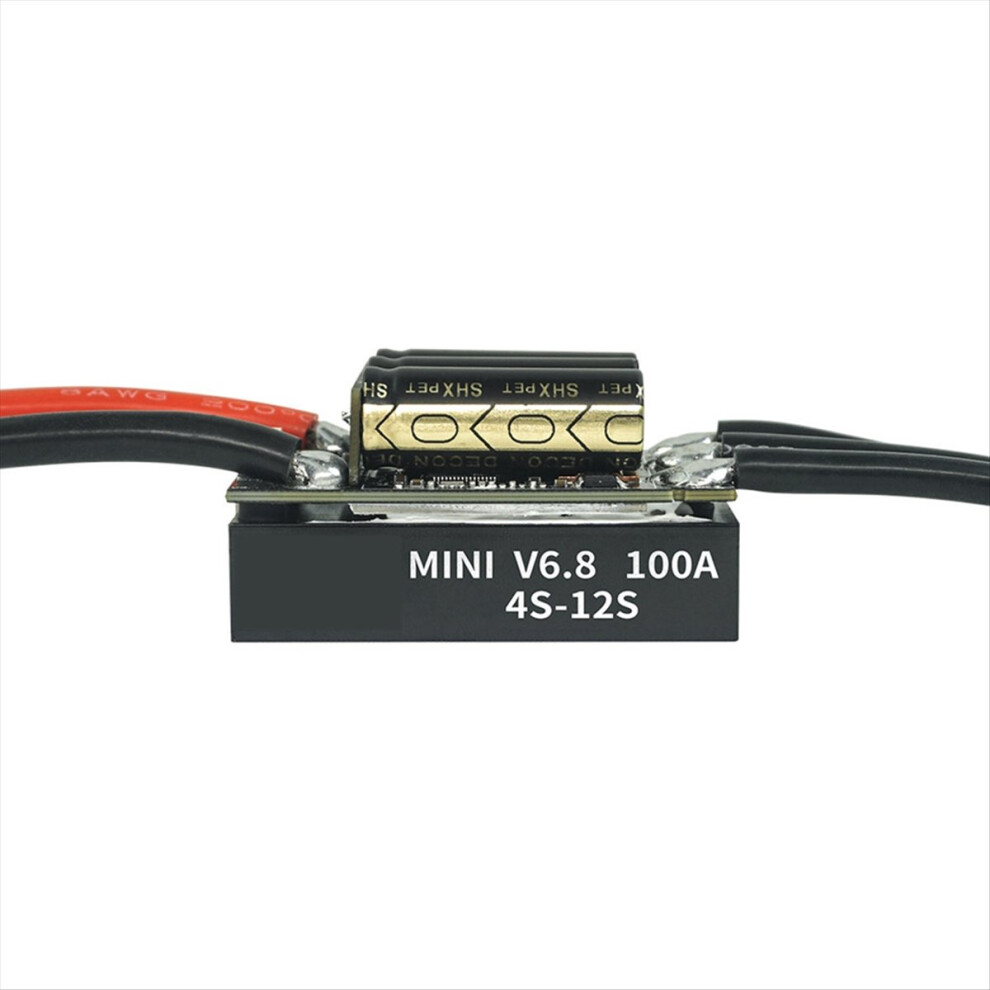

Mini V6.8 100A Brushless Motor Controller with Heatsink for Diy Scoot

Mini V6.8 100A Brushless Motor Controller with Heatsink for Diy Scoot Description

and compact, more applicable,Mini and compact, only the thickness of a coin, with powerful ESC function.

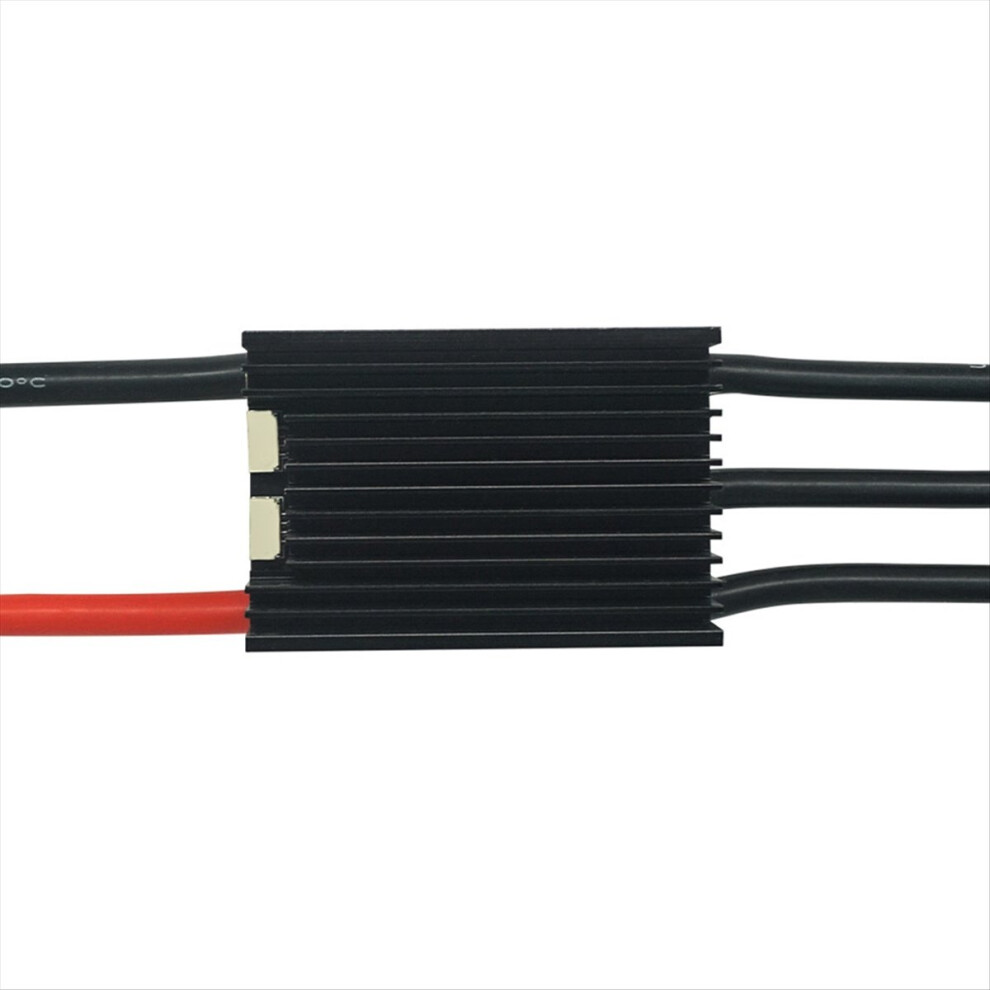

Aluminum alloy heat dissipation,Aluminum alloy heat sink increases heat dissipation effect and prolongs service life.
168MHz CPU,The CPU uses a main frequency of 168MHZ, - with function.

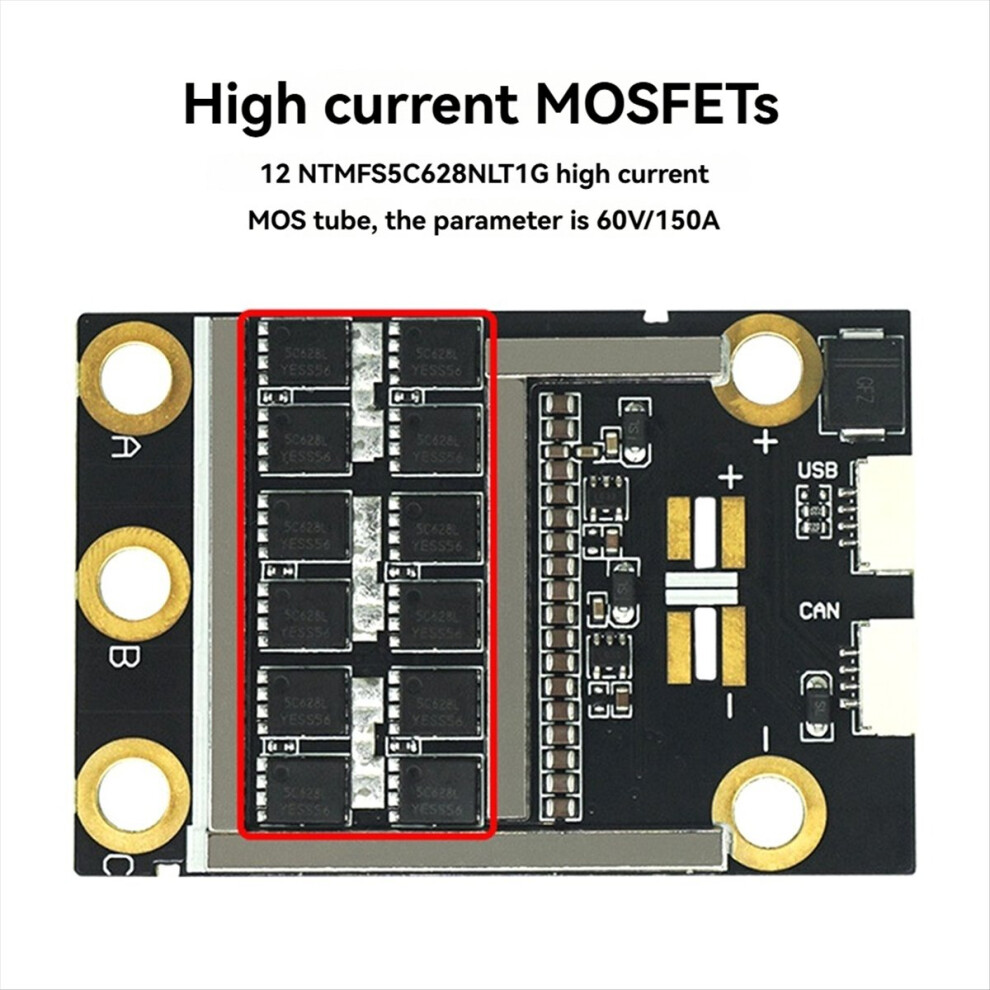

High current MOSFET,Adopt 12 NTMFS5C628NLT1G high current MOS tubes, the parameters are 60V/150A.

Firmware:VESC_TOOL_3.00 5.2 firmware (default firmware version for ESC)
Firmware upgrade:Support USB online firmware upgrade
Size:64x43.5x34.7mm
Voltage:14V-60V (4-125 for safety); voltage shall not exceed 60V
EPRM:150000
Sensor mode:Sensorless control
Motor cable:10 AWG
BEC:5V/1.5A output BE
Regenerative :Support regenerative energy recovery
Power cable:8 AWG
Support control communication mode: PPM / ADC / / UART
Communication port: USB / CAN / UART / IIC
Control mode: Support BLDC square wave control mode and FOC sine wave vector control mode
Continuous current: Single channel maximum continuous current: 100A (duration depends on external heat dissipation)
Single channel maximum pulse current: 150A
Colour:As Shown
Material:Aluminum Alloy

Package Contents:
1 * Motor
1 * Chinese and English instruction manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
