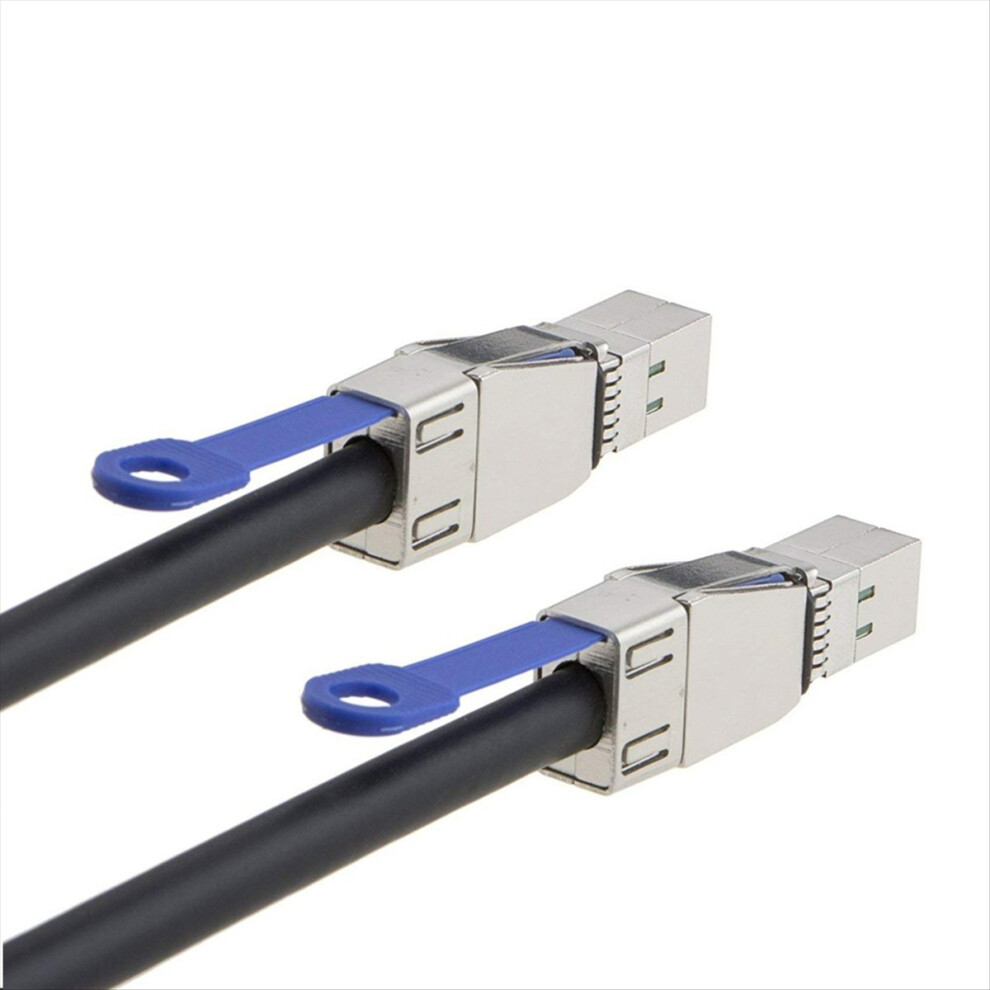

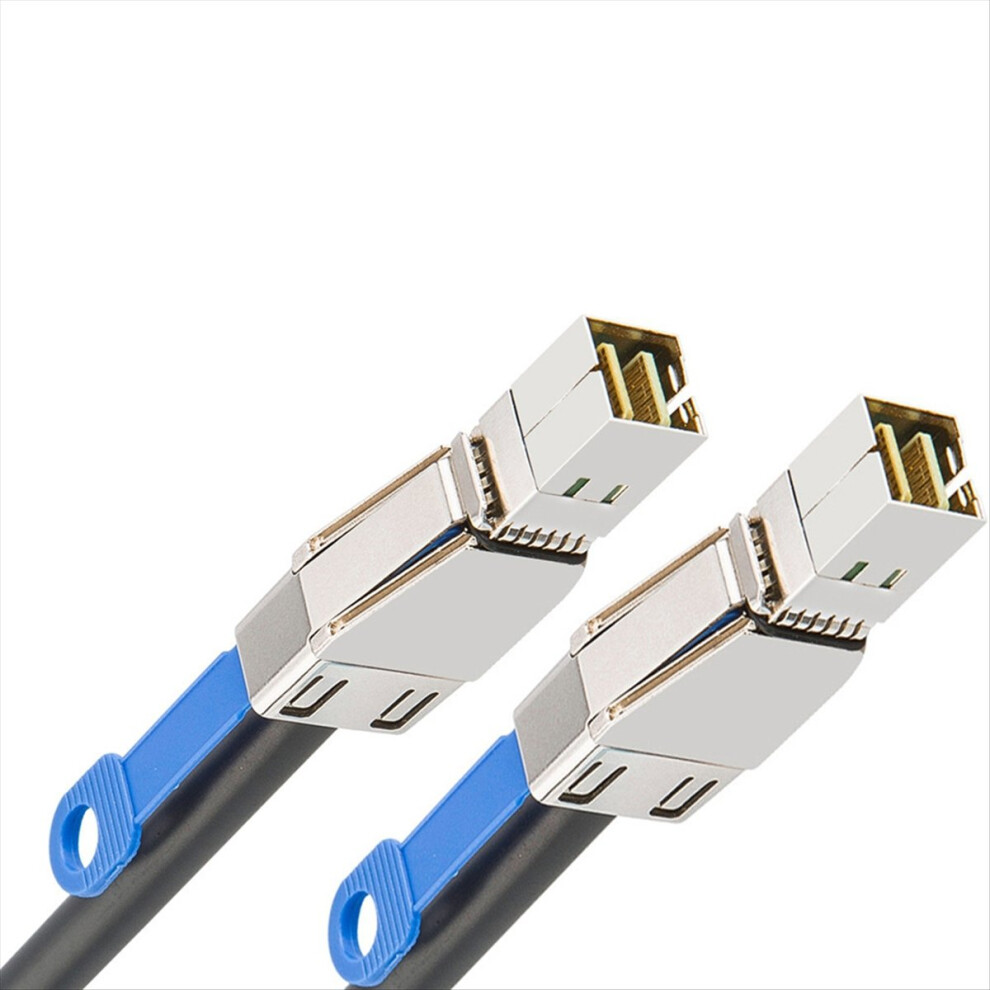

MinSAS Cable 4X SFF-8644 to Multilane Shielded Cage Hard Disk Server D

MinSAS Cable 4X SFF-8644 to Multilane Shielded Cage Hard Disk Server D Description

1. Comply with SAS2.1 and SAS3.0 industry standard signal specifications.
2. Meet the signal bandwidth requirements of 6Gbs supporting up to 12Gbs
3. 36-pin high-density connector, compatible metal housing for shielding external connections for HD SAS external implementations Connect.
4. Double the SAS port density.
5. The wire uses 28AWG silver-plated conductor for stable transmission.

Withstand voltage: 300V DC/0.1 SEC
Insulation impedance: 10M Ohm minimum
Conduction impedance: 3 Ohm Max
Products must be 100% open circuit, short circuit and contact test
Working current: 0.5A contact current
Operating voltage: 30V AC relief voltage
Low power contact impedance: 80Mohm Max
Insertion force: 55.5N Max
Operating temperature: -20-85
When removing an interface, pull the blue pull ring to avoid damage to the interface
Colour:As Shown
Material:Plastic

Package Contents:
1 * cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
