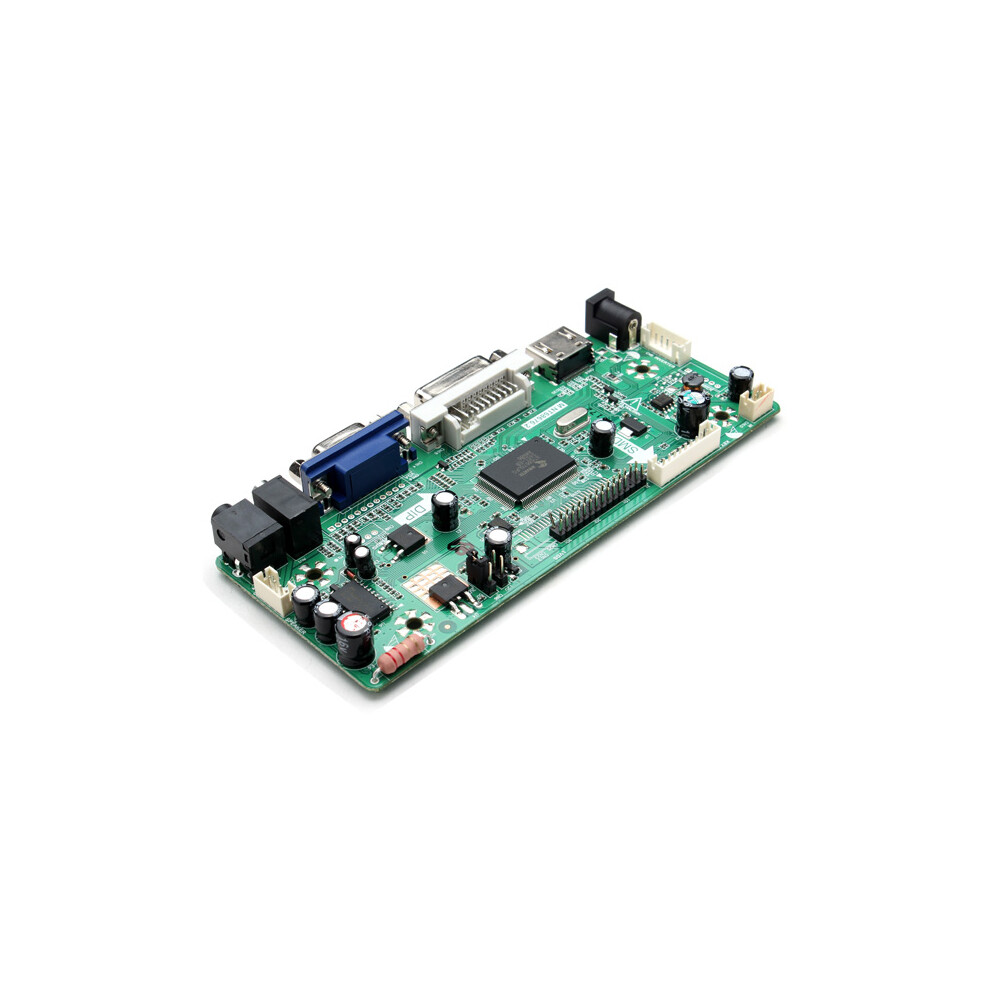

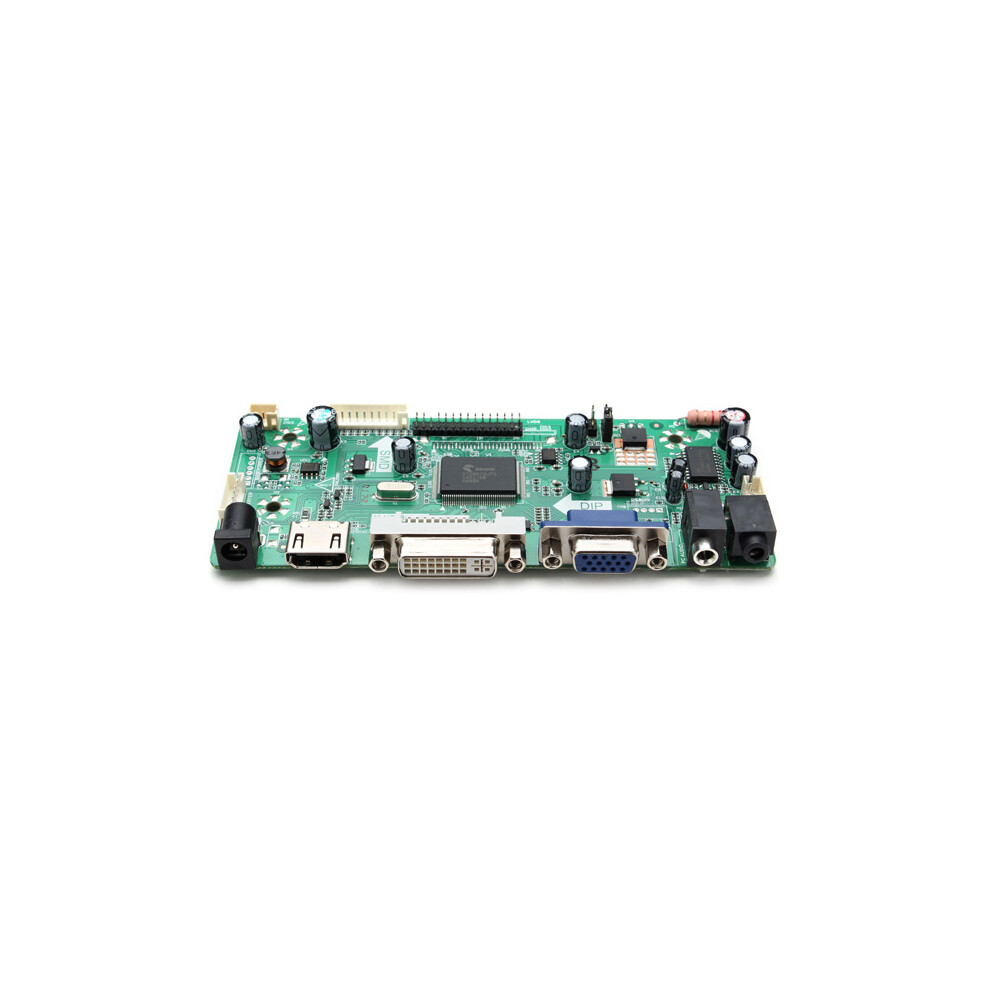

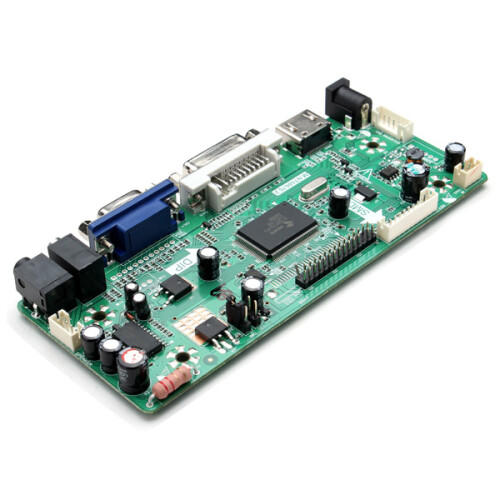

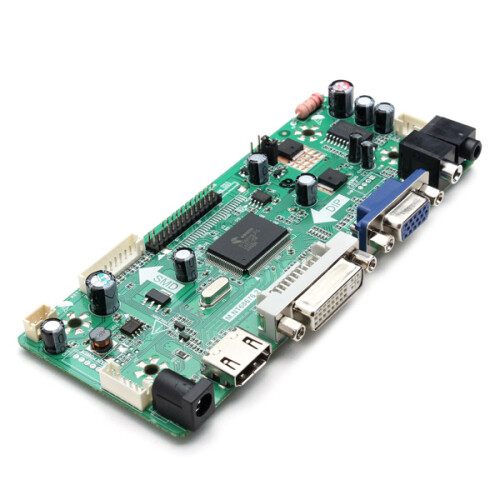

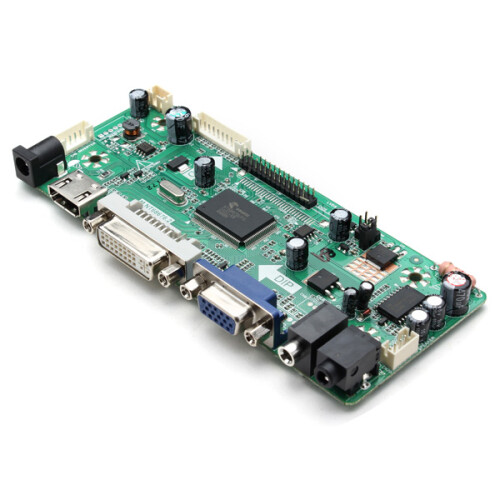

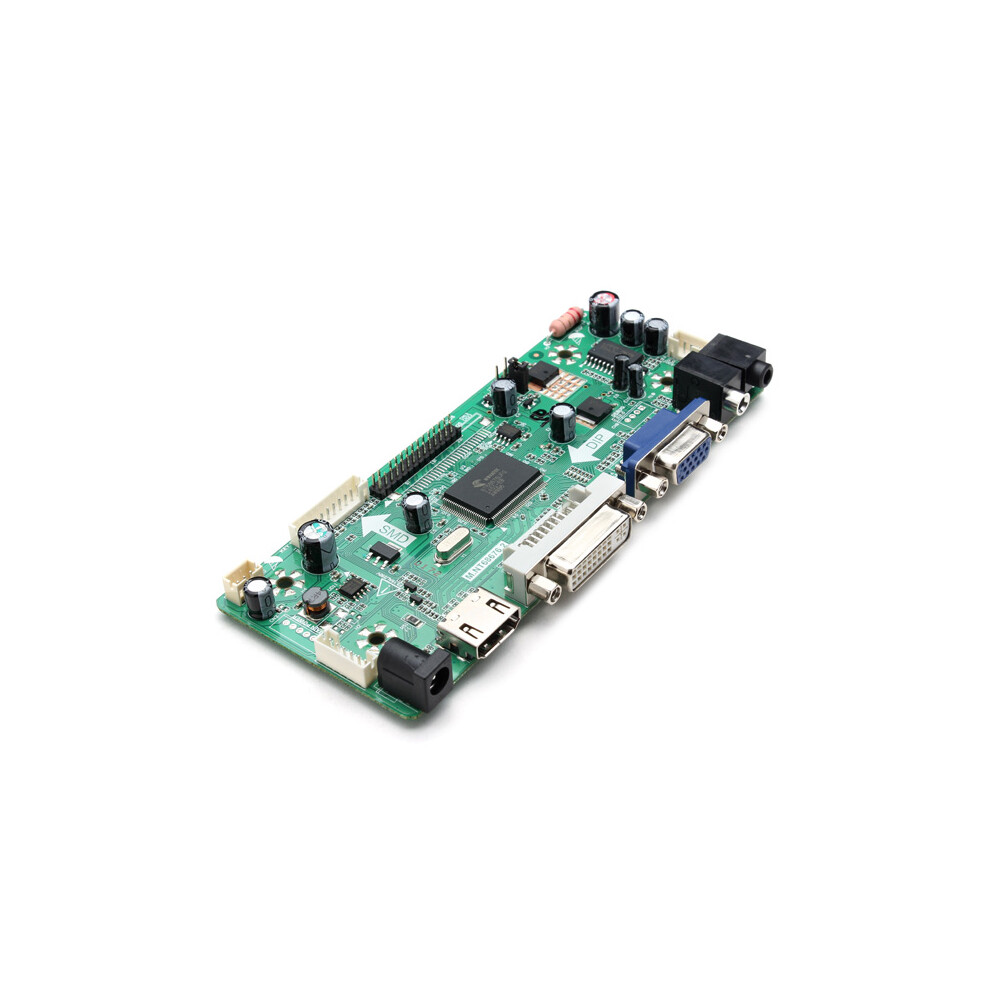

M.NT68676.2A HD Universal LCD Controller Board Driver Module HD VGA DVI With Audio

M.NT68676.2A HD Universal LCD Controller Board Driver Module HD VGA DVI With Audio Description

Feature: Model: NT68676 (UFG) OSD Language: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional) Panel: LED / LCD Panel Single / Dual LVDS Interface (8): 2048 × 1152 Max Resolution Video input: pc rgb format, 2048 × 1152 @ 60hz HD 480 i, 480 p, 576 i, 576 p, 720 p, 1080 i, 1080 p PC Audio headphone output: 0.2 ~ 2.0 VRMS Audio Output Frequency Response: 100 hz ± 3 ~ 15 kHz @ db (1 khz, 0 decibel reference signal) Max Output Power: 2 × 1W (8Ω) + N 10% @ 1khz agreement (Power: 12V, audio input: 0.5 vrms) Power: 3.3V / 5V / 12V Standby power consumption: 0.5W (board only) Key definitions, menus, Volume +, Volume -, adjustment / Exit How to find the program? Step 1: Find your LCD model's resolution (you can check the resolution from this link: http://www.panelook.com/index.php ) Step 2: According to the specification of the resolution to find corresponding resolution program in this link: files.banggood.com/2016/08/NT68676_5KEY_A_SCH_IR_B02_ADJ_0V_LOGO_NONE_R24253_20151228.rar If you can find the program, it means this board is compatible with your screen. If you need with keyboard and cable version, click this item: Product ID: 1438310 Package included: 1 x LCD Driver Board
