Motor driver board for PCA9685 I2C interface

Motor driver board for PCA9685 I2C interface Description

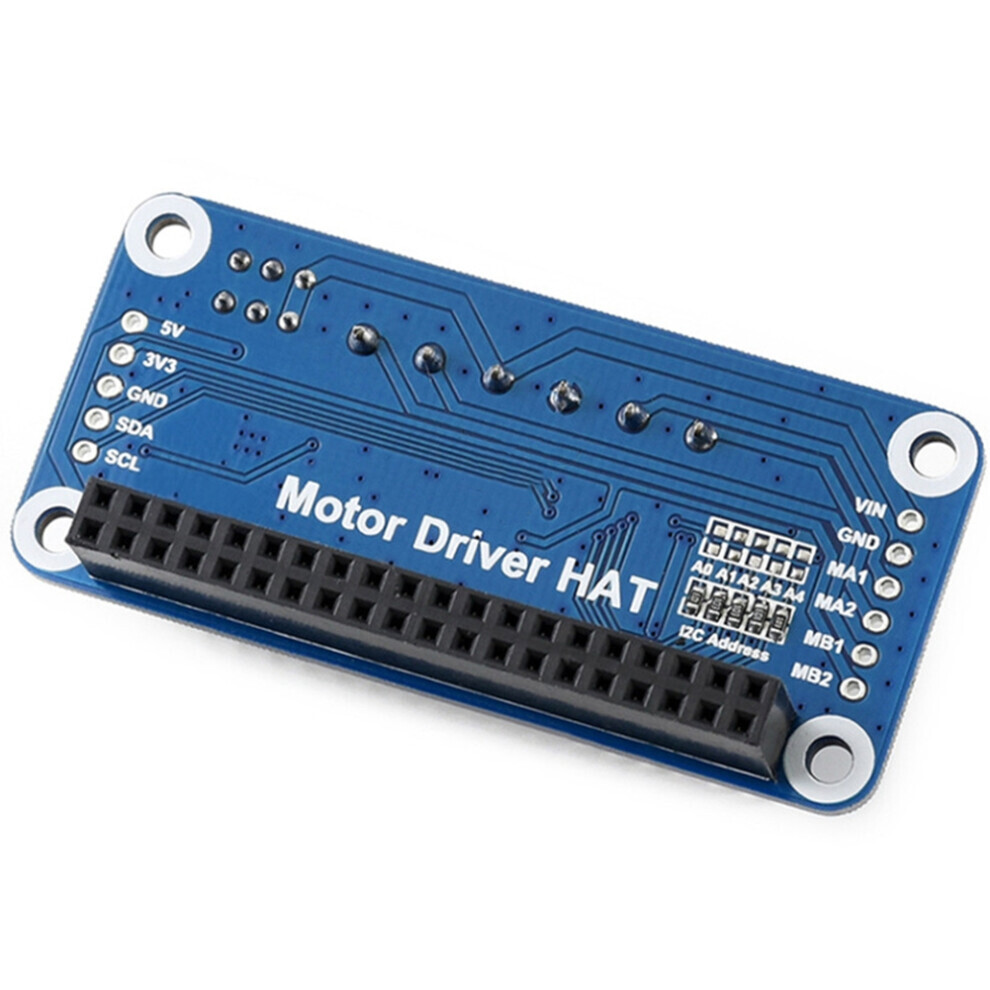

Motor Driver Board for PCA9685 I2C Interface Description
Motor driver board optimized for: This motor driver board, designed for the platform, features an I2C interface for easy control, making it an ideal component for DIY smart cars.
Advanced control functions: Equipped with a PCA9685 chip, the board offers 12-bit hardware PWM for precise motor speed control.
Improved connectivity: The board can connect up to 32 modules simultaneously via adjustable addresses, improving the scalability of your project. It also includes a reserved I2C control interface for connecting other main control boards. Powerful power management: With an integrated 5V regulator chip, it supports a supply voltage of 6V to 12V via the VIN connector with an output current of up to 3A, allowing battery power to be connected. Compact and easy to install: With a board size of 65mm x 30mm and a 3.0mm through-hole diameter, the board is designed for easy installation in a variety of environments. Supply voltage: 6V - 12V (VIN connector) Logic voltage: 3.3V PWM driver chip: PCA9685 Control interface: I2C Motor driver chip: TB6612FNG
Passage diameter: 3.0 mm
The appearance and printed words of the product may vary by batch, but do not affect its use.
Color: Blue
Material: PCB
Package Contents:
1 * Motor Driver Board
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
