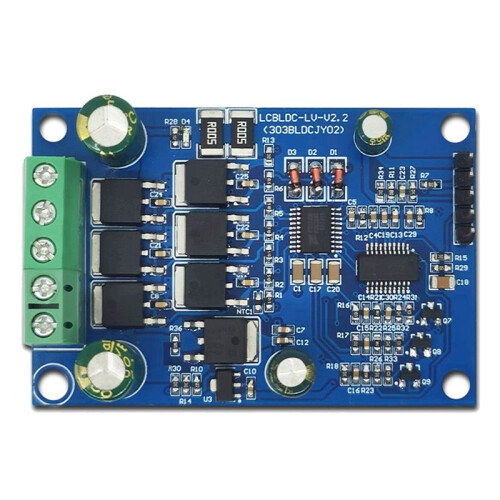

Motor Driver Board Module JY02 Brushless Hall Motor Driver Board SPWM Driving Mode 12-37V Input Module

Motor Driver Board Module JY02 Brushless Hall Motor Driver Board SPWM Driving Mode 12-37V Input Module Description

1. Input Power Voltage: 12~37V
2. Supports A Maximum Output Current Of 5A (The Maximum Value Can Be Controlled By The Resistance Of The Sampling Resistor)
3. Adjust The Motor Speed By Rotating The Potentiometer
4. Built-In Thermistor + Protection Circuit, With Overload And Over-Temperature Stall Protection Function To Ensure Safe Operation Of The Motor
5.Support Spwm Driving Mode

Product Name: Brushless Hall Motor Driver Board
Instructions For Use
1. Power The Driver Board ( 12-37V);
2. Connect The Potentiometer (5V-VR-GND Pin), And Turn The Potentiometer Knob Counterclockwise To The Lowest Gear To Prevent The Motor From Automatically Turning When Powered ;
3. Connect The Brushless Motor Output Wire (The Three Wires Of The Three-Phase Brushless Motor Can Be Connected In Any Order, And Changing The Sequence Of Any Two Wires Can Change The Rotation Direction Of The Motor);
4. Slowly Rotate The Potentiometer Knob Clockwise, And The Motor Will Start To Rotate.
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:PCB

Package Contents:
1 x JY02 Brushless Hall Motor Driver Board
