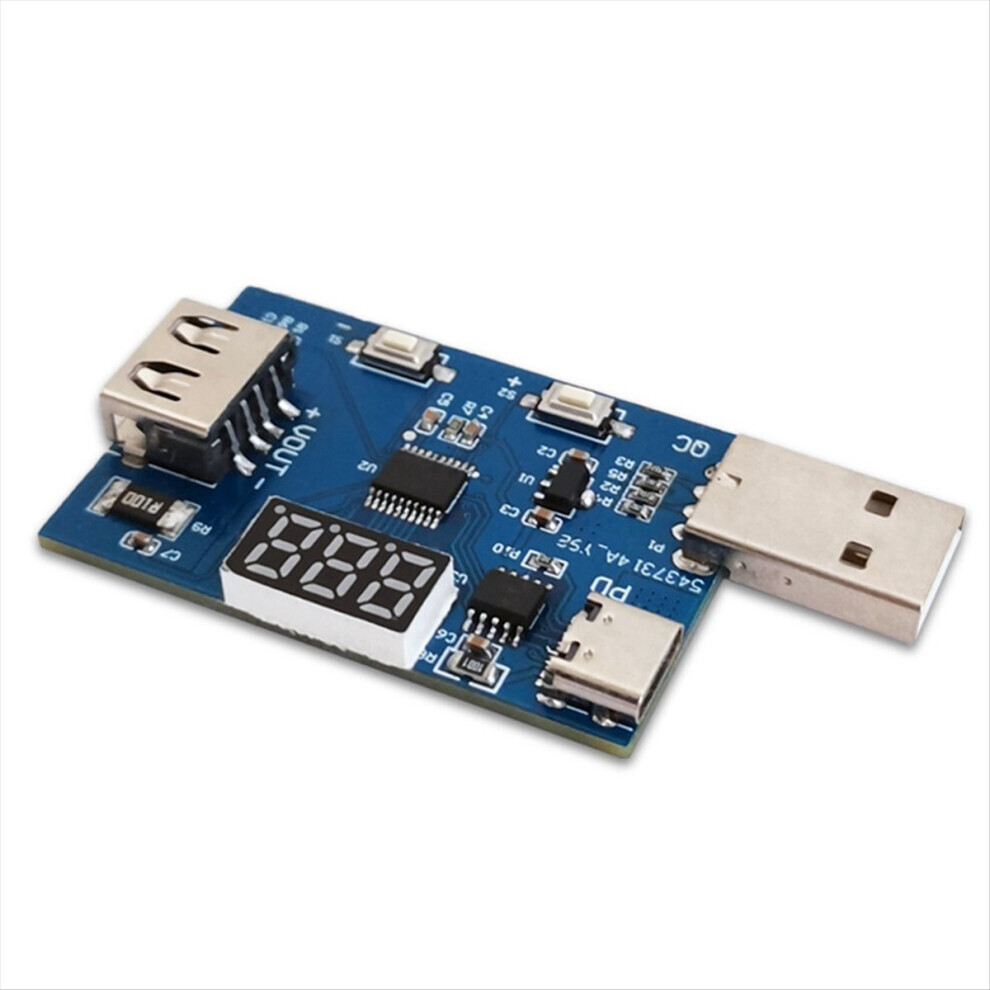

Multifunctional voltage charge test aging module

Multifunctional voltage charge test aging module Description

Multifunctional Voltage Charge Test Aging Module Description
1. Supports QC3.0/2.0PD3.0, three fast charging protocols
2. Voltage memory function; the last set voltage is displayed upon power-up
3. Supports voltage adjustment from 3.6V to 20V
4. Alternating display function for voltage and current
5. USB Type-A or Type-C input and Type-A female output.
The QC2.0 charging protocol specifies that the voltage is fixed at 5V, 9V, 12V, or 20V. The QC3.0 charging protocol specifies that the voltage can be adjusted in 200 mV increments, with a setting range of 3.6 V to 20 V. The PD3.0 charging protocol specifies that the voltage is a fixed value: 5 V, 9 V, 12 V, 15 V, 20 V. Pressing the left button increases the voltage, and pressing the right button decreases the voltage. Press and hold both buttons simultaneously for 3 seconds to switch the charging protocol. Plug in USB Type-A. QC2.0 Mode: Power on and display C2.0 (indicates QC2.0 mode), then display the target voltage 5.0/9.0/12.0/20.0 (4 fixed voltages), then display "----" (indicates ongoing voltage measurement). If the charging process supports the voltage, then display the measured target voltage. If the actual charging power is too high relative to the desired target voltage, "Err" will be displayed, followed by the actual measured voltage. After 5 seconds, the voltage indicator shows "---" (indicating the switching current) and then the current output current.
Note: Different batches may have differences in appearance, color, and printing, but these do not affect usability.
Color: Navy Blue
Material: PCB
Size: Approx. 65 x 50 x 33 mm
Package Contents:
1 x QC2.0 QC3.0 PD3.0 Decoy Module
Only the above package contents are included; other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The allowable measurement error is +/- 1-3 cm.
