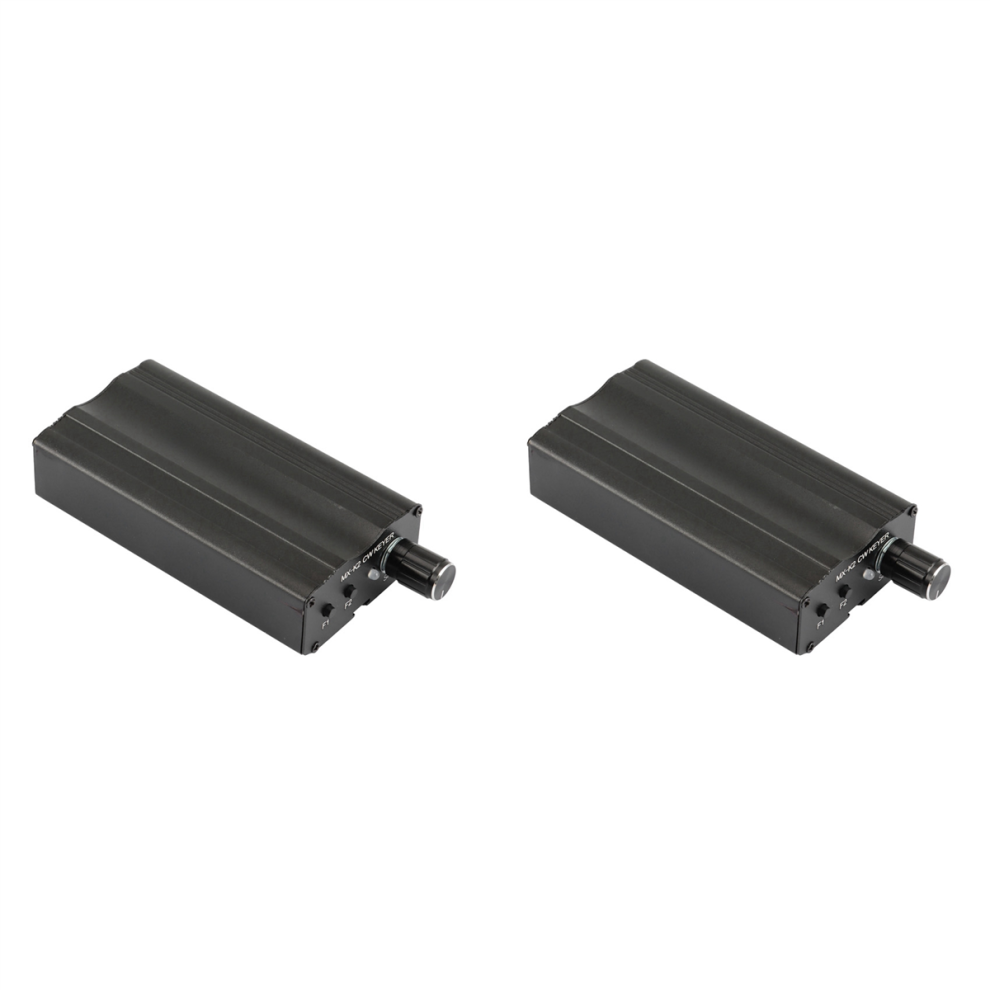

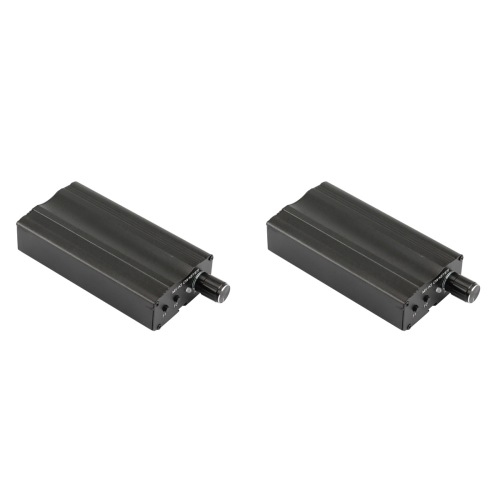

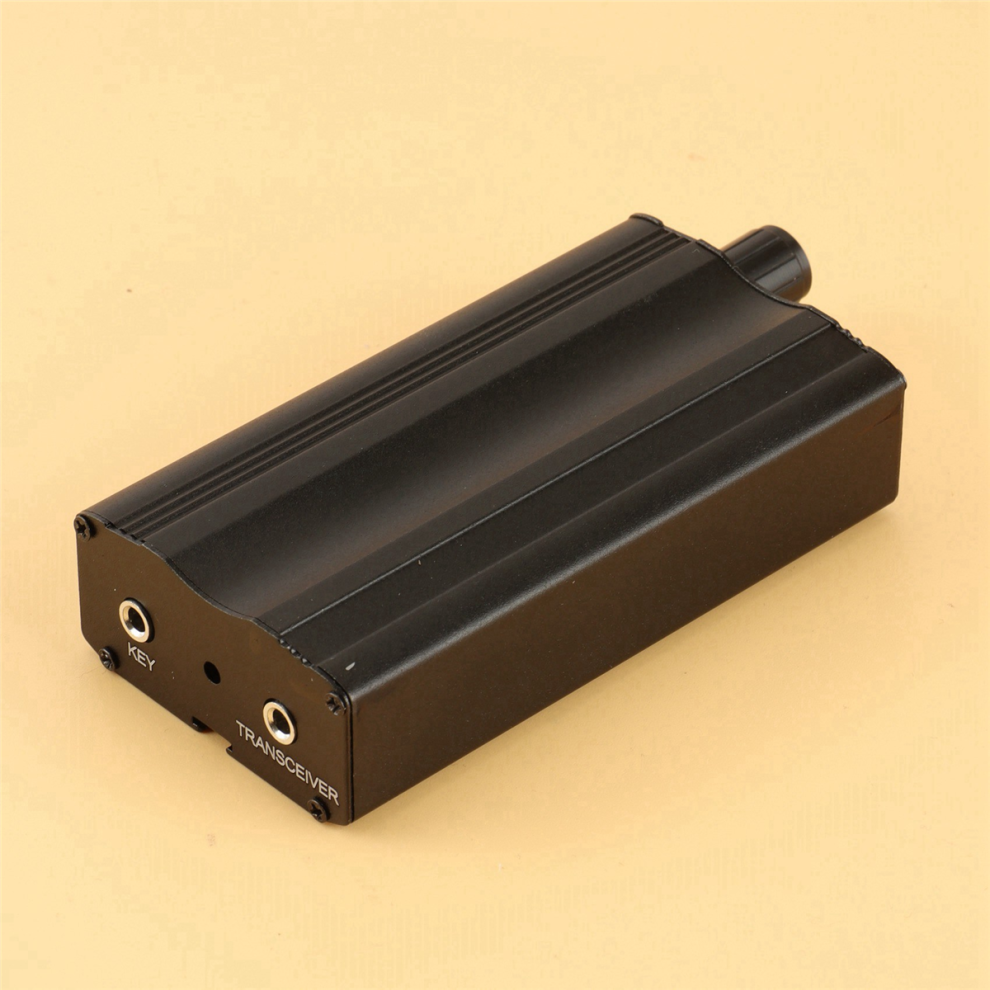

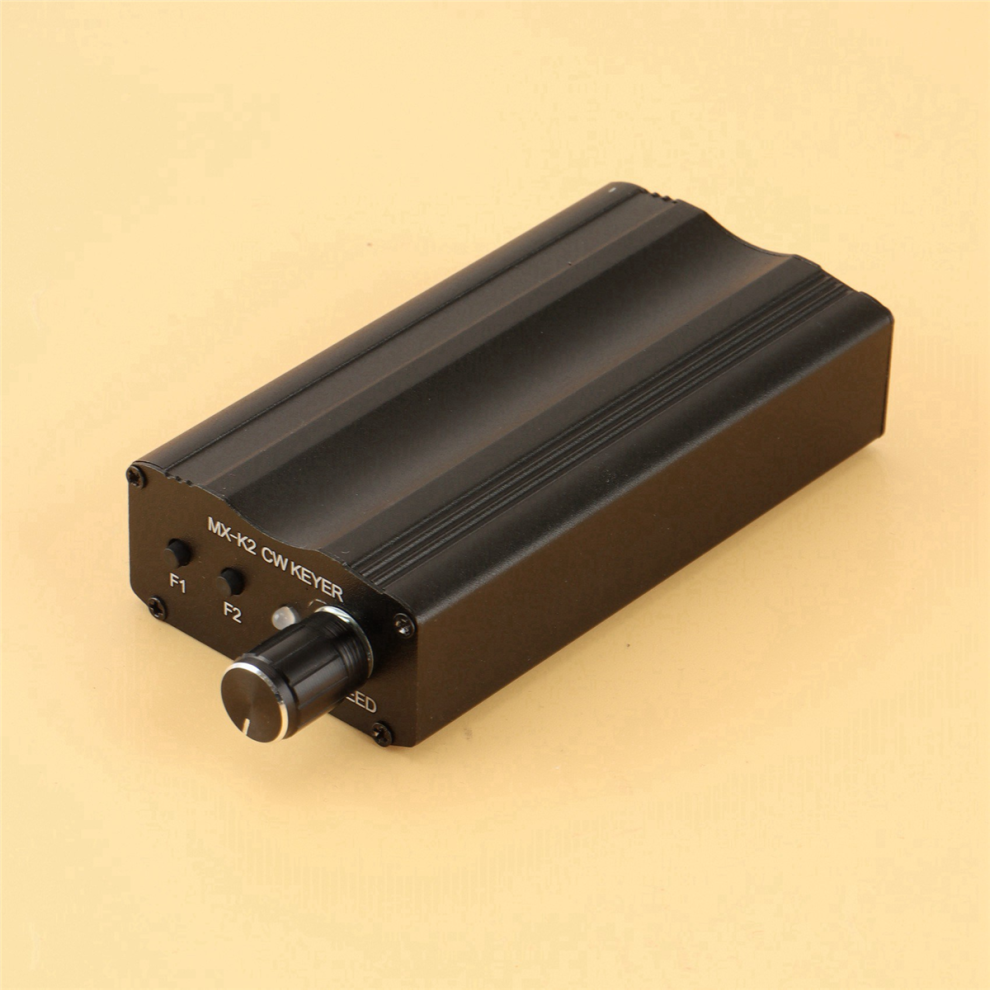

MX-K2 CW Keyer Automatic Key Controller for Radio Amplifier

MX-K2 CW Keyer Automatic Key Controller for Radio Amplifier Description

With storage and segmented memory function, commonly uses statements for storage.
Only two buttons and a switch for easy operation.
Includes power-off protection function, super power saving.
Adjustable speed switch, the potentiometer of the control board can be adjusted anytime.
Power Supply: 2 x AAA Batteries (NOT Included)

How to use:
J1:buzzer mute
L/R:di/da or da/di
F1 key can remember 60 words ,and it has power-off protection fuction.
F2 key can remember 50 words , it doesn't protect the data when the power fails.
R3 key is for speed control, speed fast when the value of R3 down.
Record: Keep pressing on F1 /F2 for more then half second, you hear 'M', now it records CW automatically.
When it is all done, F1/ f2, you hear "S".
It remind you by "F" if you exceed the volume, and the extra par
t be recorded.
Message: Every message can not only be storaged by a long memory, it also can be separate into several
parts by inputing EOM (End of Message)at of every segmentation.
Play the segmentations: If you want play the second segmentation, just the memory key 2 times; if you want the third one,
then the key 3times, et cetera .
mode: F1 AND F2 at the same time, you hear "C",now it is under the mode of
End mode: F1 and F2 at same time again, or you can input "D" by pressing the auto key
Colour: black
Material: metal

Package Contents:
2 x Morse Code Auto Memory Key Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
