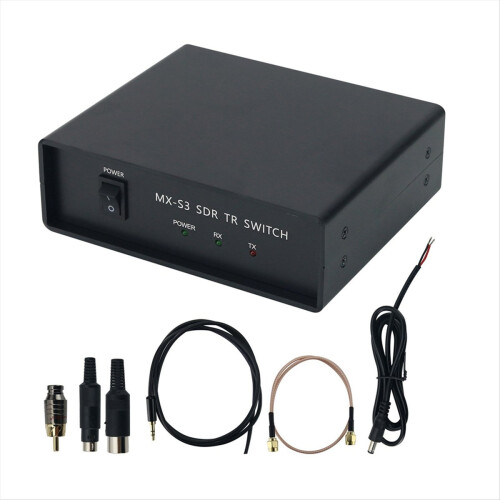

MX-S3 100W DC-60Mhz SDR Switch SDR TX RX Switch

MX-S3 100W DC-60Mhz SDR Switch SDR TX RX Switch Description

allows the SDR and to use the same antenna at the same time. In receive mode, the SDR is connected to the antenna, while in transmit mode, the SDR is disconnected from the antenna and grounded.
If a separate receive antenna is used, the SDR is fully protected during transmission.
The MX-S1 consists of two separate circuit boards: the Audio Switch - which performs the audio path switching and is also responsible for controlling the ANT switch, and the ANT switch - which is shielded and contains the antenna relay and receive input limiter.
During transmission, the SDR audio signal is and the audio signal is .
Double fault SDR input protection in case of antenna relay failure. High power input limiter for limiting high currents and keeping the SDR input voltage at a safe level.

Protection against PTT cable disconnection, protection against power failure, overcurrent protection (with reconfigurable fuse). Recommended to be powered from the 12 V supply used by the transceiver (common ground required).
Additional external relays (max. current 200 mA) can be synchronously controlled via the PTT signal, e.g. for PA control, transmitter antenna detection, receive antenna switching, station automation. This method avoids ground loops when using multiple devices.
Frequency DC-60Mhz
Maximum power: 100W
Insertion loss 0.3DB
Operating voltage: 12V (10V-15V)
Operating current: Less than100MA
SWR: 1.5
Interface: SL16
