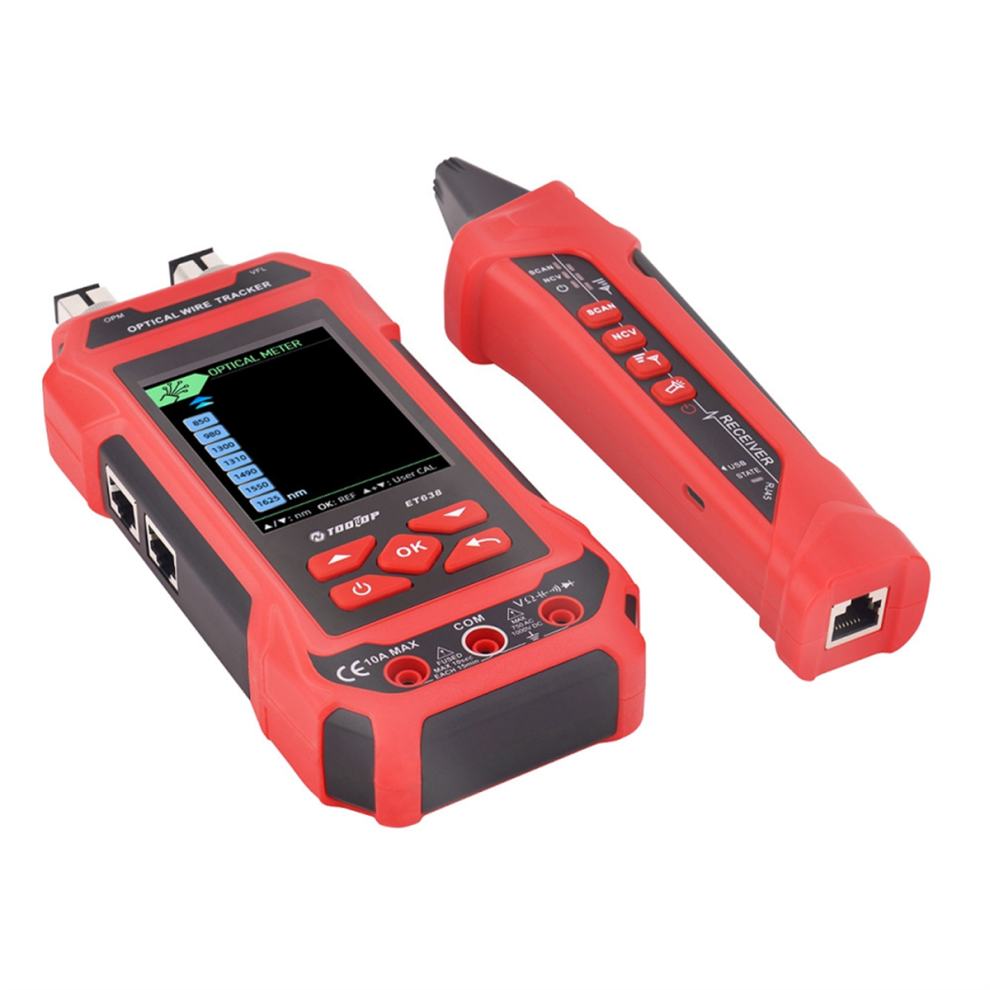

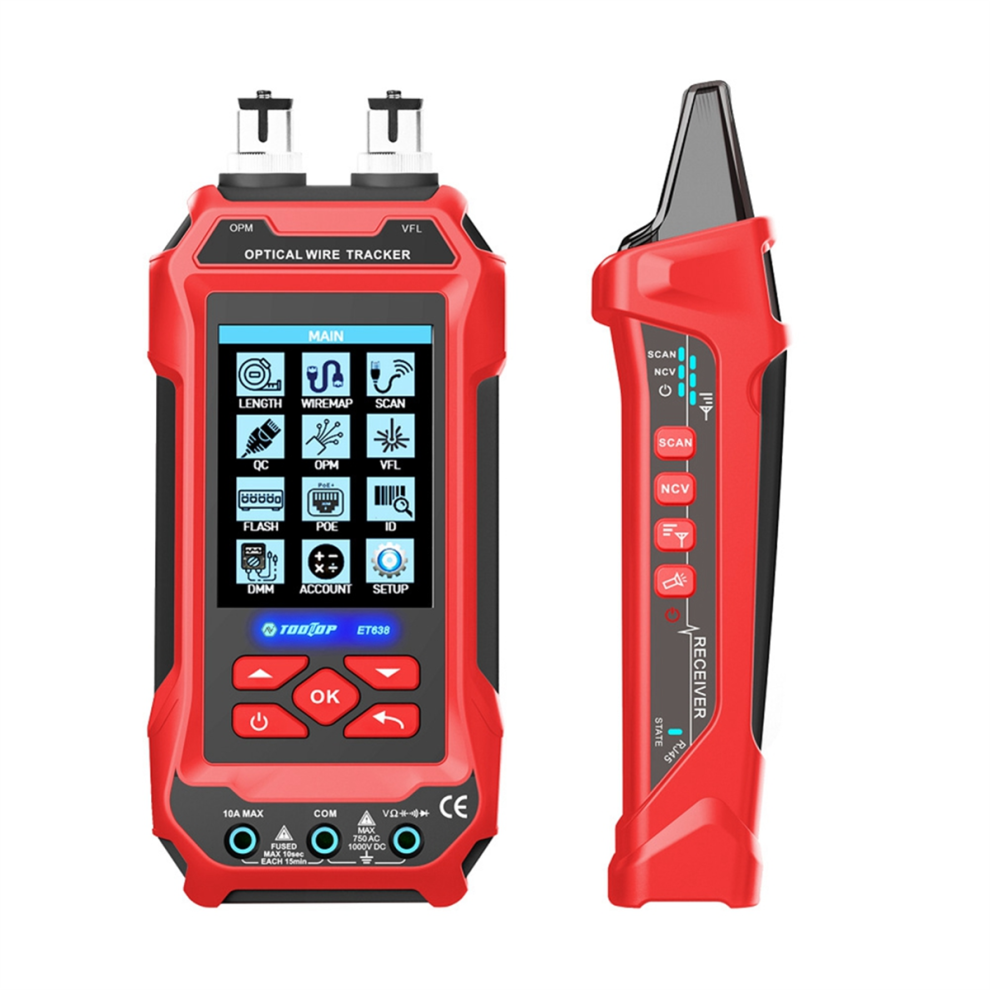

Network Cable Tester 4 in 1 Multi-Function Fiber Optical Power Meter Visual Fault Locator Noise-Free LAN Line Tracking

Network Cable Tester 4 in 1 Multi-Function Fiber Optical Power Meter Visual Fault Locator Noise-Free LAN Line Tracking Description

1. Multifuction Network Cable Tester + Multimeter + Optical Power Meter 4 in 1
2. Ethernet, telephone and coaxial video cable length measurement, up to 600 meters
3. Powerful network cable analysis function: open circuit, short circuit, crossover and crystal head crimping test
4. 6dBm to -70dBm optical power meter design, compatible with , SC, FC interfaces
5. Equipped with red laser emission function, the optical fiber transmission distance can reach 10KM, for visual positioning of breakpoints. 6. Scan(line finding ),is noise-free and anti-interference, quickly find the target line in complex lines, support RJ45 BNC Cable

Name: Multifuction Network Cable Tester

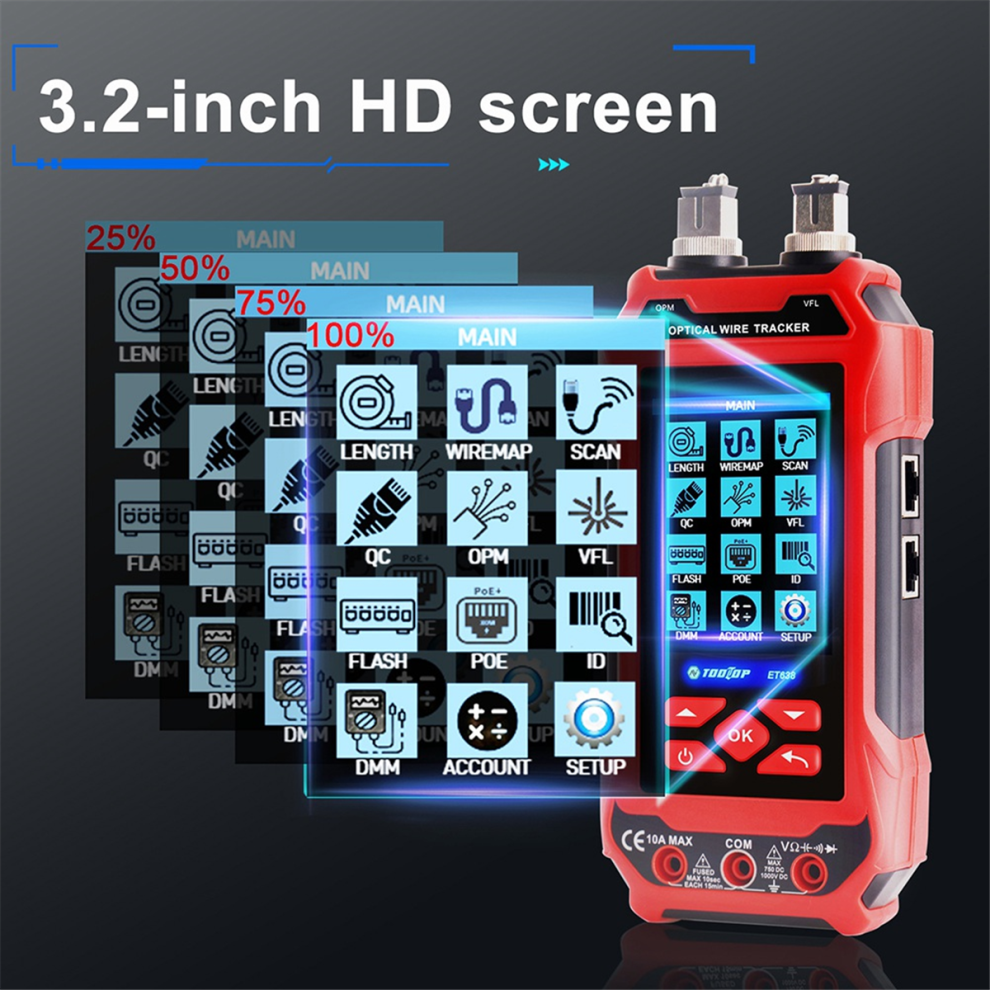

Display: 3.2 inche 240 x 320 color screen
Power supply: 1500mAH(Host) / 800mAH(Receiver) Lithium Battery
Size:Host 187 x 86 x 34mm / Receiver 197 x 47 x 36mm
Network Cable Tester
Cable Length:Network cable (600M), telephone line (400M), coaxial cable (400M)
Measurable range: 1m~600m
Length self-calibration: support,the length of the referencel line used for calibration must be 5 meters

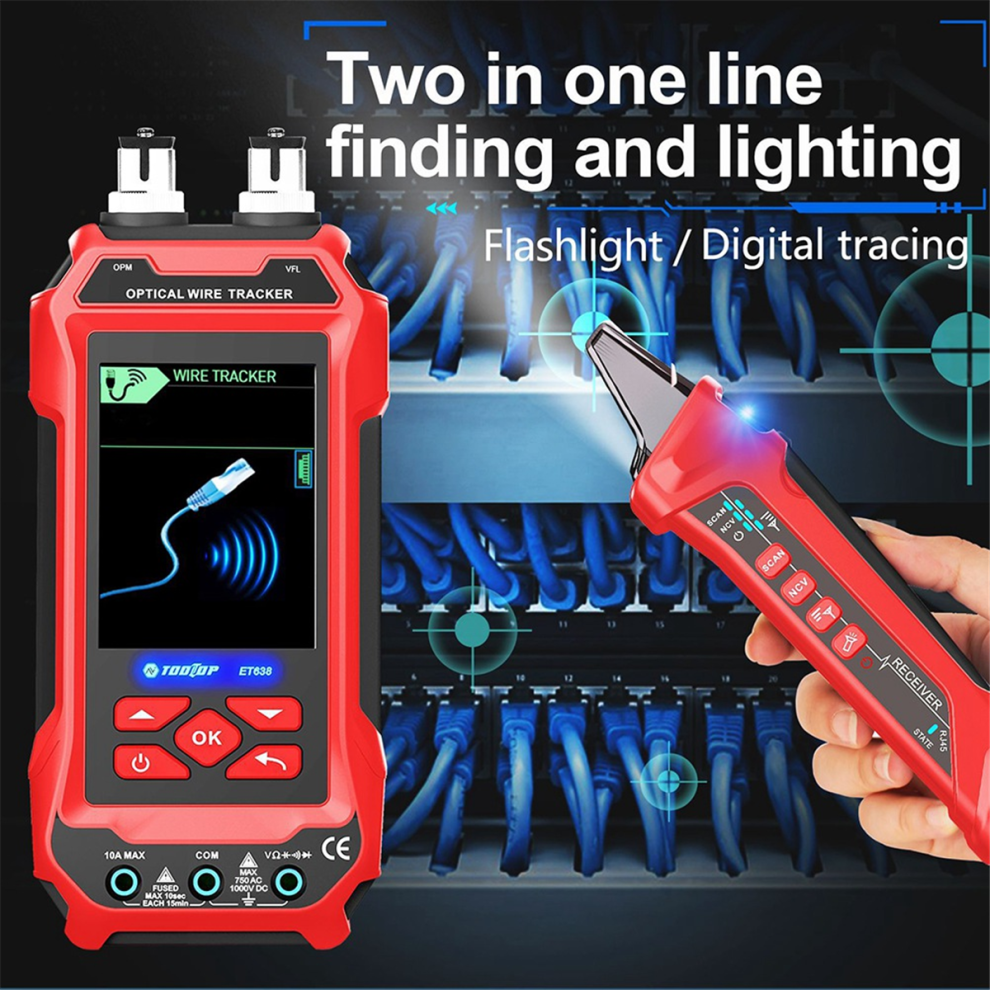

Digital Tracing: Digital mode (ET636)
Cable Mapping: Normal/Open/Short/

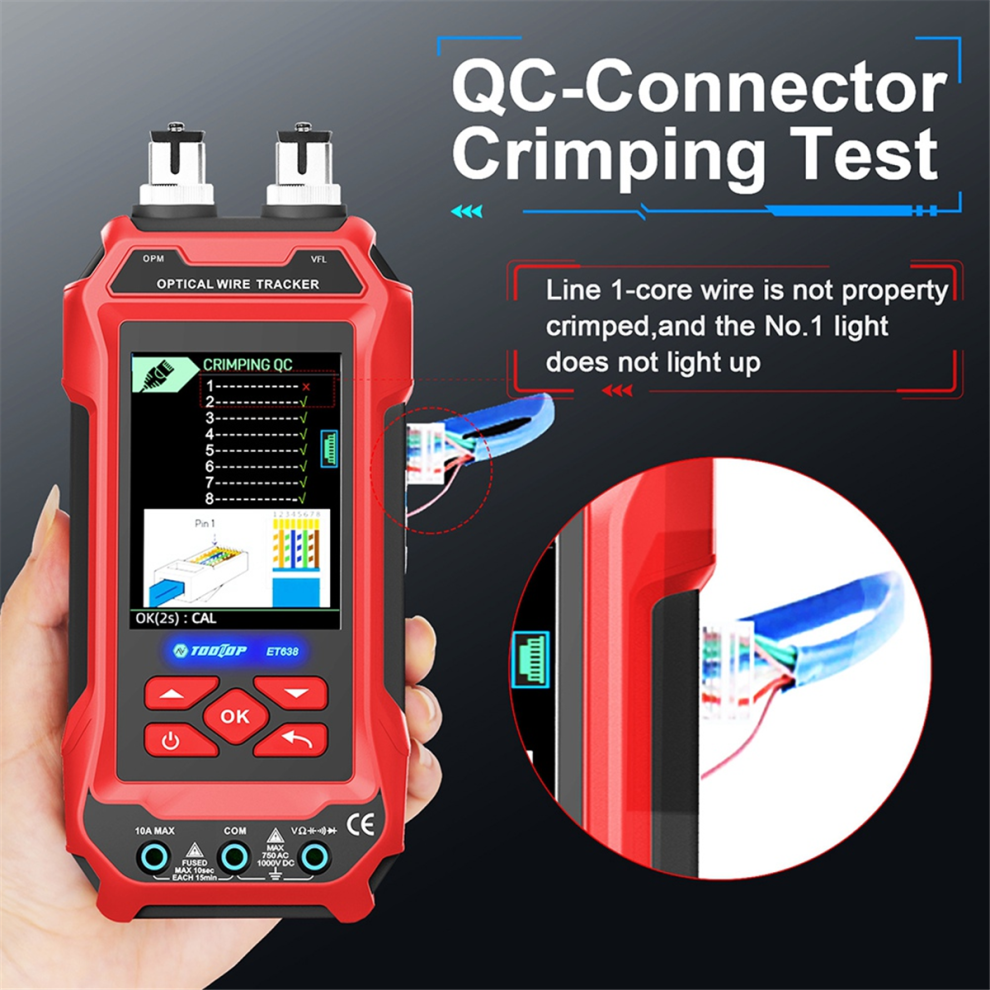

QC Crimping: Support
NCV: Support
Receiver: Sensitivity adjustable
Switch Flash: 10M/100M/1000M
POE Test: Voltage/polarity
Account: 100 records storage/unit price/amount
Visual Fault Locator(VFL):10wm, about 10kM, ON 1Hz/2Hz/OFF
Optical Meter
Measurement range:-70.00~6.00 dBm
Optical power display: mW/uW/nW/dBm/dB
Interface: , SC, FC
Standard wavelength: 850,980,1300,1310,1490,1550,1625nm

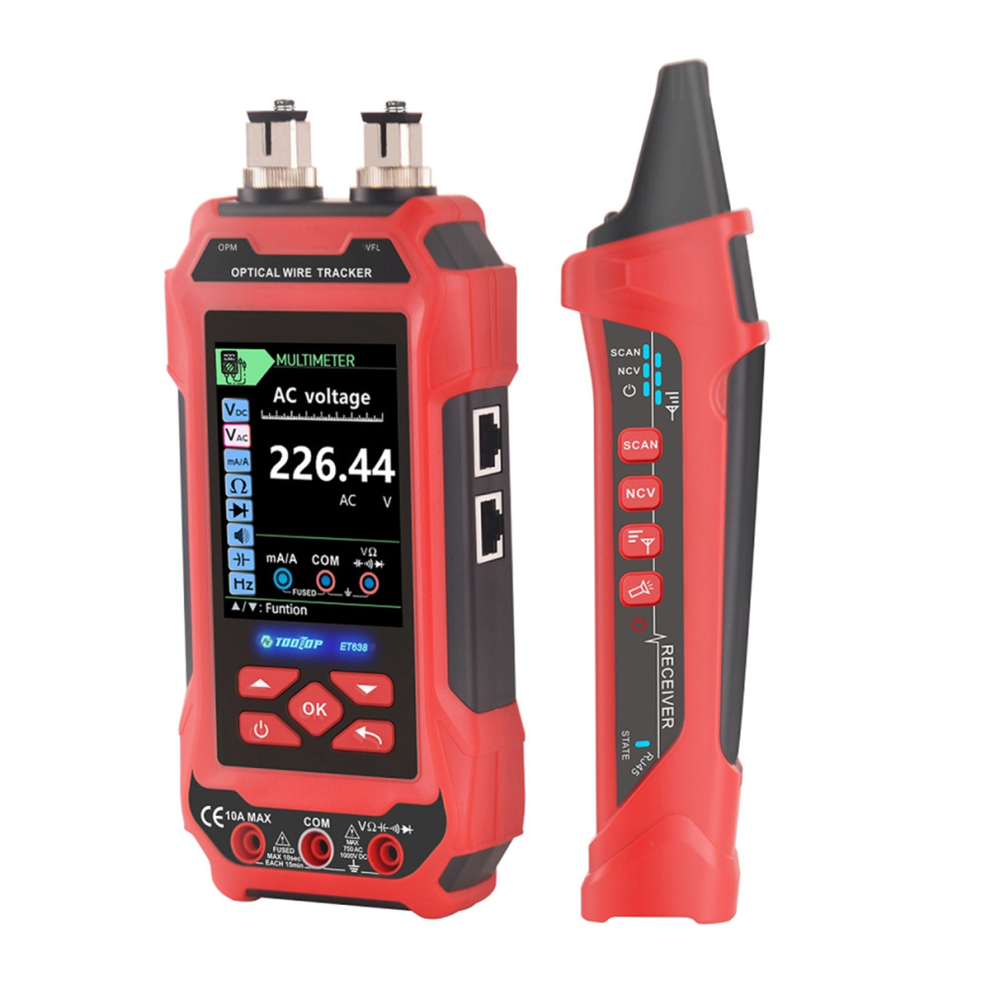

Multimeter[only for ET636]
Color: Red
Material: ABS

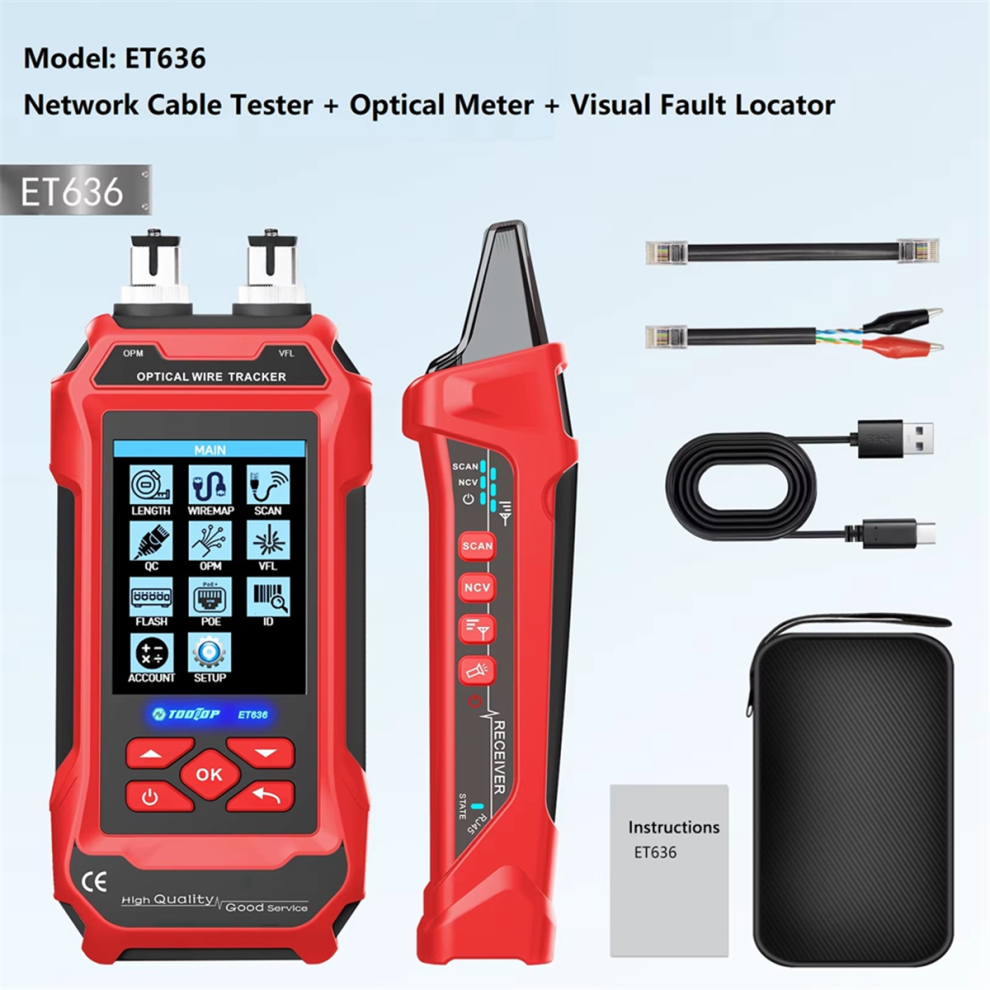

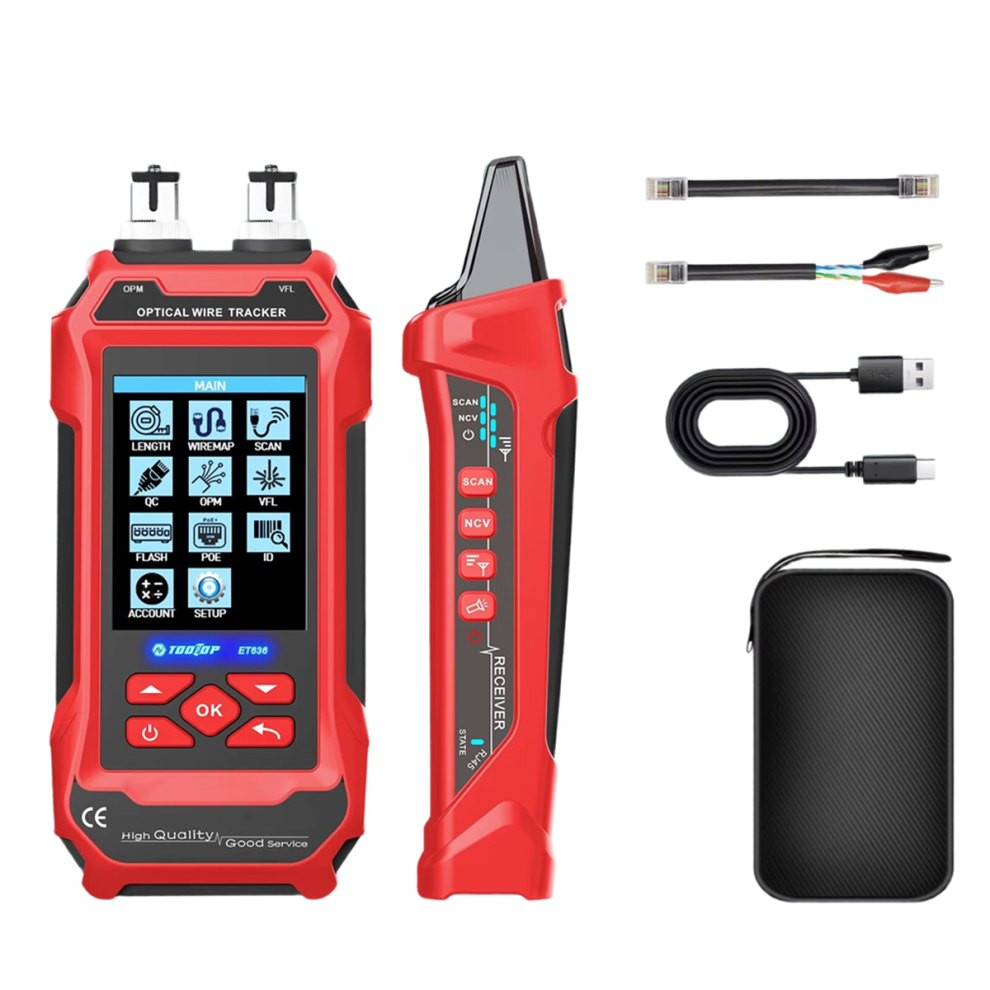

Package Contents:
1 * line finder
1 * red light
1 * charging cable
1 * storage box

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
