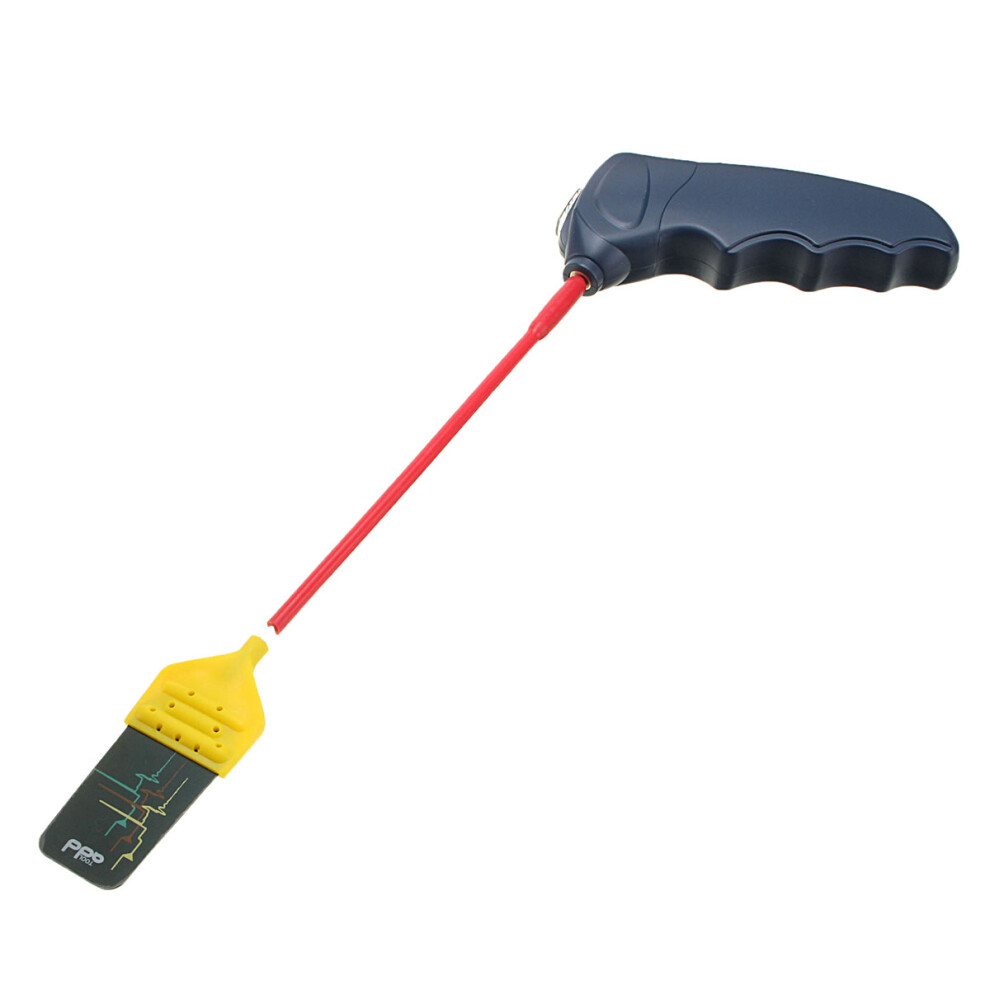

New Auto Coil On Plug COP Ignition System Quick Tester Checker Circuit Tool

New Auto Coil On Plug COP Ignition System Quick Tester Checker Circuit Tool Description

Description:
Test Results 1:

Red LED Light
Consistent, steady flashing and beeping indicates the COP is producing the correct amount of voltage.
No response or an inconsistent response indicates the COP is NOT producing the correct amount of voltage.
This may be caused by one of the following:
1.Fouled spark plug, or incorrect gap
2.Damaged/corroded wires or connectors
3.Faulty coil or PCM
Test Results 2:
Green LED Light
Consistent and steady flashing indicates the duration of the arc is correct.
No response or an inconsistent response indicates the duration of the arc is NOT correct. This may be caused by one of the following:
1.Shorted windings inside the coil
2. Resistance or bad connections in the
3. primary / secondary connections
4. Faulty coil

Note:
This tester is powered by 3v button battery.

Package included:
1 X
COP Ignition System Quick Tester(Not included batteries)
