New Dash Race LCD Display Full Sensor Kit Dashboard Screen Rally Gauge With bluetooth Function

New Dash Race LCD Display Full Sensor Kit Dashboard Screen Rally Gauge With bluetooth Function Description

Description:
Clear, bright, high visible green backlit LCD display.
Uses Sensor bluetooth connection
Alarm and LED's.

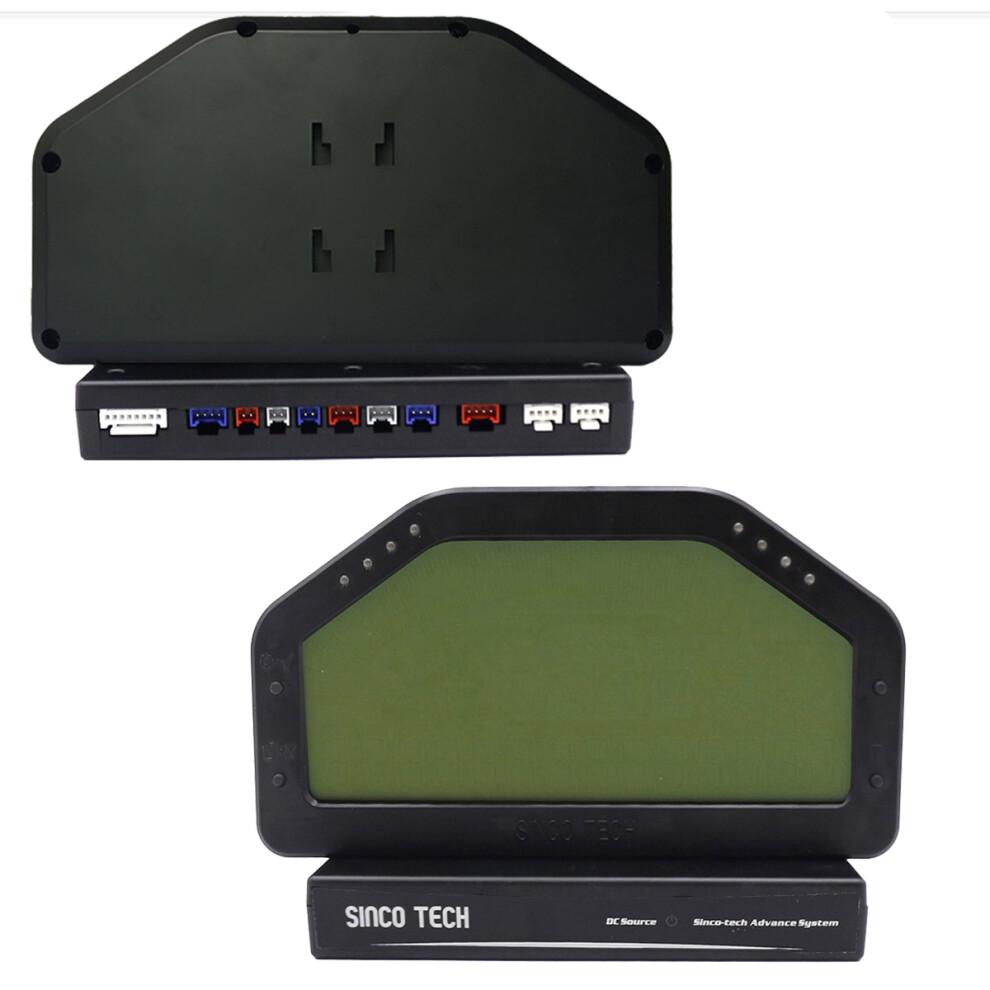

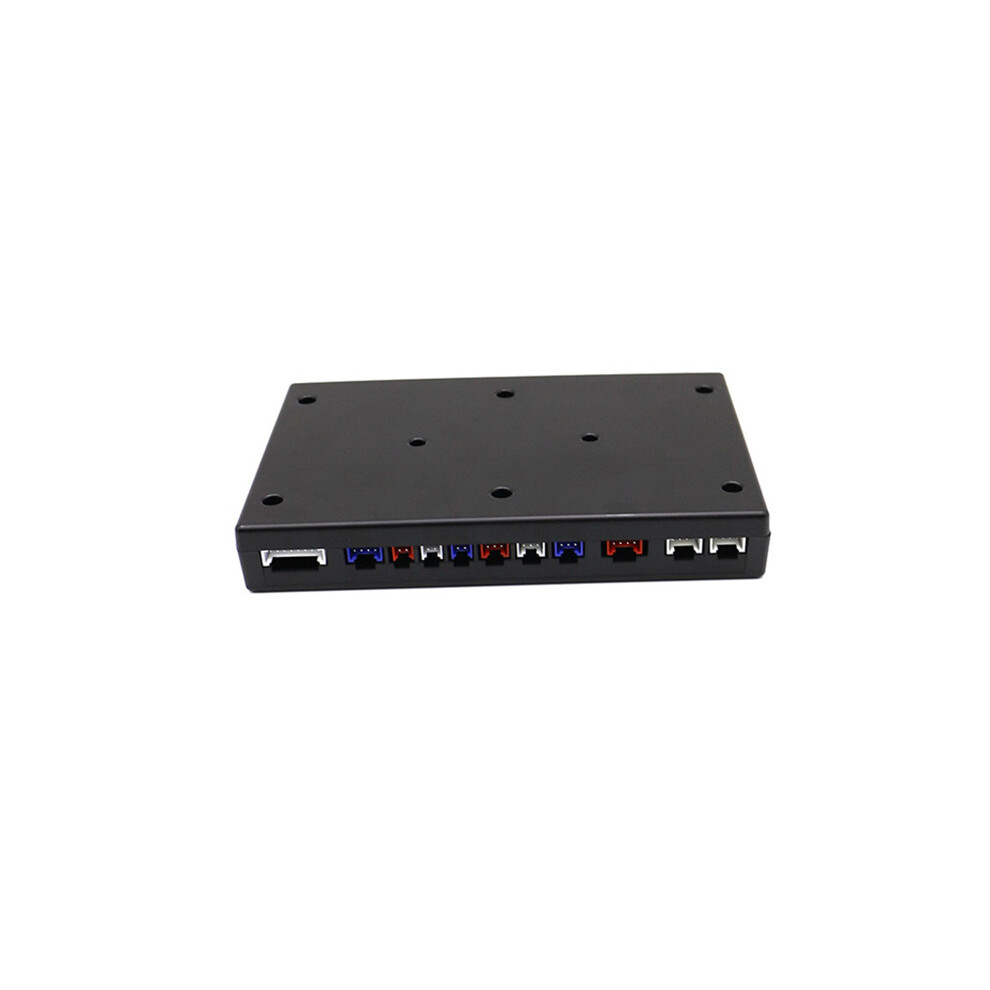

Includes the data processing unit (DPU) all sensors including:
1. spare socket
2. spare socket
3. power
4. Boost sensor
5. Oil Pressure sensor
6. Air Fuel Ratio sensor
7. Oil Temp sensor
8. Water Temp sensor
9. Exhaust Gas Temp sensor
10. RPM (green wire) and Speed meter (red wire)
11. spare socket

Specification:
Name: Dash Race Display
Connect: Sensor bluetooth
Model: DO904
Voltage: 9V-16V DC
Speed: 7000 or 9000rpm tacho
Suitable For: 12V Universal cars.
Size: 185 x 102mm

Note:

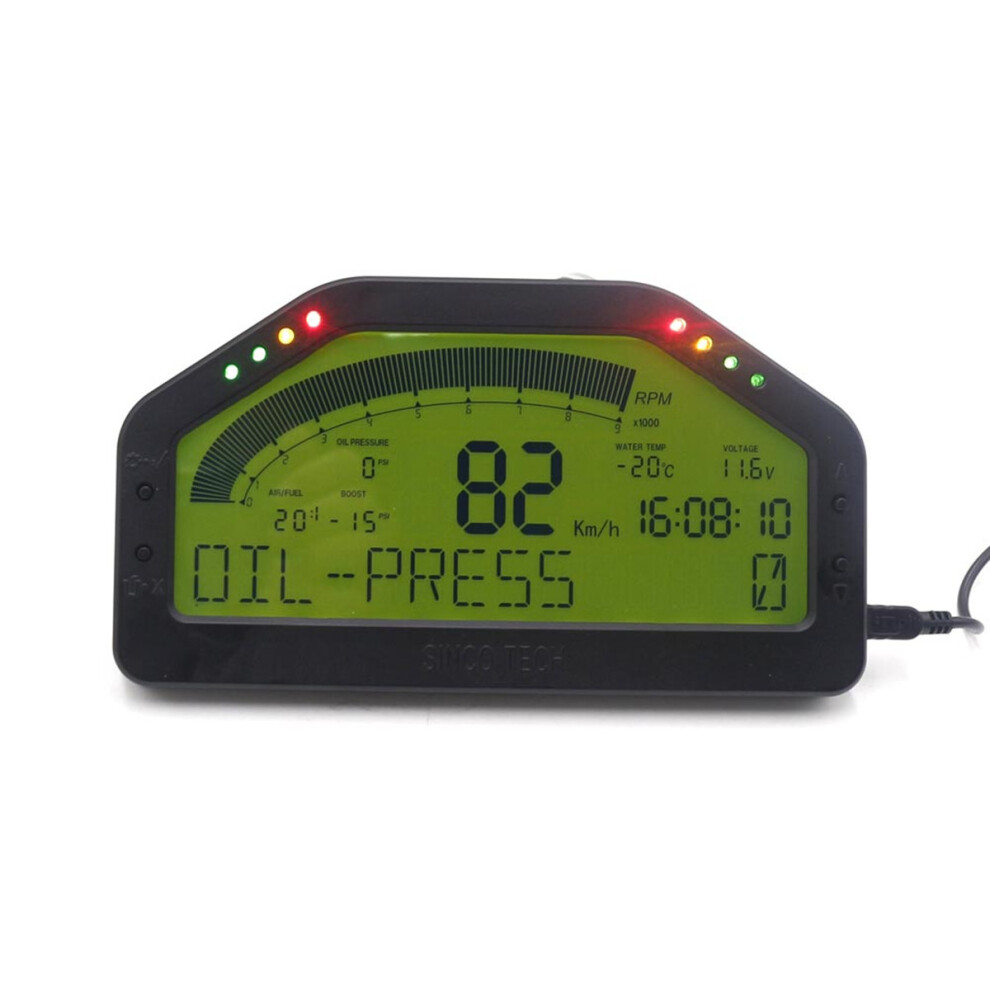

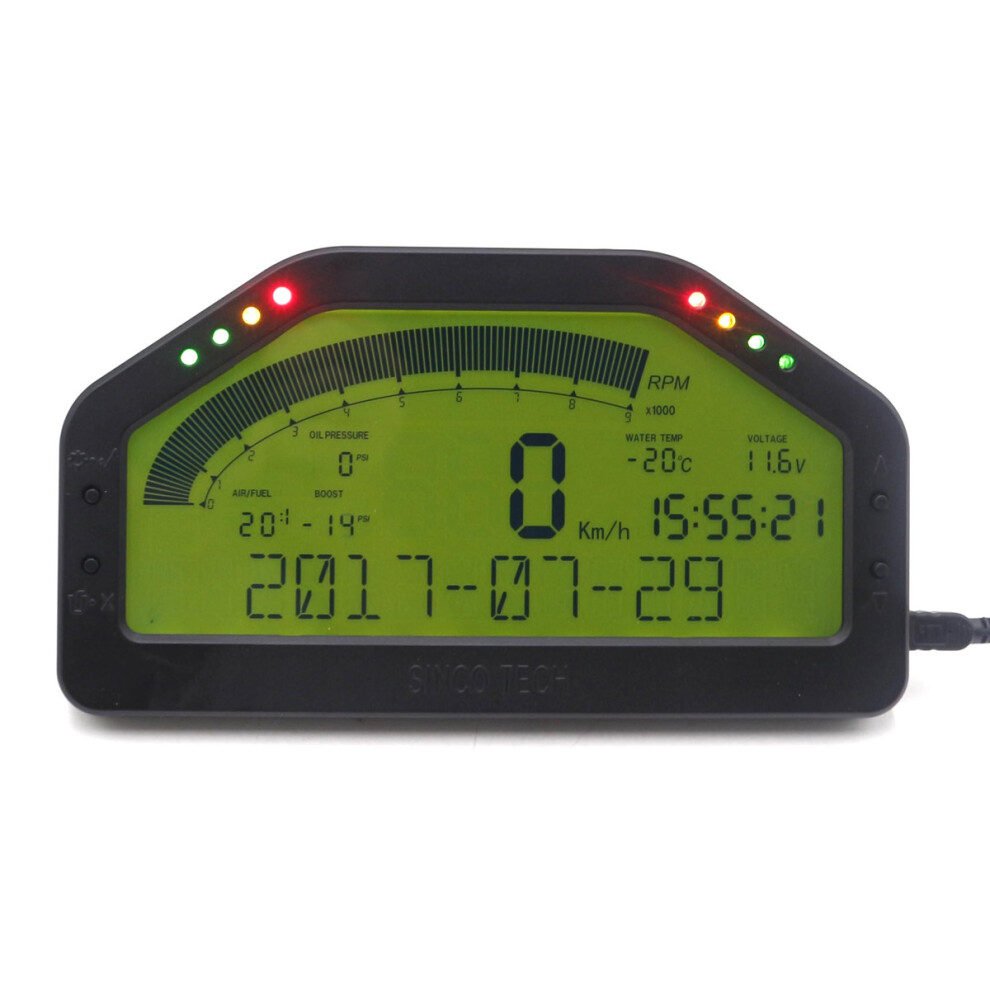

When the connection between the Monitor and the DPU is established,it will switch to the normal display:
1. RPM
2. Speed
3. Oil Pressure
4. Air Fuel Ratio
5. Turbo
6. Coolant Temp
7. Voltage
8. Time
9. Multi-purpose display section. Displays the date by default. The display can be changed by using the “↑” and “↓” button.

Bottom of Display:
1-SET DATE
2-SET TIME
3-SET UNIT (select to change the measurement unit for pressure)
4-SET LED (select to turn the LED on and off)
5-SET ALARM (select to adjust the speed limit alarm)
6-SPEED CAL (select to calibrate the speed)

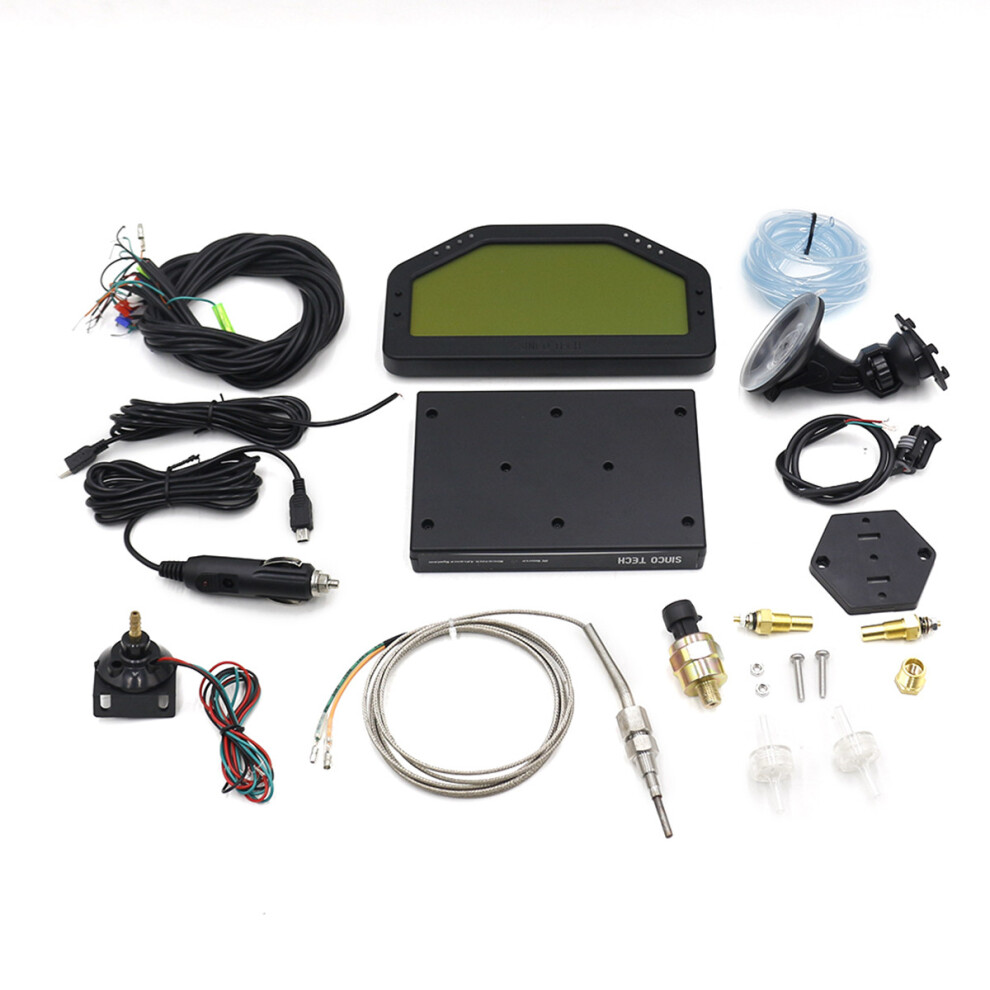

Packing Included:
Dash display
Power leads
All necessary sensors and accessories
Installation Manual
