New DC20D Generator Controller Generator Control Module DC8-36V AC20-276V 10-70Hz

New DC20D Generator Controller Generator Control Module DC8-36V AC20-276V 10-70Hz Description

Description:
DC20D is one module used for diesel engine or generator.
It is with the functions of auto star/stop,protection and alarm indication.

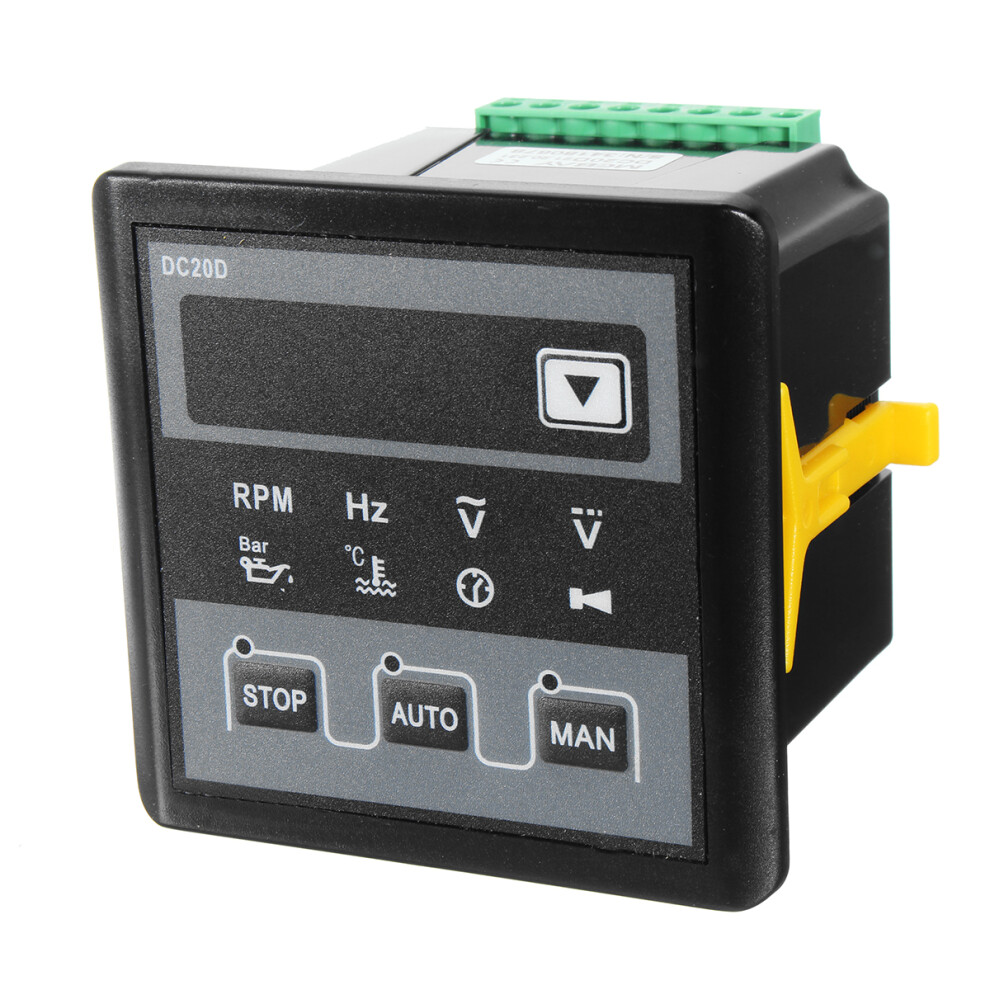

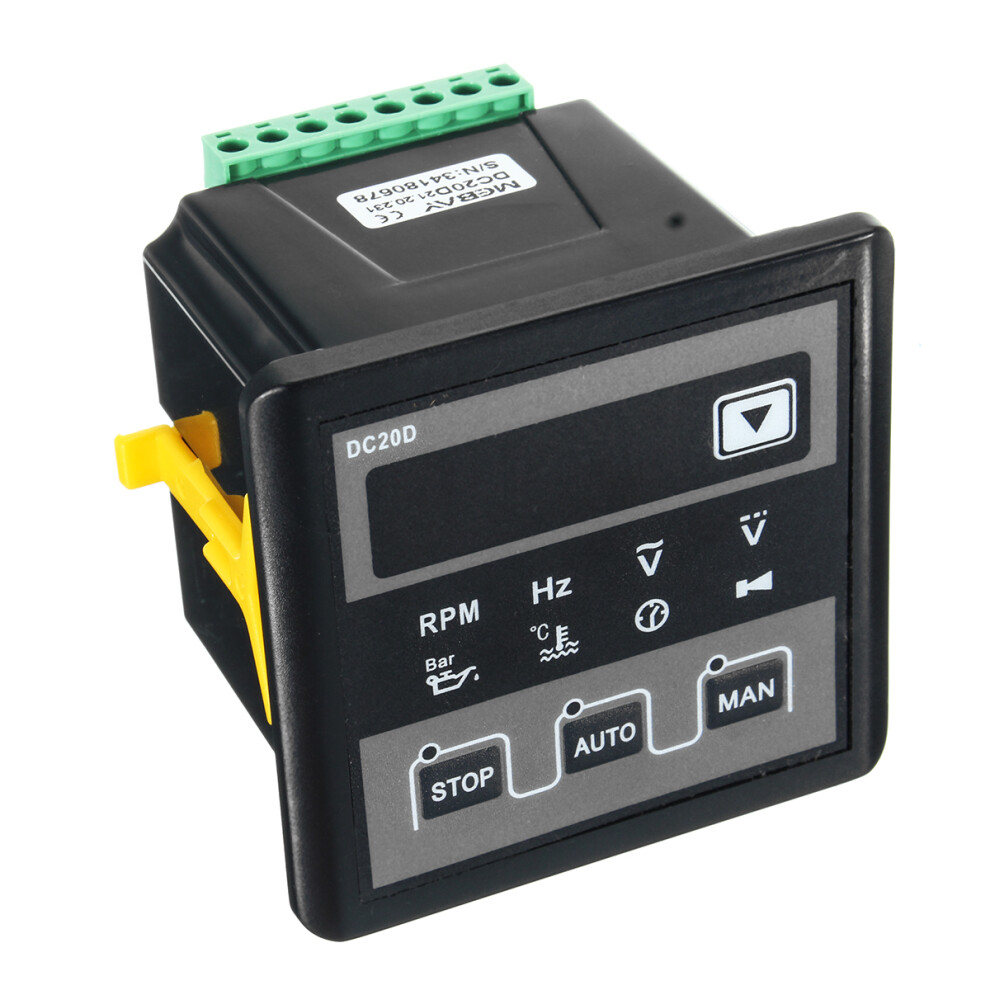

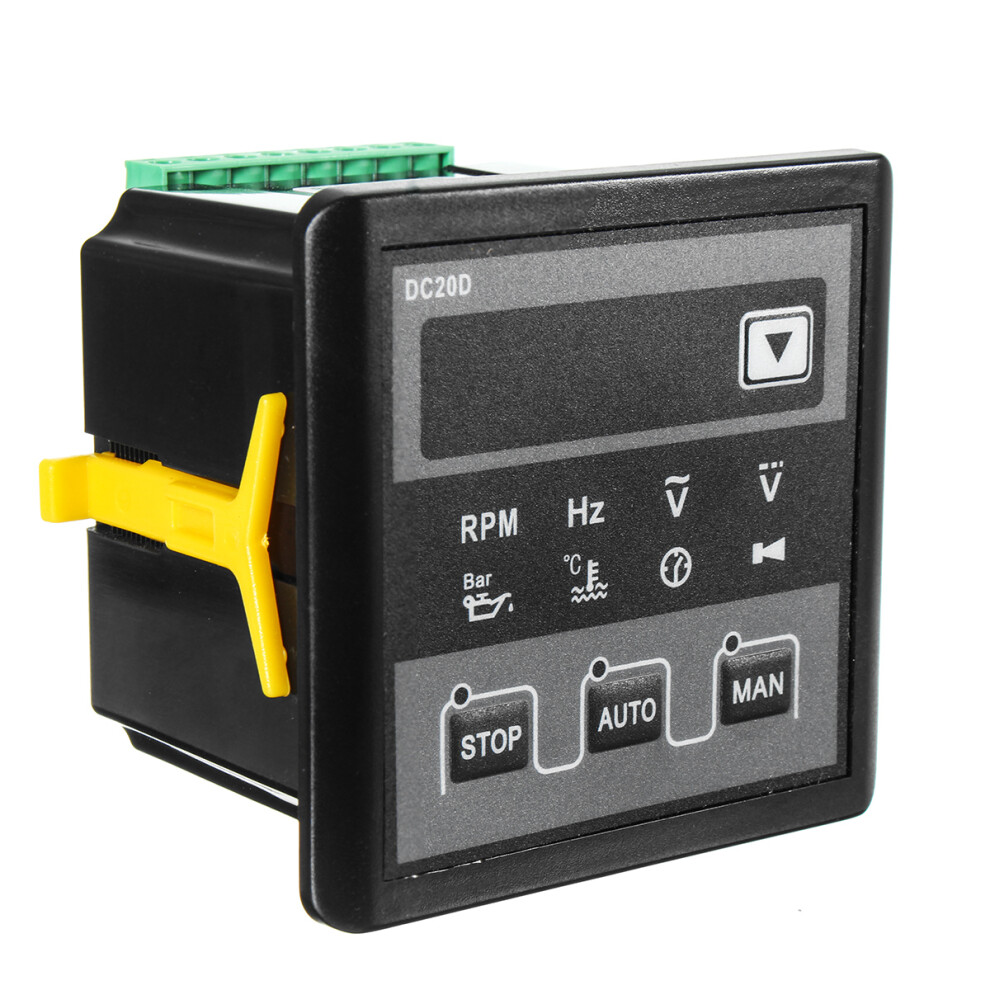

DC power and running situation is indicated on the front panel.
The status of the engine and generator can be checked conveniently
because these parameters of over frequency,low frequency, over voltage,
under voltage, low oil pressure,high temperature,low water level,low oil level,
charge failure,over-time stop, emergency stop alarm system
as well as low battery voltage can be indicated in time.

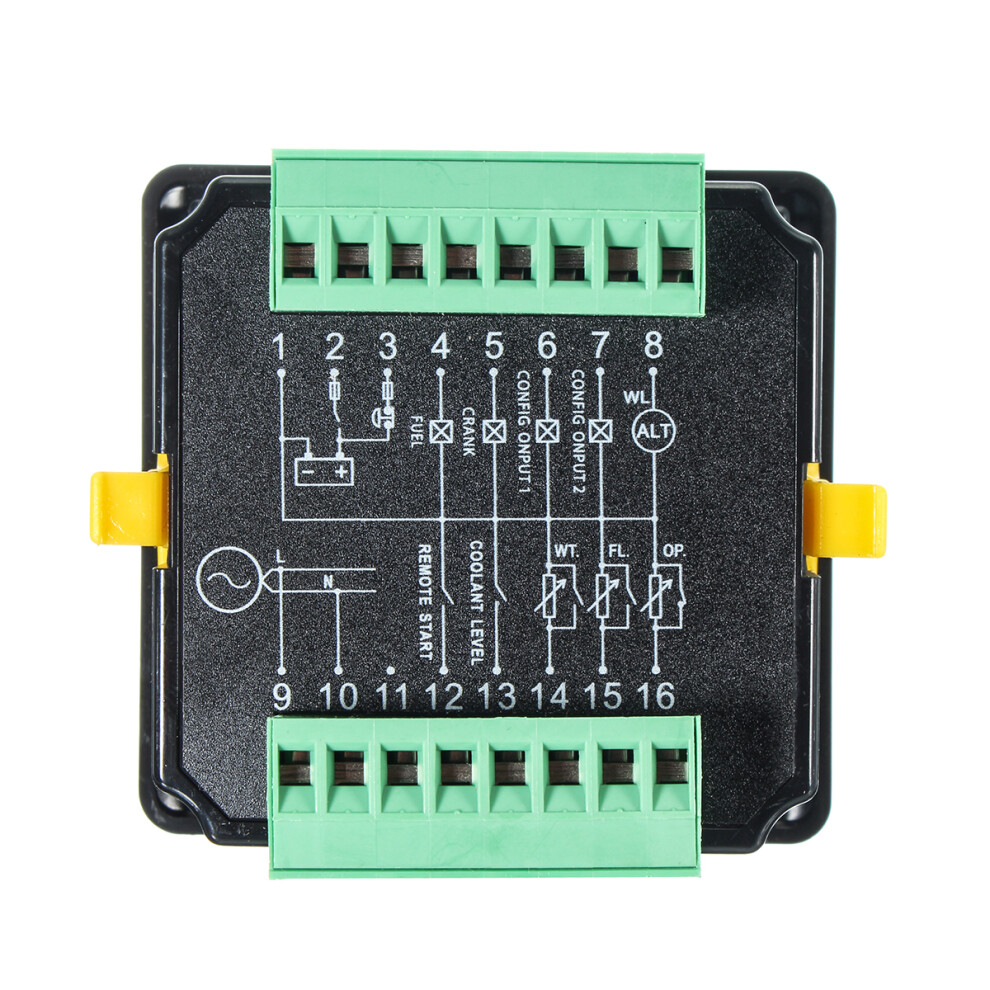

The output connector is connected with traditional relay
which can burden more output current.
The parameters can also be set by the front face buttons
so that it can be used in different kinds of situations.

Specification:
DC Supply: DC8-36V
Power Consumption: Max 3W
Measuring Frequency: 10-70Hz
AC Input: AC20-276V
Relay Output: Start output: max 3.5A
Fuel Output: Max3.5A
Comfigurable Output: Max 3.5A
Excitation Output: Max 1A
Size: 78*75*67mm
Panel Cut-out: 67*67mm

Function:
Micro-computer control
Man/auto start/stop
5 units LED tube display
LED and fault alarm code indication
Two group of programmed relay output
Application for various kinds of engine by self-setting
Control function
Barring auto control
Start delay control
Man start/stop
Remote auto start/stop
Auto escape from motor, motor escape from oil pressure switch
Pre-heat control
Cooling control
Stop/Idle control
Parameters display
RPM
Frequency
AC voltage
Battery voltage
Oil pressure
Water temperature
Accumulated running time
Protections
Low oil pressure
Low coolant water level
High coolant water temperature
Over voltage
Over frequency/over speed
Emergency stop
Stop failure
Start failure
Low fuel level
Low battery voltage
Configuration methods
Configuration can be set on the front-face buttons

Package Included:
1 X DC20D Generator Control Module
