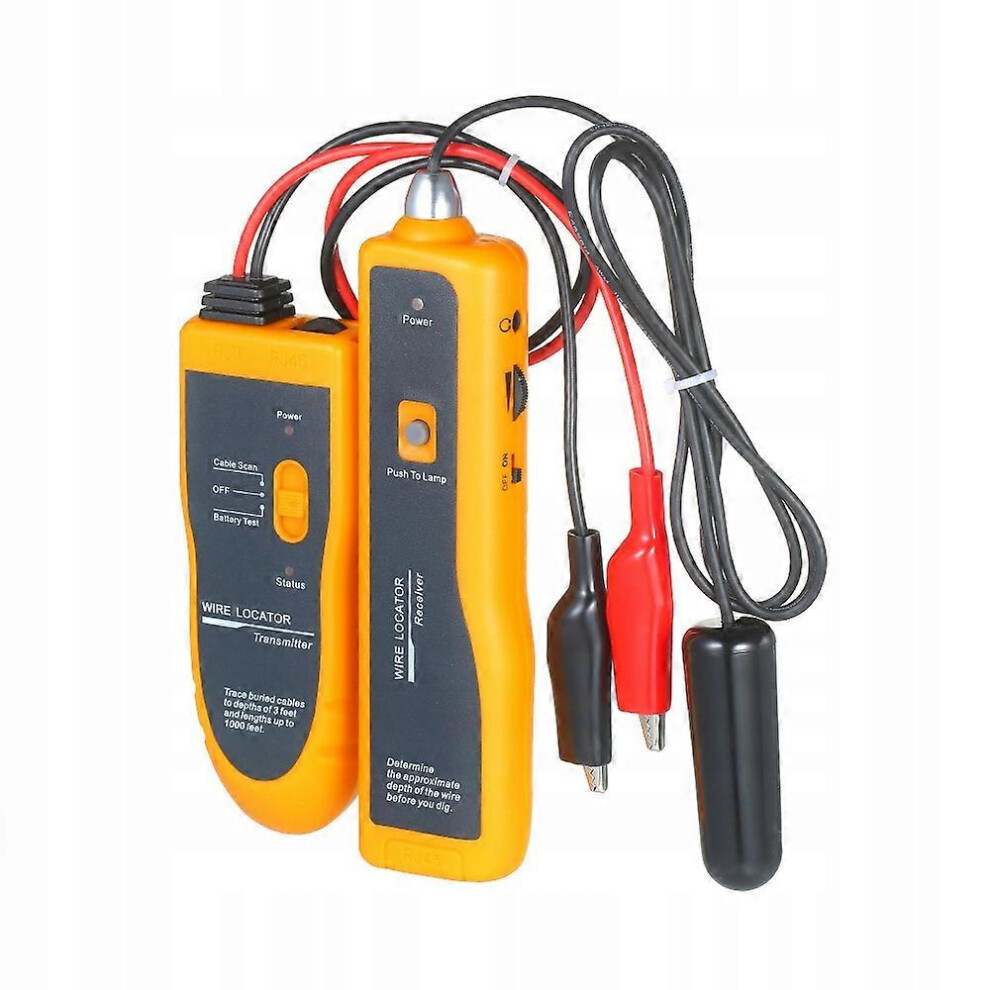

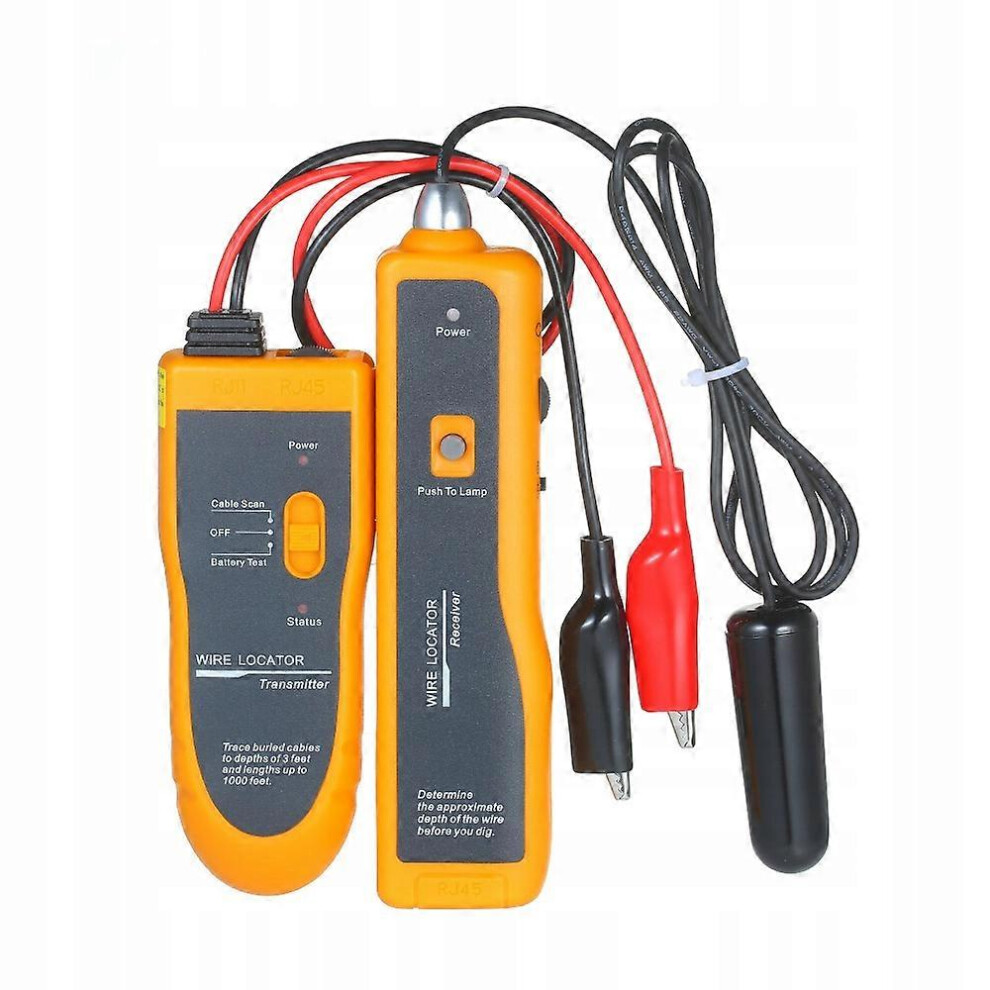

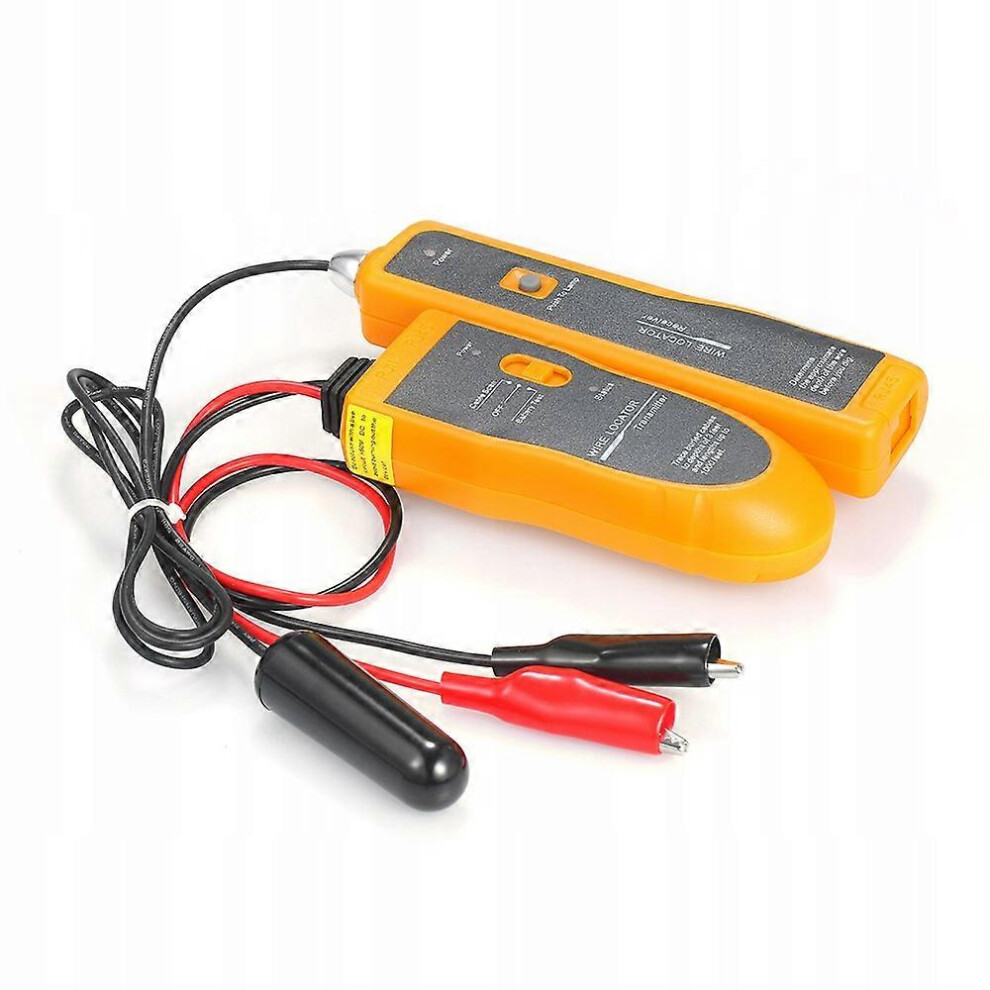

Nf-816 Underground Cable Locator

Nf-816 Underground Cable Locator Description

The underground cable locator is designed to allow the user to track low voltage cables used in automatic garden and landscape irrigation systems and in low voltage garden lighting systems. It can also be used to track other metal cables.
Features:
Track and locate underground wires or in walls.
Allow cables to be located before drilling.
The detection range is 3 feet and the cable length is 3000 feet.
Equipped with a pair of 3,5mm headphones that can be connected to the receiver headphone jack to improve performance in noisy environments.
Designed with a white LED flashlight for additional lighting in the dark.
It can adjust the transmitter and receiver controls to move further distances depending on the depth of the wire.
Technical data:
Material: ABS
Headphones: 3,5 mm headphones
Net Weight: 273g/9,64 oz
Package Weight: 370g / 13.07oz
Package Size: 28,3 * 15 * 4,8 cm / 11,14 * 5,91 * 1,89 inch
TRANSMITTER:
Tone Frequency: 200 kHz
Memory clock speed Distance: 500 m/1640,42 feet
Memory clock speed Depth distance: 50 cm/1,64 feet
Memory clock speed Operating current: less than 70mA
Memory clock speed Signal Voltage: 15VP-P
Signal Display: Tone
Transmitter Size: 134 * 49 * 33 mm / 5,28 * 1,93 * 1,30 inch
Transmitter Weight: 75g/2,64 oz
RECIPIENT:
Frequency: 200kHz
Memory clock speed Operating current: less than 70mA
Headphone jack: 1
Receiver Size: 163 * 40 * 27 mm / 6,42 * 1,57 * 1,06 inch
Receiver Weight: 101g/3.56oz
List of things to pack:
1 * Transmitter
1 * Receiver
1 * Headphones
1 * Case
1 * manual (English)
