NRF24L01+PA+LNA Wireless Transceiver Transceiver Module 1Set

NRF24L01+PA+LNA Wireless Transceiver Transceiver Module 1Set Description

NRF24L01+ PA+ LNA Wireless Transceiver Module 1 Set Description
If you want to build your wireless communication system cost-effectively, this wireless transceiver module is the ideal choice! It offers a balanced performance-to-cost ratio for wireless transmission!

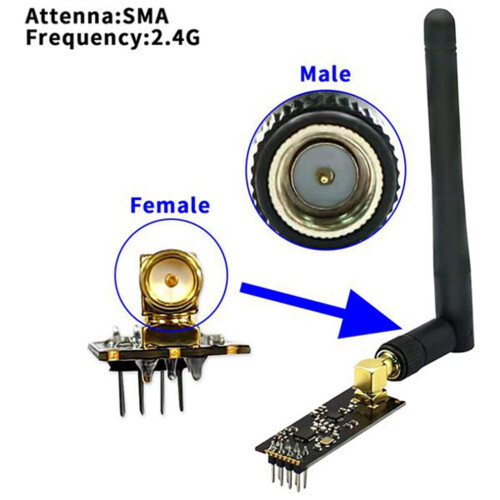

You can easily use it with your own MCU/ARM/PIC/AVR/STM32 system! Furthermore, the NRF24L01+ module is equipped with a power amplifier and SMA antenna, enabling wireless communication over more than 800 meters! (No Barrier)
A host microcontroller can communicate with and configure the nRF24L01+ via a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible via the SPI connection. Configurable parameters include channel frequency (125 selectable channels), output power, and data rate (data rates: 250 kbit/s, 1 Mbit/s, and 2 Mbit/s).
The integrated voltage regulator supports supply voltages from 1.9 to 3.6 V. The module features 5 V-tolerant inputs, allowing direct connection of SPI pins to (compatible with) Arduino IDE.
Internal filtering results in high margins of compliance with regulatory standards. The module uses Gaussian Frequency-Shift Keying (GFSK) modulation and fast automatic gain control (AGC). It includes an Interrupt Request () pin, which can wake the host microcontroller (e.g., for Arduino IDE) from sleep mode when the module receives a transmission. This allows for significant power savings in battery-powered devices. Range: Over 800 meters line of sight. Frequency: 2.4 GHz - 2.5 GHz. Operating voltage: 3-3.6 V max. Max. current: 115 mA. Multi-frequency: 125 frequencies. Quantity: 1 set. Color: Black. Material: PCB + plastic + metal. Package contents: 1 * radio module, 1 * antenna. Only the above package contents are included; other products are not included. Note: Due to light reflection and different monitor settings, the color of the item shown may differ slightly from the actual product. The permissible measurement error is +/- 1-3 cm. [OnBuy.com]
