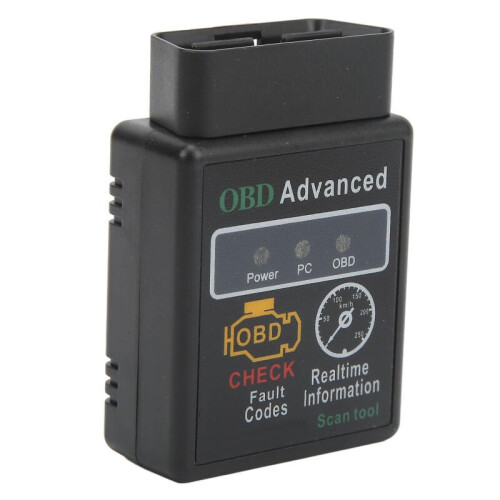

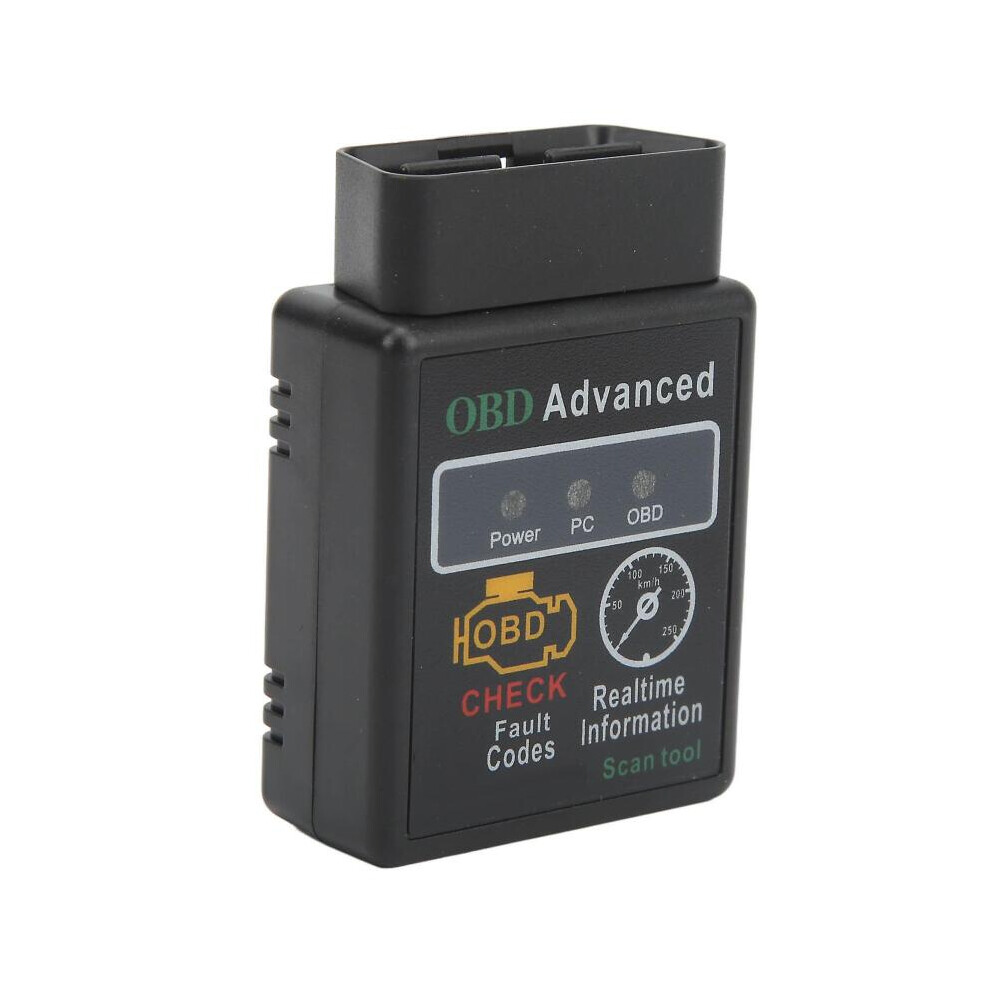

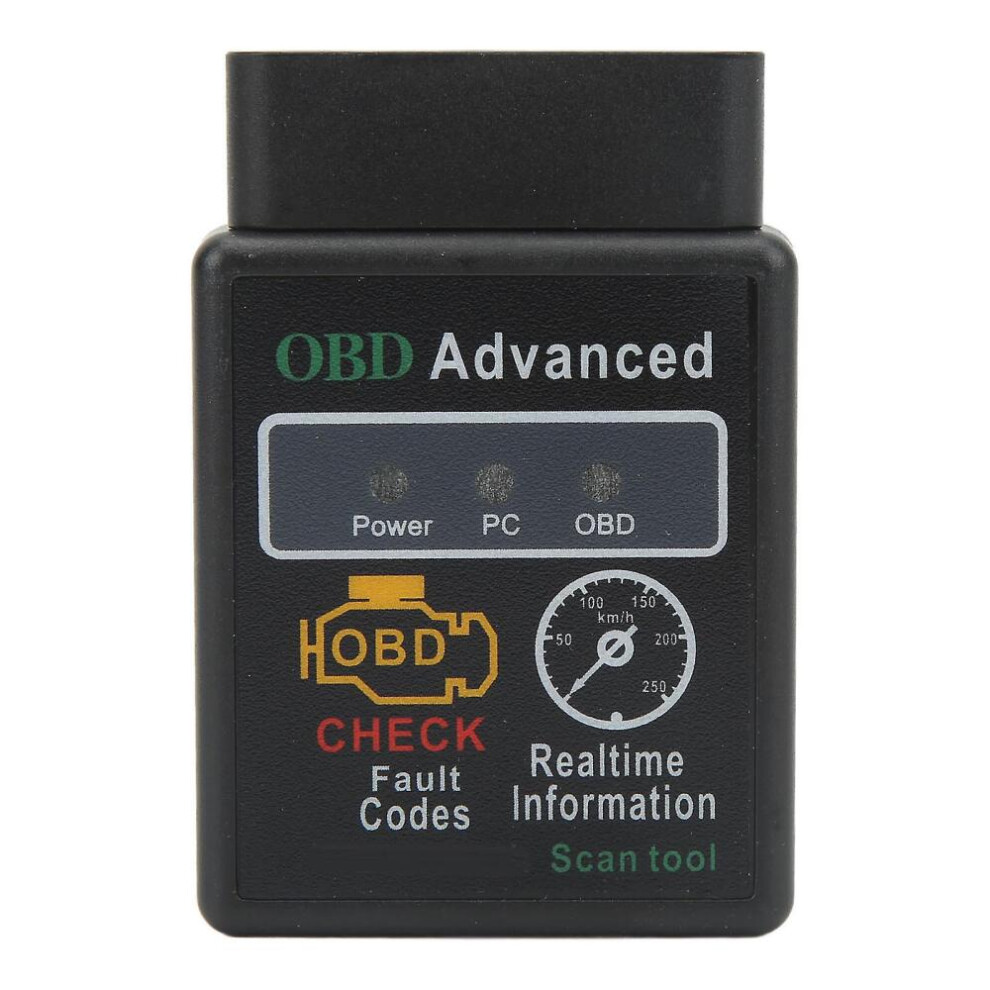

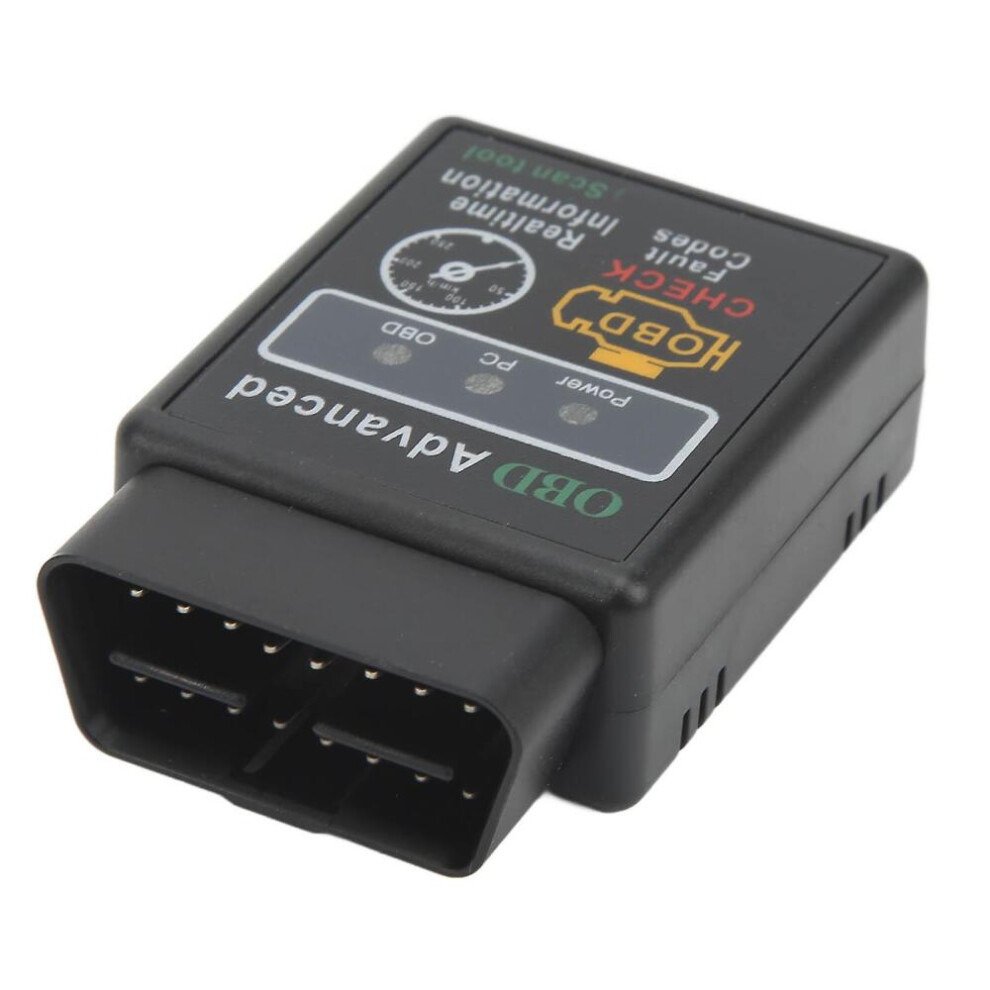

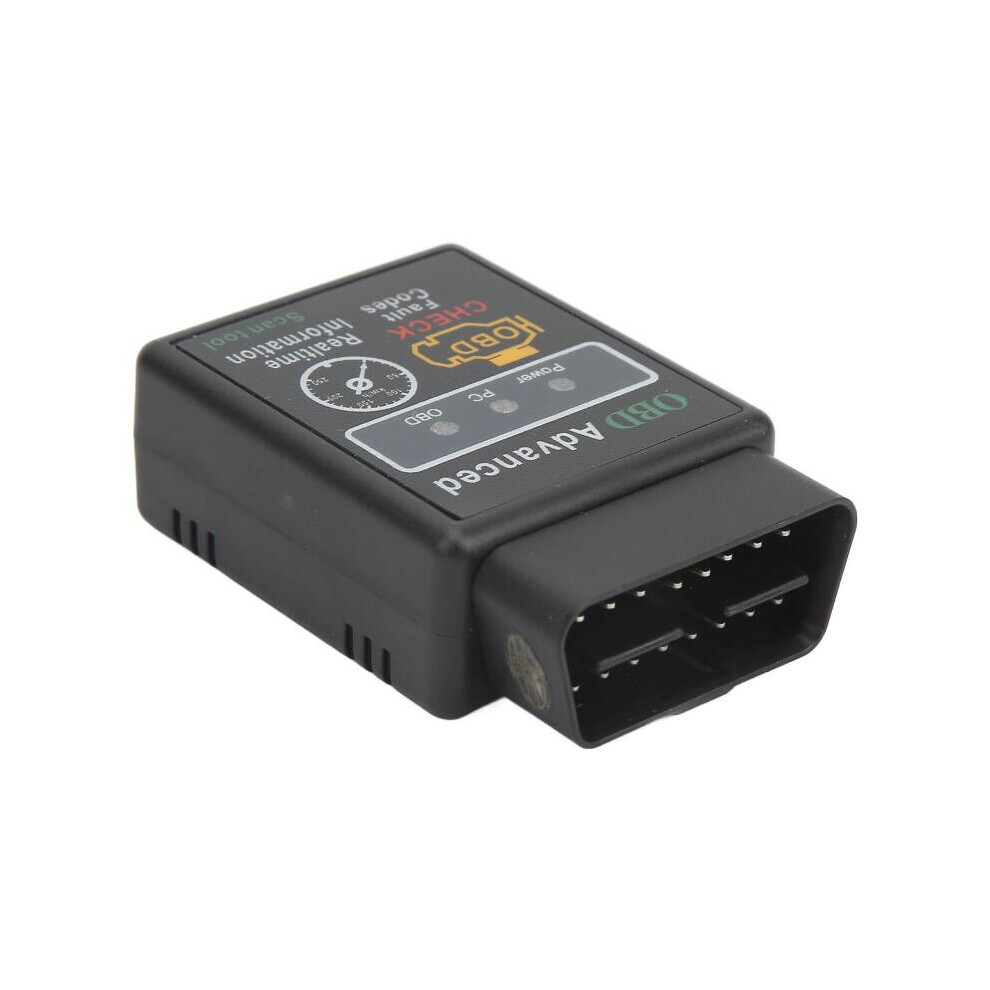

OBD2 Diagnostic Scanner 25K80 Chip for ELM327 V1.5 Wireless Bluetooth Fault Code Reader

OBD2 Diagnostic Scanner 25K80 Chip for ELM327 V1.5 Wireless Bluetooth Fault Code Reader Description

Features\uFF1A

1\u3001Multifunction Scanner: This is a car diagnostic interface scanner, it is used to read trouble codes, clear trouble codes, display current sensor data and so on.

2\u3001For ELM327 Software: OBDII Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

3\u3001Application: Mini OBD2 bluetooth scanner, software version is V2.1 (depending on software), hardware version is V1.5, works with all OBD II compliant vehicles.

4\u3001Compatible Systems: Engine fault code reader supports multiple platform, such as for Windows XP, for Windows 7\/8, for Android, for Symbian.

5\u3001Premium Material: Mini OBD2 Bluetooth scanner is made with an upgraded premium ABS plastic, high temperature resistant, not easy to break. Small size, easy to carry.

Specification\uFF1A

Item Type:\u00A0OBD2\u00A0Diagnostic\u00A0Scanner

Material: ABS

4 Reasons To Get Mini OBD2 Bluetooth Scanner:

1. Software Version: V2.1 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD II compliant vehicles

4. Wireless (Bluetooth)

Supported protocols:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2 (5 baud init, 10.4 Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Bluetooth Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the Light (Check Engine light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others

Mini OBD2 Bluetooth Scanner Characteristic:

Communication: Bluetooth 2.0

Master Chip: PICI8F25K80

Support System: For Android and for Windows

Working Voltage: 9V-16V

Working Current: 35mA

Standby Current: 25mA

Operating Temperature: -40\u2103-85\u2103

Working Humidity: Less than 60%

Compatible Systems:

Software Support Platform: For Windows XP, for Windows 7\/8, for Android, for Symbian .

Compatible software:

For Window: For ScanMaster ELM, for ScanTool.net, for PCMSCAN ELM, etc.

For Android: Torsion, for DashCommand, for OBD Car Doctor, for Auto Doctor, for Mini OBD, for EOBD, etc.

For Symbian: OBD Scope

Package List\uFF1A

1 x

OBD2\u00A0Diagnostic\u00A0Scanner
