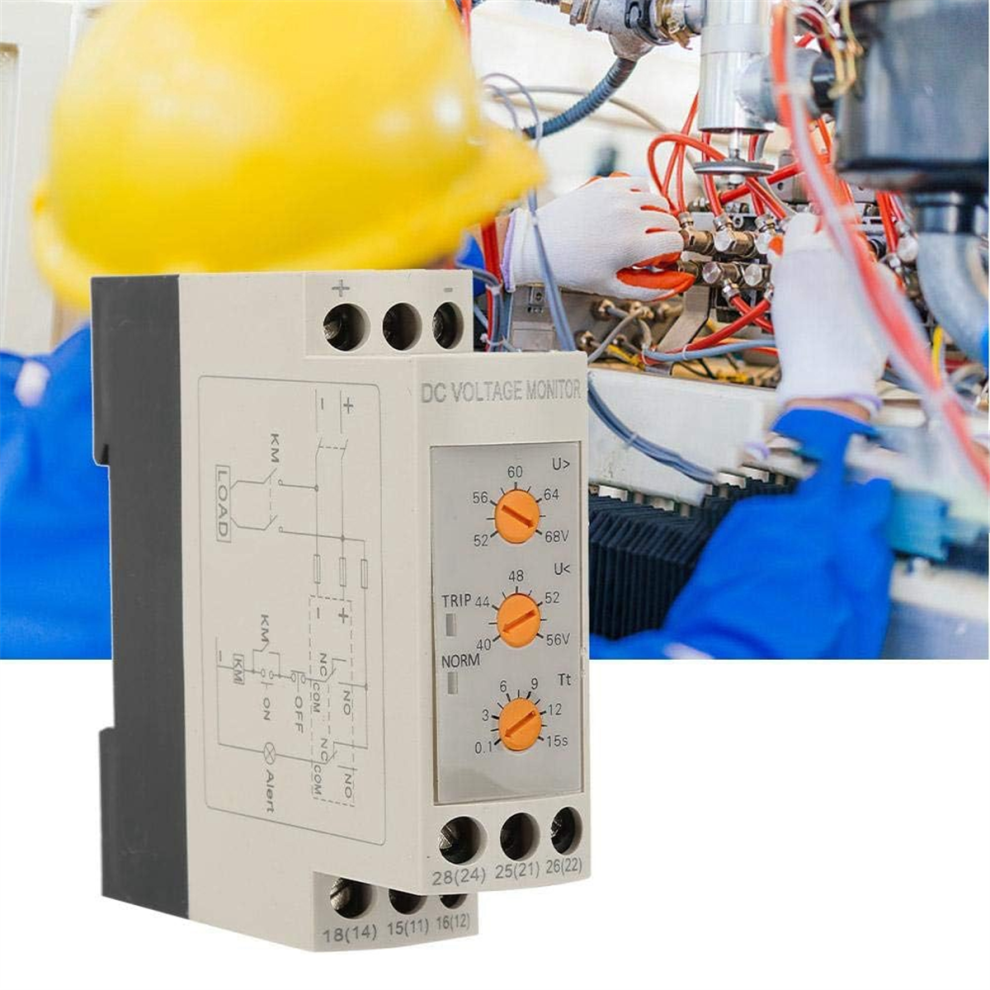

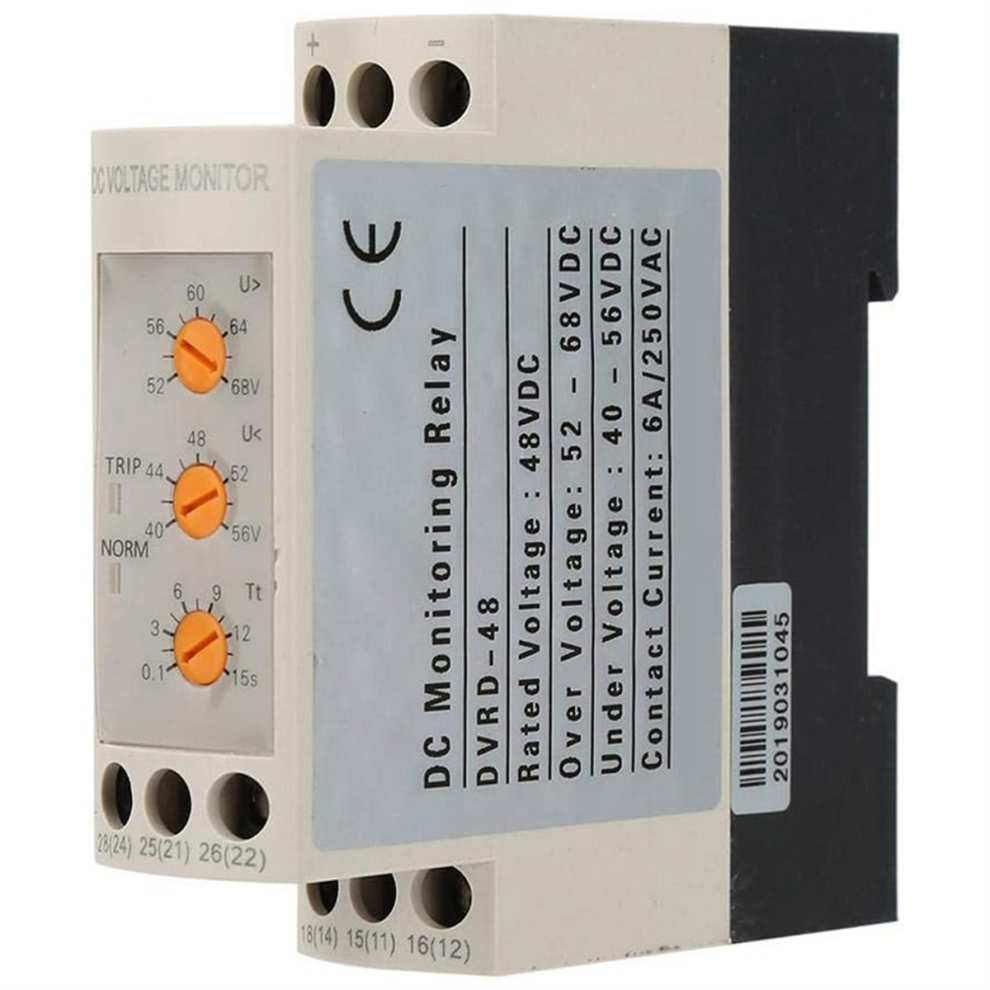

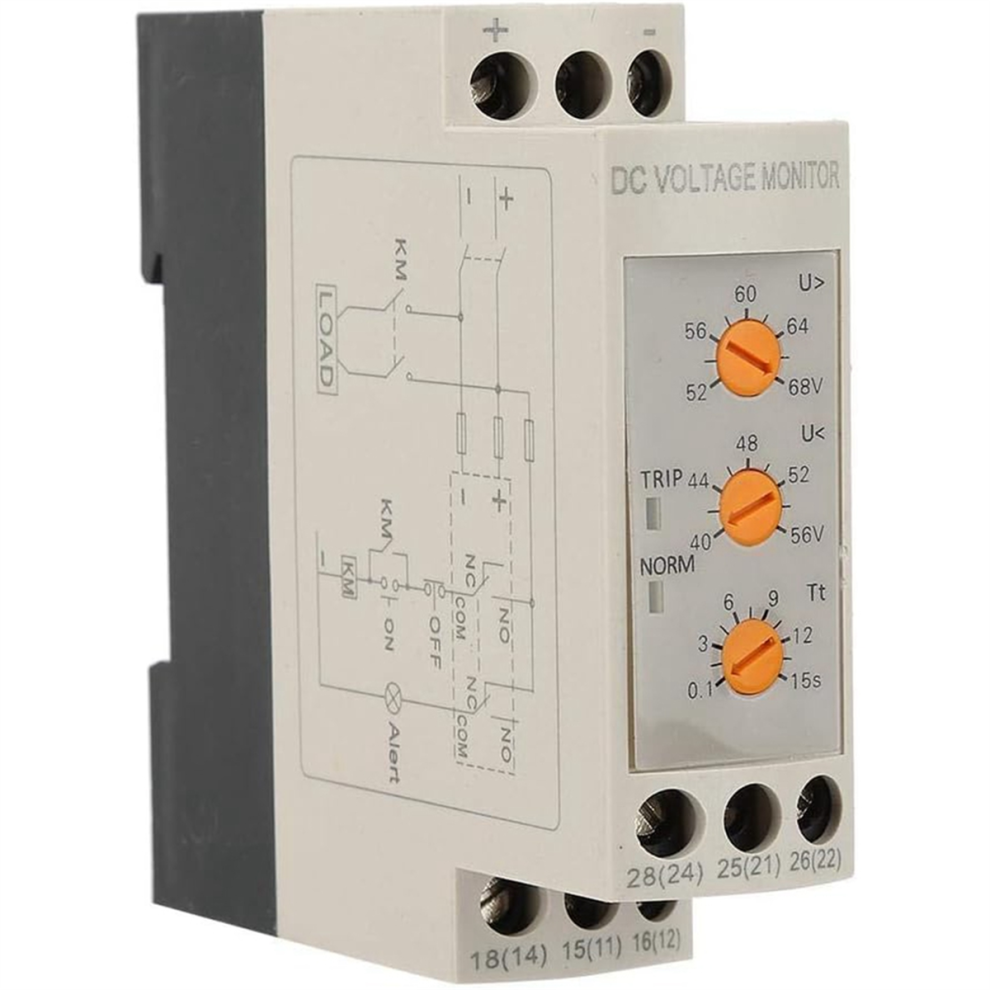

Overvoltage and Undervoltage Protector DC 48V Relay 35mm Rail

Overvoltage and Undervoltage Protector DC 48V Relay 35mm Rail Description

Overvoltage and Undervoltage Protector DC 48V Relay 35mm Rail Description
Guide rail type - small size, standard modular structure, guide rail installation, easy installation
Real-time monitoring - real-time monitoring of DC overvoltage and undervoltage faults, quick response, high stability
Simple - no additional auxiliary power supply required, 2 sets of normally open and normally closed contacts
Features - overvoltage and undervoltage values can be adjusted, overvoltage regulation
The undervoltage protector is equipped with 2 indicator lights to indicate working states, easy to use
Note: due to different factory batches, the label words are different and not affect the use.
Contact capacity: 6A 250VAC (resistivity)
Installation: 35mm guide rail
Overvoltage adjustment range:+8%-+42%
Undervoltage adjustment range:-17%-+17%
Action delay range:0.1-15s
Protection function:overvoltage, undervoltage
Colour:As Shown
Material:ABS
Package Contents:
1 * DC over-voltage and under-voltage protector
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
