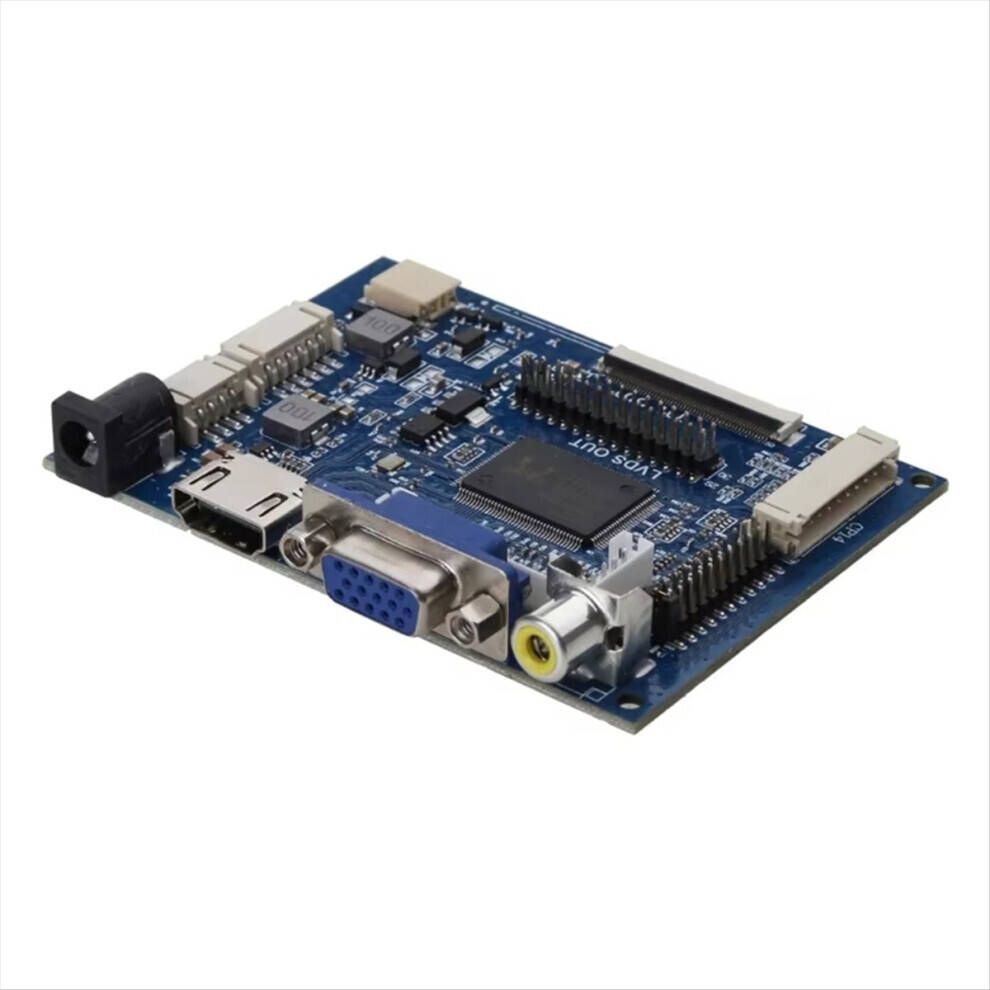

PCB800099 LCD Screen Car GPS Display LCD Driver Board

PCB800099 LCD Screen Car GPS Display LCD Driver Board Description

PCB800099 LCD Screen Car GPS Display LCD Driver Board Description: Standard 6-pin backlight interface, can be connected to an external high-voltage board. The driver board integrates the LCD screen's LED backlight driver board. Standard LVDS signal output, supports single 6", single 8", dual 6", dual 8" and other standard LVDS signal LCD screens, but only supports LCD screens with a 3.3V screen power supply. Standard keypad interface and supports dual-color LED display. Supports TTL signal output such as: AT070TN92, AT065TN14, AT080TN52, AT090TN12, AT090TN10, AT070TN90, AT070TN93, AT070TN94, etc. (TTL LCD screen with universal 50-pin interface)
1-way VGA signal input
2-way AV signal input
1-way signal input, and this IC supports HDMI 1.2
1-way return signal input
Supports a wide voltage range and can operate normally between 5V and 24V.
Supports the following LCD screens:
EJ070NA01 - Resolution 1024 x 600
EJ080NA04B - Resolution 1024 x 768
ZJ070NA01, universal 40-pin high-resolution LCD screen
With the adapter board The PCB800039L also supports Chinese 60-pin LVDS 10.1-inch LCD screens. The maximum output resolution of this driver board is 1920 x 1200. If the screen resolution exceeds 1440 x 900, a heatsink is required depending on the IC's operating conditions. This reduces the IC's operating temperature. This IC, the VGA component, can directly input the YPbPr signal via the program. This driver board can add a remote control function (this must be implemented via software). This driver board supports automatic signal switching. This function is user-configurable. This driver board can add a BNC interface (this must be customized). Supports reverse control and display on AV2. The reverse voltage supports a voltage input within 50V. Different batches may look different, but this does not affect its use. Color: Blue. Material: Metal + Plastic. Package Contents: 1 x PC board. Only the above package contents are included; other products are not included. Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm. [OnBuy.com]
