Photoelectric liquid level sensor for

Photoelectric liquid level sensor for Description

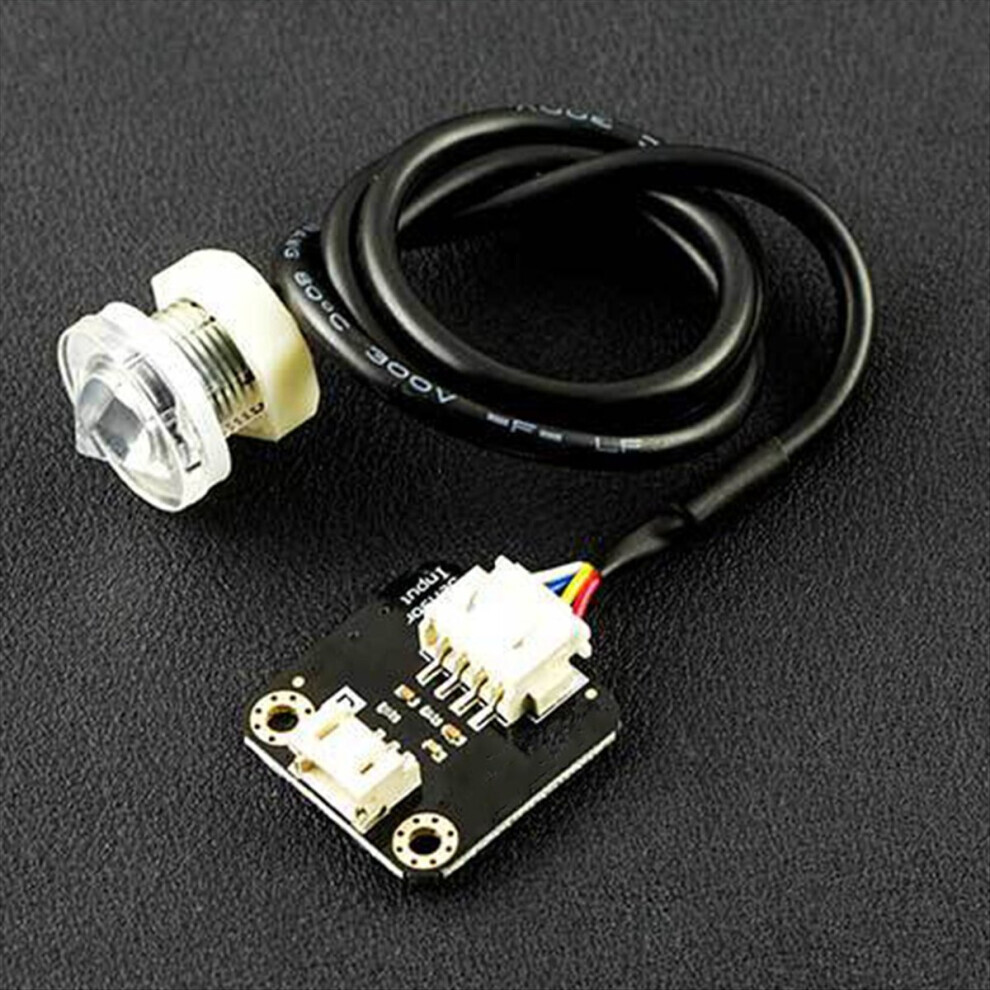

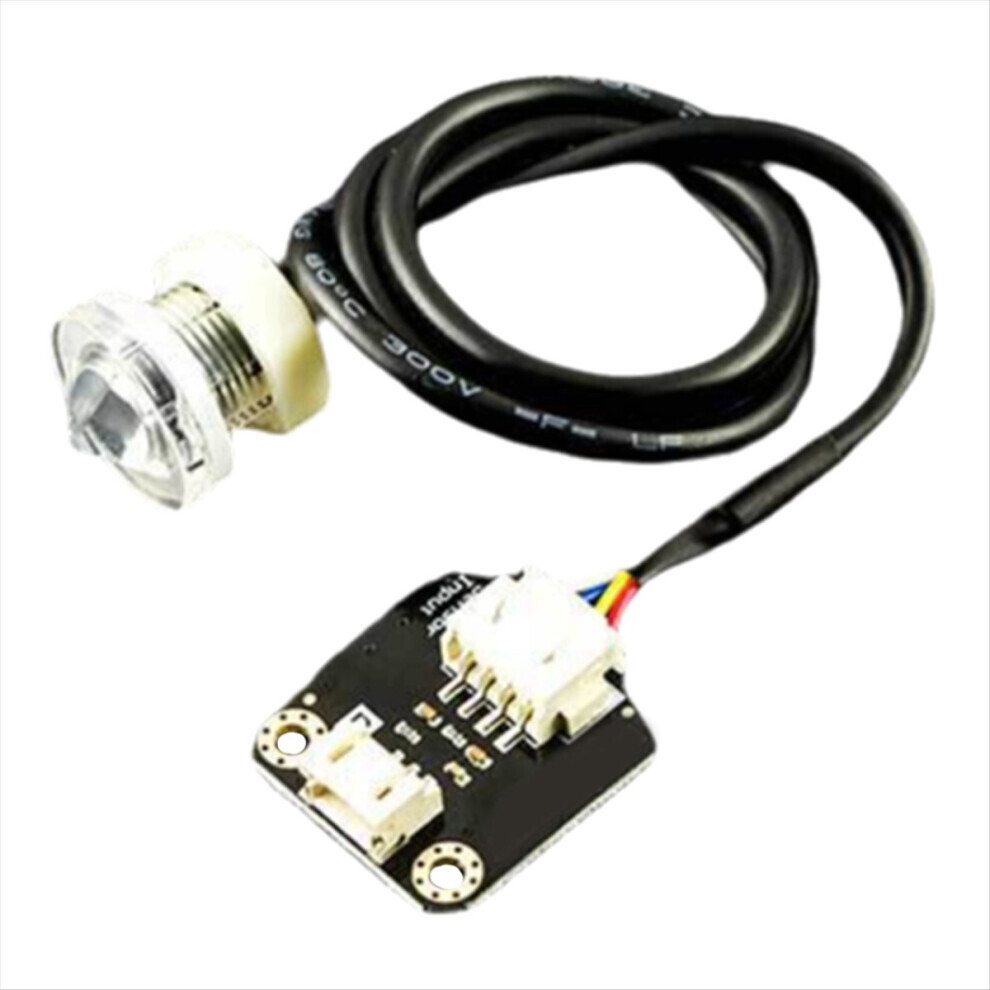

Photoelectric Liquid Level Sensor Description
The non-contact photoelectric level sensor is a device for non-contact level measurement and control based on optical principles. It is characterized by its simple design and high positioning accuracy. The sensor has no mechanical parts, requires no additional troubleshooting, and features high sensitivity, low power consumption, high resistance, high pressure and temperature resistance, and stable chemical properties. The probe is small and compact. It can be installed in various directions, such as from above, below, sideways, and at an angle, to detect overflow, drying out, and the horizontal level of the solution. It can be used for reminder and alarm functions. Thanks to integrated transmitting diodes and phototransistors, it has a long service life. The current-carrying components are completely isolated from the liquid being monitored, so there are no safety risks. The appropriate adapter board converts the PH2.54 interface to the PH2.0 interface, allowing the -IR02 level sensor to be better combined with [unclear - possibly "f" or "for"].
Technical Data
Model: -IR02
Type: Photoelectric level switch
Supply voltage: 5 V
Output current: 12 mA
Operating temperature: -25 to 105 C
Low level: less than 0.1 V
High level: 4.6 V
Level detection accuracy: 0.5 mm
Measuring range: unlimited
Lifespan: 50,000 hours
Application: Electrical products for water level control and protection
Adapter board size: 28 x 28 mm
Probe cable length: 50 cm
Weight: 26 g
Color: Black
Material: Plastic
Note: Light barriers are sometimes affected by ambient light. Please avoid direct sunlight to prevent misreadings.
Due to different batches, there may be variations in appearance and printed text, which do not affect use.

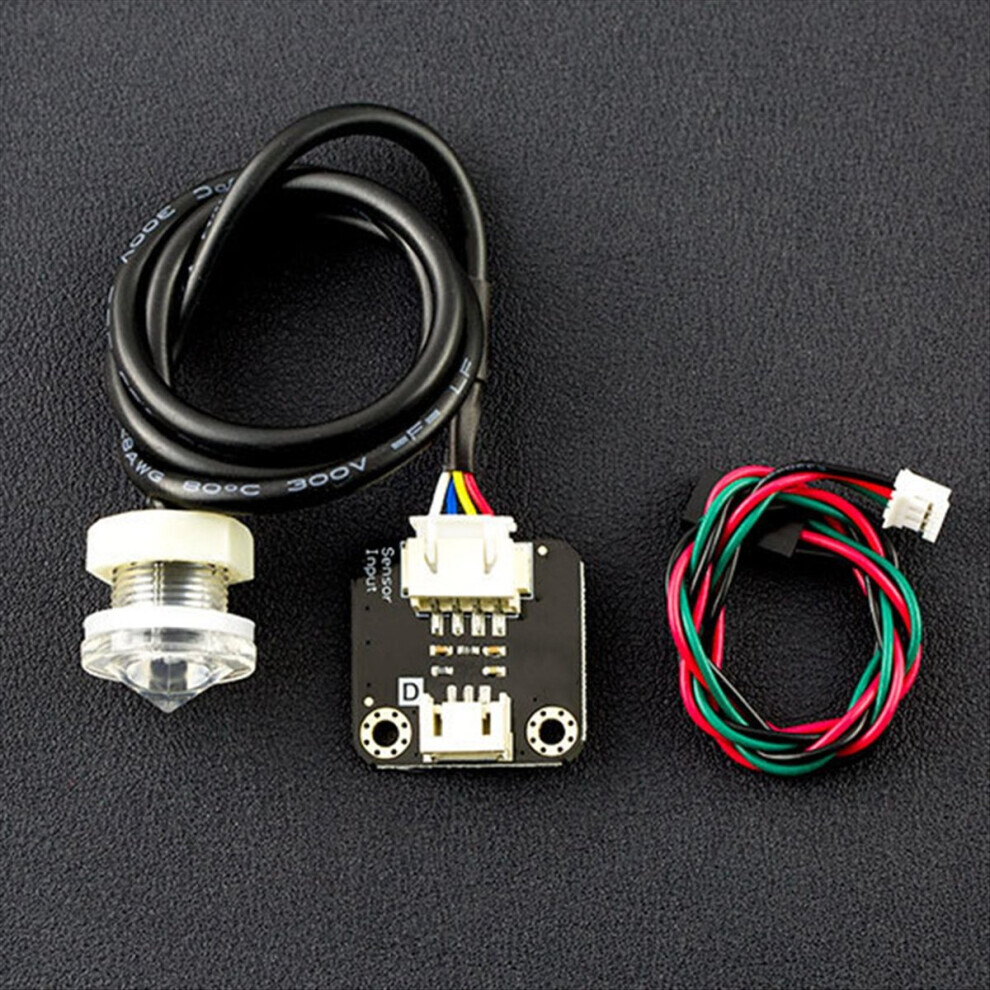

Scope of delivery:
1 * Level sensor
Only the above-mentioned scope of delivery, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual product. The permissible measurement error is +/- 1-3 cm.
