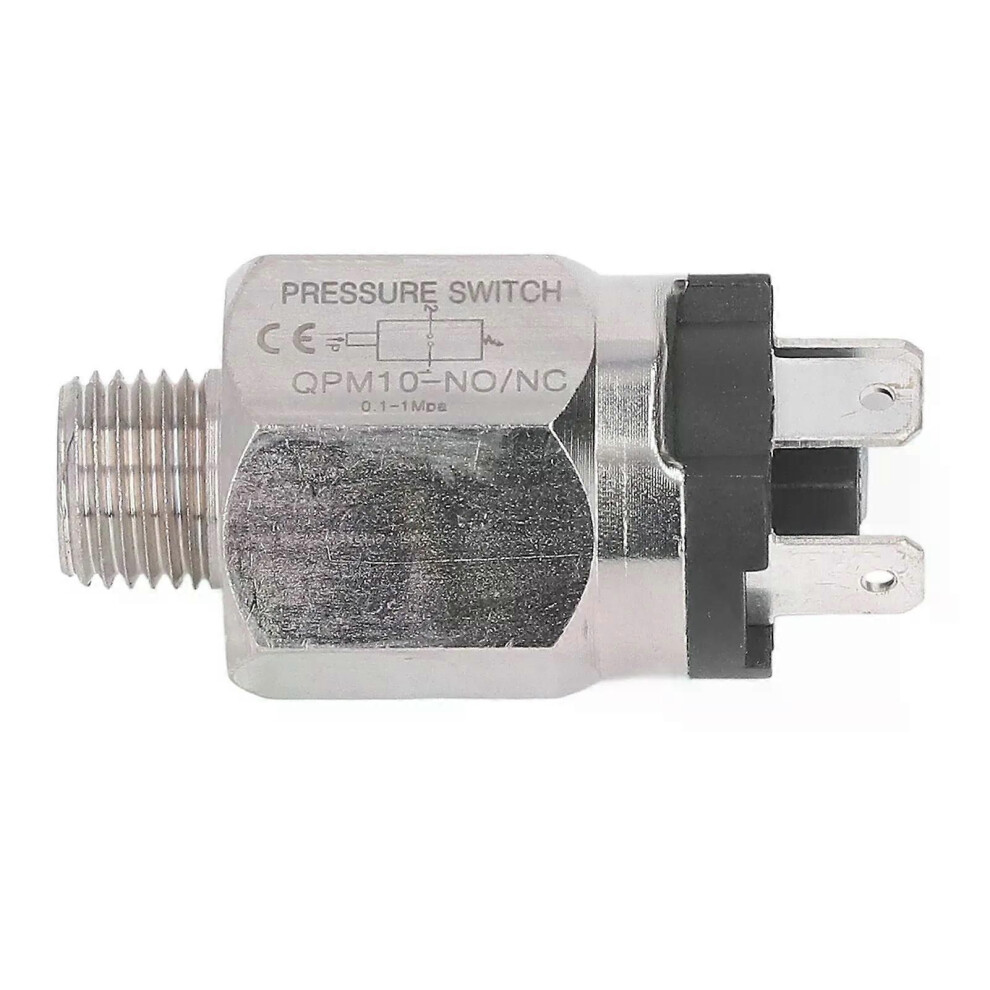

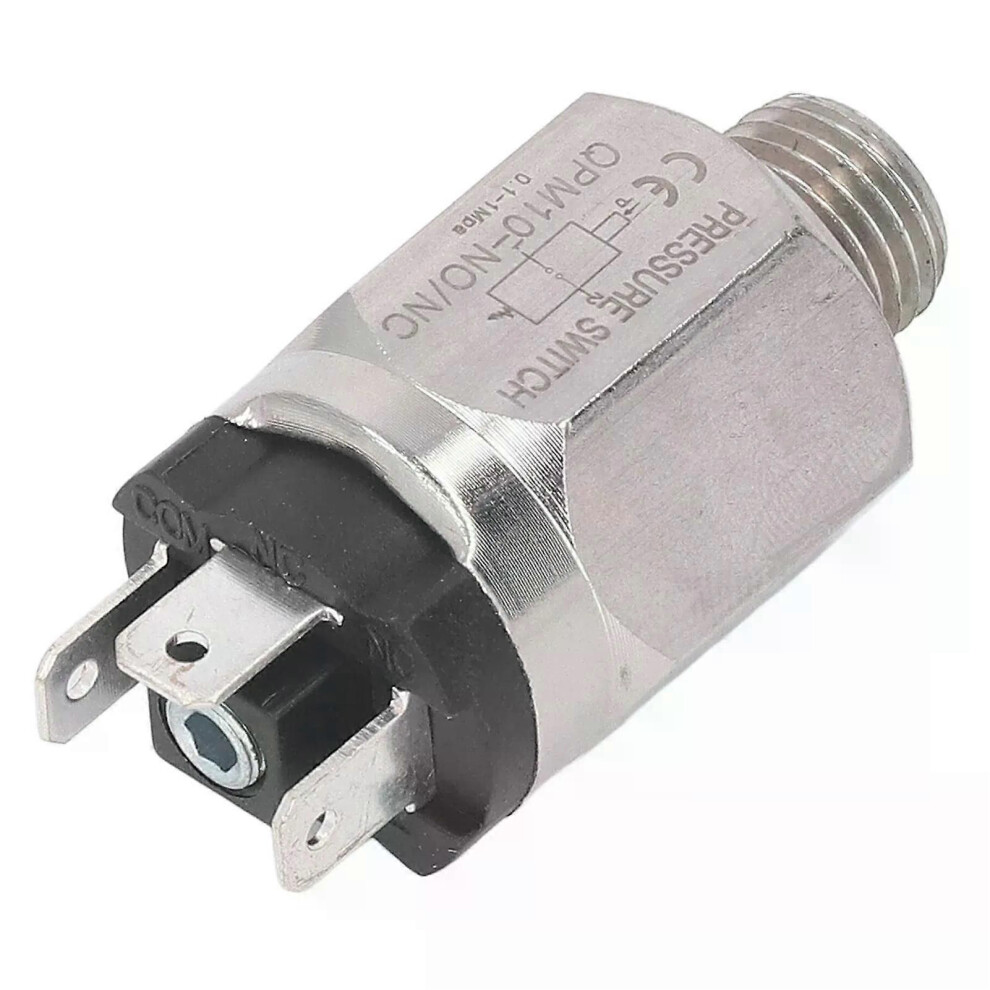

Pressure Switch Pneumatic Adjustable Diaphragm Type Pressure Switch Stainless Steel Rubber Pressure

Pressure Switch Pneumatic Adjustable Diaphragm Type Pressure Switch Stainless Steel Rubber Pressure Description

Pneumatic Adjustable Diaphragm Type Pressure Switch Stainless Steel Rubber Pressure Switch for Pump
Feature:

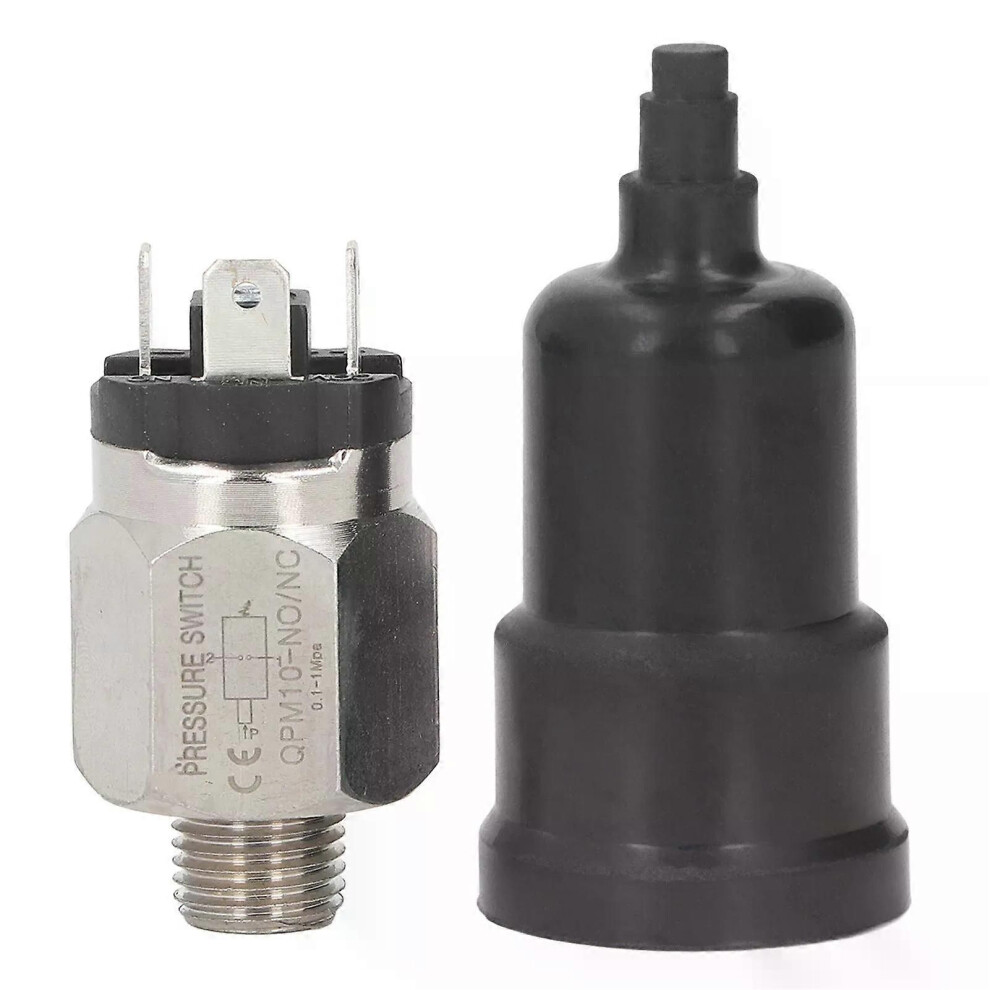

1. Insulation Cover: This pressure switch features safer circuit with an external insulating sheath cover. You can choose it with confidence!
2. Stainless Steel, Rubber Material: Made of premium stainless steel, rubber material, this pressure switch is strong and , which ensures a long life span.
3. Easy Using: You can adjust the pressure freely with the help of a hex wrench(not included), turn clockwise to increase pressure and counterclockwise to decrease pressure.
4. Easy to Install: Comes with a compact size and a light weight as well, the easy installation can be quickly completed.
5. Easy Carrying: Comes with a small size, lightweight as well, this pressure control is easy for you to carry around to help with your work.
Specification:
Item Type: Diaphragm Type Pressure Switch
Material: Stainless Steel, Rubber
Thread Size: 1/2in
Maximum Number of Pulses: 200 cycles/min
Operating Medium: Compressed , water
Guarantee Level (with sheath): Ip54
Environment and Medium Temperature: - 5 to 60
Maximum Pressure Resistance: 1.0Mpa
Rated Current: 500mA
Rated Power: 250W
Mechanical Life: 1 million weeks
Working Pressure: Adjustable
Rated Voltage: Less than or equal to (AC220V, AC110V, DC24V, DC12V)
Pressure Range: 0.1 to 1Mpa
Package List:
1 x
Diaphragm Type Pressure Switch
Note:
"NO" is a normally open pressure switch, which is closed when the contact breaking pressure rises to the set value in the initial factory state.
