Probe Data Repair Memory Card Flying Line PC3000FE Chip

Probe Data Repair Memory Card Flying Line PC3000FE Chip Description

Probe Data Repair Memory Card Flying Line PC3000FE Chip Description

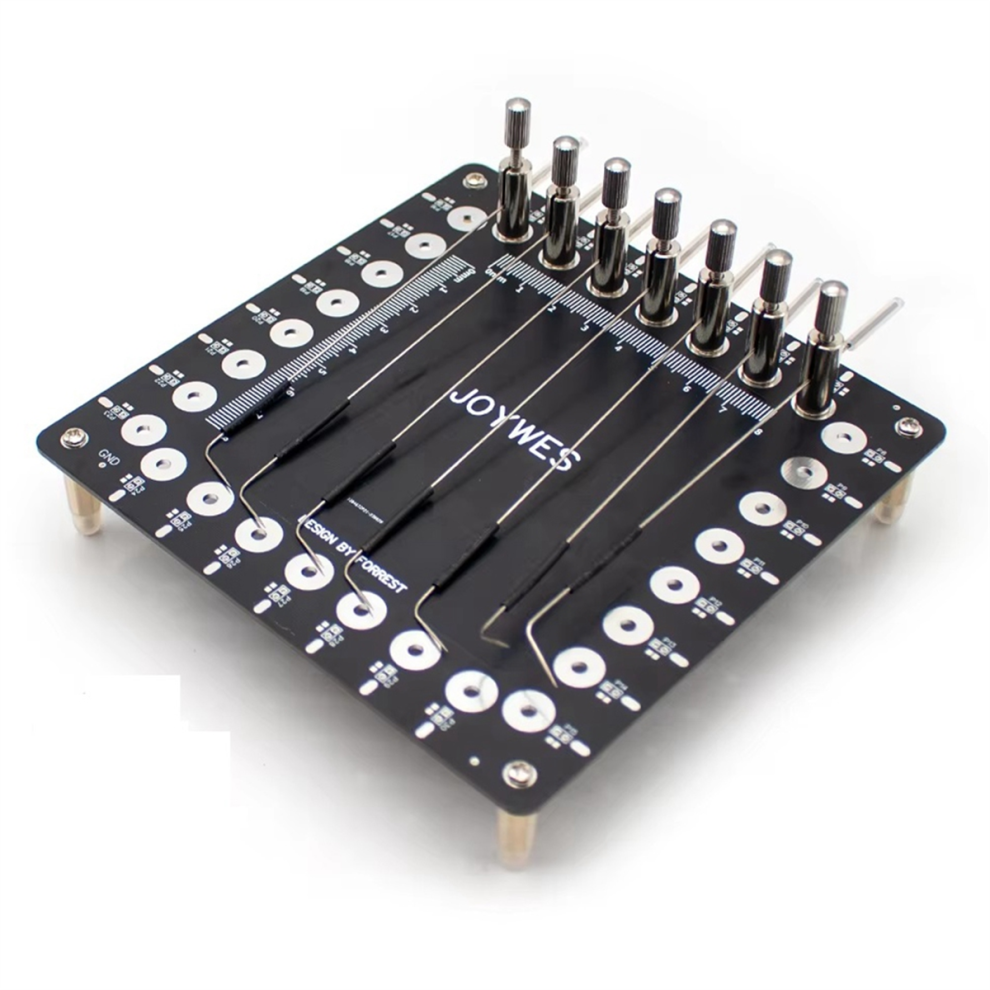

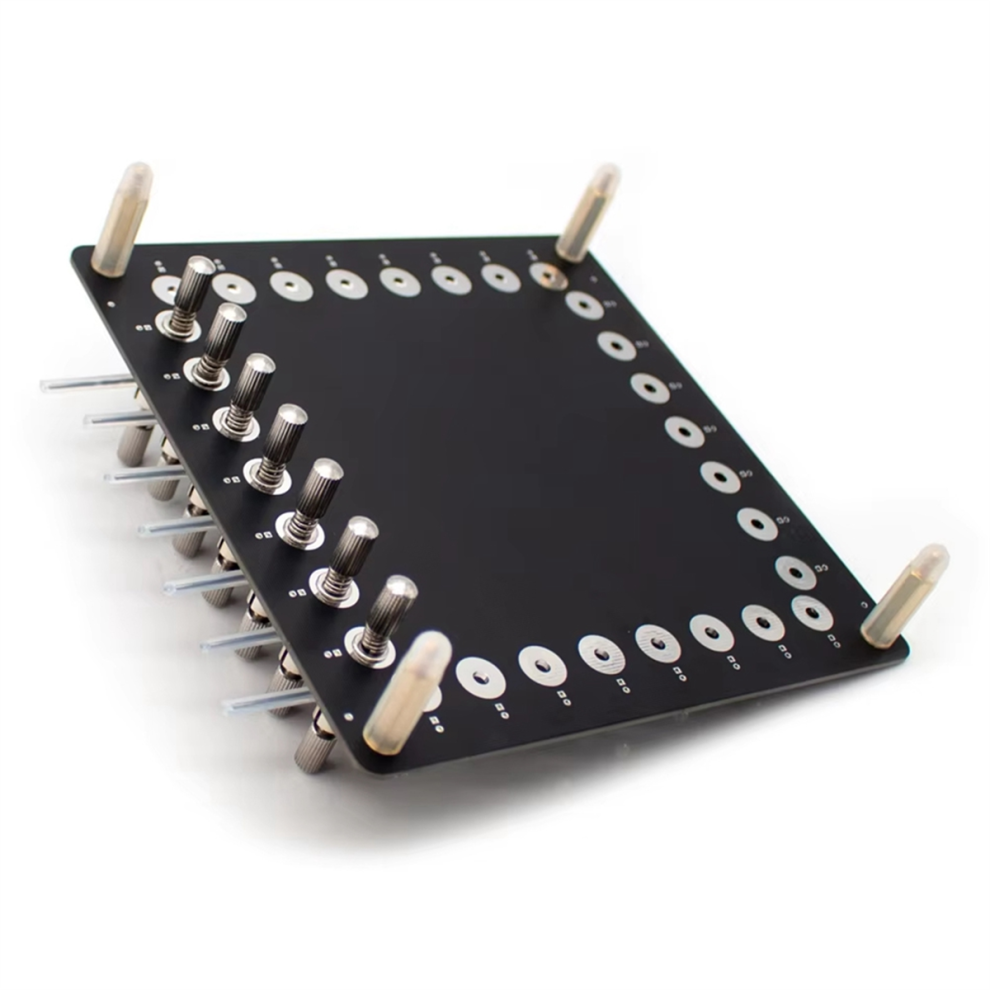

1. It can be helpful in creating flying lines, pulling out solder joints, timing tests, waveform tests, online testing, etc.
2. The 0.8 mm diameter stainless steel needle can touch very thin pads.
3. The needle can be moved forwards and backwards, rotated, and adjusted in height.
4. The position of the needle column can be changed to adapt it to different test scenarios.
5. When data repair, you can use this tool to bring out the tiny pads to avoid damage to the pads. Note: The green PCBA board in the main image is not included and is for display purposes only. It can be used as a multi-function programmer, allowing easy access to the programming pad on the board. It can also be used to bring out the board's test points, e.g. For example, to observe the waveform or voltage of multiple solder joints.
Circuit board size: 145 x 145 mm
Color: Black
Material: ABS + Stainless steel
Package contents:
1 * Flying line for probe memory cards
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm.
