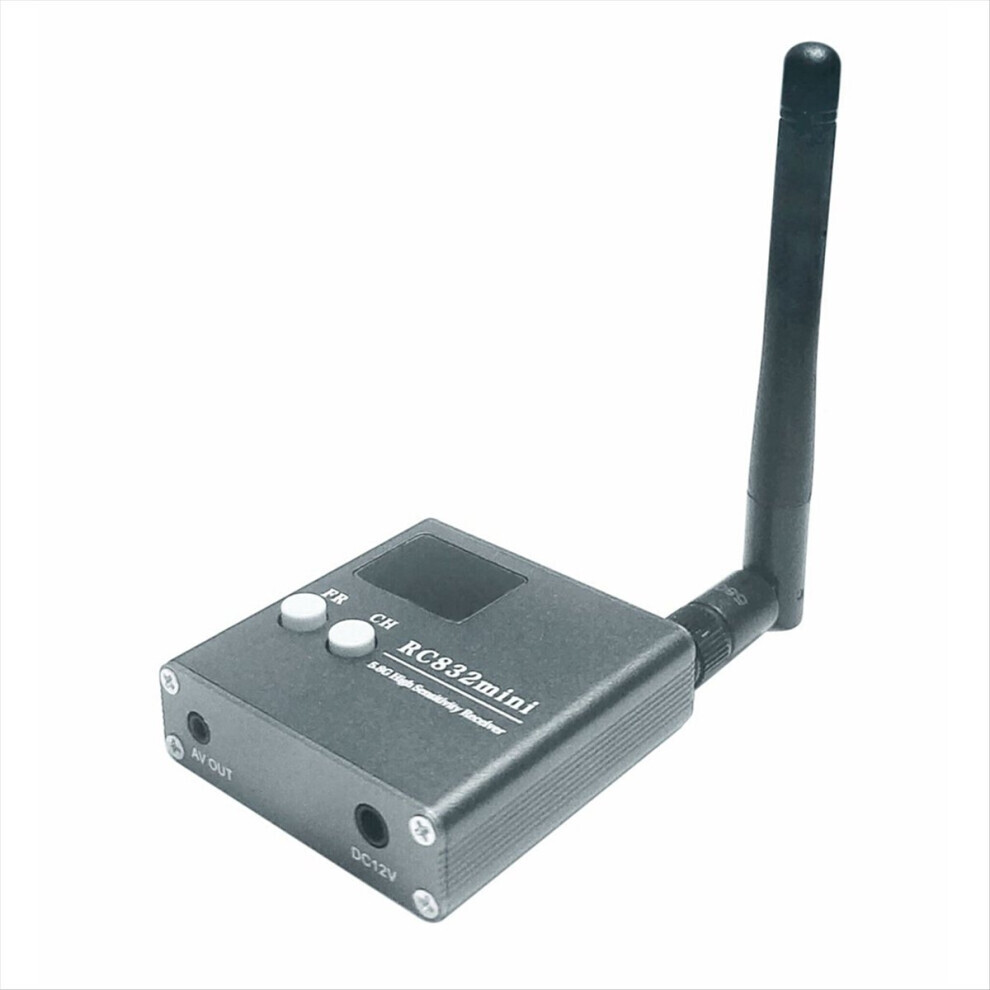

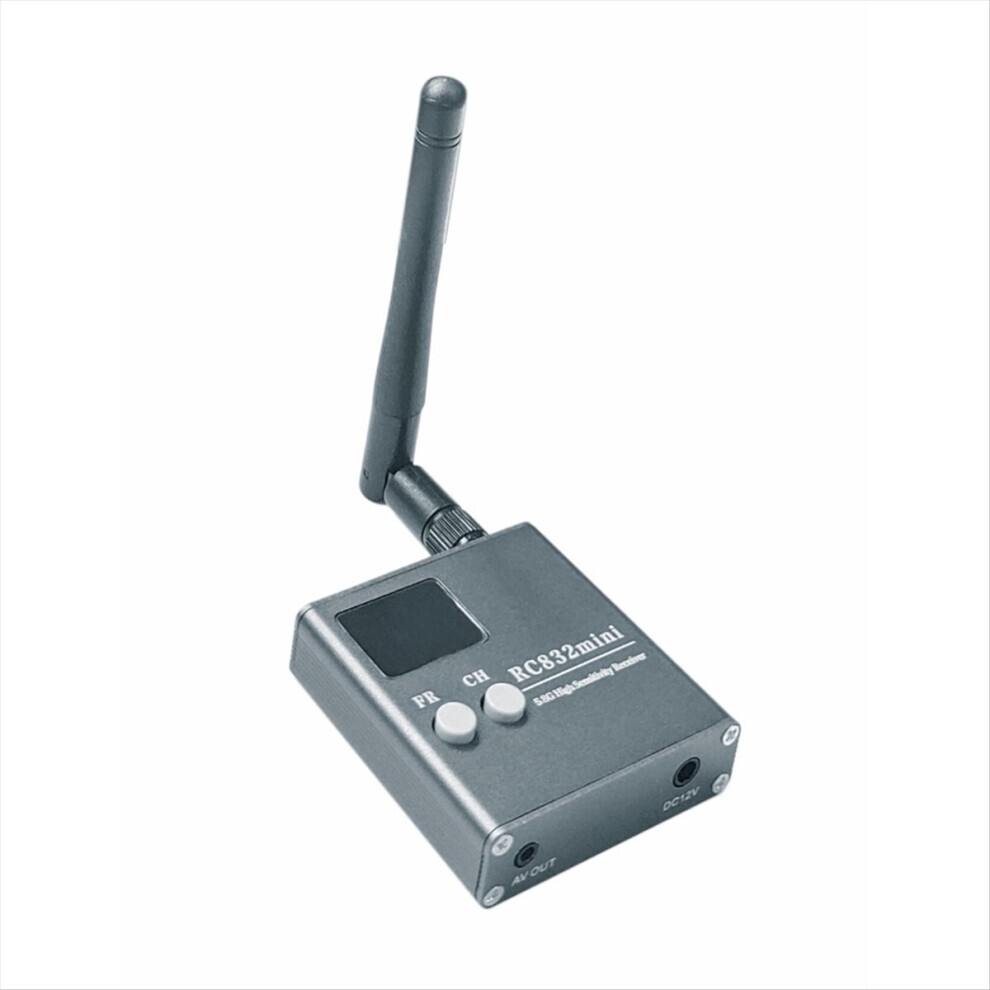

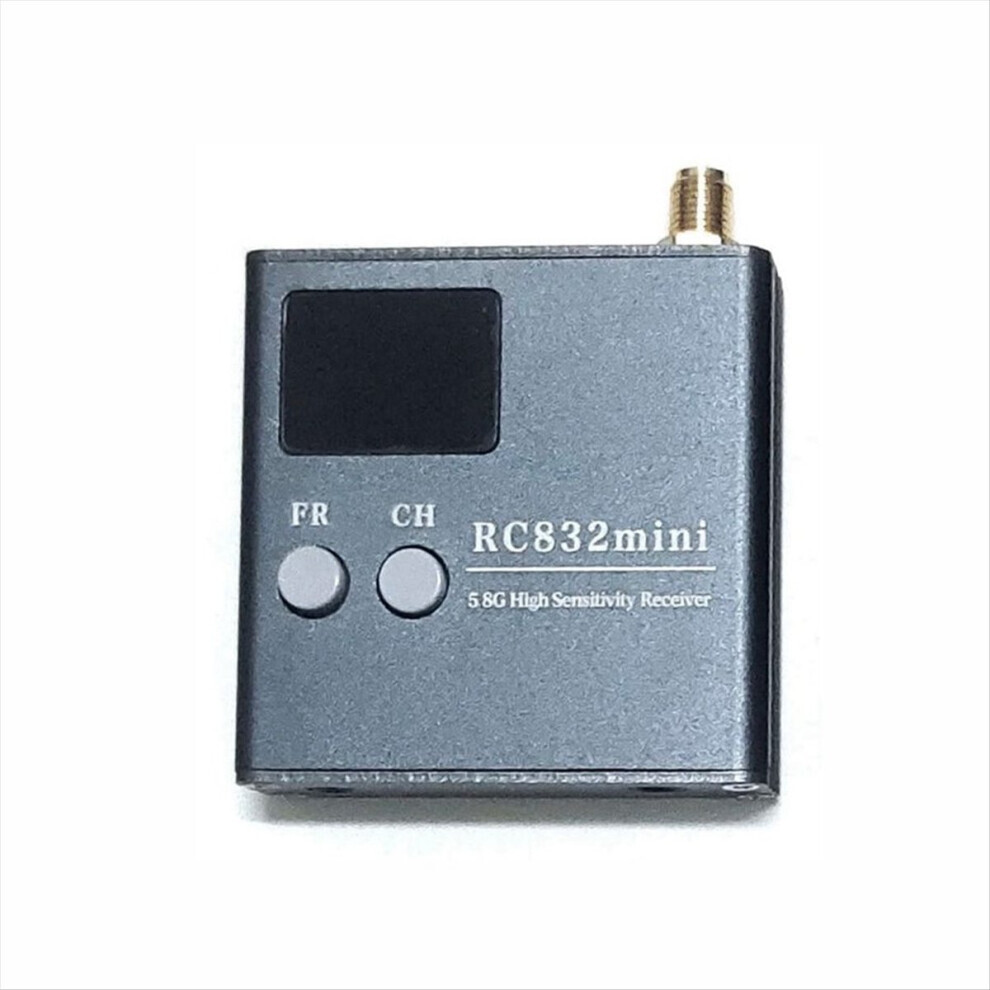

RC832Mini 5.8G 56Ch High Sensitivity Wireless Receiver

RC832Mini 5.8G 56Ch High Sensitivity Wireless Receiver Description

RC832Mini 5.8G 56Ch High-Sensitivity Wireless Receiver Description: Supply current: 130 mA. Input: 50 Ohm SMA. Video output voltage: 1.0 Vp_p 75 Ohm. Audio output voltage: 1.0 Vp_p 10 kOhm. 56 channels, 7 frequency bands for wireless reception. Two buttons for individual channel and band selection. Two-digit display for quick location of the current reception frequency and band. Upon power-up, the memory displays the channel and frequency of the last reception. Two-way video and audio signal output (Video: PAL, NTSC, CECAM; Audio: 6.5 MHz). 5 dB higher sensitivity than normal receivers. Wide 12V supply

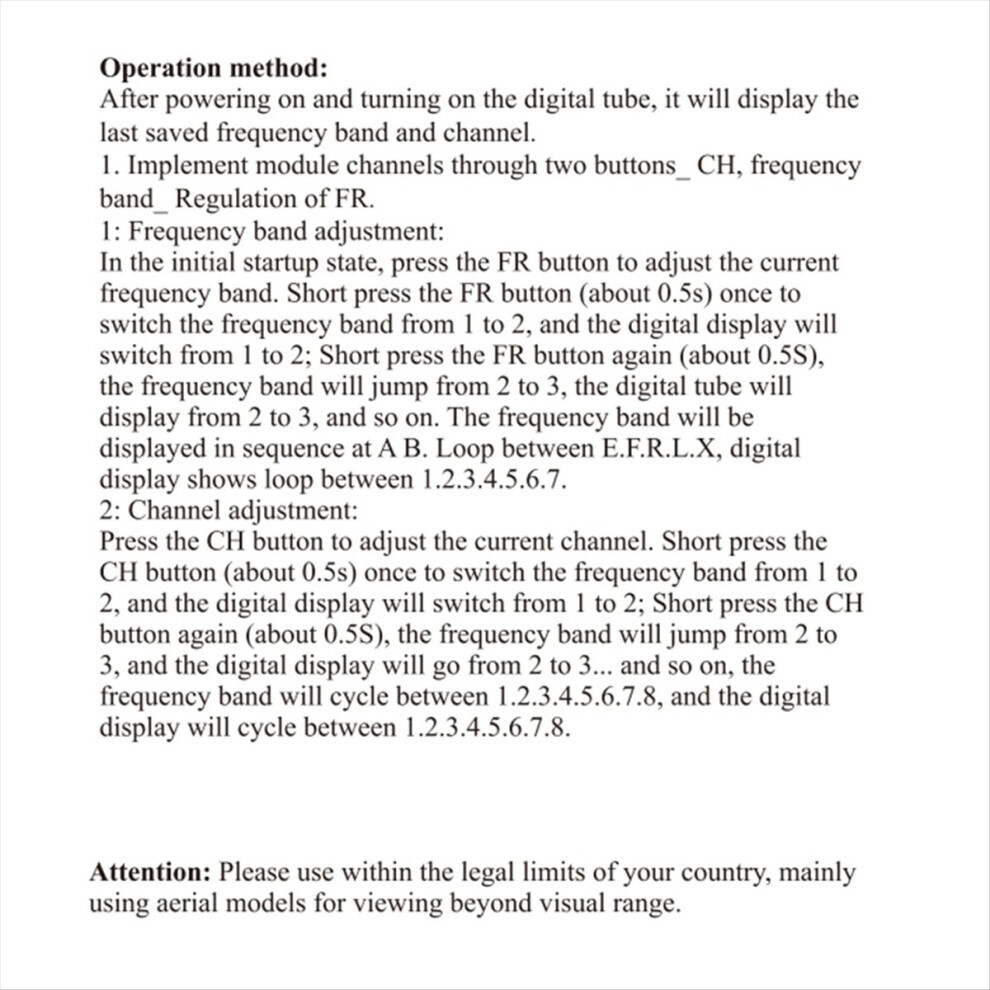

Operating method: After switching on the digital tube, the last saved frequency band and channel are displayed. Module channels are implemented via the two CH buttons. Frequency band adjustment is via FR1: Frequency band setting:
In the initial startup state, the current frequency band is set using the FR button. Press the FR button briefly once (approx. 0.5 s) to switch the frequency band from 1 to 2, and the digital display changes from 1 to 2; press the FR button briefly again (approx. 0.5 s), the frequency band jumps from 2 to 3, the digital tube display from 2 to 3, etc. The frequency bands are displayed sequentially. Loop between EFRLX, the digital display shows a loop between 1, 2, 3, 4, 5, 6, 7.
2: Channel setting:
Press the CH button to set the current channel. Press the CH button briefly once (approx. 0.5 s) to switch the frequency band from 1 to 2, and the digital display will change from 1 to 2. Press the CH button briefly again (approx. 0.5 sec.), the frequency band will jump from 2 to 3, and the digital display will change from 2 to 3, and so on. The frequency band will cycle through 1, 2, 3, 4, 5, 6, 7, 8, and the digital display through 1, 2, 3, 4, 5, 6, 7, 8. NOTE: Please use this device within the legal limits of your country, especially when using it with model aircraft for display beyond visual line of sight. Color: Gray Material: Metal Size: 50 x 50 x 15 mm
Package Contents:
1 * Receiver
1 * Antenna
2 * Cables
1 * English Manual
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
