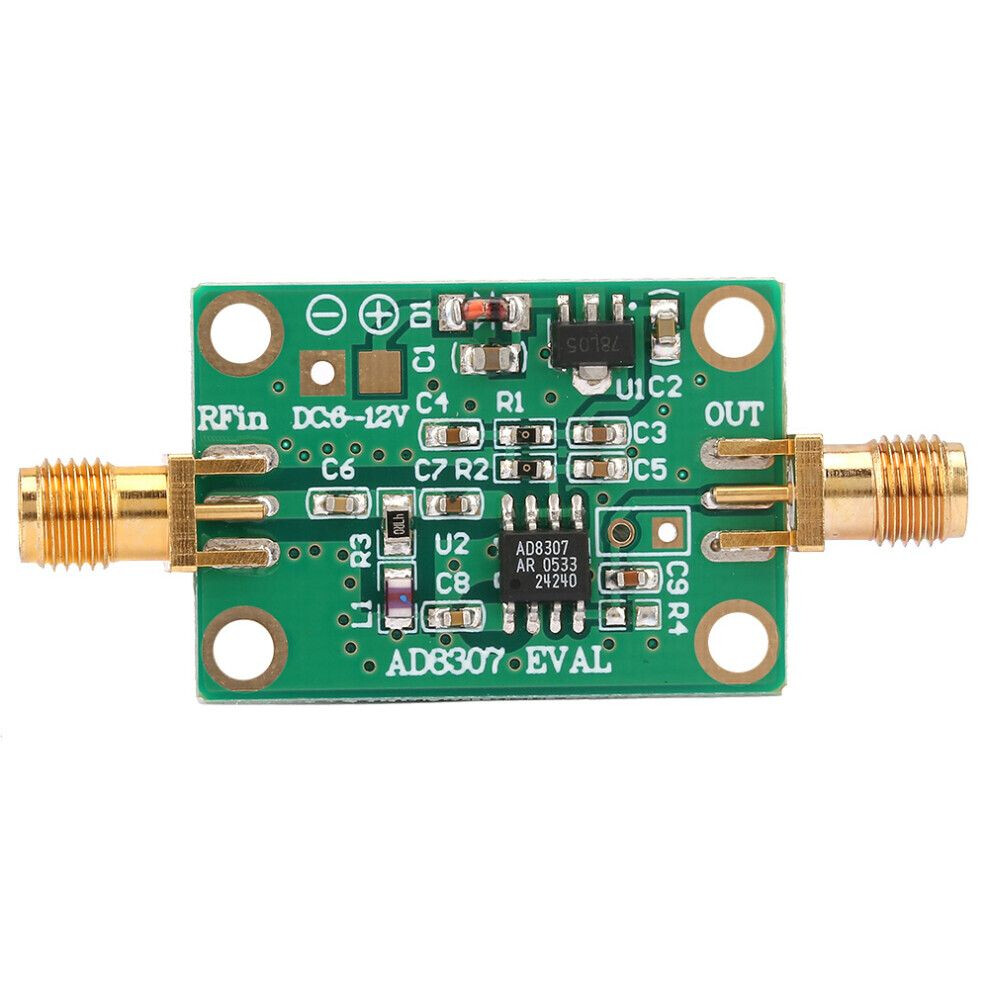

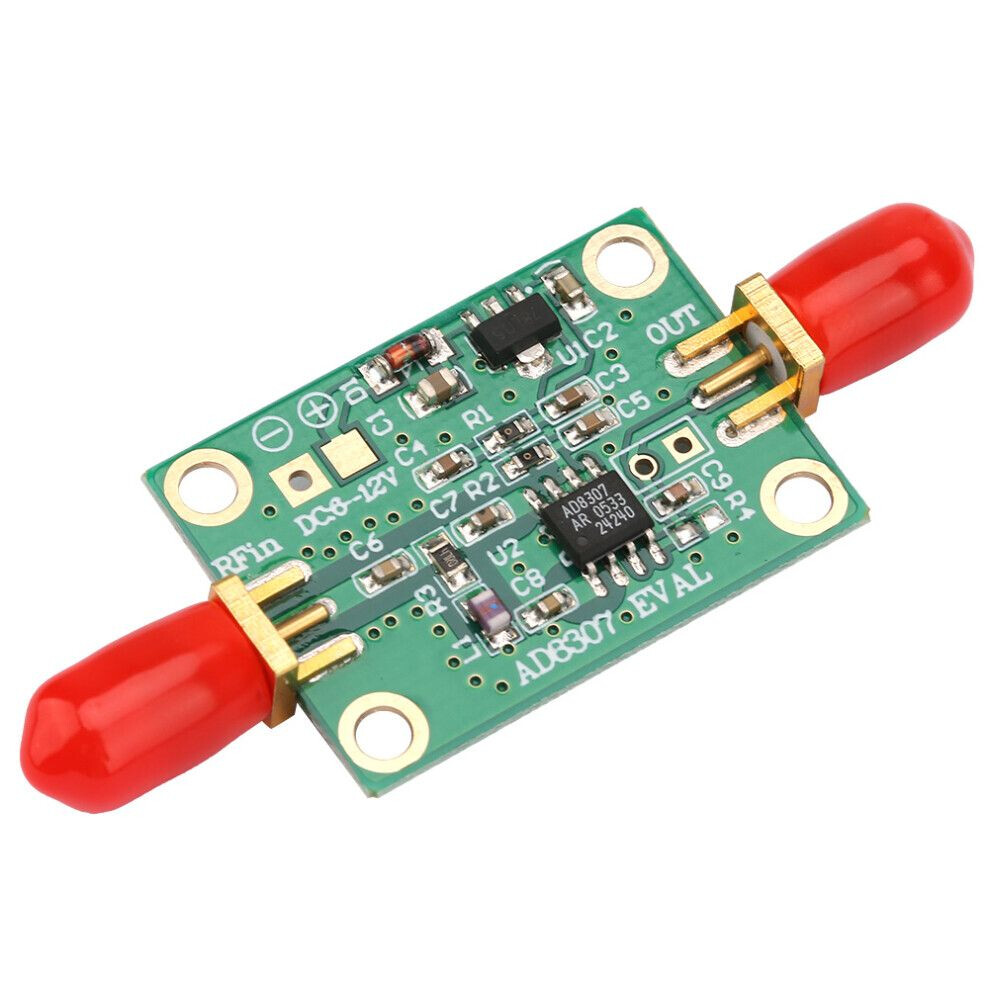

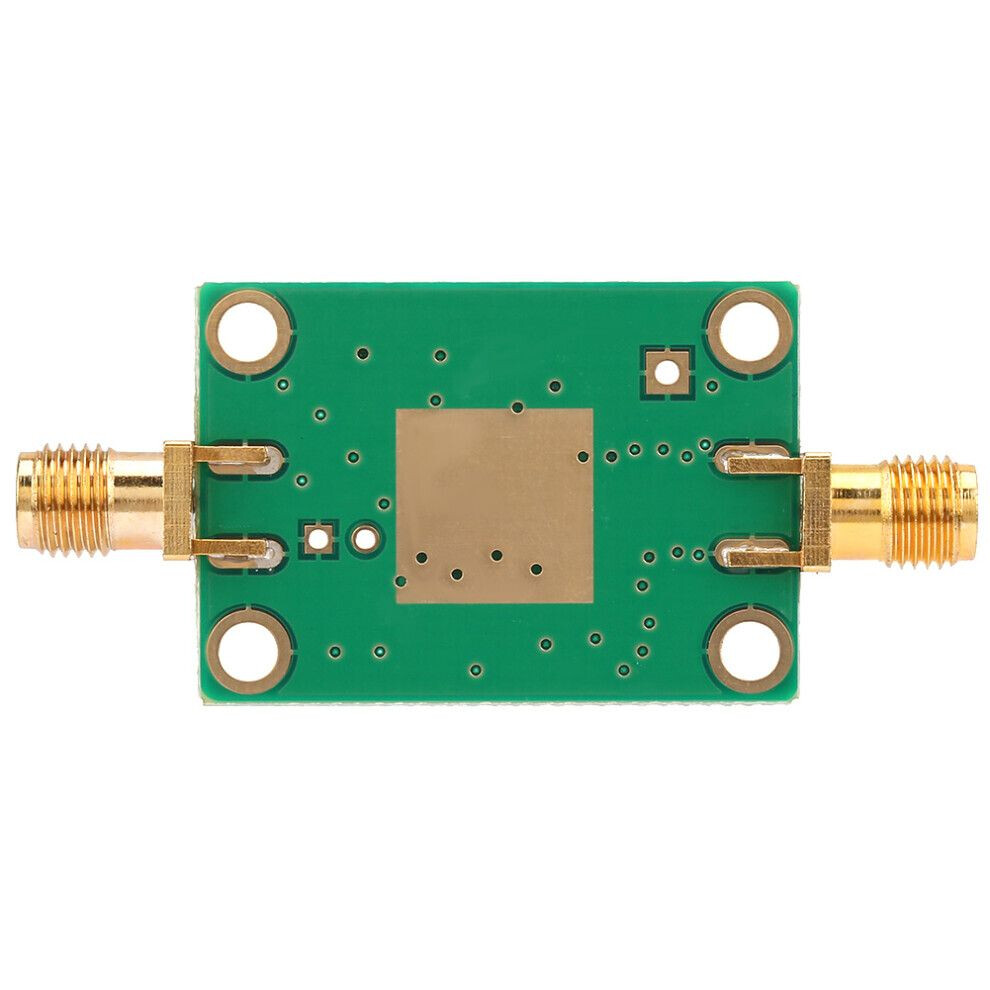

RF Power Logarithmic Detector Module AD8307 0.1-600MHz -75~+15dBm Range

RF Power Logarithmic Detector Module AD8307 0.1-600MHz -75~+15dBm Range Description

RF Power Logarithmic Detector Module AD8307 0.1-600MHz -75~+15dBm Range Description
AD8307 RF Power Meter Logarithmic Testing Detector 0.1-600M -75~+15dBm Module
Features:
This device features low cost, small size, low power consumption, high precision and high stability, wide dynamic range.
It has a frequency range from IF to UHF audio.
Suitable for a variety of applications which need to reduce signal to decibel equivalent.
Excellent power non-sensitivity and temperature stability.
Widely used for converting signal level into dB form, transmitter antenna power measurement, received signal strength indicator(RSSI), low-cost radar and sonar signal processing, network and spectrum analyzer (reaching 120 dB), determining signal level is as low as 20 Hz, multimeter true dB communication mode.
Specification:
Model: AD8307
Input power default range: -75 ~ +15 dbm
Power supply voltage: 6 ~ 12 V@ < 10mA
Weight: 6 g / 0.2 oz(approx.)
Package list:
1 * Power Meter
