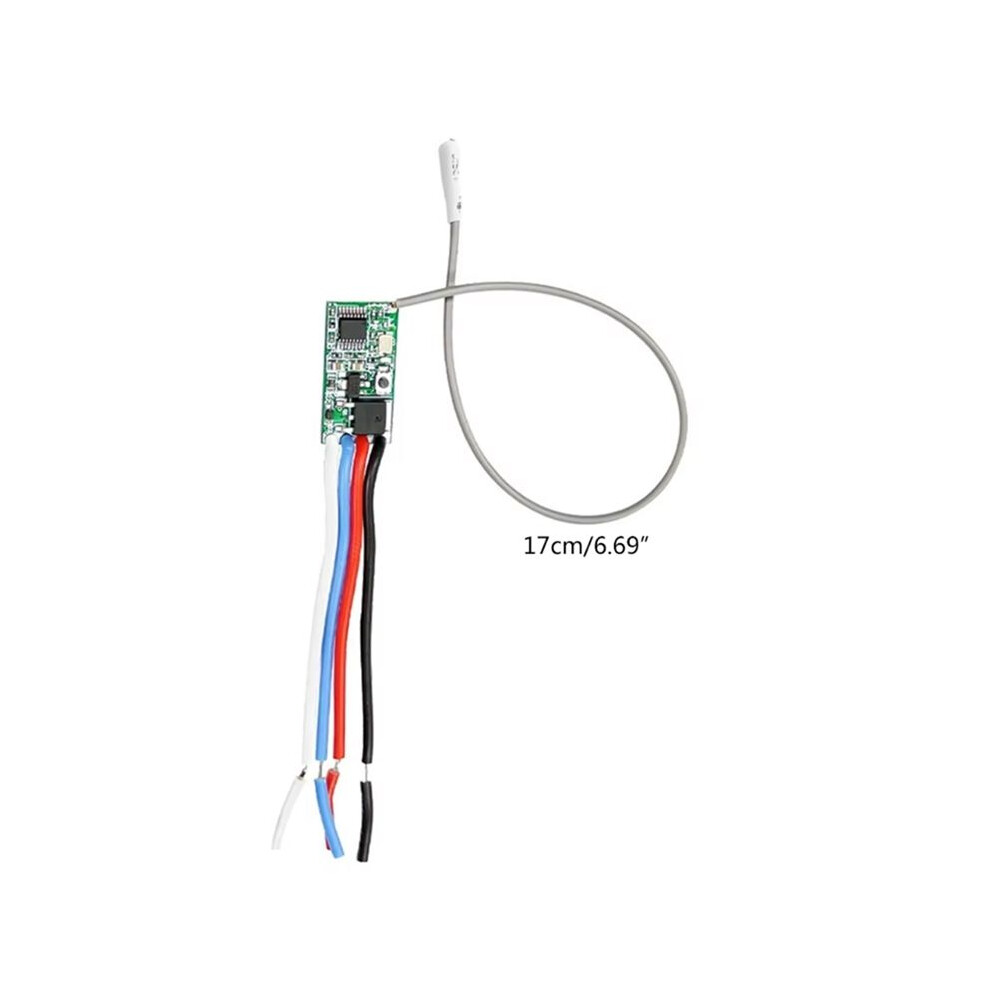

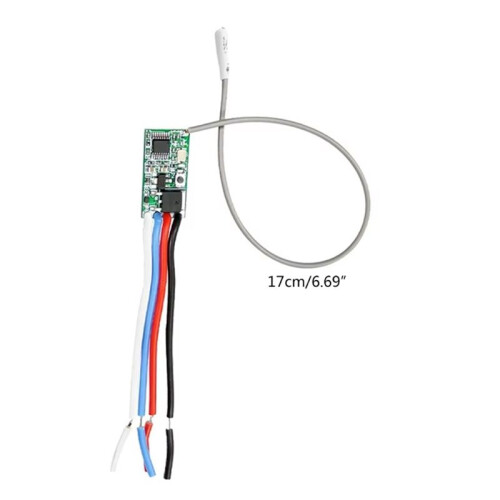

RF Relay Receiver Wireless Remote Control Module 433 Mhz 1CH for Cabinet

RF Relay Receiver Wireless Remote Control Module 433 Mhz 1CH for Cabinet Description

Light Receiver Module only, other accessories demo in the picture is not included!
new and high quality. Long range working voltage. Ultra low power, High sensitive response.
Application: Suitable for LED light, LED light string, Christmas tree light string, light control and so .
About Working mode: Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects. Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay dis-connects. Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Support code format:1527 learning code. Number of stored remote controllers:less than and equal to 10. Working mode:inching, self-locking, interlock. Learning mode:for KEY Learning. Working temperature:-20-80/-4-176. Receiving Sensitivity:greater than and equal to -107dBm

Item Type:Light Receiver Module
Working Voltage:DC3.6-24V
Max Load:2A
Static Current:3.6-5.5mA
Working Frequency:433MHz
Input:DC3.6V-24V
Output:DC3.6V-24V
Modulation System:ASK
Size:Length:11.5cm/4.5in
Steps:
Clear Code: Press the learning button the module 8 times continuously, and the light flashes seven times and then goes out.
Momentary Mode:Press Module learning button 1 for,the indicator light is for always ,then press the remote control button,the indicator light flashes 3 times and then turns off , then the learning is successful;If the code is not successful,the indicator lights out of the learning state after 15 seconds.
Toggle Mode:Press the Module Learning button 2 times,the indicator light for always turns ;then press the remote control button,the indicator lights flicker three times and then off, then the learning is successful; if the code has not
