Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz

Rf Voltage Controlled Oscillator Frequency Source Broadband Vco 515Mhz---1150Mhz Description

Microwave broadband istor is optimized by computer simulation, this product mainly realizes the generation of broadband RF signal, the output frequency range can cover 515MHz---1150MHZ, such a wide range can be used as RF product test source.
Can also do a variety of communication modulation VCO, can be used as a built-in oscillator of RF, the signal of two such a wide range of VCO into the mixer, you can generate DC --- 500MHZ of various frequency signals, so as to achieve the role of generating new frequencies, the application is very wide.
RF indicators are as follows:
Frequency range: 515MHZ-1150MHZ
Output power: 7dBm, which is 5 milliwatts.
Output harmonics: -22dBc

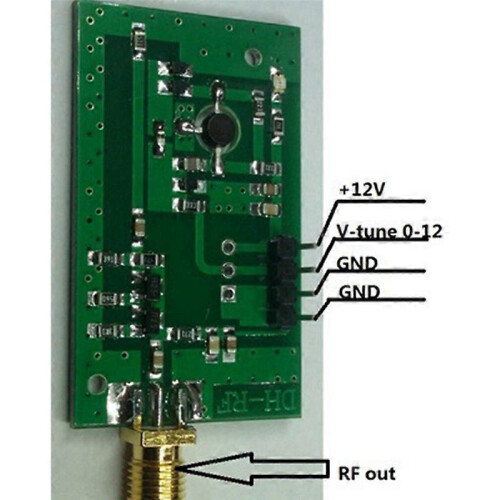

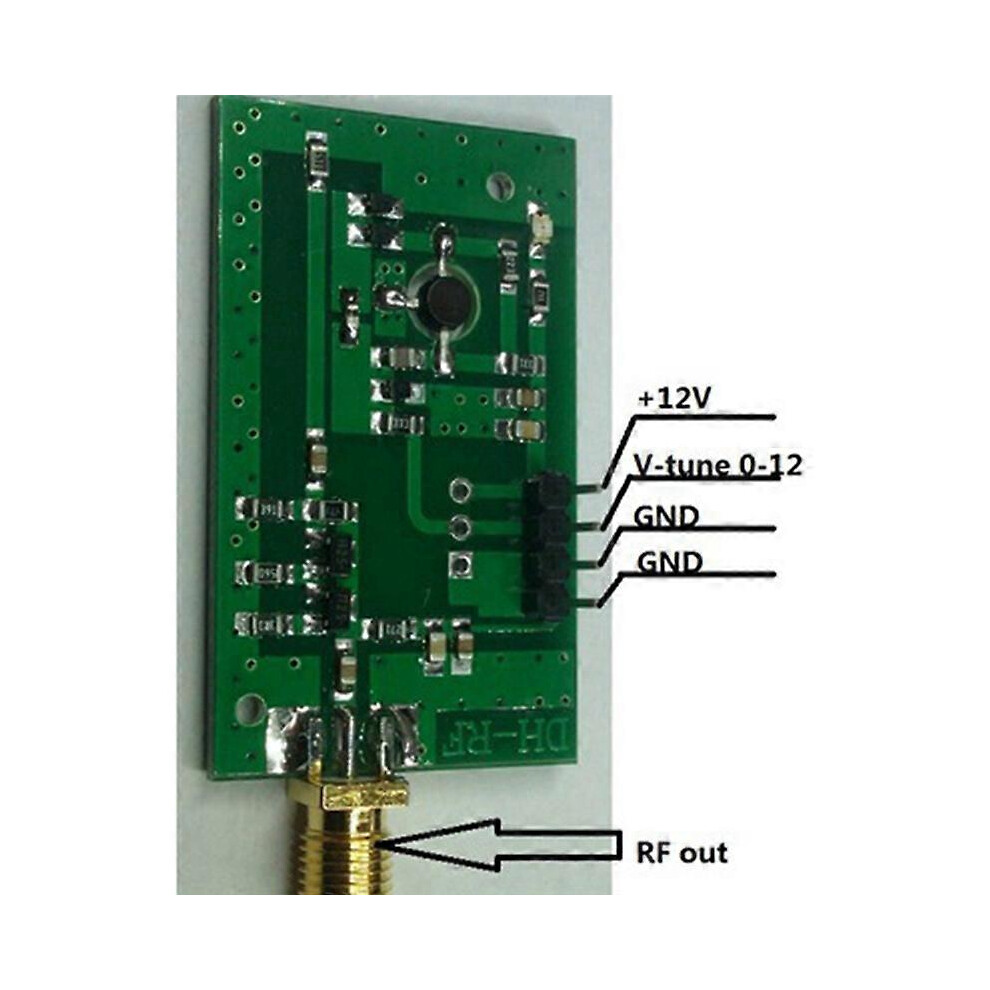

Supply voltage: 12V, current 50 mA
Frequency regulation voltage range: 0-12V

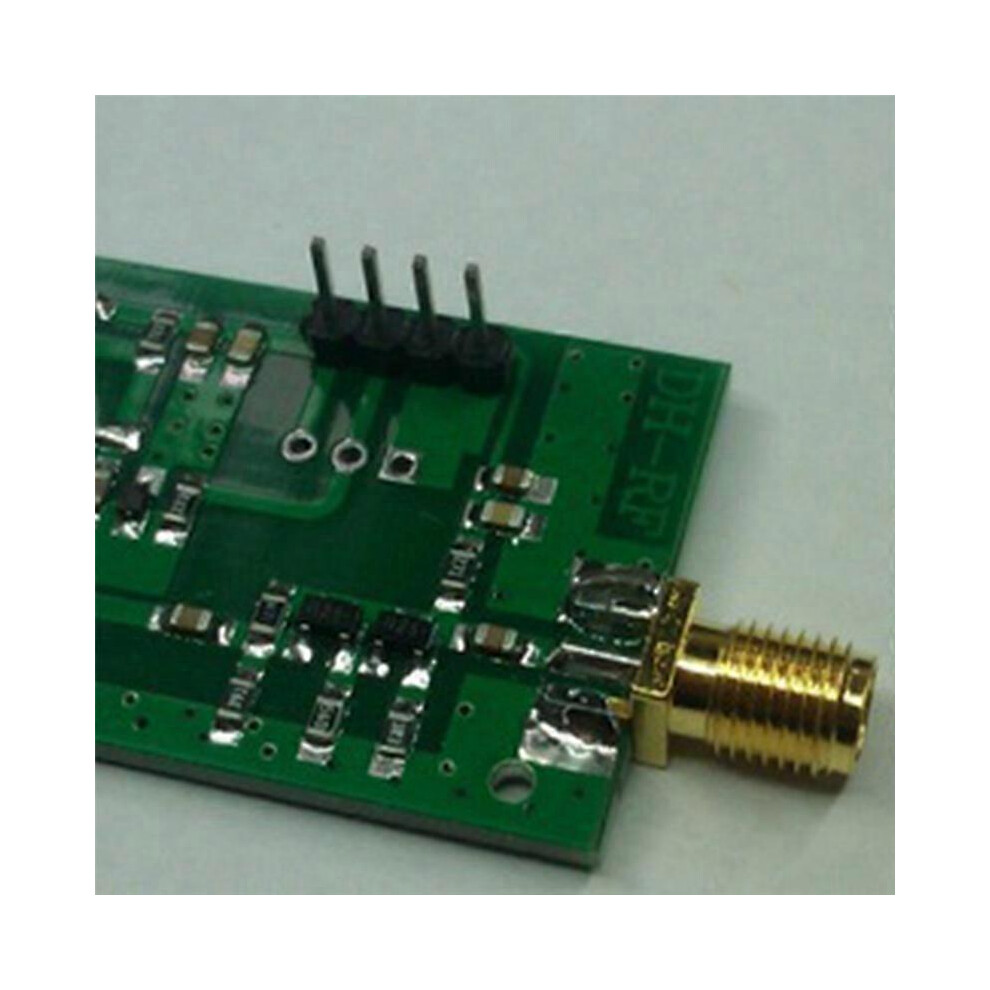

Output RF interface: SMA female
Material: PCB
Color as shown
Package Contents:
1 x Rf Voltage Controlled Oscillator
Only the above package content, other products are not included.
