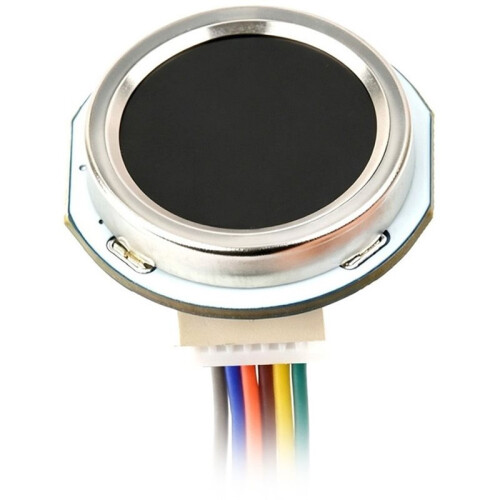

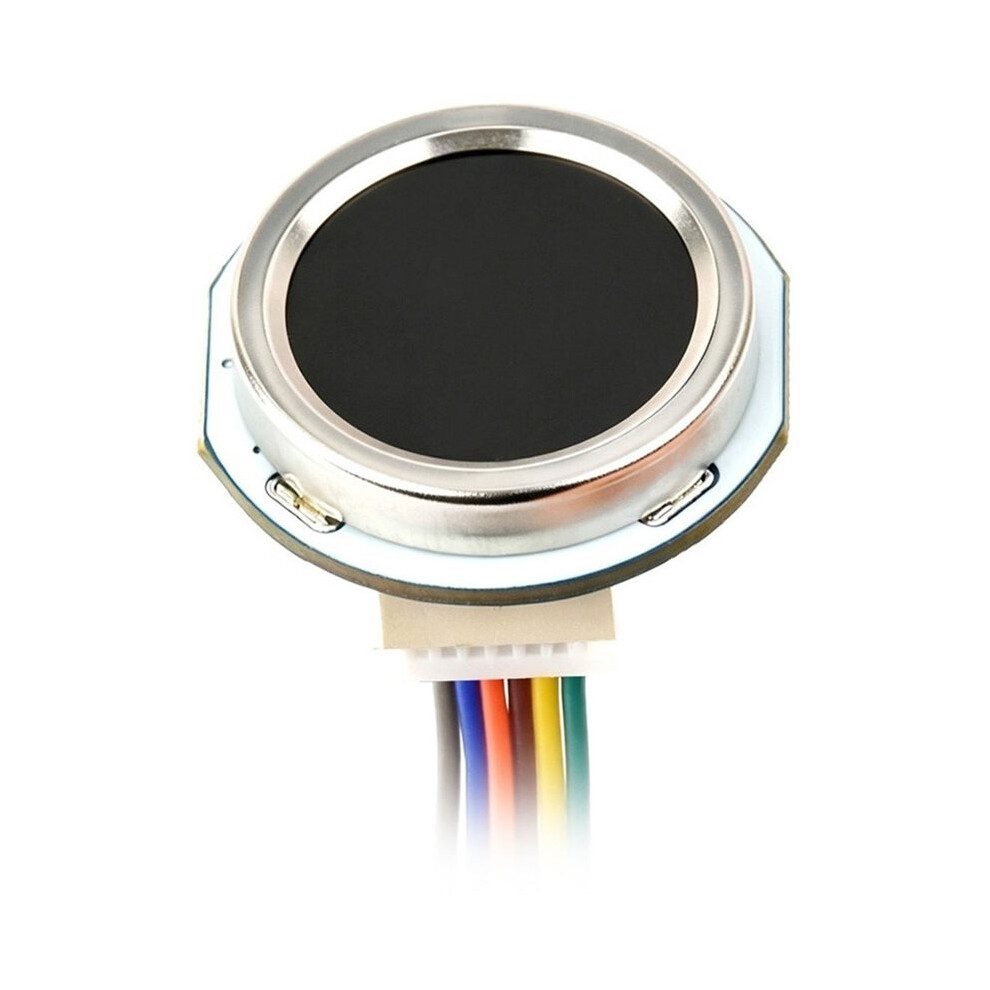

Round-Shaped Integrated Capacitive Fingerprint Sensor, Onboard LED Indicator, 192 X 192 Image Pixels, UART Communication

Round-Shaped Integrated Capacitive Fingerprint Sensor, Onboard LED Indicator, 192 X 192 Image Pixels, UART Communication Description

Based a high-performance Cortex processor, combined with high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor features functionalities like fingerprint enrolling, image acquisition, feature finding, fingerprint matching, and so .
Without any knowledge about the complicated fingerprinting algorithm, all you need to do is just send some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.
Easy to use by some simple commands, you don't have to know any fingerprint technology, or the module internal structure
Commercial fingerprinting algorithm, supports functions like fingerprint enrolling, fingerprint matching, fingerprint image acquisition, and fingerprint feature uploading, stable performance, fast identification
Capacitive sensitive detection, just touch the collecting window lightly for fast verification

Product Features:
Highly integrated hardware, processor and sensor in one small chip, suitable for small size applications
Embedded human sensor, the processor will enter sleep automatically, and wake when touching, lower power consumption
Onboard collecting window indicator for fingerprint capture indication
Onboard UART communication interface
Supports connection to a PC for communication with upper computer software, and is also compatible with embedded hardware platforms like STM32 and for Raspberry Pi

Specifications:
Sensor: Capacitive touch sensor
Resolution: 508 DPI
Image pixels: 192 x 192
Fingerprint template size: 448 Byte
Sensor dimension: 9.6 x 9.6 mm
Fingerprint capacity: 1000
Matching :
