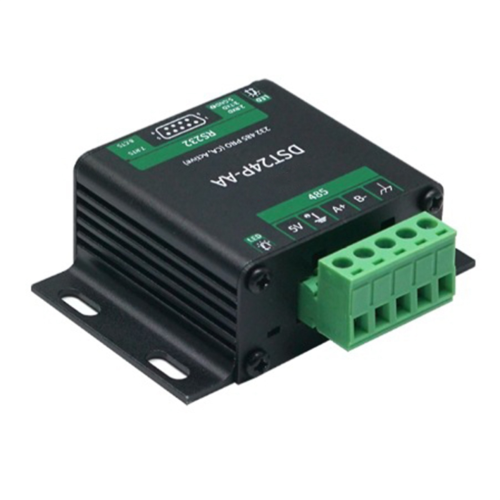

RS232 Isolation Signal Serial Port Module Converter DST24P-AA

RS232 Isolation Signal Serial Port Module Converter DST24P-AA Description

RS232 Isolation Signal Serial Port Module Converter DST24P-AA Description
Using SP3232 and SP3485, stable performance is achieved, meeting industrial-grade design standards.
The module performs conversion between 232 signals and RS485/RS422 signals. The integrated automatic transceiver conversion circuitry eliminates the need for transmit/receive control, resulting in faster and more stable communication between the two interface ends.
Using standard DB9 and 5.08 mm plug-in terminals ensures smooth, robust, and reliable insertion and removal.
The circuitry operates on 5V only. When the module is in operation, the supply voltage must be connected to the 485/422 end. With power and signal isolation circuitry.
The integrated digital isolator offers excellent performance and reliability, isolating signals and stabilizing the transmitted signal.
The integrated DC/DC power supply isolation provides stable isolation voltage and short-circuit protection at the output, and no additional power supply is required for the isolation end.
The 232 end features overcurrent and overvoltage protection. It offers stable current and voltage output as well as high shock resistance. The RS485/422 terminal is equipped with overcurrent protection, overvoltage protection, and lightning gas discharge protection circuits. The integrated overvoltage protection effectively suppresses overvoltages and transient voltage spikes in the circuit to protect downstream circuitry and equipment. The integrated self-recovery fuse stabilizes the current and voltage output, prevents overcurrent, overvoltage, and electrostatic discharge, and is shock resistant. The integrated gas discharge tube can dissipate the strong lightning current into the ground, preventing downstream circuitry and equipment from being damaged by overvoltage. Color: Black Material: Metal

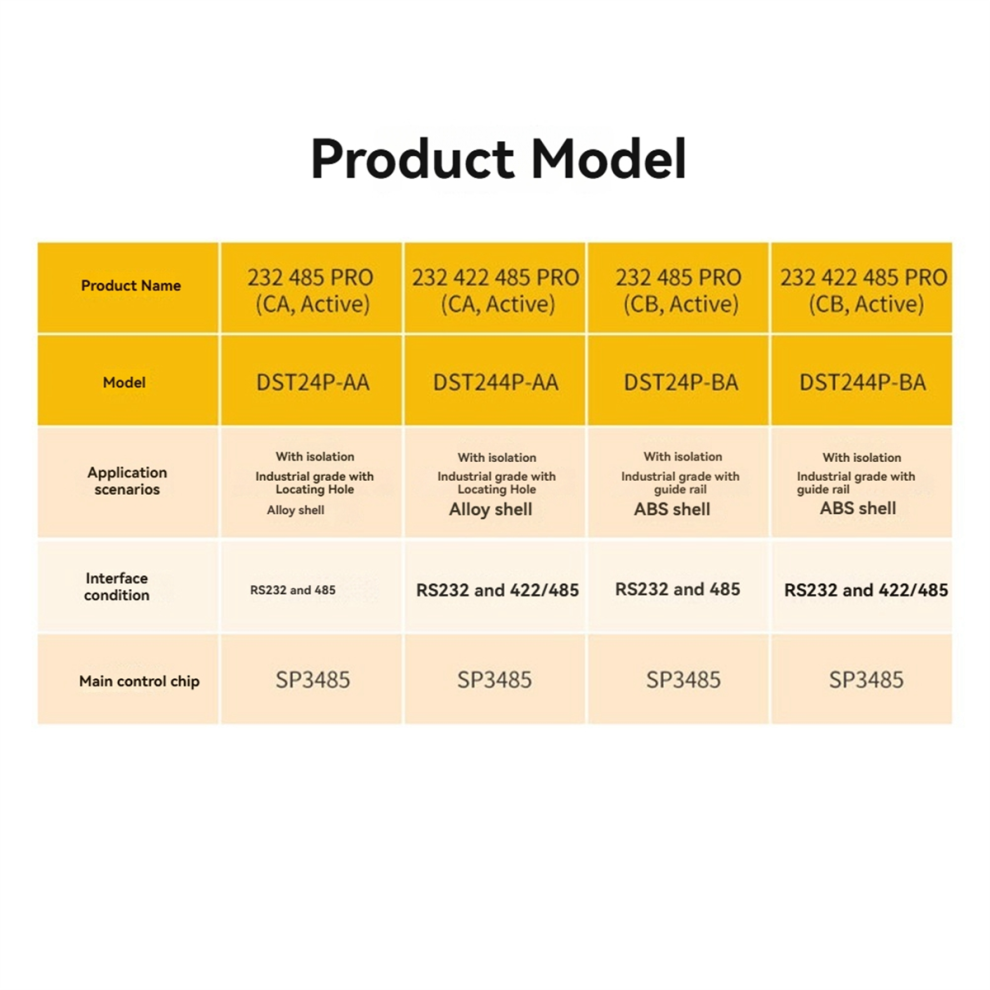

Style: DST24P-AA
Due to different batches, there may be variations in appearance and printing, which do not affect use.
Package Contents:
1 * Converter Kit (accessory color and appearance may vary; please do not accept the specified color and appearance)
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual color. The allowable measurement error is +/- 1-3 cm.
