Self-locking wireless smart home relay switch module

Self-locking wireless smart home relay switch module Description

Self-Locking Wireless Smart Home Relay Switch Module Description
1. This easy-to-use WiFi control module requires no programming. Simply download an app and connect to WiFi to control the integrated cloud. It supports 2.4 GHz remote control.
2. Features indicator lights, signal indicator lights, and relay closing indicator lights.
3. Low power consumption; board power consumption is less than 1W, static current is 80mA.
4. Supports radio frequency, WiFi 2.4 GHz b/g + Bluetooth; can be time-controlled and delayed; and shared devices support shared control by multiple people or control of multiple switches by one person.
5. It has a wide range of applications and can be used for smart homes, Wi-Fi control, short-range remote control, etc. It can be connected to various types and styles of household appliances.
Parameters: Input voltage: DC 5V or Type-C-5V
Maximum power: 2200W/10A
Radio frequency: Wi-Fi 2.4GHz b/g + Bluetooth
Operating temperature: -20C - 70C
Color: Green
Material: Circuit board + components
Please check the following points before using this device:
1. Your smartphone or tablet is connected to a 2.4GHz Wi-Fi network that can access the internet (5G Wi-Fi is not currently supported).
2. Turn on Bluetooth on your phone.
3. For phones or tablets with an Android system, the system version must be 4.0 or higher.
4. You must access and download the app if you are using a phone or tablet.
5. If your Wi-Fi router has address filtering set up, please first access the router's settings and disable the filtering function.
Product Instructions:
6. Search for " [app name]" in the major app stores to download and install it.

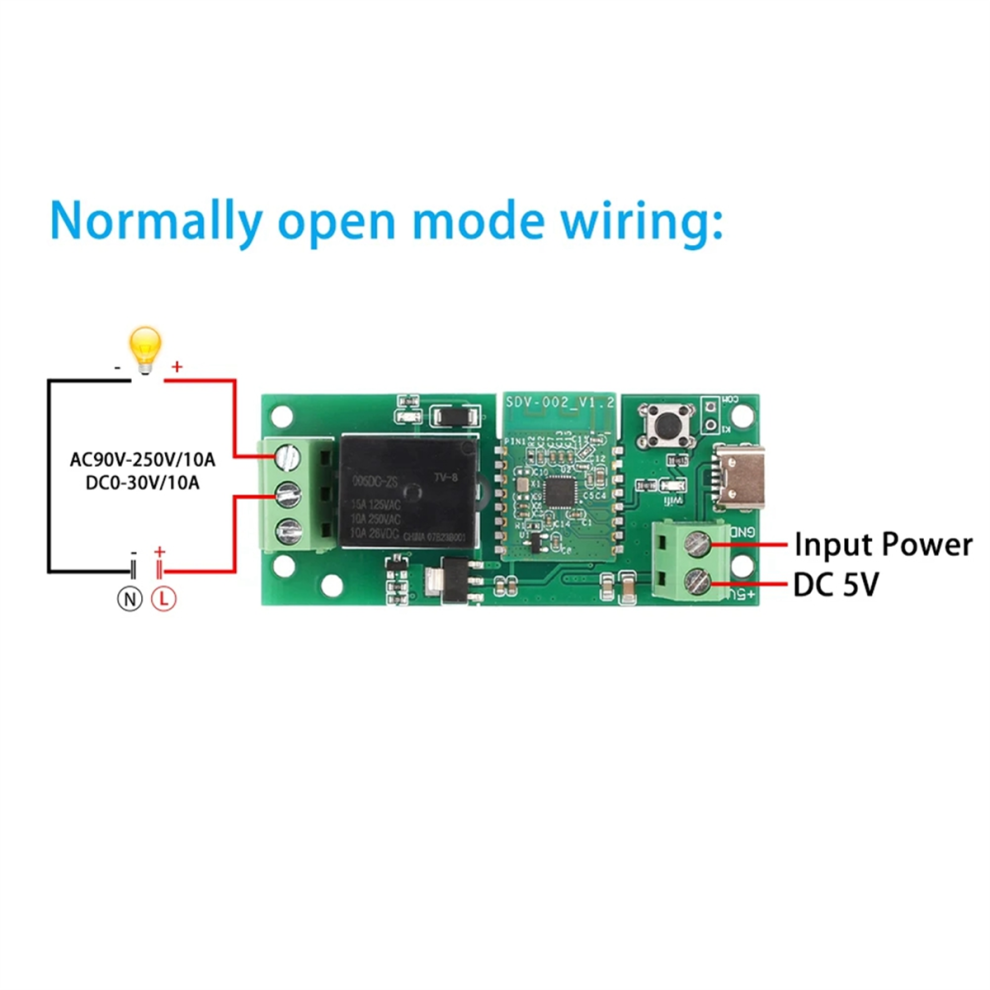

6. Connect the cables correctly according to the wiring diagram.
6. Turn on the device after completing the wiring. The device is disabled for incoming calls by default and can be enabled or disabled for incoming calls in the app. Due to different production batches, the appearance may vary, but this does not affect its use. Package contents: 1 x module. Only the above package contents are included; other products are not included. Note: Light reflections and different displays may cause the color of the item pictured to differ slightly from the actual product. The permissible measurement error is +/- 1-3 cm. [OnBuy.com]
