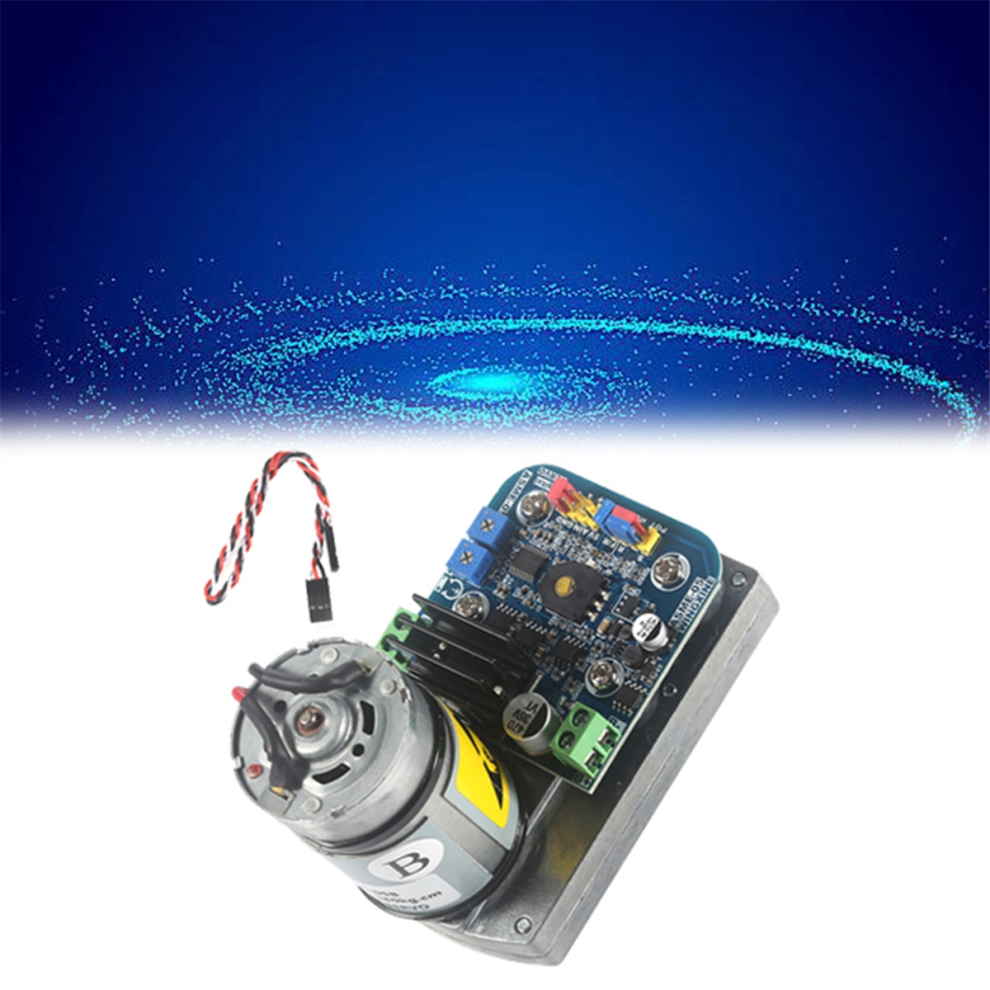

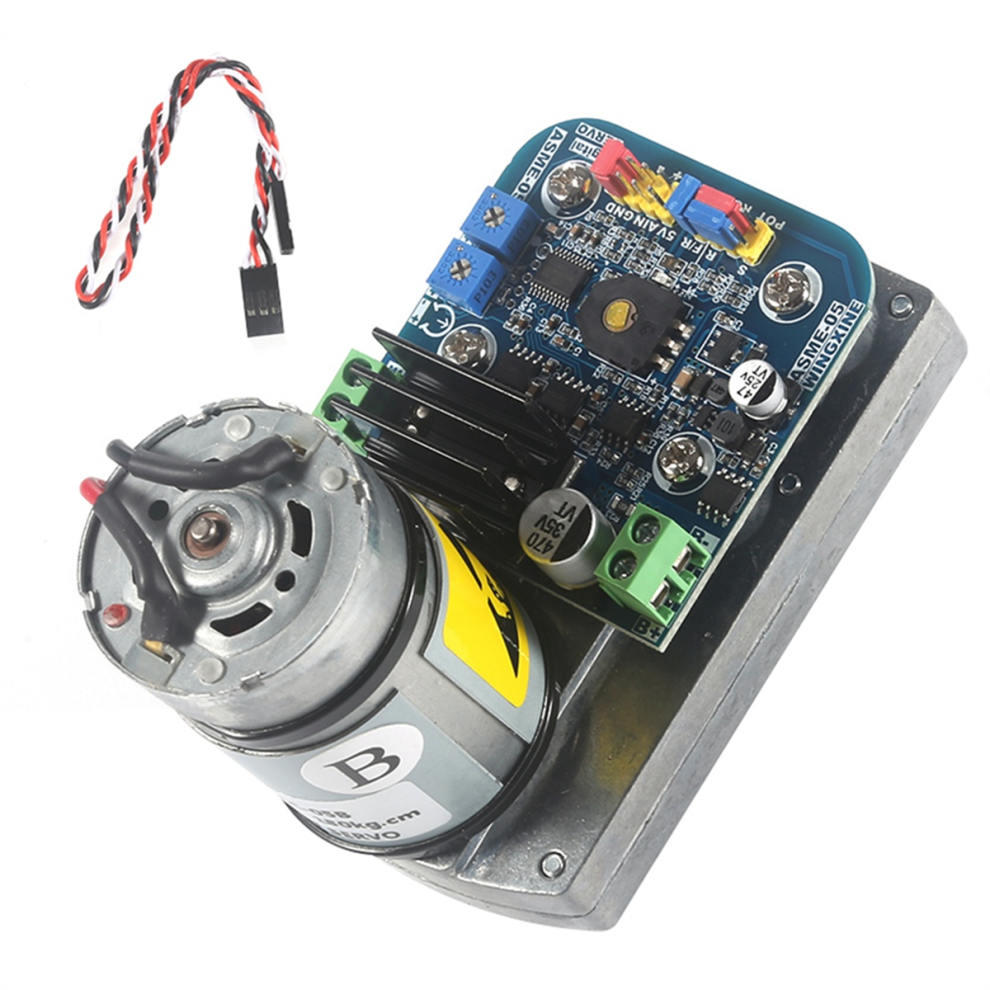

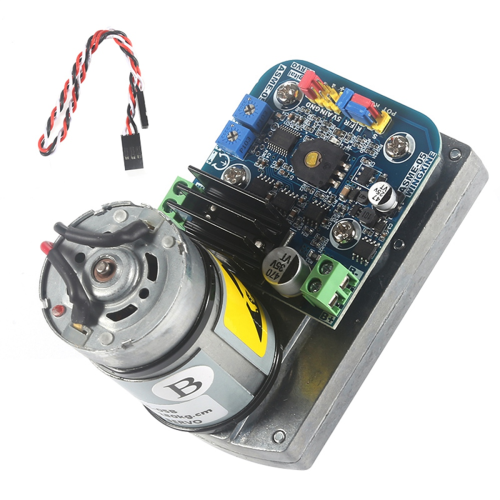

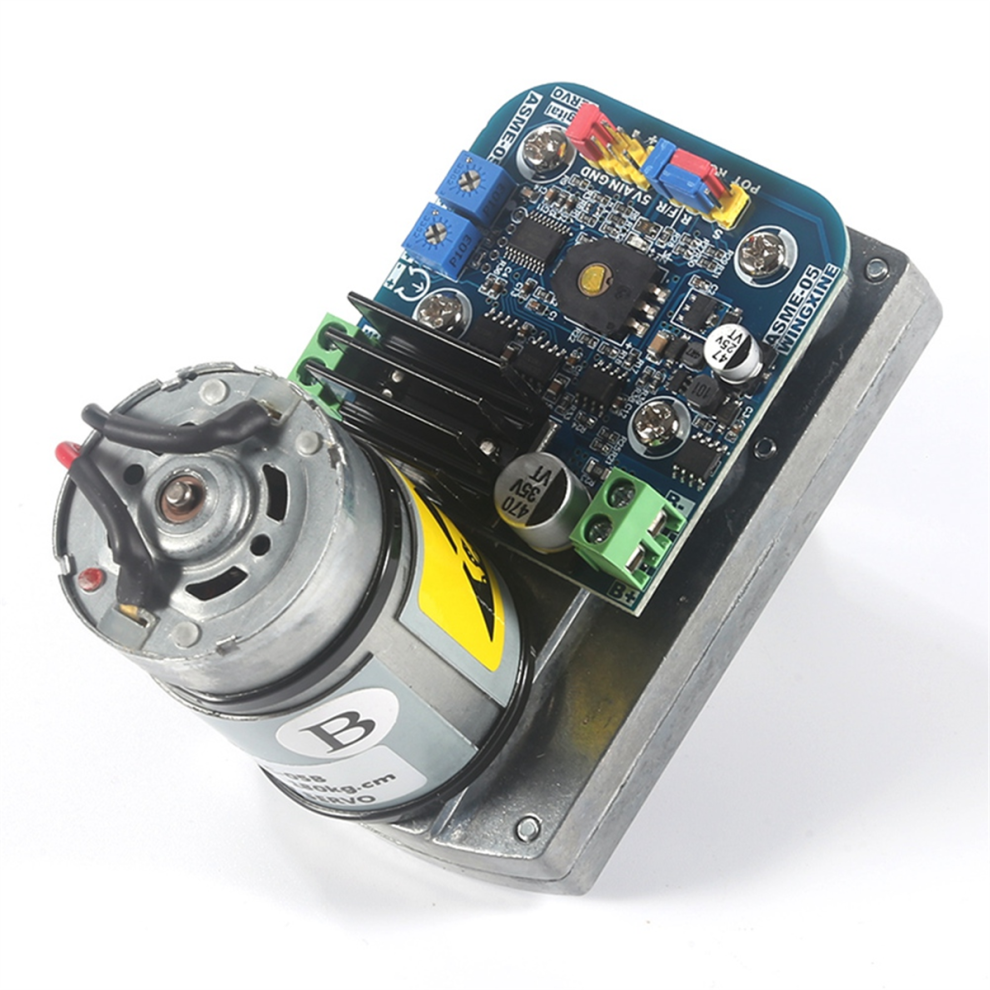

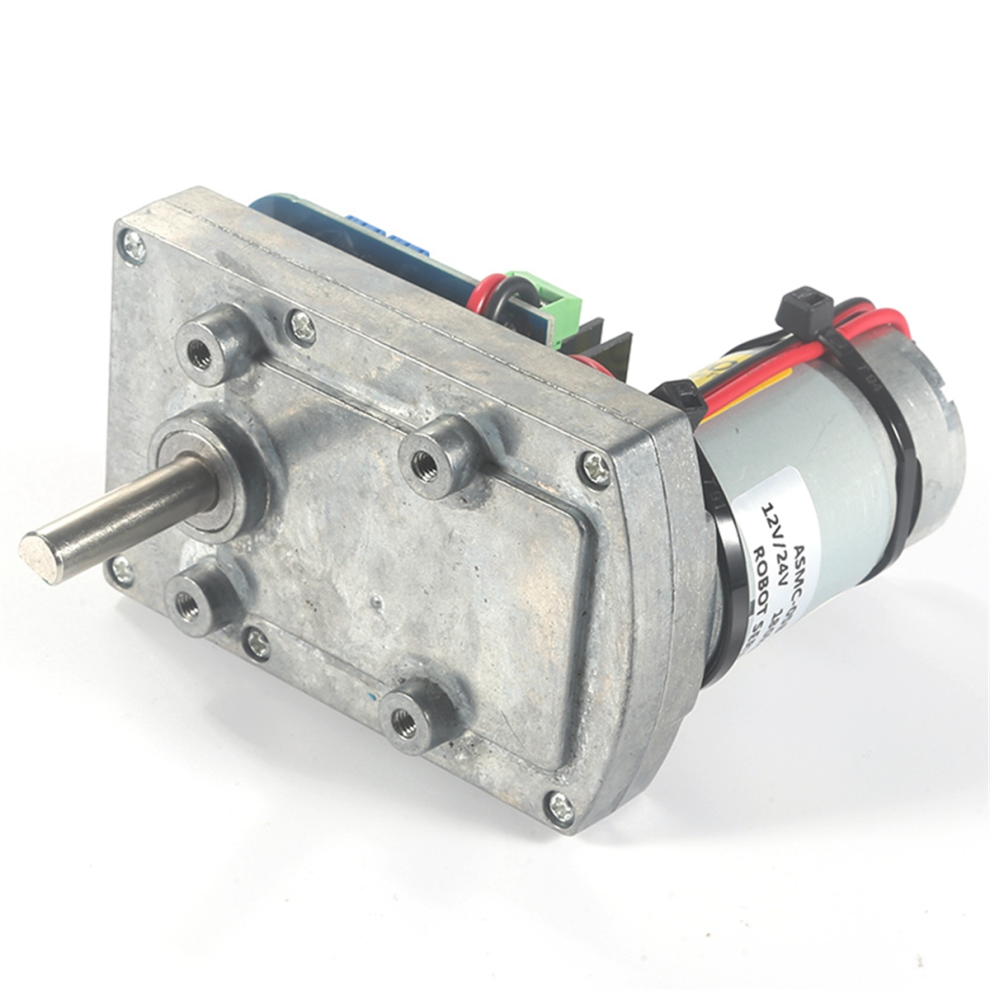

Servo Large Robot Robotic Arm GASMC-05B Super Torque Alloy 12V/24V/cm

Servo Large Robot Robotic Arm GASMC-05B Super Torque Alloy 12V/24V/cm Description

1. New And High Quality
2. Made Of High Quality Material, And Wear-
3. Nice Replacement For Broken Or Old One, Make You Device Work Properly
4. High Quality For Professional Use
5. Need A Professional To Install The Corresponding Accessories To Avoid Damage To The Accessories

Description:
1. Working Voltage: 12V To 24V (DC) (This Means That Any Voltage Between 12V And 24V Can Be Used)
2. No-Load Rotation Current: Less than 500mA
3. Maximum Torque: 180kg.Cm (24v) (Actual Measurement, Not Theoretical Calculation Value); 1764N.Cm (24V) (Actual Measurement, Not Theoretical Calculation Value)
4. 90kg.Cm (12B) (Actual Measurement, Not Theoretical Calculation Value); 882n.Cm (12v) (Actual Measurement, Not Theoretical Calculation Value)
5. Angular Speed: 0.5S/60 (It Takes 0.5s To Turn 60 Degrees), At 24V; 1.0S/60 (It Takes 1.0S To Turn 60 Degrees), At 12V;
6. Rotation Angle: 300Max, Which Means The Maximum Stroke Is 300 Degrees (0 To 300 Electronic Limit Is Adjustable)
7. Input Mode: Pulse Signal (Remote Control, Multi-Channel Steering Gear Controller, Microcontroller) Or Analog Voltage Signal (Potentiometer)
8. Pulse Signal Input Range: 0.5ms-2.5ms Suitable For All "Multi-Channel Steering Gear Controllers", "1ms-2ms Model Aircraft Remote Controls", "Microcontroller Programming", "", Etc.;
9. Voltage Signal Input Range: 0V~5V
10. Control Accuracy: 0.32
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:Steel

Package Contents:
1x Servo
1x 20cm Signal Line

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
