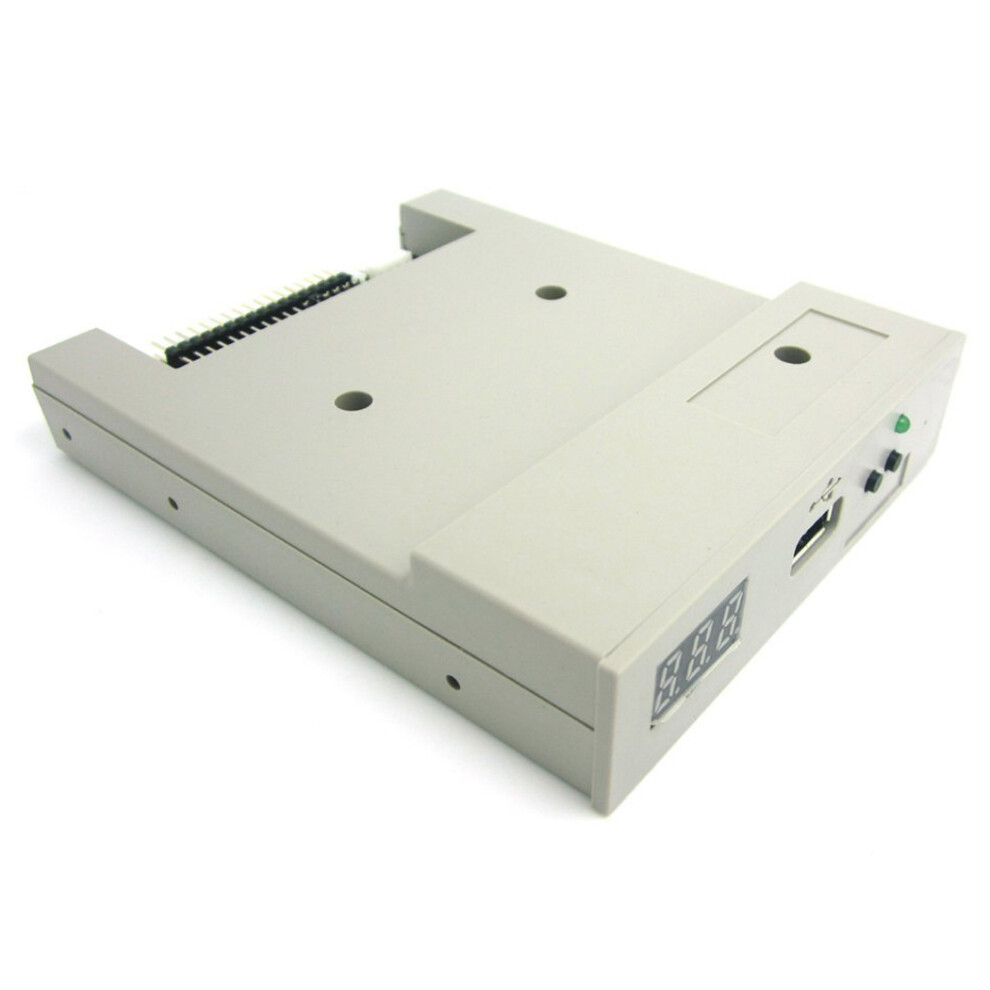

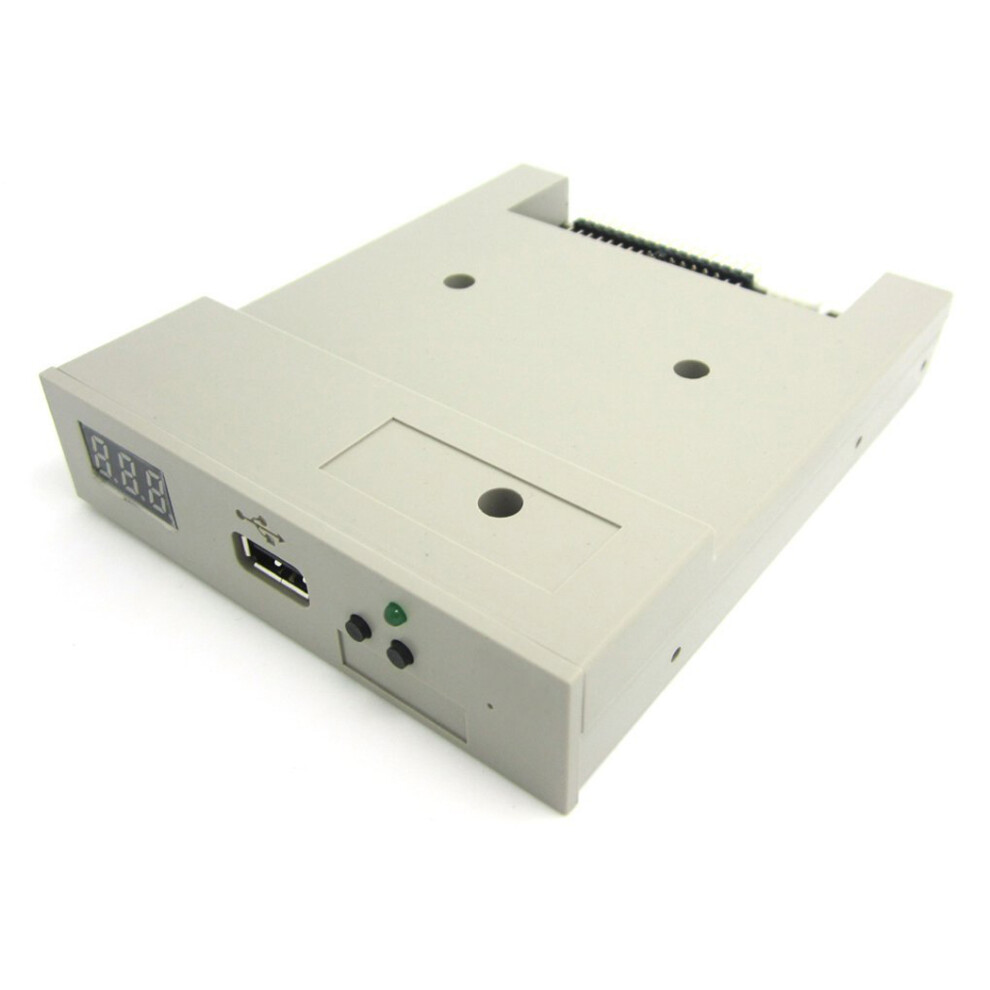

SFR1M44 U100 USB Floppy Drive Emulator ABS machine

SFR1M44 U100 USB Floppy Drive Emulator ABS machine Description

,
Case Material: ABS, Colour: Grey
34 pin floppy driver interface, 5V DC power supply, easy to install. Capacity: 1.44 2HD, Tracks: 160 Sectors / Track: 18 Bytes / Sector: 512, Data transmission rate: 500 kbps, encoding: MFM.
1000pcs partitions are used in USB flash drive.
Built-in Self-Format function.

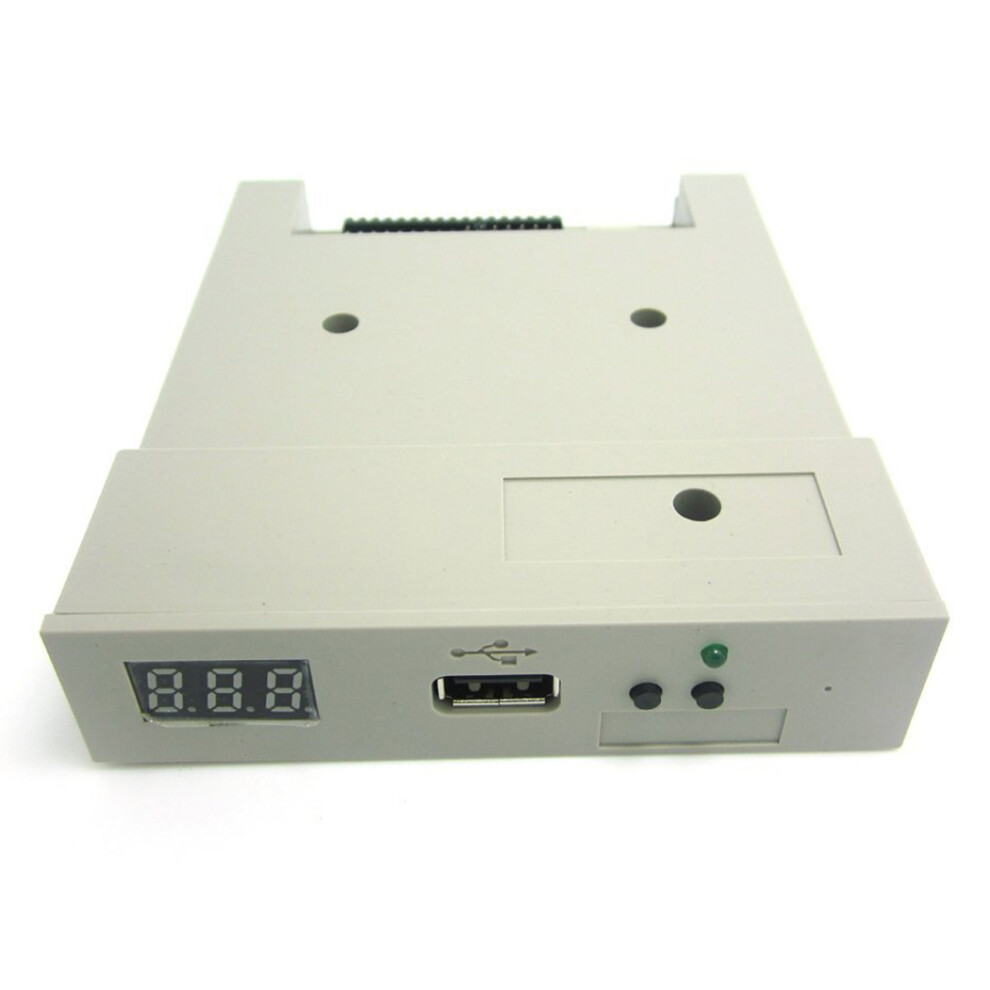

Button:
Left button used to rise ten-digit, right botton used to rise single-digit
Press 2 button together to rise hundred-digit
Operation :
Format USB flash drive
Use built-in self-format function to format USB flash drive into 100pcs
partitions.
Use software in CD format USB flash drive under XP/2000, into 000-099
100pcs partitions.
Install an emulator on computer, and format every partitions by operate
driver A:.
use emulator UFA1M44-100, plug USB flash drive on it,connect to computer, it
recognized as removabe driver A: or B: under XP/2000/7, format
every partitions.
UFA1M44-100 also built in self-format function.
Read and write data.
Install emulator on machine
Install emulator on computer
Connect USB flash drive on computer, read and write data directory by
software, under XP/2000
Use emulator UFA1M44-100, plug usb flash drive on it, connect to computer,
read and write data under XP/2000/7

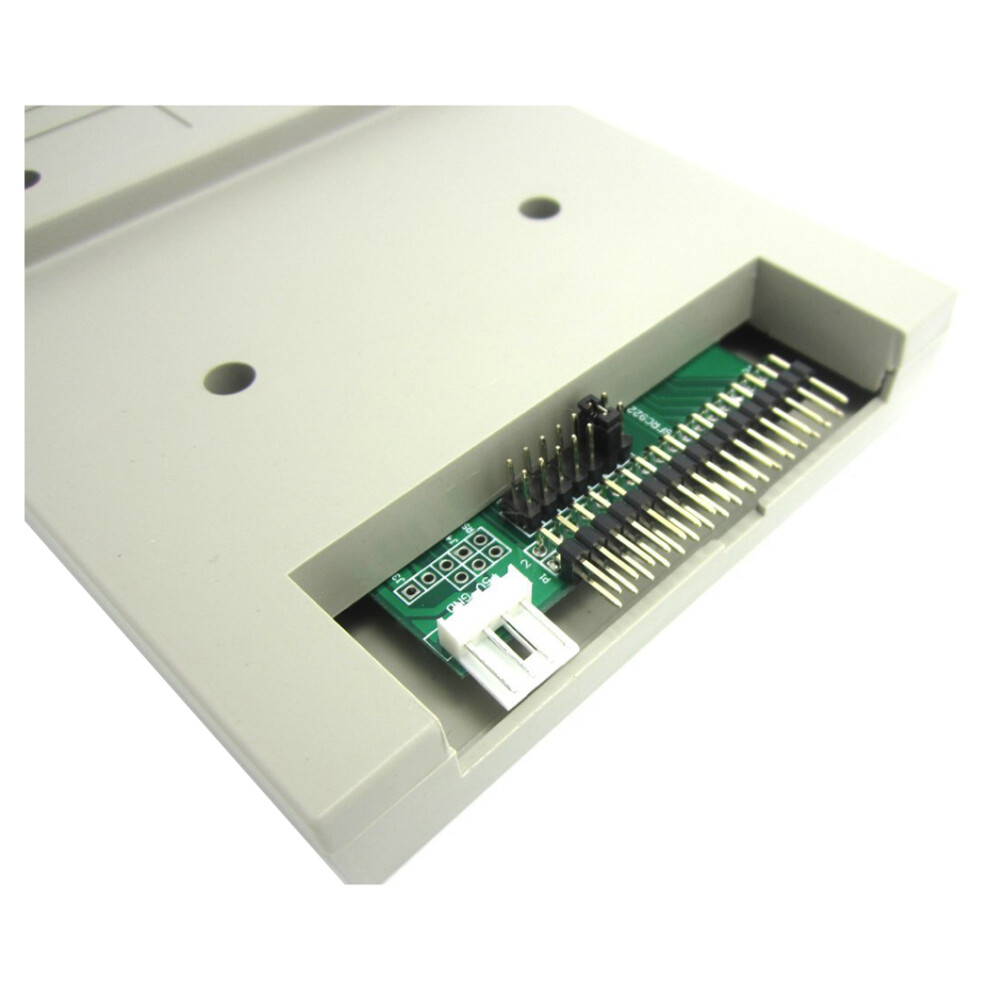

Jumper setting:
J5; ---
YES;---
; ---
; ---
S0; Driver Vote 0
S1; Driver 1 Select
MO; Motor

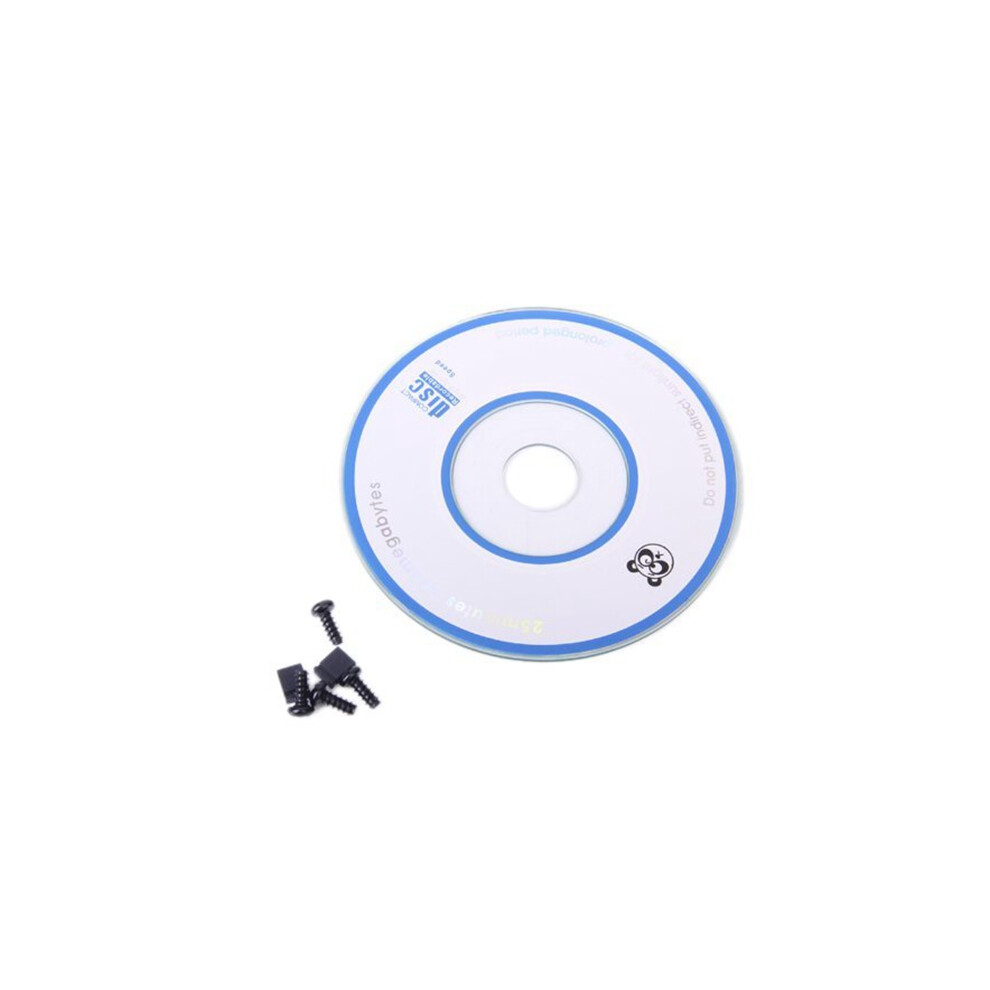

Package Contents:
1 x USB Emulator
1 x CD
4 x screws

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
