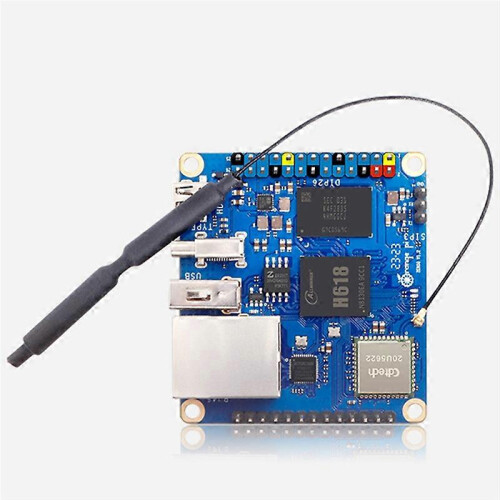

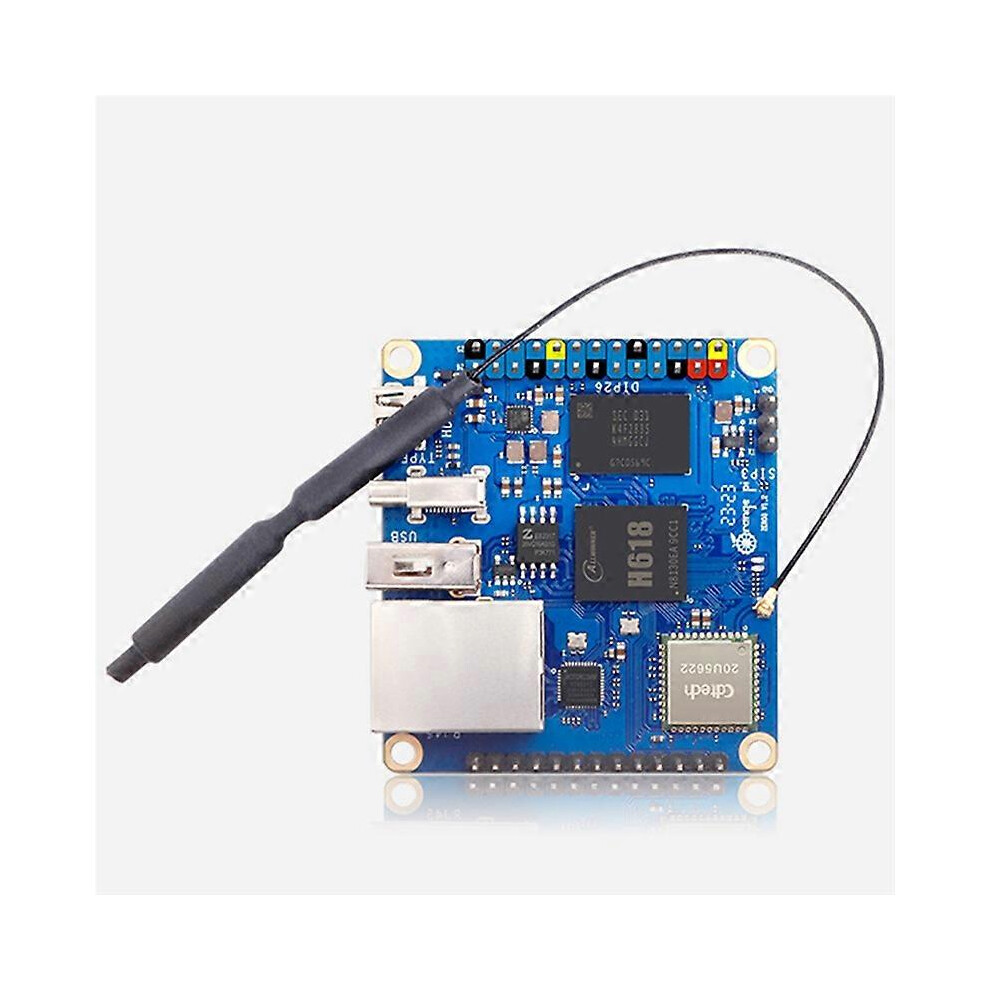

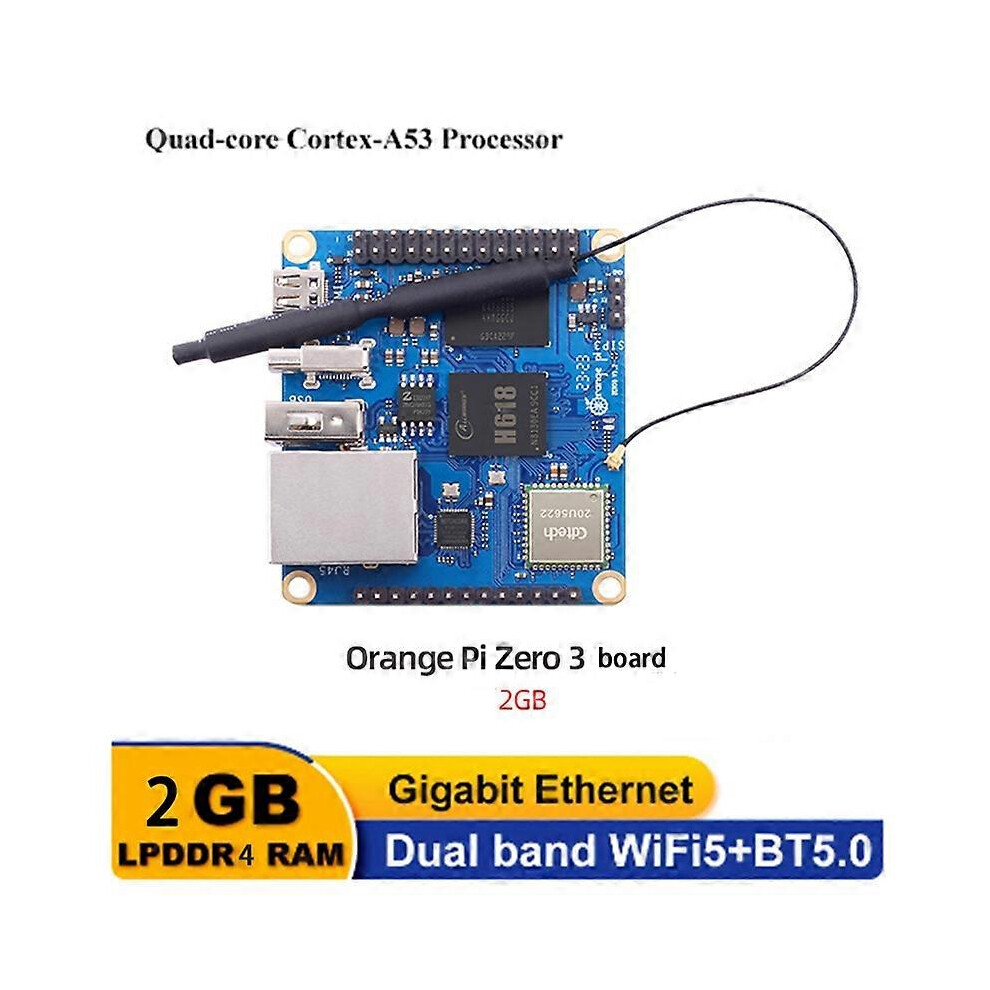

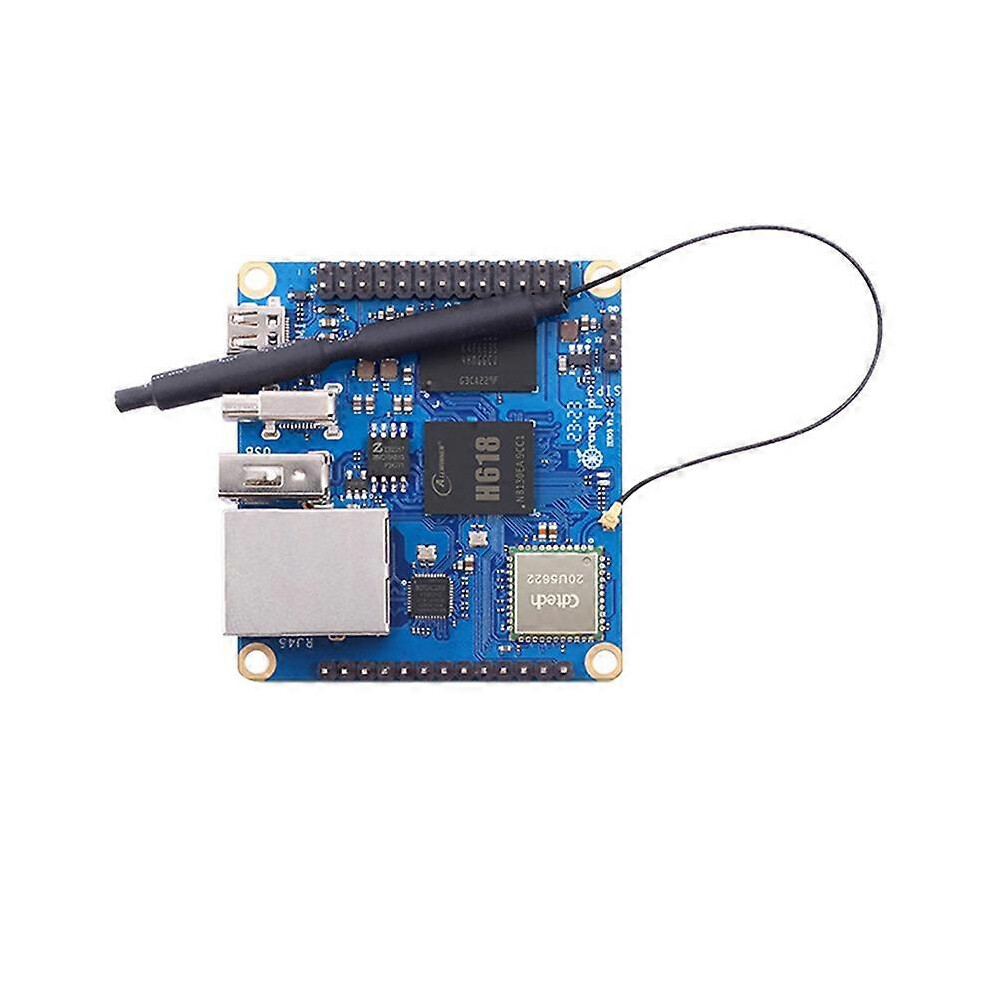

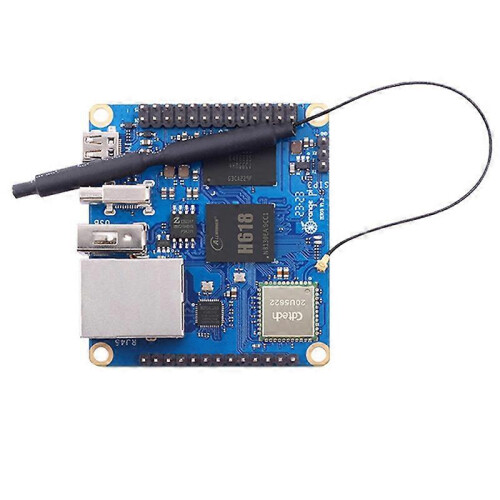

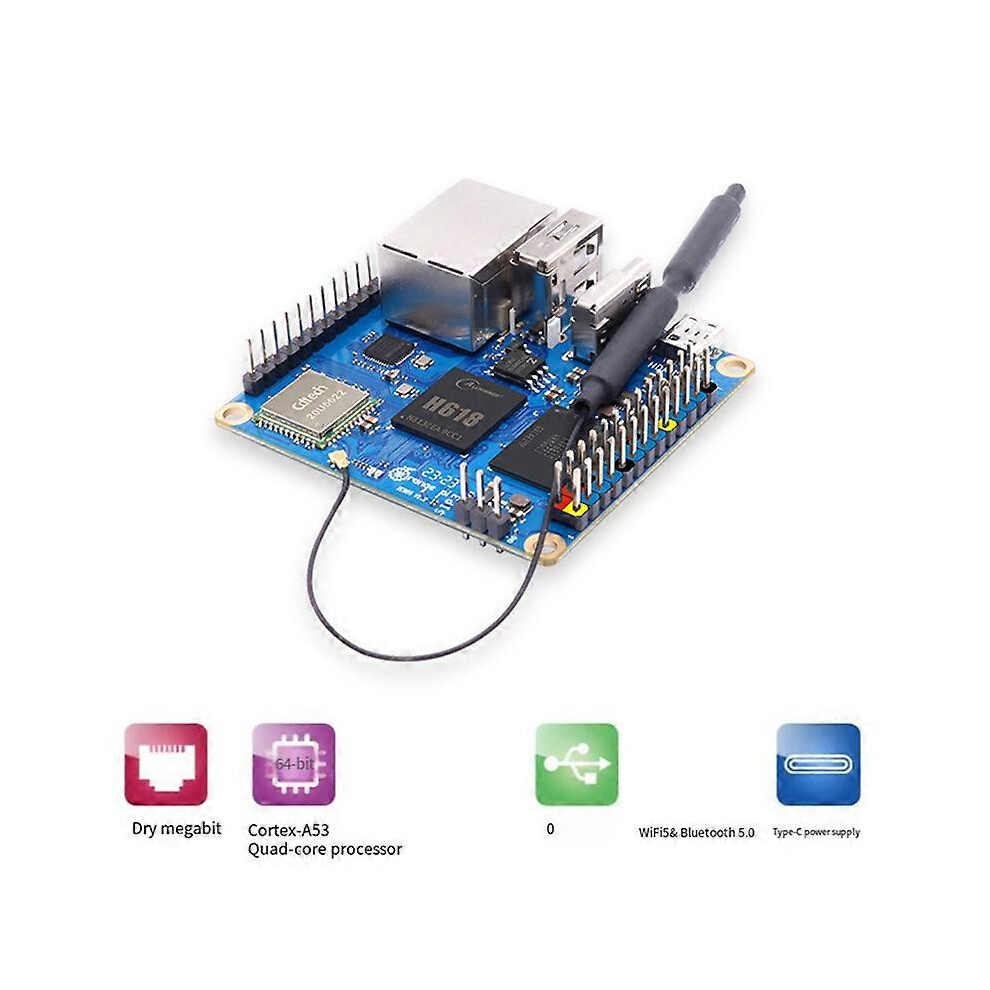

Single Board Computer, 2GB RAM, H618 Chip, Wifi-BT5.0, LPDDR4, Gigabit, compatible with Zero 3, Zero3 Development Board

Single Board Computer, 2GB RAM, H618 Chip, Wifi-BT5.0, LPDDR4, Gigabit, compatible with Zero 3, Zero3 Development Board Description

1.for Zero3 uses Allwinner H618 64-bit high-performance quad-core -A53 processor, Arm Mali-g31 MP2 GPU, iopengl ES 1.0/2.0/3.2, Opencl 2.0Vulkan1.1, etc., and supports editing of multiple video formats Decoding, Micro- output supports 4K display
2.for Zero3 can also use the 13Pin expansion port to cooperate with the adapter board to expand functions such as headphones, TV-out, USB2.0, infrared receiver, etc. In addition, the 26Pin expansion function port on the board further enriches the functional interface of the main board and improves the development potential
3.for Zero3 is not only a consumer product, but also designed for anyone who wants to use technology to create and . It is a very simple, interesting and practical tool, you can use it to create the world around you, it supports Android12T, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04 and other operating systems.
4. Provide high-quality video experience with stable, delicate and smooth image quality Provide stable, delicate and smooth ultra-clear image quality experience, which can be widely used in TV boxes, smart screen projection devices, etc.
CPU Allwinner H618 high-performance quad-core -A53 processor 1.5GHz
GPUMali G31 MP2 supports OpengL ES1.02.0/3.2, Opencl2.0, Vulkan1.1
Onboard storage: 16MB SPI Flash
Power management: AXP313A
Onboard: WiFi+Bluetooth support WF5 and Bluetooth 5.0
Network: 10M/100M/1000M Ethernet interface
Audio input and output: 13Pin expansion port supports 2 outputs and 1 input
Video output: Micro- supports 4K@60fps
Tv-out: 13Pin support: 1 channel TV CVBS output
UART: 3pin Debug UART
USB: USB2.0X3 (two of them lead out from the expansion board)
SD card interface: Micro-sd card interface
Expansion interface: 26pinGPIO interface 13pinGPIO interface
Power input: 5V3A, Type-c interface
Supported OS: Android 12 TV, Debian 11/12, 22.04/20.04
Colour:blue
Materi
