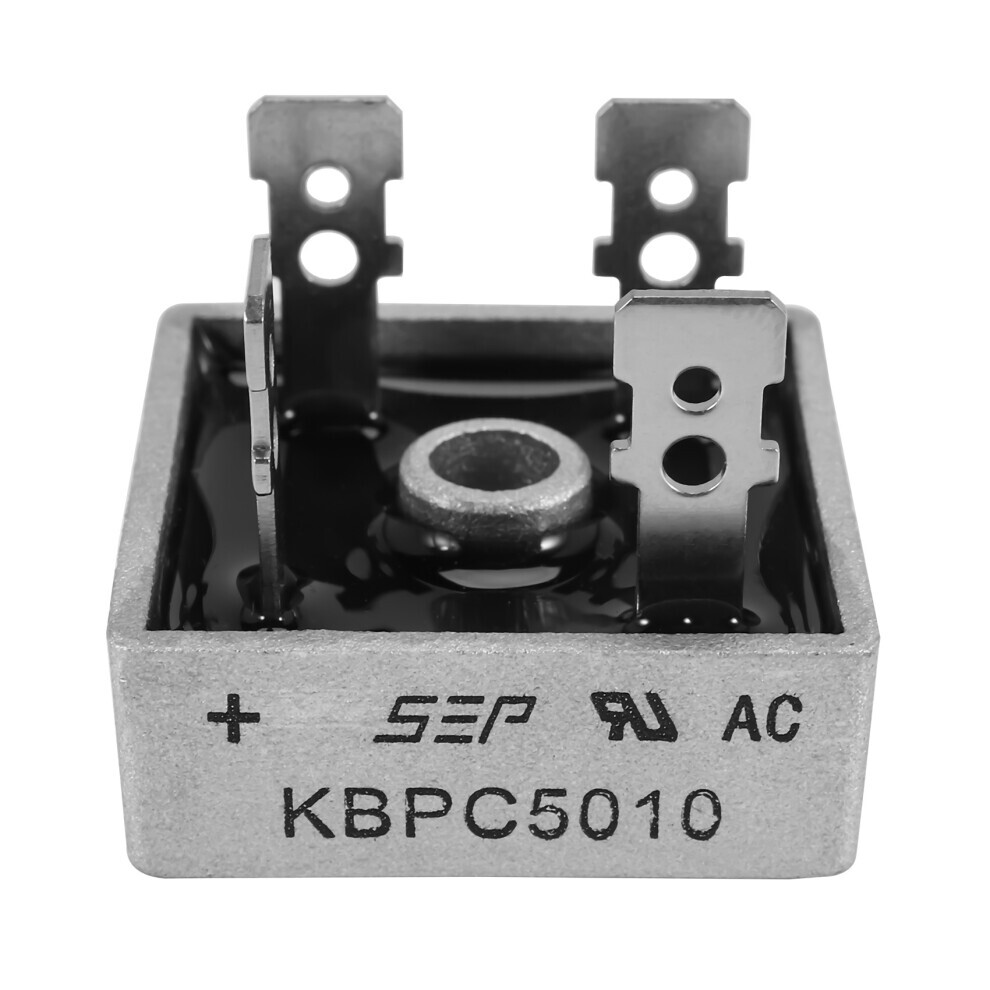

Single-phase diode bridge rectifier 50A 1000V KBPC5010 New

Single-phase diode bridge rectifier 50A 1000V KBPC5010 New Description

Single-Phase Diode Bridge Rectifier 50A 1000V KBPC5010 New Description Product Name: Single-phase bridge rectifier; Output current (DC): 50 A; Reverse voltage (AC): 1000 V; Reverse current: 5 mA; Insulation voltage: 2500 V; Mounting hole diameter: 5 mm; Overall size (L x W x H): 29 x 29 x 21 mm; Material: Aluminum, plastic; Net weight: 18 g; Applications: Rectifier current, industrial automatic control, digitally controlled machine and remote control system. Features: Miniature dimensions, welded construction, vacuum and hydrogen gas protection, glass passivated diode chips, excellent power-to-volume ratio, high thermal conductivity sealing package. Package contents: 1 x Single-phase bridge rectifier / Note: Light and different displays may cause the color of the item in the picture to be slightly different from the actual item. The allowable measurement error is +/- 1-3 cm. [OnBuy.com]
