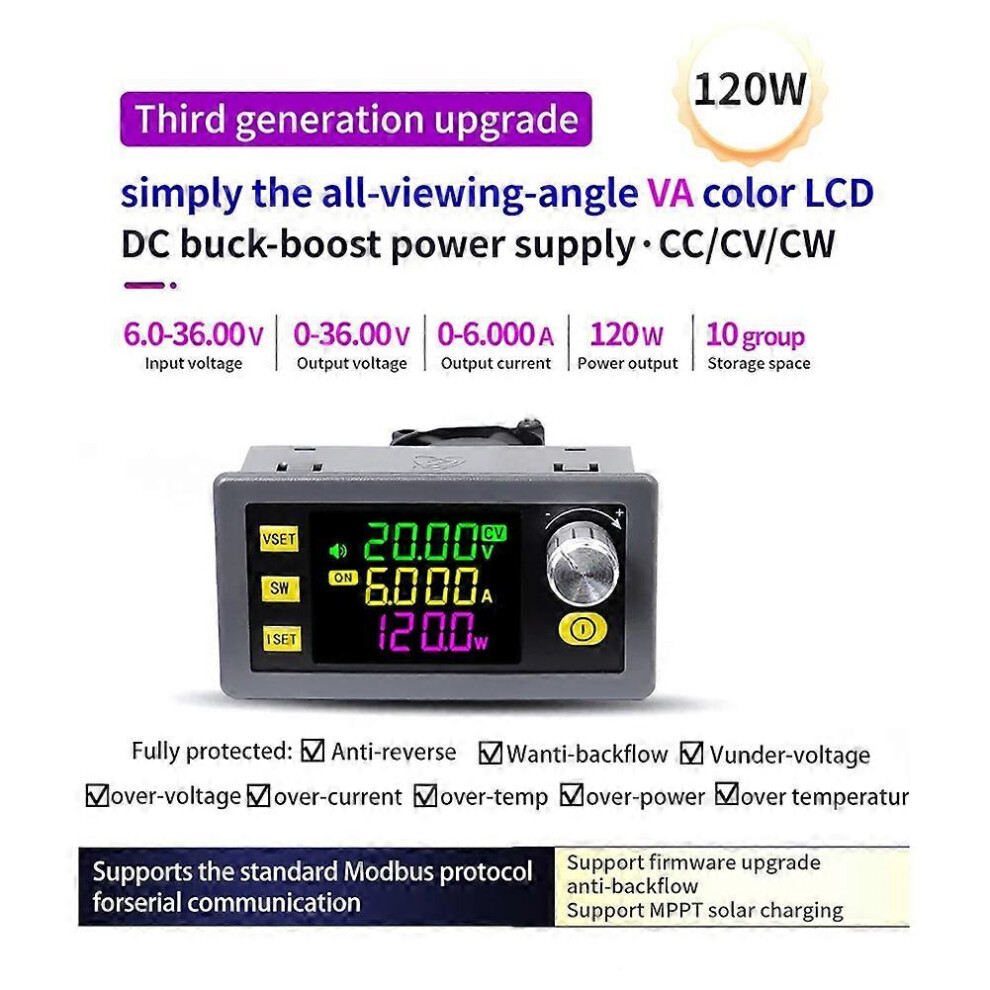

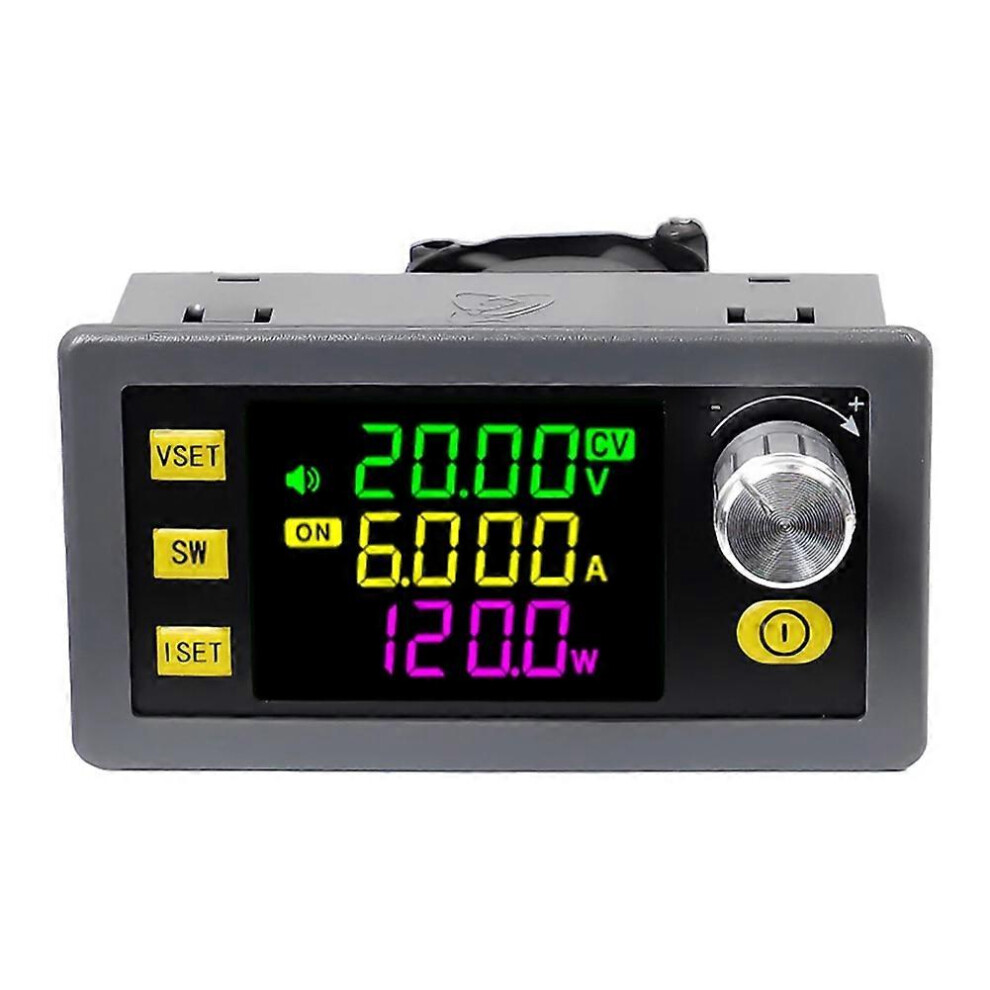

SK120 CNC Buck-Boost DC Adjustable Power Supply Constant Voltage and Constant Current Solar Charging Module

SK120 CNC Buck-Boost DC Adjustable Power Supply Constant Voltage and Constant Current Solar Charging Module Description

1. The use of high-quality materials, quality assurance, greatly improving the service life of the product

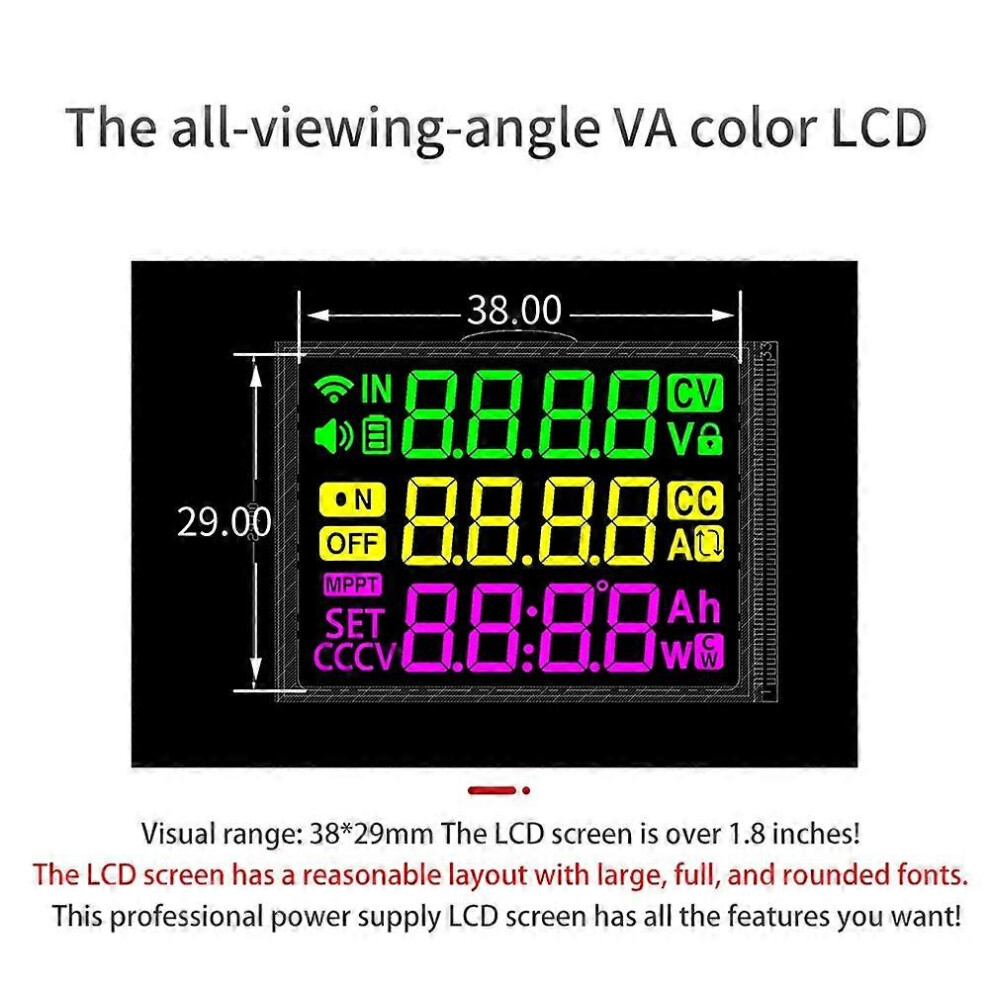

2. LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!

3. Built-in buzzer, key prompts, alarm prompts, safer and more assured use of the product

4. Upgraded plug-in terminals, easy to disassemble and replace.

5. The product has a wide range of applications, with MPPT function, support for MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection.

Input voltage: 6.0-36V

Output current: 0-6.000A

Output power: 120W

Voltage resolution: 0.01V

Conversion efficiency: 88% or so

Output Voltage: 0-36V

Voltage accuracy: 0.5%+1 word

Current accuracy: 0.5%+3 words

Current resolution: 0.001A

Storage data group: 10 groups

MPPT function: support MPPT solar charging

Buzzer: Yes

Soft start: Yes

Protection mechanism:

Input anti-reverse connection: Yes

Output anti-reverse: Yes

Input undervoltage protection: 5.5-36V adjustable, default 5.5V

Output over-voltage protection: 0-38V adjustable, default 38V

Output overcurrent protection: 0-6.2A adjustable, default 6.2A

Output over power protection: 0-150W adjustable, default 125W

Over-temperature protection: 0-110 adjustable, default 95

Timeout protection: 0-100H adjustable, default off

Over capacity protection: 0-9999AH adjustable, default off

Super energy protection: 0-9999KWH adjustable, default off

Colour:Gray

Material:ABS

Package Contents:

1 * CNC step-up/step-down module

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
