Soldering practice set with light-up glasses, DIY electronics set, B

Soldering practice set with light-up glasses, DIY electronics set, B Description

Soldering Practice Kit with Light-Up Glasses, DIY Electronics Kit, Description: 1. Voice-controlled LED glasses that can control the flashing of the LEDs via voice or music. 2. Transparent case, mesh design, visible from the inside out. 3. The LED on the circuit board emits light outwards and does not illuminate the eyes. 4. The product sensitivity is adjustable, and the light flashes from the center outwards to both sides. 5. Assemble it yourself and enjoy the fun! DIY.
Product Name: Voice-Controlled LED Light-Up Glasses Kit
Power Supply: 2 x 23A batteries (included).
Operating Voltage: 12V.
Operating Current: 15mA.
Number of LED Beads: 50.
These are DIY kits that you need to complete yourself.
Circuit Description:

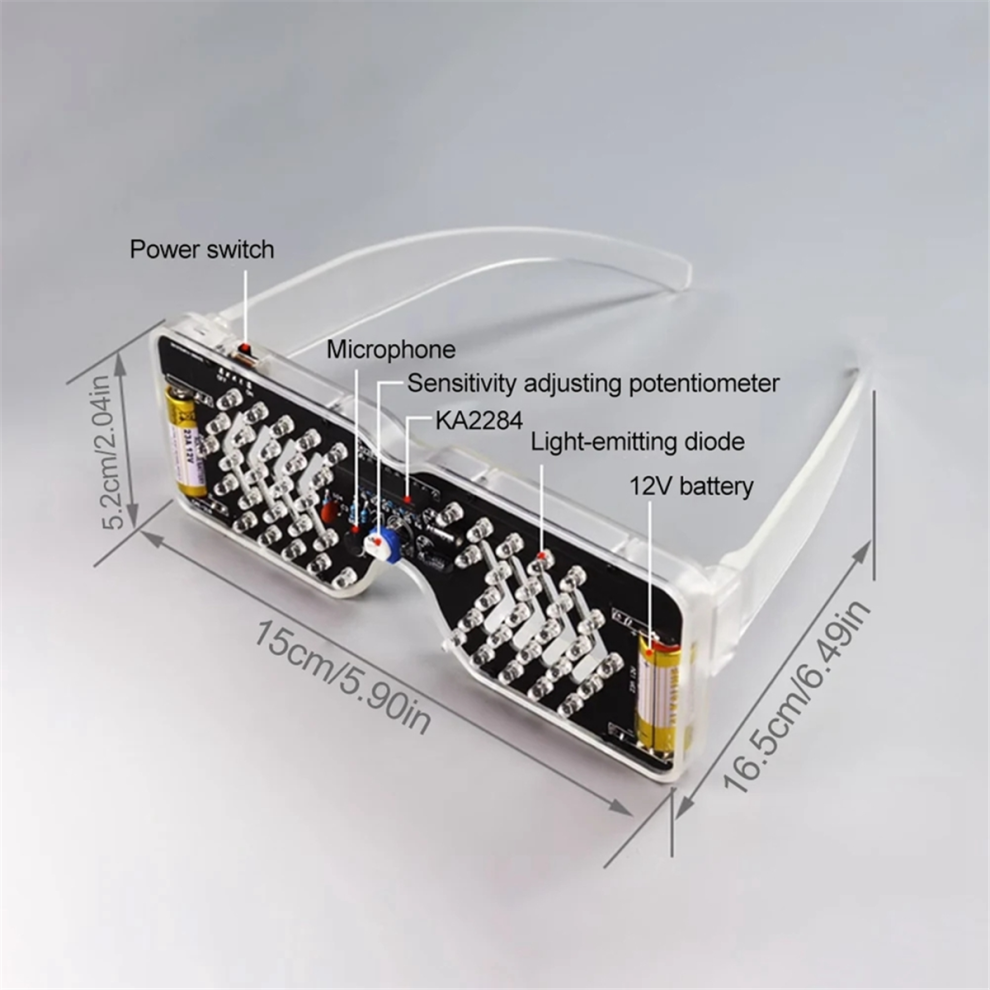

KA2284 is an integrated circuit for the 5-point LED level indicator. By inputting different voltages, you can output different lighting states from 5 LEDs, and the LEDs will turn on and off sequentially. The number of LED lights is commonly used as an indicator of amplifier power or ambient noise level, i.e., The louder the sound, the more LEDs light up; the quieter the sound, the fewer LEDs light up. This circuit consists of two parts: a transistor amplifier circuit and a level indicator circuit. The microphone sends the received sound via C3 to transistor Q1 for amplification and then to the signal input (8 pins) of the KA2284. The KA2284 controls five sets of LEDs, which turn the indicator on and off. The circuit's power supply is 12 V, and R1-R5 are the current-limiting resistors for the LEDs, with five LEDs connected in series. The left and right sides of the glasses are mirrored with five sets of LEDs each. The sensitivity of the sound detection can be adjusted by changing RP1.
Color: B: Green Light
Material: ABS
Package Contents:
1 * Glass Frame
1 * Circuit Board
1 Set * Accessories
Only the above package contents, other products are not included.

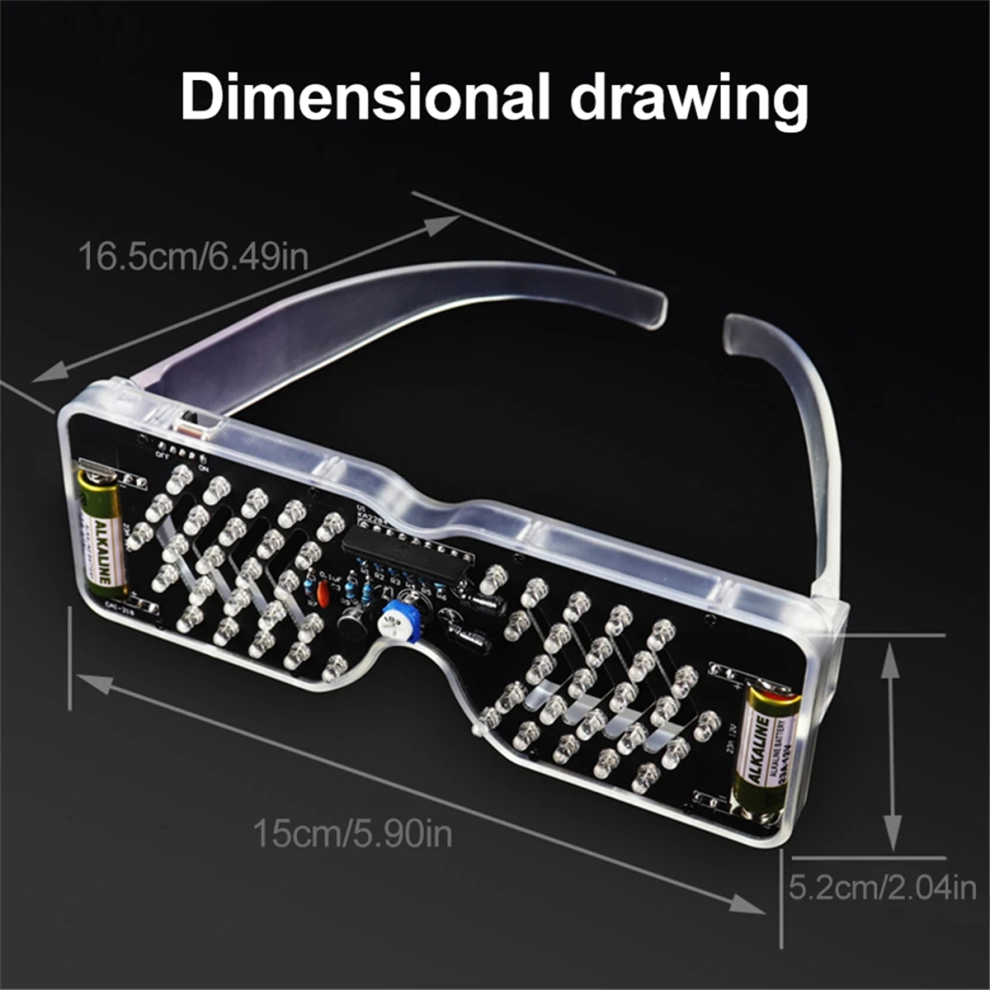

Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
