SR501 Adjust IR Pyroelectric Infrared PIR Module Motion Sensor Detector Module DIY Kits

SR501 Adjust IR Pyroelectric Infrared PIR Module Motion Sensor Detector Module DIY Kits Description

1. automatic: when someone enters the sensing range is input high level, people leaving the induction range is automatically delayed closing high level. Output low level.
2. induction blackout (default setting: 0.2 sec): after each induction the induction module output (high level low level), you can immediately set a blackout , during this the sensor does not receive any sensor signal. This feature can be achieved (sensor output and blockade times) the interval between work, can be applied to interval detection products; at the same this function can inhibit various disturbances load in the process of switching.
3. wide operating voltage range: default voltage DC5V to 20V
4. power consumption: quiescent current 65, particularly suitable for battery-powered appliances.
5. high level signal output: can be easily docked with the circuit.

SR501
1. Working voltage: DC5V to 20V
2. static power consumption: 65
3. output level: high 3.3V, low 0V
4. delay : adjustable (0.3 sec ~18 sec)
5. the embargo : 0.2 seconds
6. trigger mode: l not repeatable, h can be repeated, the default value for h
7. induction range: less than 120 degree cone angle, to 7 meters
Color: As Shown
Material: plastic

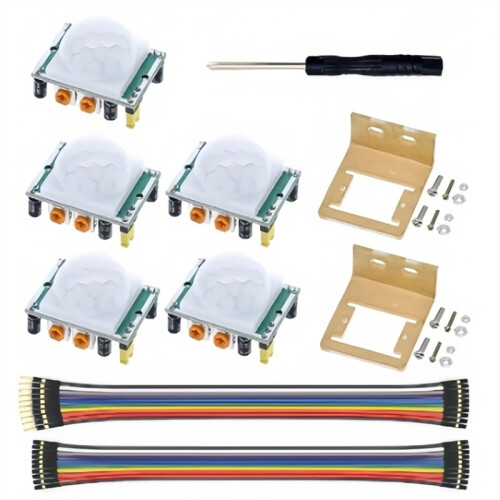

Package Contents:
5 * SR501

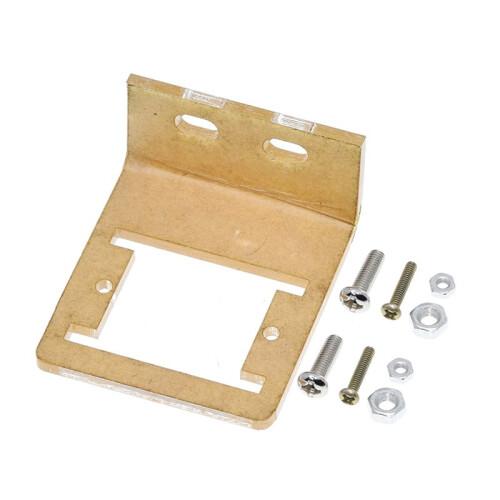

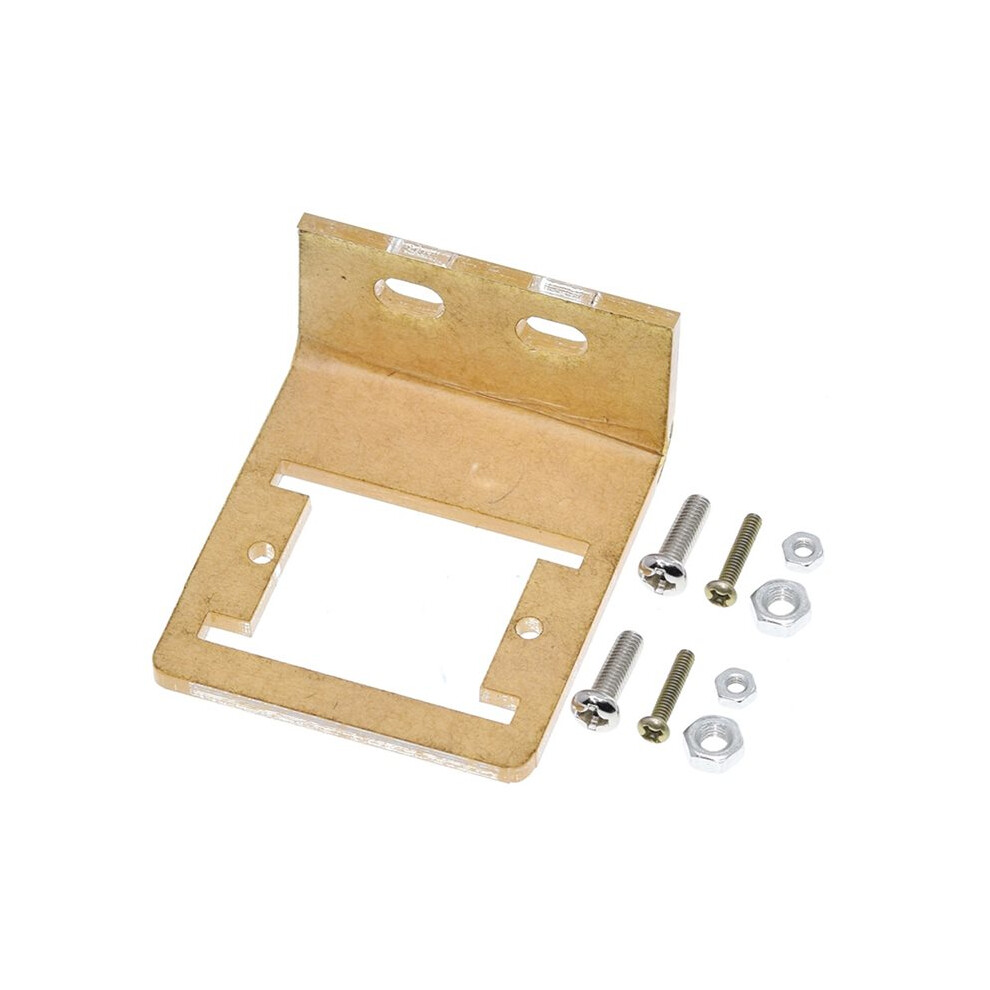

2 * Brackets,
1 * 10P male-to-female pair
1 * 10P female-to-female pair
