Stage Speaker Divider High Low Frequency Audio Crossover

Stage Speaker Divider High Low Frequency Audio Crossover Description

-2507 2 Way Audio Speaker Crossover Circuit Treble Bass Filter Frequency Divider Home Loudspeaker Refit Module Accessory

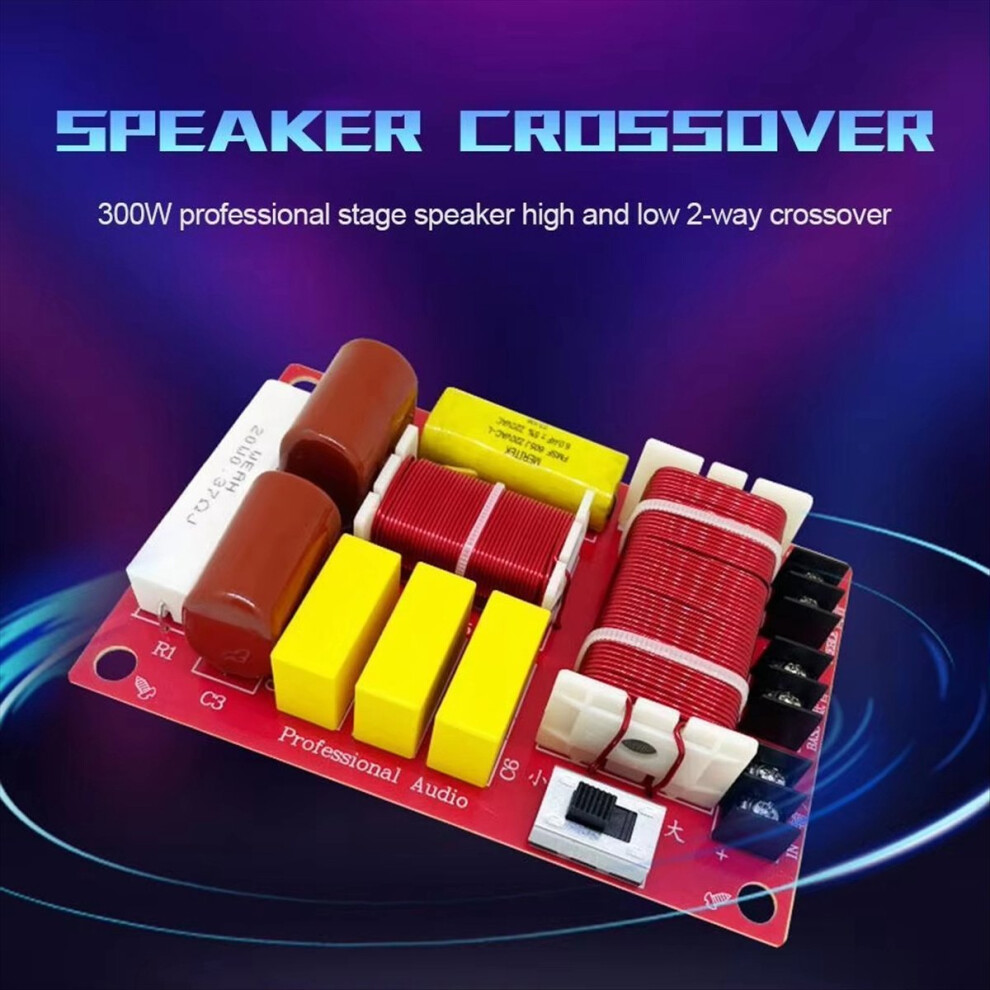

Professional stage speakers with high and low split frequency. The appearance design is clean and reasonable, feel the shock sound of the stage
Add frequency point adjustable switch. Adjustable 2800HZ-2900Hz to meet different needs
Bass high temperature resistance and high inductance. Treble 41mm/ bass 66mm large skeleton
Self-recovery protection with PTC. Hf porcelain cement resistors and weld-free terminals

Import MKP anti-interference capacitor. MKP is "metallized polypropylene film capacitor", metallized material loss is small, high anti-interference, small internal temperature rise, and excellent flame retardant performance, is a powerful of high performance frequency divider

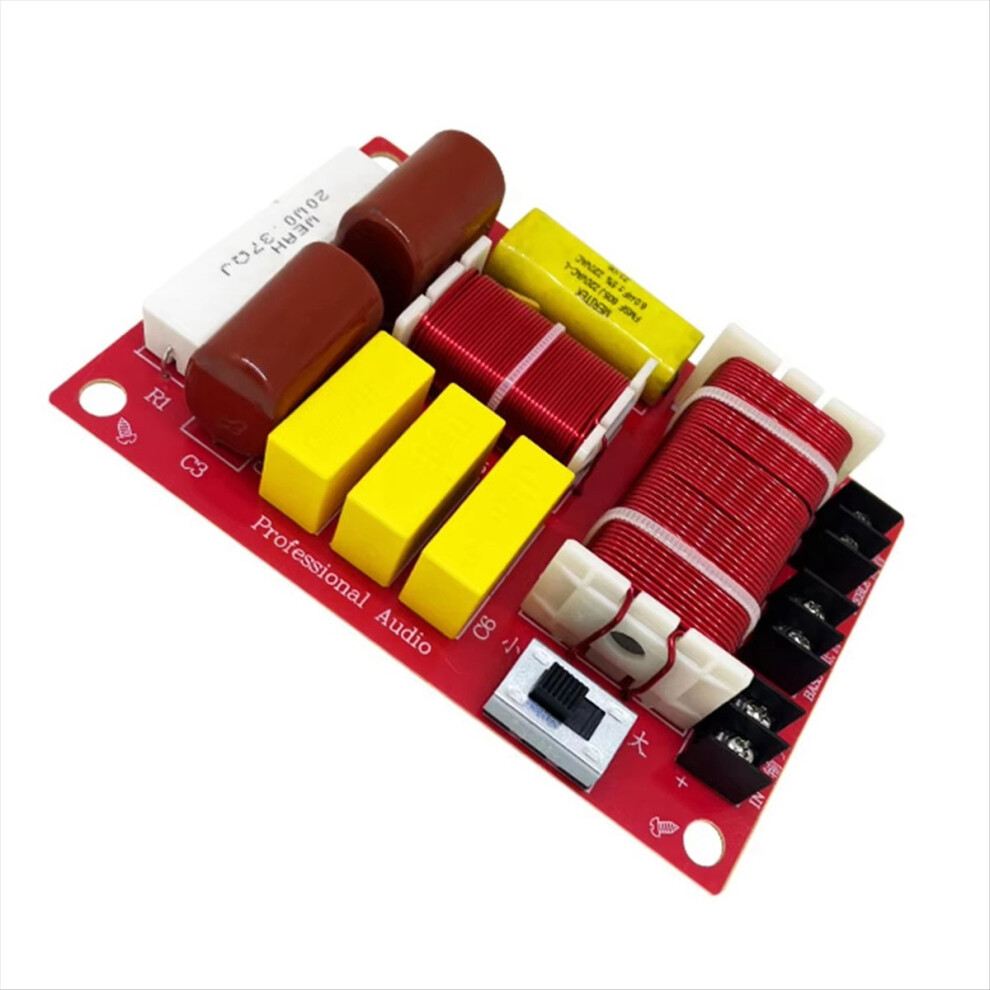

Rare shockproof effect. The four corners of the circuit board are equipped with shockproof feet, easy to install, all components are fixed with high temperature glue, no matter how big the vibration can not affect the operation of the divider
Model: -2507 (high/Low split frequency)
Filter characteristics: high and low
Frequency point: 2800-2900Hz adjustable
Power: 300w
Suitable impedance: 4-8 ohms

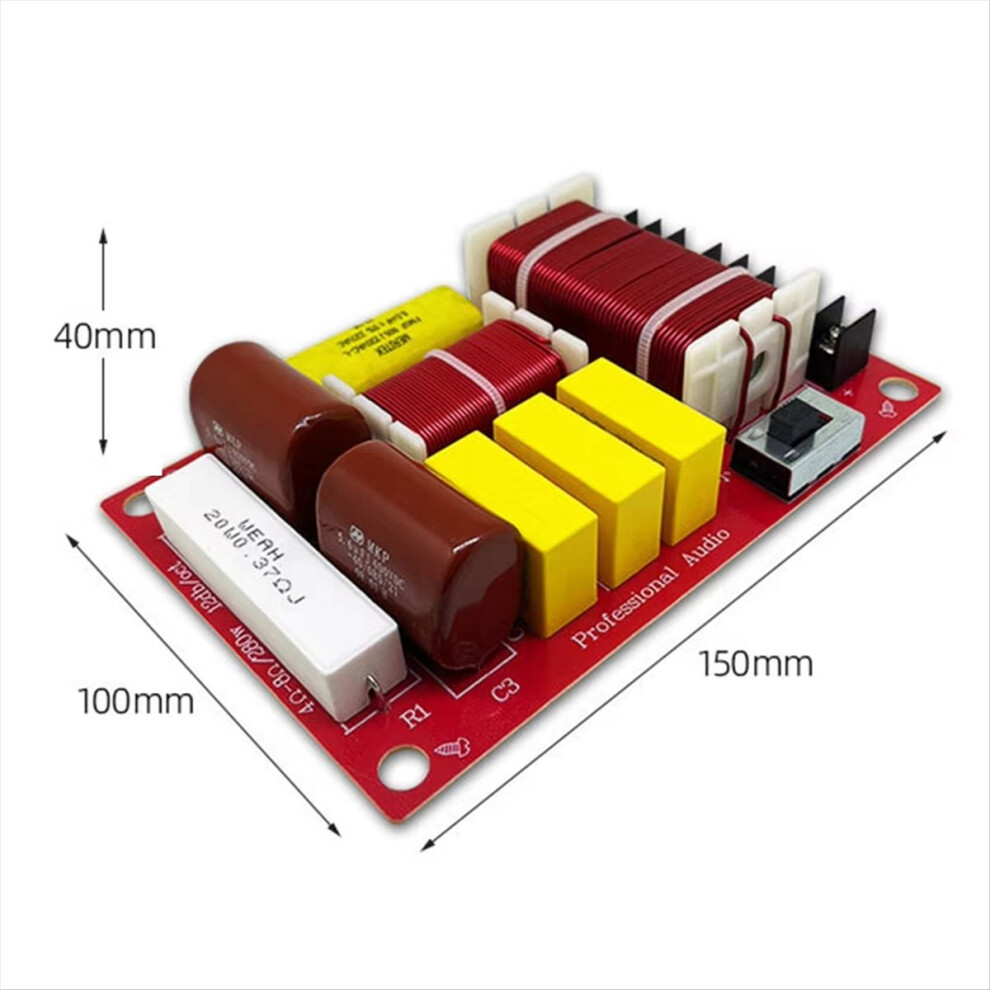

Appearance size: 150 x 100 x 40mm/5.9x3.9x1.6in
Center hole spacing: 135 x 85mm/5.3x3.3in
Net weight: 385g/piece
Application: stage/home speaker high and low modification and upgrading
Conversion method of capacitor AC and DC:
180-200AC=400DC
250AC=450DC-500DC
300AC=600DC
Color: As Shown
Material: Electronic Component

Package Contents:
1 * Speaker crossover
1 pack * foot pads

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
