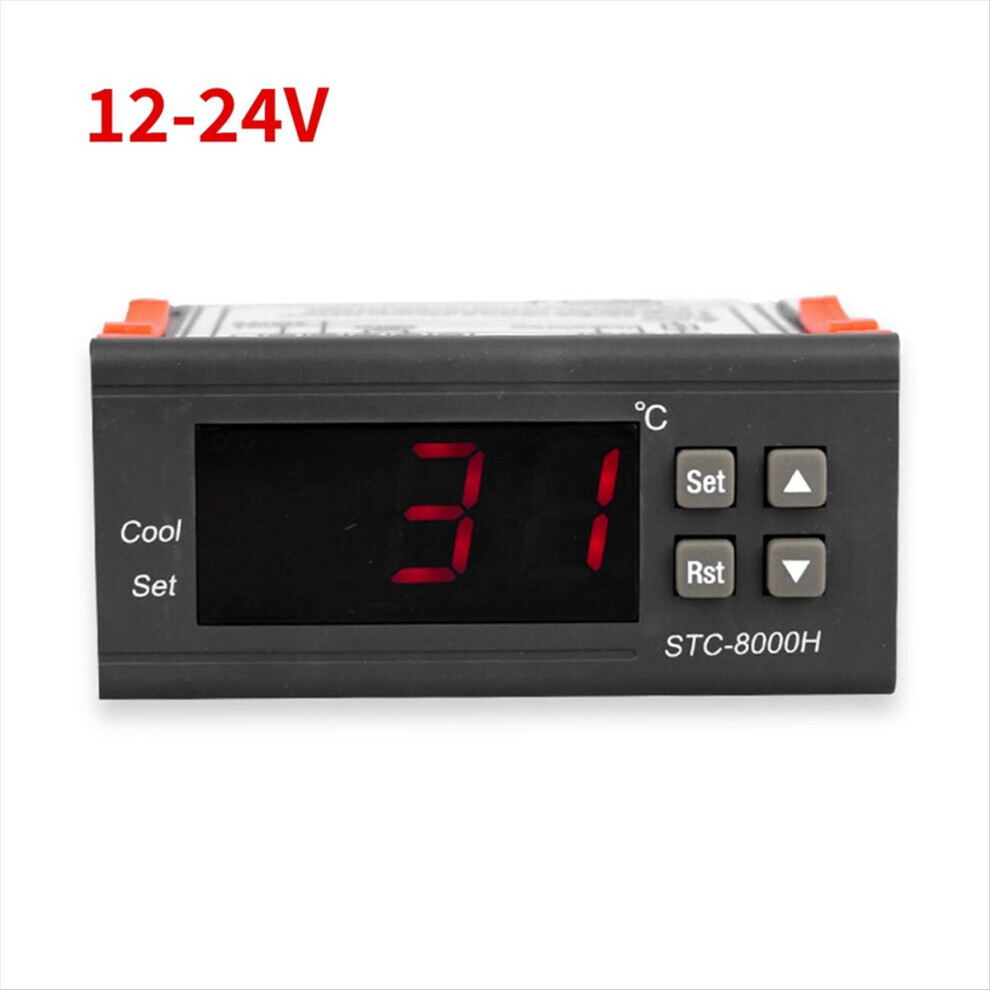

STC-8000H Seafood Machine Temperature Control 12-24V

STC-8000H Seafood Machine Temperature Control 12-24V Description

STC-8000H Seafood Machine Temperature Control 12-24V Description

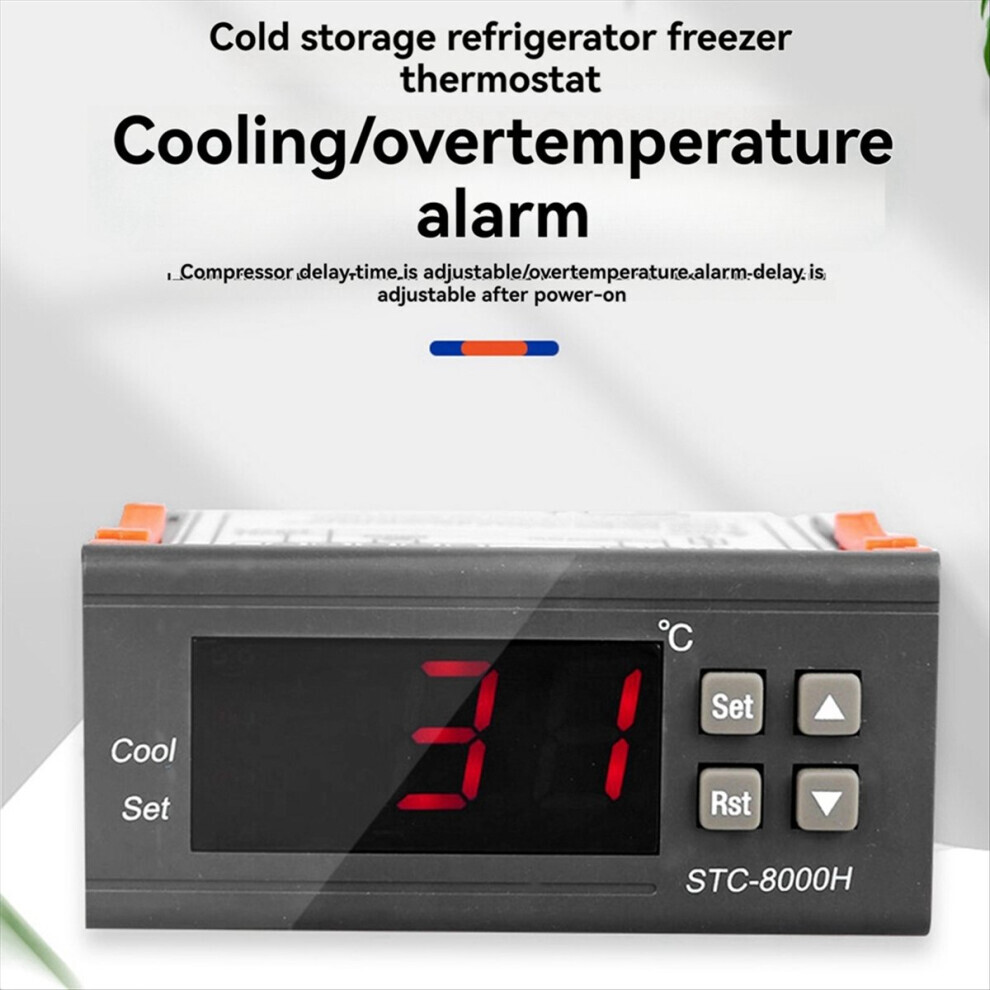

The STC-8000H is a universal single-sensor thermostat with cold and over-temperature alarm functions.
The compressor delay is adjustable, as is the over-temperature alarm delay after power-on.
It is suitable for refrigerators, refrigerated trucks, and other refrigeration applications.
Dimensions:
Mounting hole size: 71 x 29 (mm)
Front panel size: 75 x 34.5 (mm)
Sensor: 2 meters (incl. Sensor)
Product size: 75 x 34.5 x 85 (mm)
Technical data:
Power consumption: less than 3 W
Power supply: 220 V AC +10% - 15%, 50/60 Hz
Temperature control range: -40C - 50C
Temperature measuring range: -50C - 99C
Accuracy: -50C - 70C, 1C, 2C other
Resolution: 1C
Cold output contact capacity: 10/277 VAC, can drive a single-phase compressor with less than 1/2 HP
Sensor:
Sensor error delay time: 0.1 min
Operating temperature: 0C - 60C
Protection class: IP65
Operating humidity: 20 - 859% (non-condensing)
Storage temperature: -30C - 75C
Color: as shown
Material: Plastic
Type: STC-8000H English version 12-24V
Package contents:
1 x STC-8000H Thermostat
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual product. The allowable measurement error is +/- 1-3 cm.
