SUPER WiFi OBD2 ELM327 V1.5 Car Scanner Android iOS IPhone

SUPER WiFi OBD2 ELM327 V1.5 Car Scanner Android iOS IPhone Description

SUPER WiFi OBD2 ELM327 V1.5 Car Scanner Android iOS IPhone Description

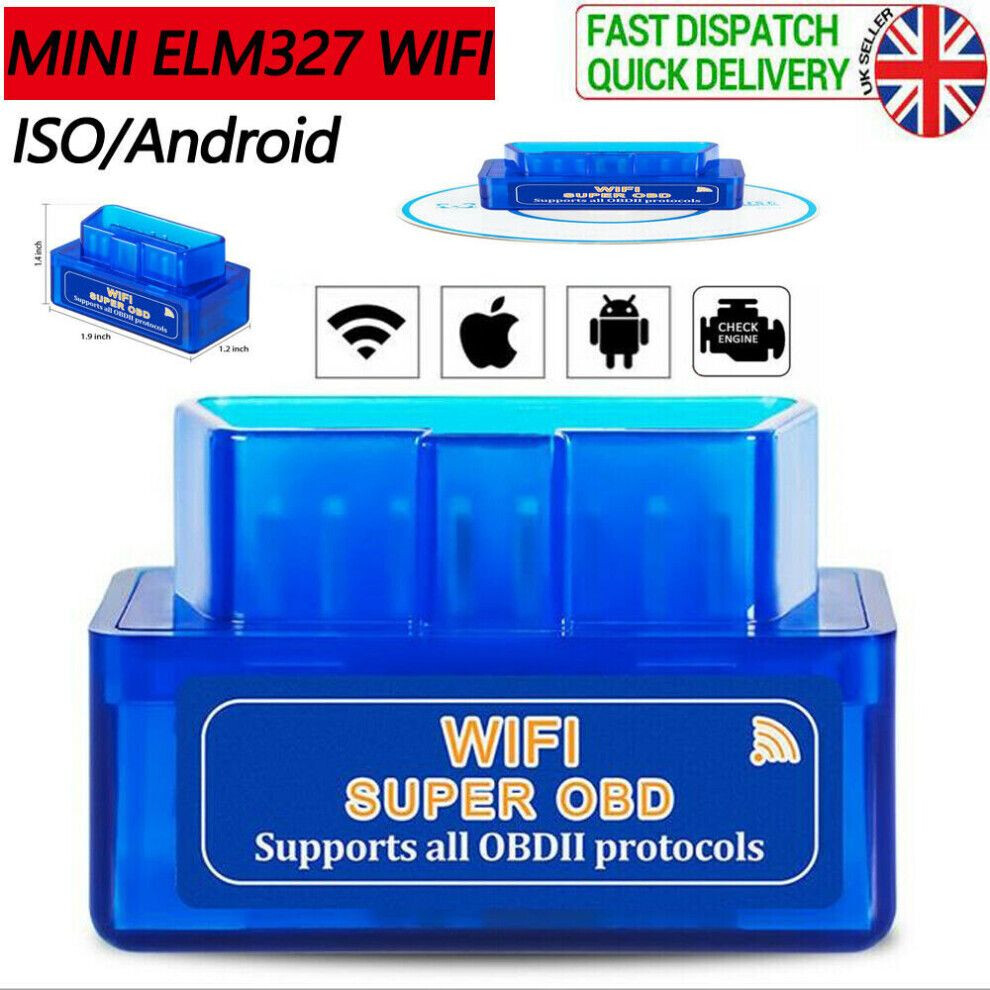

WIFI ELM327 Scan Tool Wireless OBD2 Auto Scanner Adapter for Smartphone
Description
WIFI 327 can be used on iphone, iPad and so on ...
Wifi OBD VGATE Technical Specifications
Ssid: CLKDevices
Ip: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 feet (line of sight)
Antenna: internal
Power consumption: 0.75 watts (with switch)
Wi-Fi standard: 802.11a / b / g
Operating temperature: -15 to 100 degrees Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75x1.25x1.2 inches
Characteristics:
CLK is able to communicate with vehicles that adopt the following protocols:
ISO 9141
ISO 11898 (aka Can)
ISO 14230 (aka KWP2000)
ISO 15765 (aka Can)
SAE J1939
WI-FI OBD INSPECTOR AUTO is able to detect and interpret these protocols automatically. It also provides support for high-speed communications and a power sleep mode. AT commands are used to communicate with a host device (PC, laptop, iPhone, iPod Touch, iPad, and so on). There are tons of software packages available, which are fully compatible with WI-FI OBD AUTO INSPECTOR. Some of them have quite useful features, Monitoring of engine running parameters, Reading and clearing of DTCs, MPG meter, etc. You can even write your own software on a specified hardware platform if you want, because the commands they are fully documented and very well explained.
WI-FI OBD INSPECTOR AUTO is only measuring 2.7x1.25x0.9 inches. It comes bundled with a built-in power switch to avoid the need to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connection with iPhone / iPod Touch / iPad is made by WIFI connection in AD hoc mode.
OBD Compliant Vehicles Elder has a label indicating that the vehicle is OBD compliant. 1996 model year and newer vehicles are supported by default, and will not have this label.
The following are some of the parameters that can be read from the vehicle:
Vehicle speed
RPM
Fuel consumption *
Engine coolant temperature
Fuel pressure
Calculated motor load
Throttle position
Product manifold pressure
Air inlet temperature
Timing advance
Mass air flow
Fuel level
Barometric pressure
EVAP system vapor pressure
Fuel trim
Package:
1 x ELM327 WIFI OBD2 interface
1 x Software CD
