Test Board Tools for Testboard Kit VNA Test Demo Board Vector Network Analyzer Testing Board

Test Board Tools for Testboard Kit VNA Test Demo Board Vector Network Analyzer Testing Board Description

for Testboard kit VNA Test Demo Board
This test board kit is used for or other vector network analyzer user-friendly measurement DIP and SMT devices.

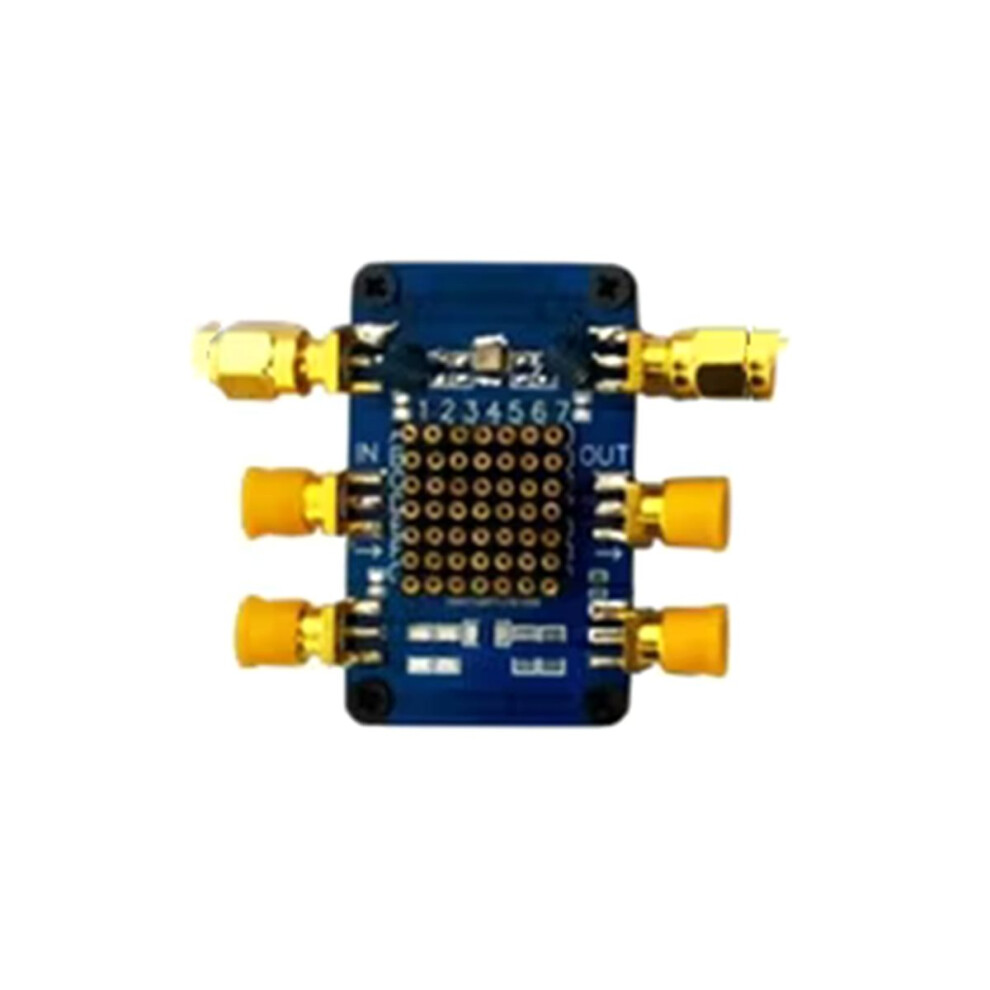

This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added. The SMT circuit cannot fully consider test conditions. Some parts of the test may need to be cut over. Please that you have enough Hands-on ability. This circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs

Color: Blue
Material: Metal+PCB

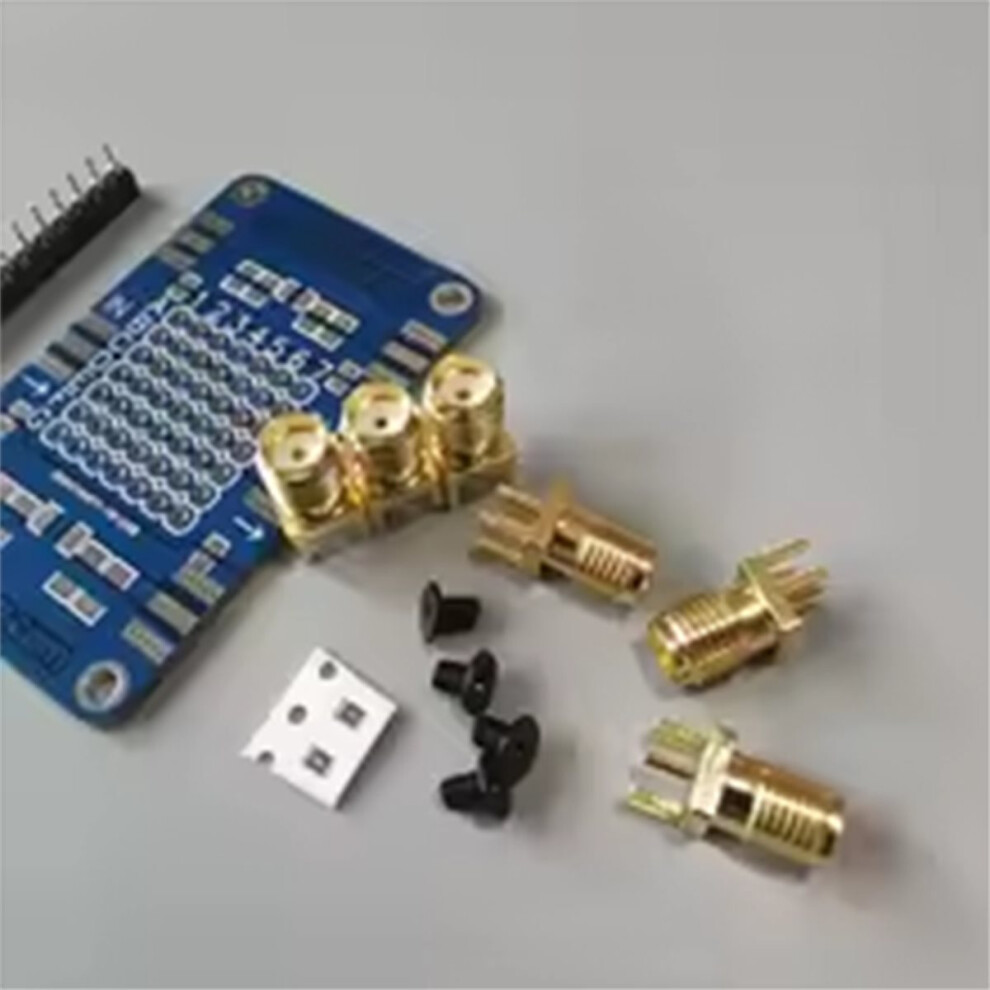

Package Contents:
1 set * test boards

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
