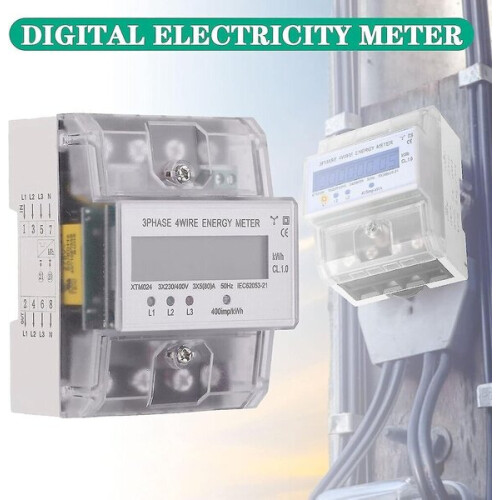

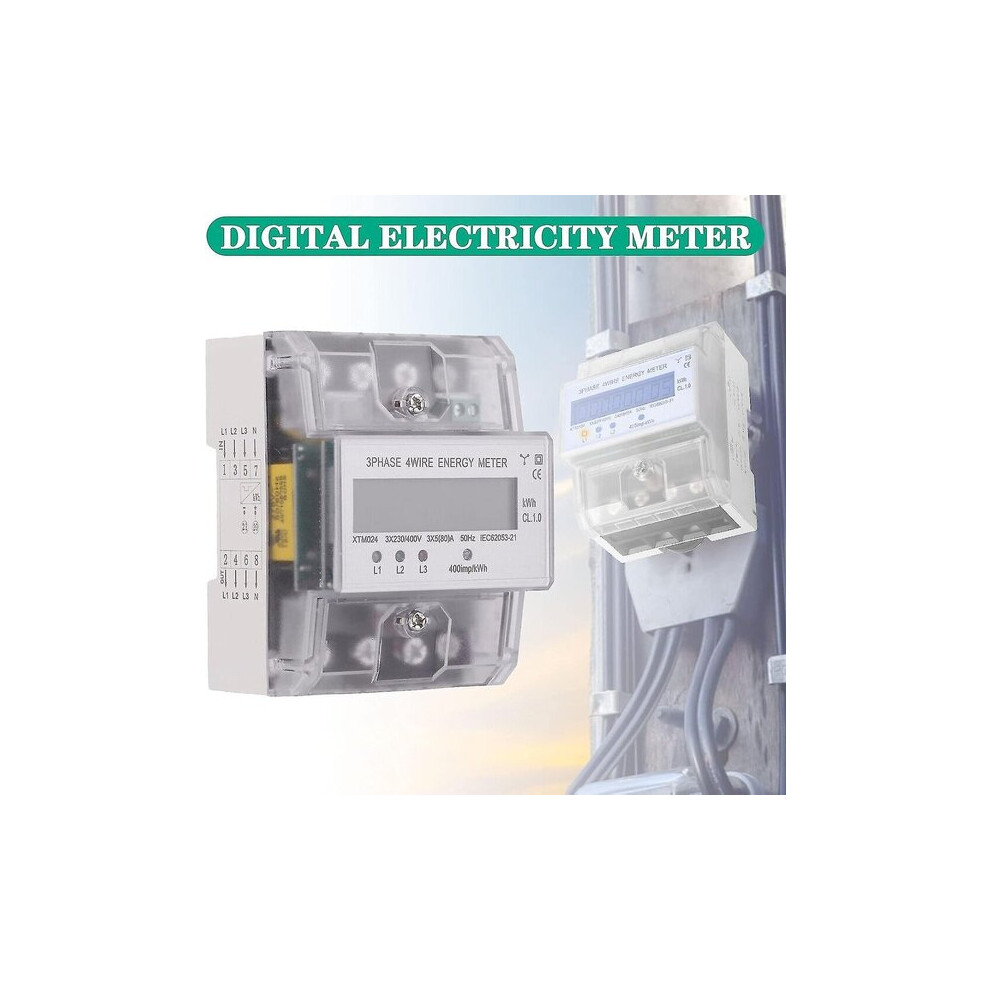

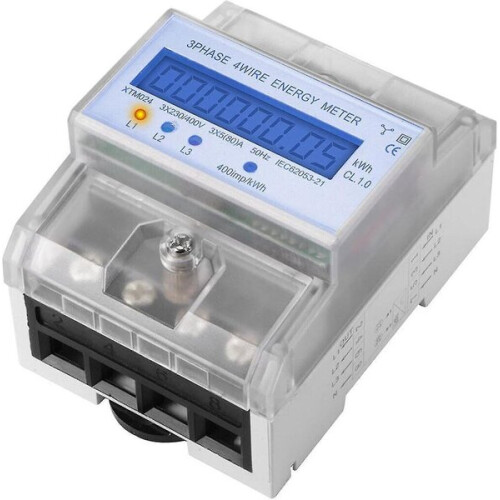

Three-Phase 4-Wire LCD Digital Electricity Metre with S0 Pulse Interface, Class 1 Accuracy for Remote Reading DIN Rail Mount

Three-Phase 4-Wire LCD Digital Electricity Metre with S0 Pulse Interface, Class 1 Accuracy for Remote Reading DIN Rail Mount Description

Product Details ①. Three-phase 4-wire LCD digital electricity meter with 5-100A current range and 4P configuration for accurate electricity consumption measurement ②. Rail mounting design for easy assembly in intermediate meters or switchable secondary distributors using DIN rails ③. 7+1 digital points LCD display for clear electricity consumption reading, with LED pulse display indicating load for each phase ④. S0 interface enables remote reading, suitable for building automation, energy management systems, industry, and power circuit equipment ⑤. Accuracy class 1 ensures reliable active energy detection, constructed with thin metal and ABS material ⑥. Thickened copper connections support continuous current operation, standard short-circuit terminal cover included (extension cover optional) Specification ①. Current Range: 5-100A ②. Configuration: 4P ③. Display: 7+1 digital points LCD, LED pulse display ④. Interface: S0 ⑤. Accuracy Class: 1 ⑥. Material: Thin metal, ABS ⑦. Mounting: DIN rail Package List ①. Three-phase 4-wire LCD digital electricity meter ②. Short-circuit terminal cover Warm Tips ①. Installation must be performed by a qualified specialist ②. Check terminal connections regularly to ensure stable operation ③. Keep the meter away from excessive moisture and high temperature environments
