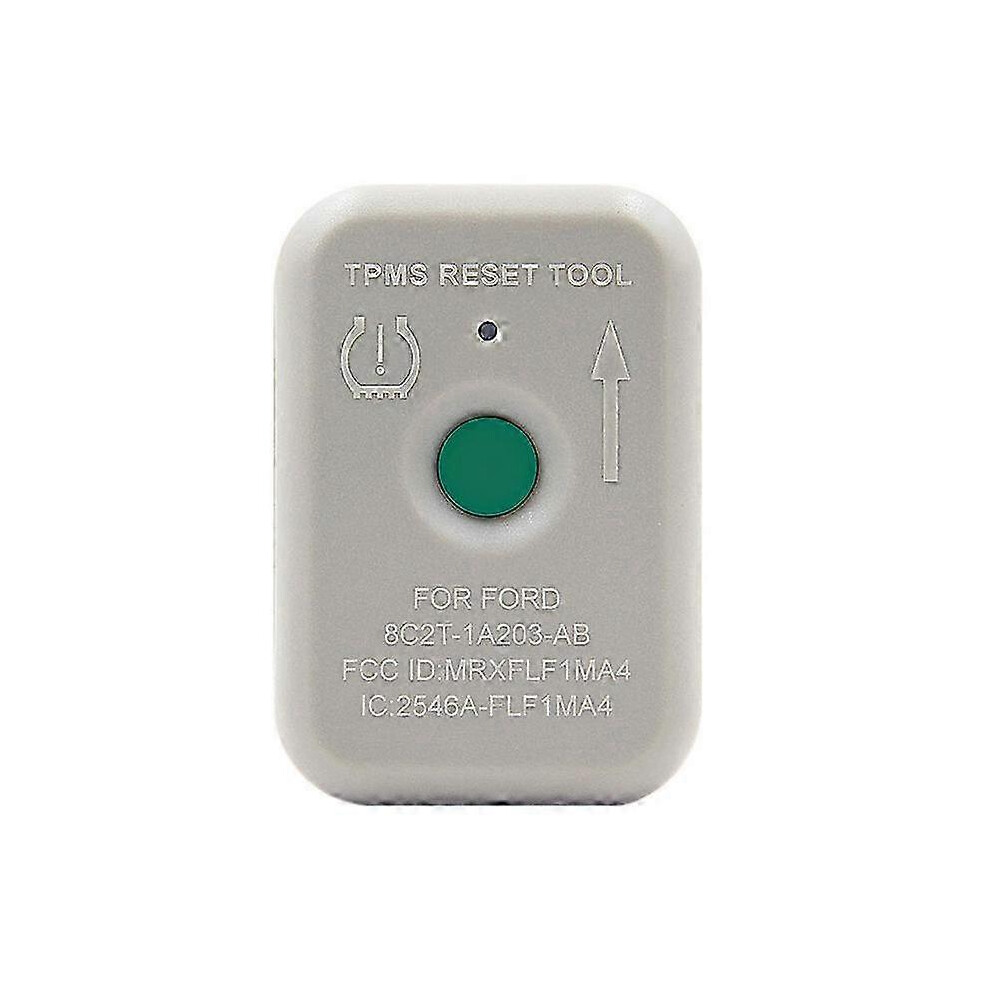

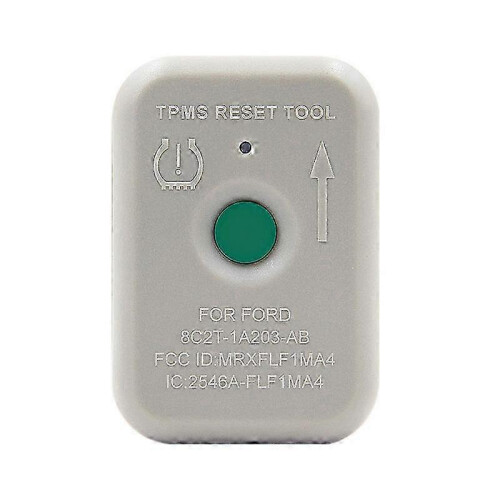

Tire pressure reset tool for Ford TPMS-19 sensor

Tire pressure reset tool for Ford TPMS-19 sensor Description

8C2T-1A203-A for Ford TPMS-19 Tire Pressure Monitoring Sensor TPMS Reset Tool
How to train for TPMS tire pressure monitor sensors? 1. Turn the ignition switch to the OFF position, then press and release the brake pedal. 2. Cycle the ignition switch from the OFF position to the run position for 3 times, ending in the run position. 3. Press and release the brake pedal. 4. Turn the ignition switch to the OFF position.
5. Turn the ignition switch from the off position to the position 3 times, ending in the position. The horn will sound once and the TPMS indicator will flash if the training mode has been entered successfully. If equipped, the message center will display the TRAIN LF tire.
6. Place the tire pressure monitor activation tool on the left front sidewall (driver's side) of the tire at the valve stem. Press and release the test button repeatedly on the TPMS tool until the horn beeps. (It may take up to 6 seconds for the tool to activate the sensor, leave the tool on its side for the entire 6 seconds). The beep indicates that the body control module has recognized the TPMS sensor.
7. Within 2 minutes of the sound of the horn confirming the programming of the LF tire, Place the TPMS tool on the right sidewall (passenger side) of the front tire at the valve stem and press the test button to activate the sensor.
8. Repeat step 7 for the right rear followed by the left rear tire in that order. The procedure is completed after forming the last tire. When training is complete, the message center (if equipped) will display the complete tire training.
Interchange Part Number: TPMS-19, 8C2Z-1A203-A
Support Models:
2007-2016 for
2008-2016 for F-450 F-550 Super Duty
2007-2016 for
2007-2014 for Edge
2006-2016 for Escape
2008-2016 for Expedition
2006-2016 for Explorer
2008-2015 for
2008-2016 for Taurus
2008-2016 for E-150 E-250 E-350 E-450 Econoline
2008-2016 for Fiesta
2008-2016 for
2008-2016 for
2008-2011 for Crown Victoria
2011-2016 for Transit Connect
2006-2011 for
Colour: white
Material: plastic
Package Contents:
1 x Tire Pressure Sensor
Note: If the vehicle or the wheels / sensors have been stationary for more than 30 minutes, the sensors will go into "sleep mode" to conserve battery power. They should be awakened by simply moving them or rolling the tires before they communicate with the vehicle.
Note: The TPMS training procedure should be performed on one vehicle at a time, in an area free of radio frequency interference-at least 3 feet from other vehicles equipped with TPMS sensors.
Note: Vehicles with different front-to-rear tire pressures like F-series trucks and E-series caravans also require TPMS recycling after tire rotation. If the sensors are not trained, the TPMS warning light will illuminate on the instrument panel.
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
