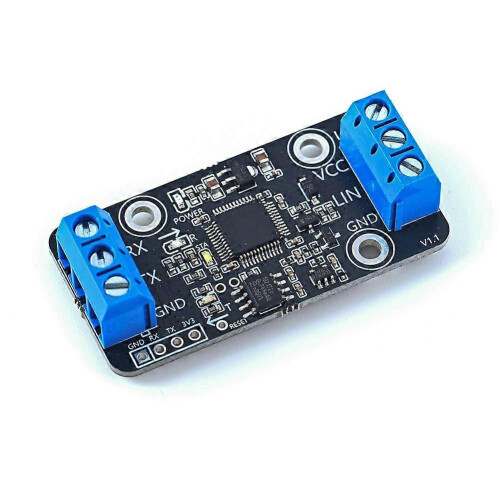

TTL to LIN Bus Module LIN 2.2 Protocol Converter for Automotive Communication Debugging

TTL to LIN Bus Module LIN 2.2 Protocol Converter for Automotive Communication Debugging Description

Product Details ①. Enables bi-directional conversion between TTL serial port and LIN data, facilitating seamless communication for engineering applications, R&D debugging, and product development ②. Compact size allows for easy installation in various setups ③. Supports host request control frame and host request status frame, meeting diverse communication needs ④. Compatible with 3.3V/5V serial port levels, offering flexibility in connection ⑤. Powered by external LIN bus 12V or 24V, ensuring stable operation ⑥. LIN data transfer rate up to 20kbps with high EMC capability, providing reliable data transmission ⑦. Built-in timeout functions and current limit protection for LIN bus, enhancing safety and reliability Specification ①. Color: As Shown ②. Material: PCB ③. Compatible with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, ISO 17987-4:2016 (12V) and SAE J2602 standards Package Contents ①. 1module Warm Tips ①. Light reflection and different displays may cause the color of the item in the picture a little different from the real thing ②. The measurement allowed error is +/- 1-3cm
