Universal Car Antenna GPS++FM Multi-Function Combination

Universal Car Antenna GPS++FM Multi-Function Combination Description

Universal Car Antenna GPS++FM Multi-Function Combination Description

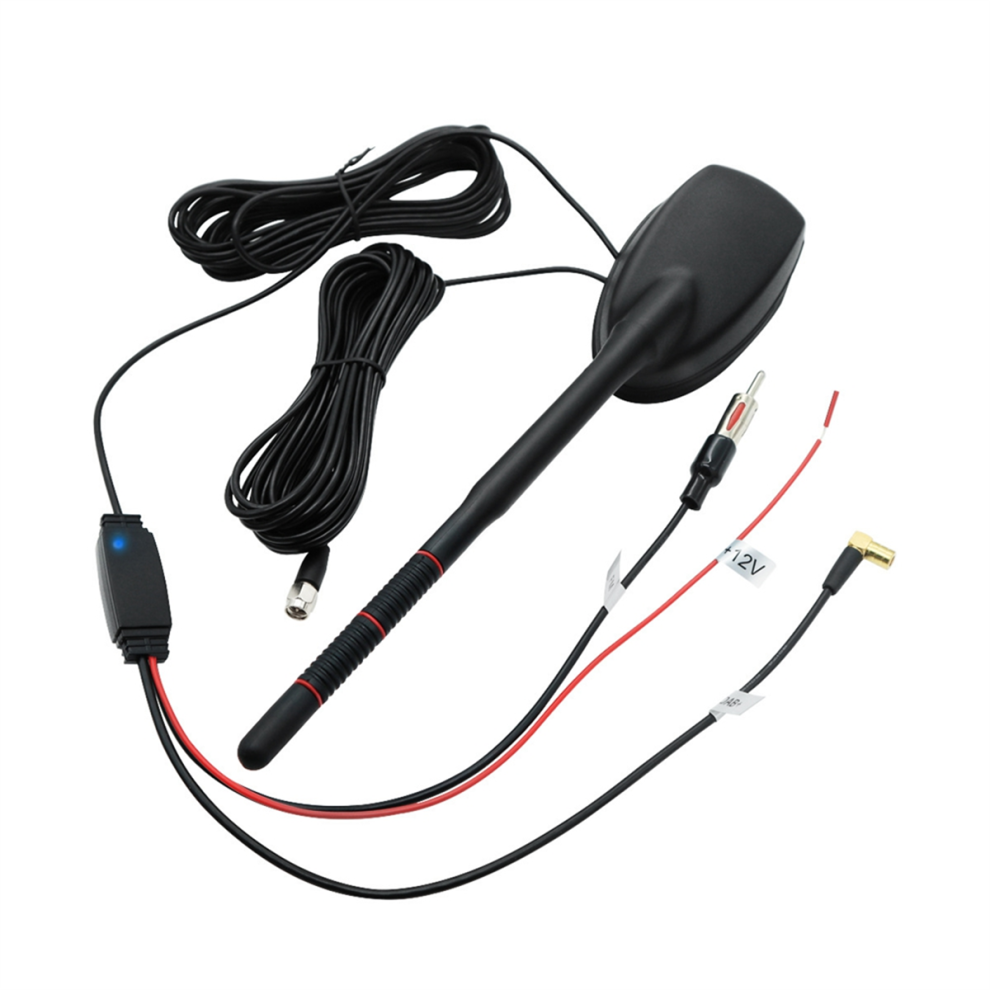

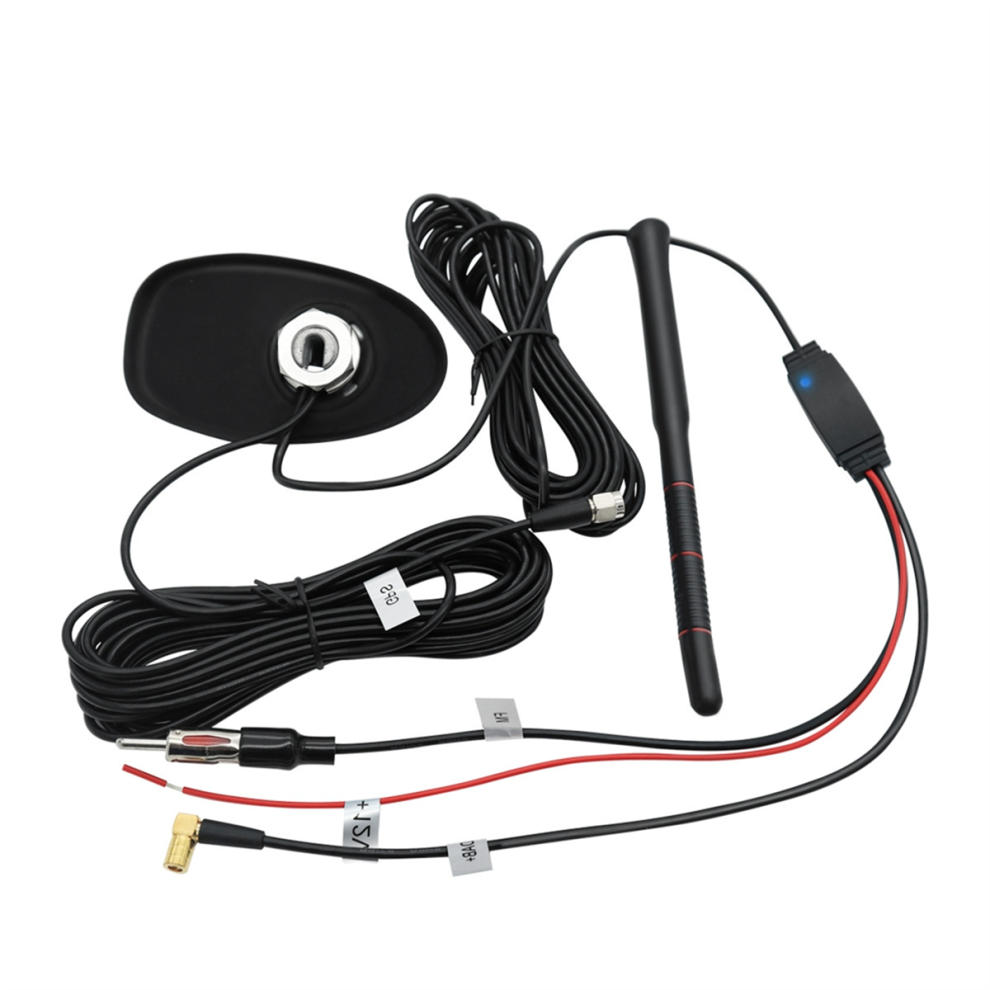

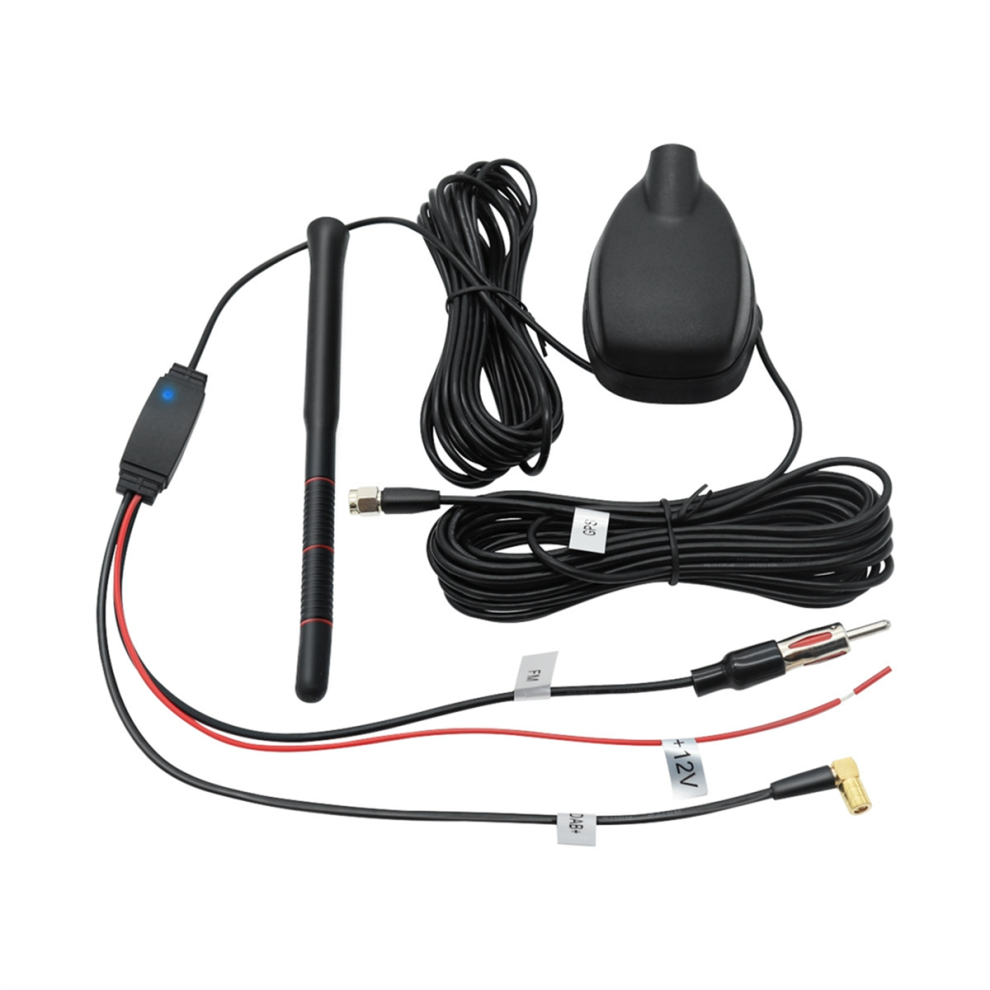

This is a GPS++FM car antenna, which looks like an elliptical arc shape and is very harmonious when installed on the roof.
In addition, the antenna design adopts the parallel input power carrier solution, which greatly improves the signal reception and transmission; a signal light is added to the power supply processing to facilitate the judgment of whether the antenna is working properly. The blue light indicates that the antenna is working normally.
Radio reception frequency range: FM (87.5-108MHZ) AM (530K-1710KHZ)
Digital reception frequency range: (170-230MHZ) (1452-1492MHZ)
GPS+Beidou frequency range: 1561-1575.42MHz
Bandwidth: equal 10 (0.5)
Standing wave ratio: less than equal 1.5 (0.5)
Gain: 15dB (3)
Amplifier gain: 15dB (2)
Working voltage: 12V
Characteristic impedance: 75Ω
Current: 25mA (2)
Fit:Universal
Name:Car Antenna
Color:Black
Material:Plastic
Package Contents:
1 Set * Car Antenna
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
