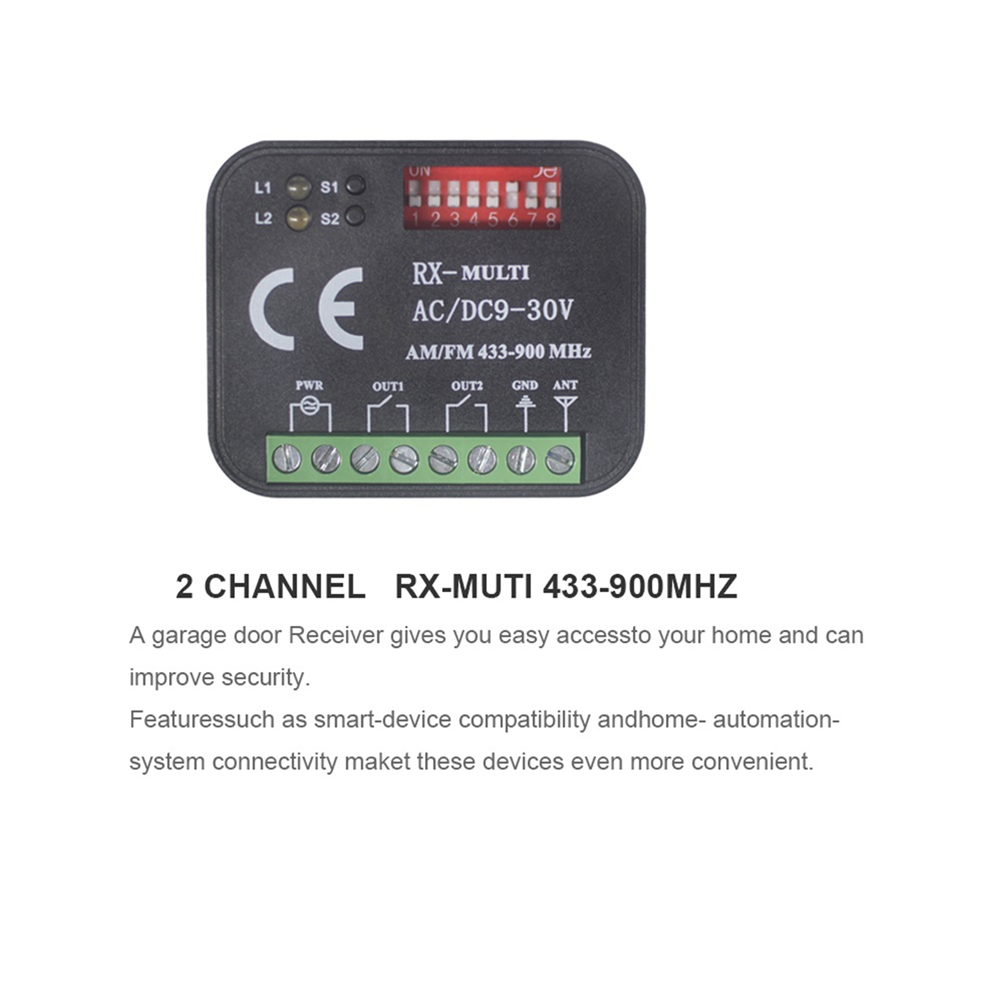

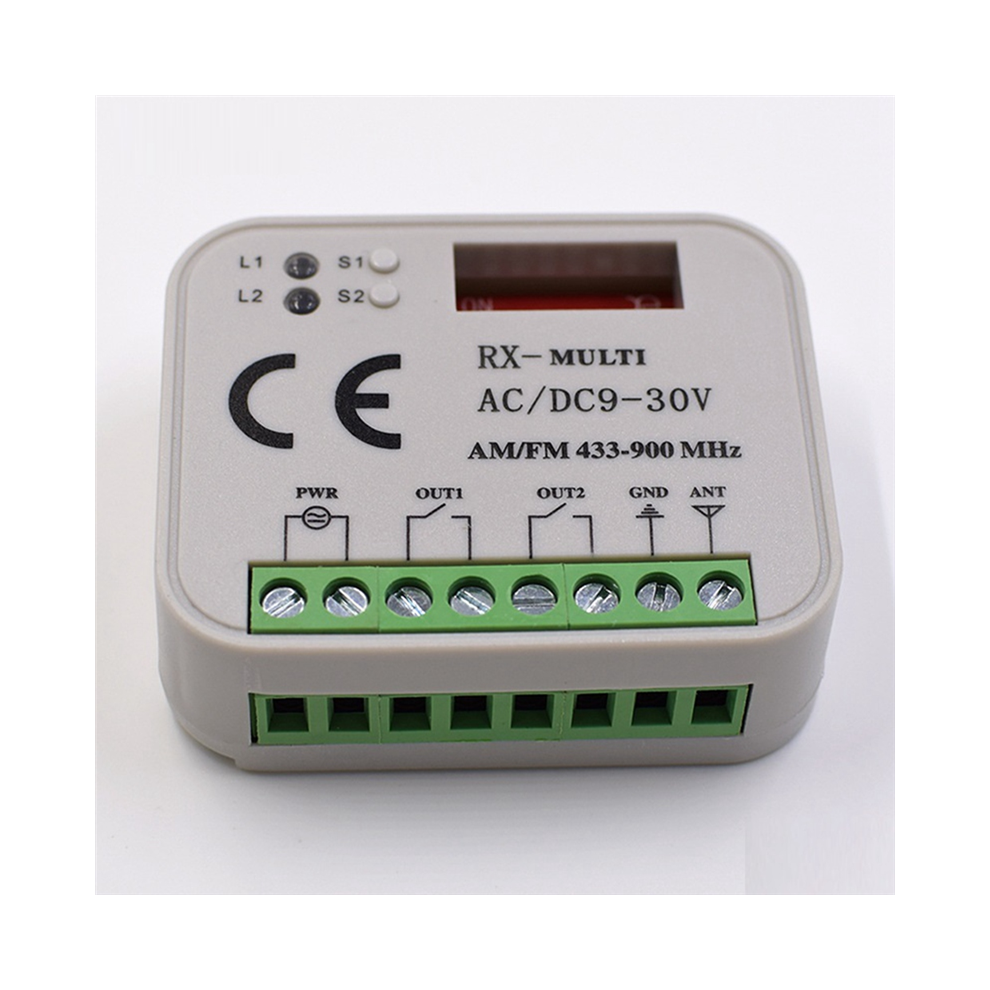

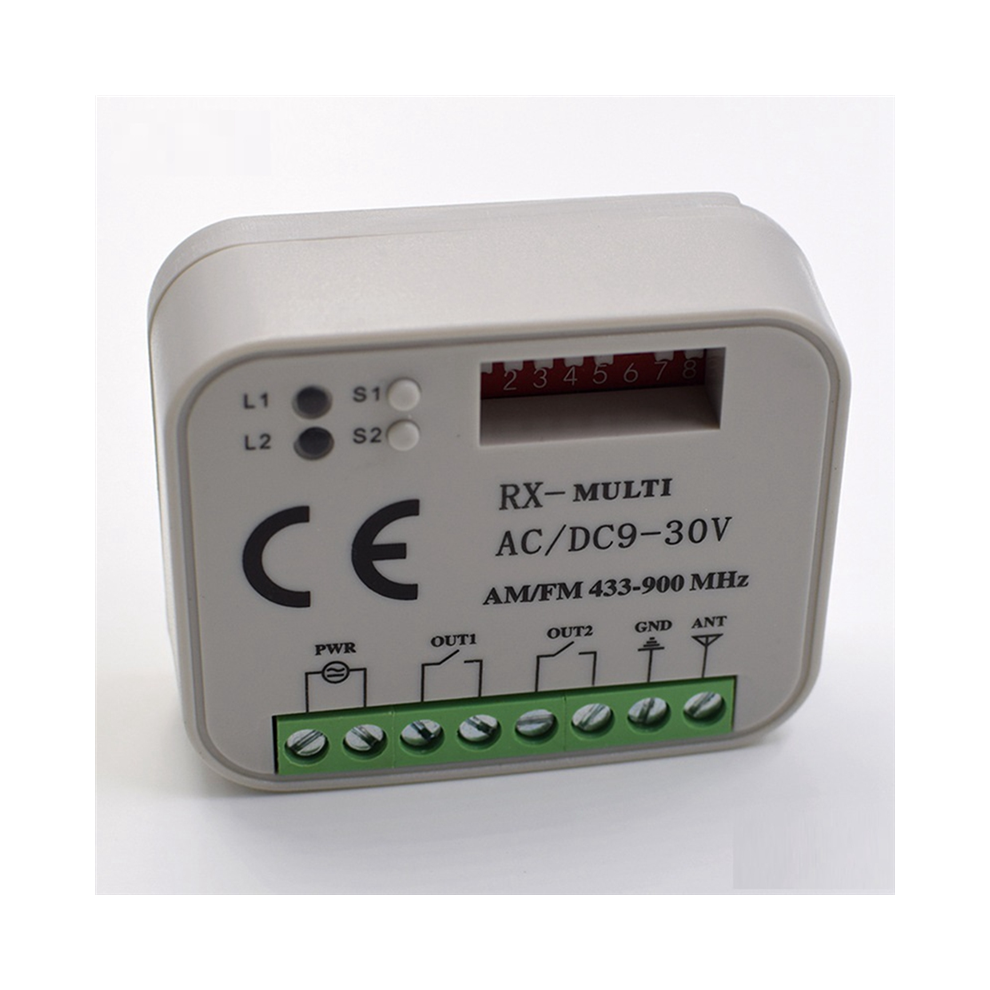

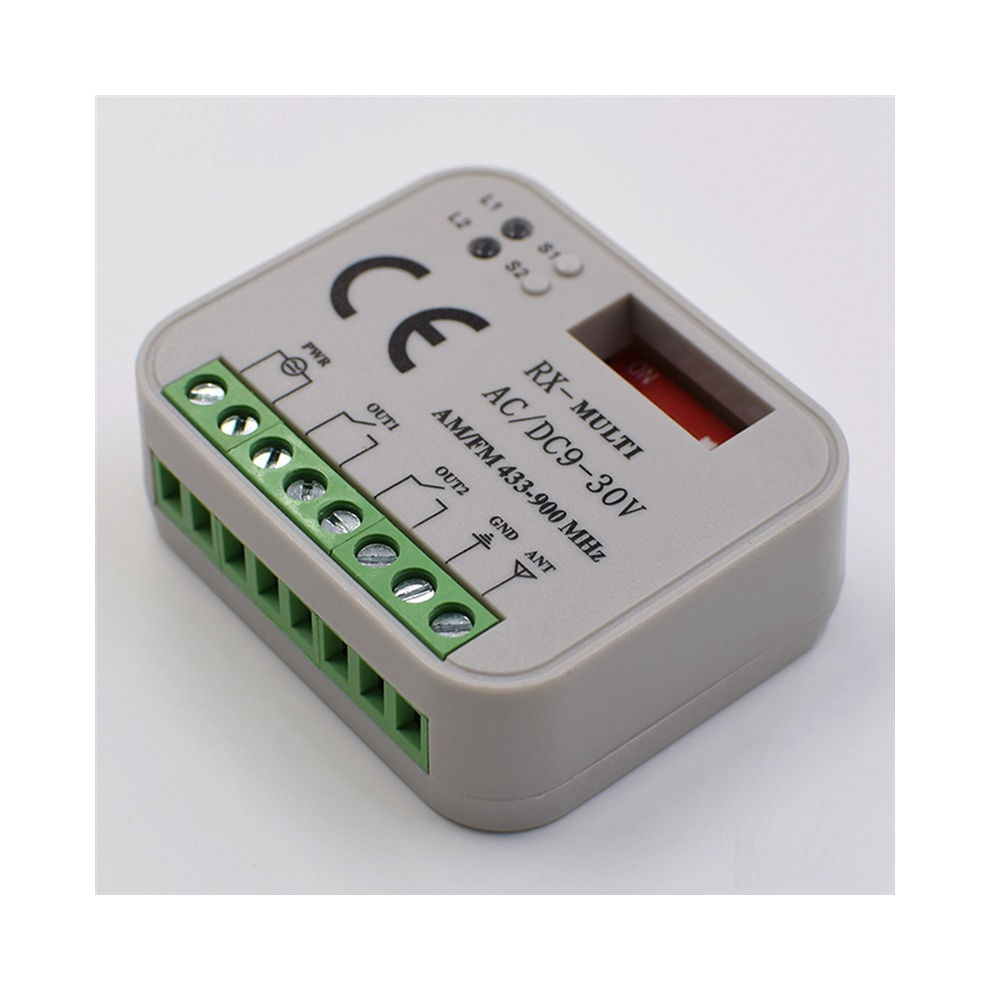

Universal Garage Door Remote Control Receiver 2CH Controller Switch for Transmitter RX Multi Frequency 433-900MHz Black

Universal Garage Door Remote Control Receiver 2CH Controller Switch for Transmitter RX Multi Frequency 433-900MHz Black Description

1) Select the correct for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz remote controls, just move Dip-switch 7 UP.
2) Press the learn button. The LED turn on.
3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4) Repeat for another button.
5)The 2-nd channel programming procedure is the same. Erase all data from the memory card: Press and hold either learn button. The LED start flash. Keep this button pressed, until the LED turn off. All saved data in the memory card be erased permanently and can not be recovered

Name: Universal receiver SMG-662.
Operating Voltage: 9V-30V
Channel: 2.
Frequency: 433-900MHZ.
Distance: 30-50 meters.

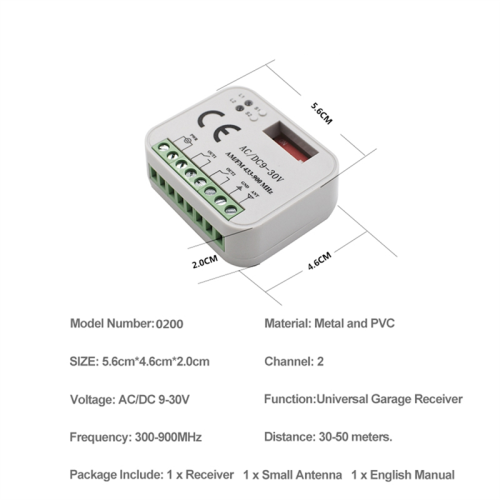

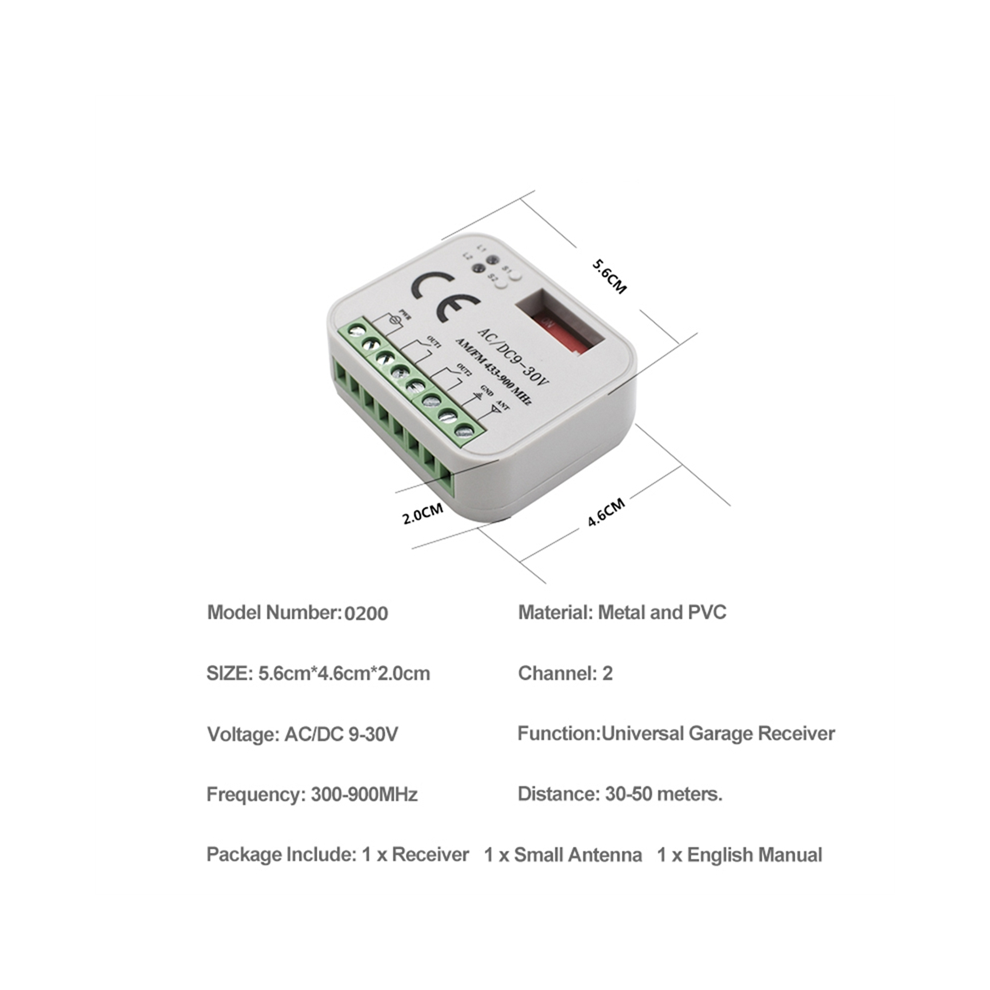

Very mini size: 5.5cm x 4.5cm x 1.0cm.
One receiver can work with 400 codes.
It don't interference other remotes and receivers.

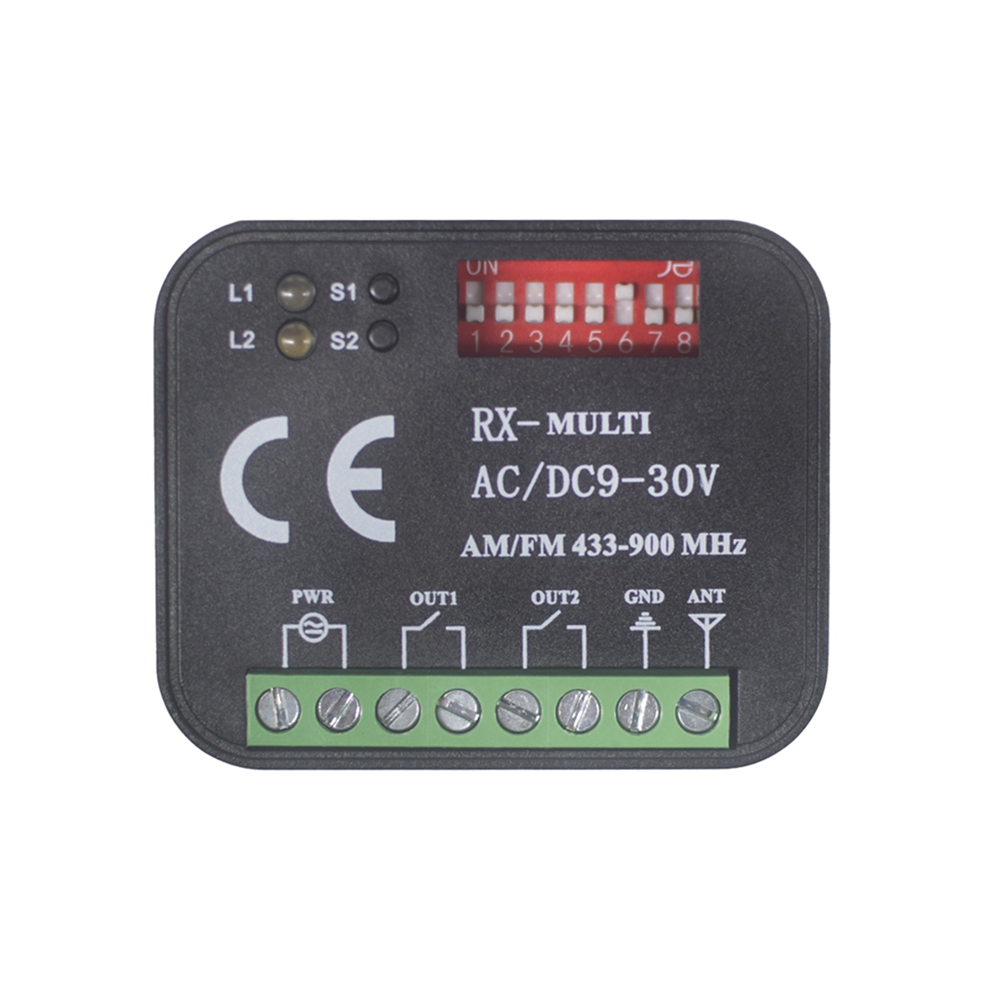

selector: With 8 dip switches user can make different combination for different remote .
Code: Rolling and Fixed code & Learning code.
Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, , lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it's better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

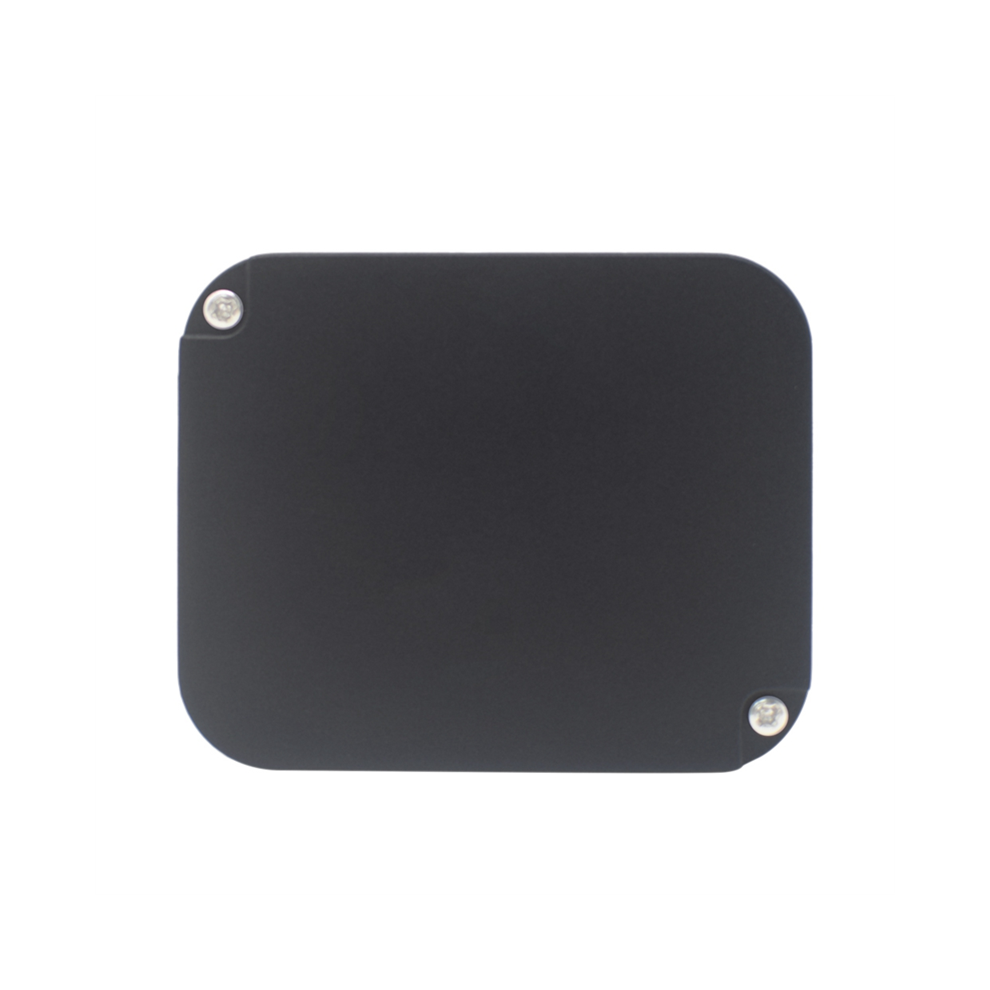

Colour:black
Material:ABS

Package Contents:

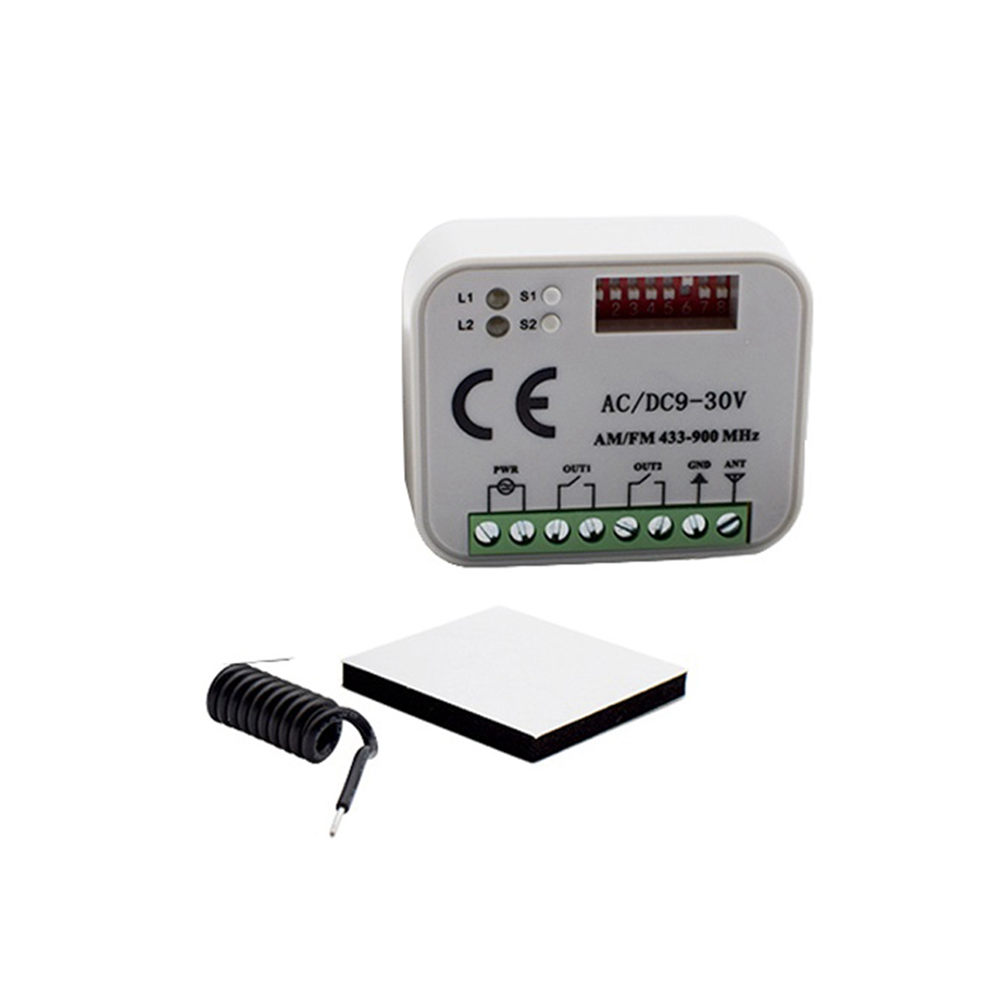

1 x Receiver Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
