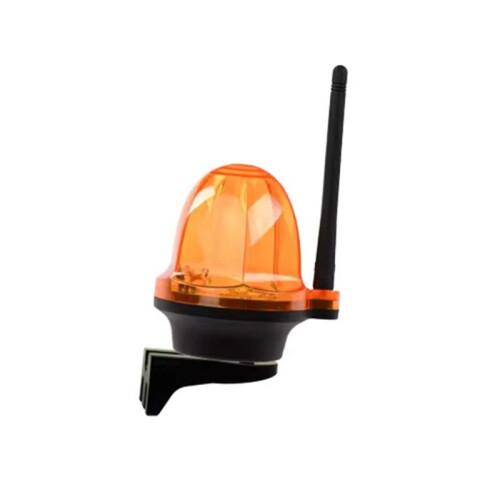

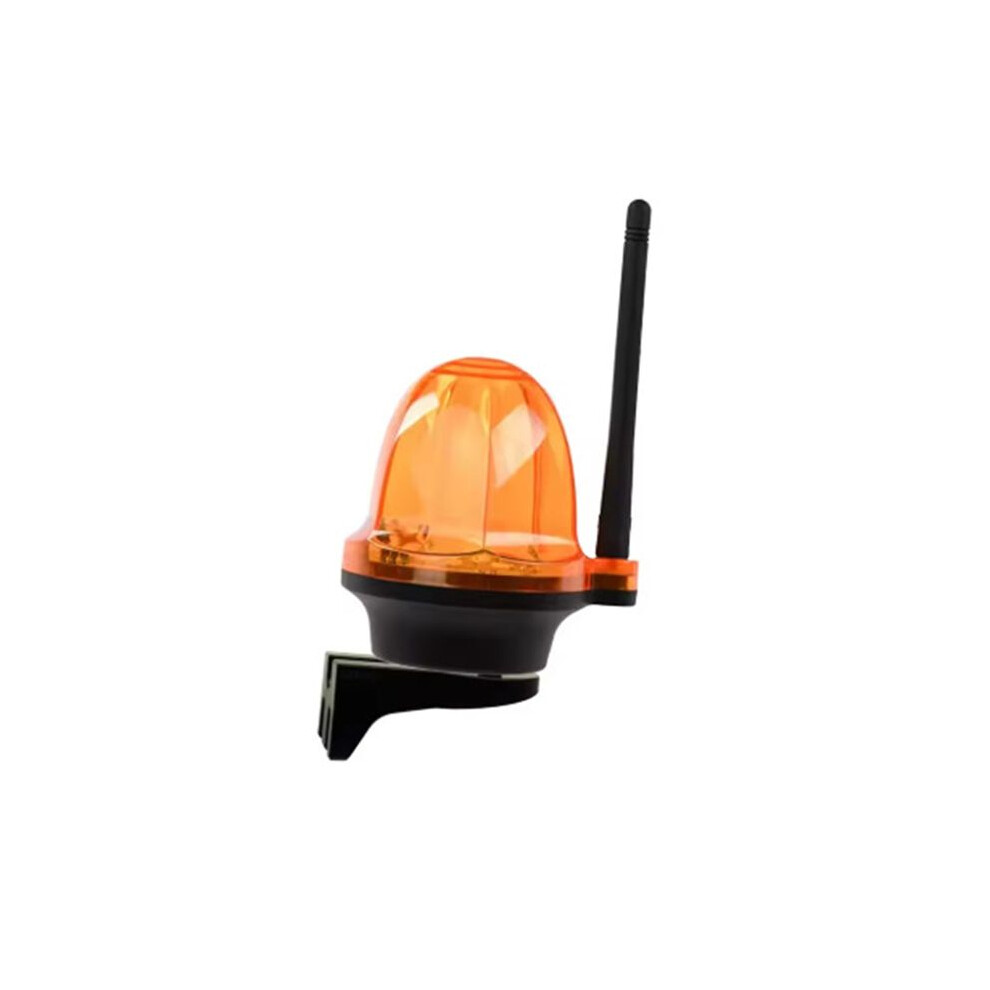

Universal RF-Remote Control LED Warning Light System for Garage/Gate Openers,AC 12-220V Wide Voltage

Universal RF-Remote Control LED Warning Light System for Garage/Gate Openers,AC 12-220V Wide Voltage Description

Antenna terminal: There is an RF antenna this product, which is mainly used for the external antenna configured by the user controller. When in use, connect the antenna interface the user controller to the antenna terminal of this product with a wire.
Power supply terminal: the interface used to supply power to this product, the power supply voltage range: /AC12-220V.
Jumper terminal: used for the selection of always- mode (NOR) or flashing mode (FL), change the position of the jumper cap as needed.
Pass the power and antenna wires through the sealing plug the bottom case; tighten the screws and complete the assembly of the upper case.
After completing the above wiring steps, lock the flashing light the bracket, and then fix the product to the corresponding place according to the needs of use.

Input voltage:/AC:12V-220V
Working current:Less than 200mA @12VDC
Intensity:Greater than 100Lm 1.5W (3 x LED)
Operating mode: 1. bright, 2. flicker (flicker frequency:1HZ) [This mode is selected by jump cap]
Interface: 1. Power interface, 2. Antenna interface
Operating temperature:-10-60
Storage temperature:-20-70
Product Weight:75.5g(without accessories)
Color:As Shown
Material:plastic

Package Contents:
1 * LED Signal Alarm Light
