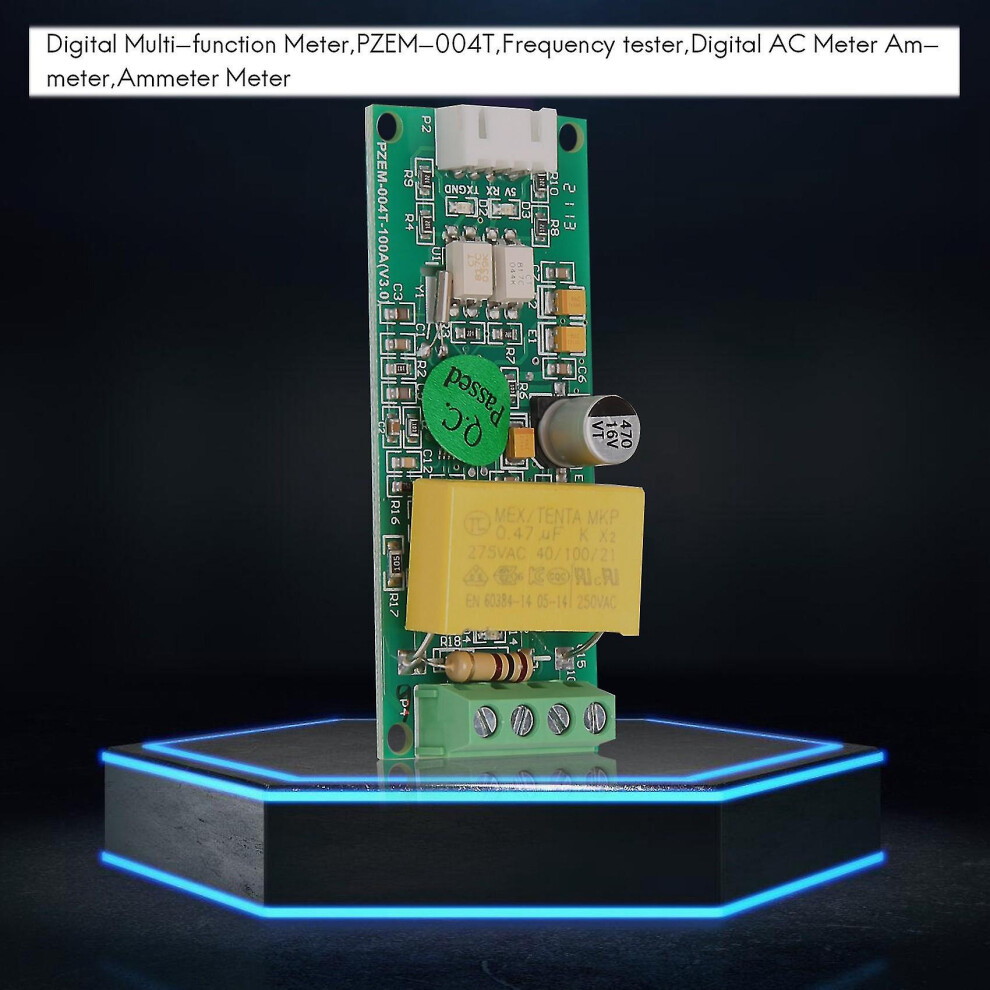

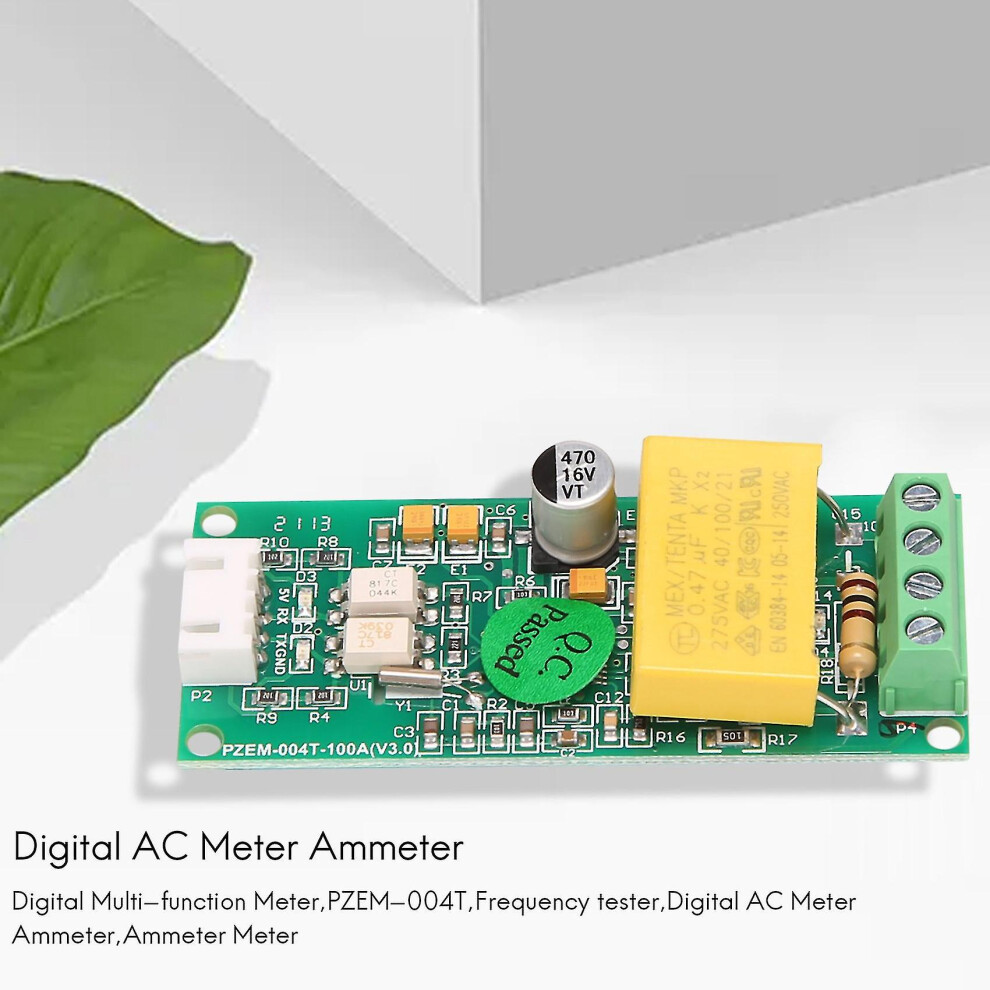

Upgraded Version Pzem-004t Digital Ac Meter Ammeter Ttl Current Power Factor Frequency Tester Modul

Upgraded Version Pzem-004t Digital Ac Meter Ammeter Ttl Current Power Factor Frequency Tester Modul Description

Function
1. :Measurement range: 80 ~ 260V.Resolution: 0.1V.Measurement accuracy: 0.5%
2. current.Measuring range: 0 ~ 10A (PZEM-004T-10A); 0 ~ 100A (PZEM-004T-100A).Initial measurement current: 0.01A (PZEM-004T-10A); 0.02A (PZEM-004T-100A).Resolution: 0.001A.Measurement accuracy: 0.5%
3. Active power:Measuring range: 0 ~ 2.3kW (PZEM-004T-10A); 0 ~ 23kW (PZEM-004T-100A).Initial measurement power:0.4W.Resolution: 0.1W.Display :Less than1000W, display one decimal place, for example: 999.9W. equal1000W, only display whole numbers, for example: 1000W
Measurement accuracy: 0.5%
4. Power factor:
Measurement range: 0.00 ~ 1.00
Resolution: 0.01
Measurement accuracy: 1%
5, frequency
Measuring range: 45Hz ~ 65Hz
Resolution: 0.1Hz
Measurement accuracy: 0.5%
6, active energy
Measuring range: 0 ~ 9999.99kWh
Resolution: 1Wh
Measurement accuracy: 0.5%
Display :
Less than10kWh, display unit is Wh (1kWh = 1000Wh), for example: 9999Wh
equal10kWh, display unit is kWh, for example: 9999.99kWh
Reset energy: Use software reset.
Power failure alarm:You can set the active power . When the measured active power exceeds the ,Can report to police
Communication Interface:RS485 interface
colour:green + black
Material:plastic
Package Contents:

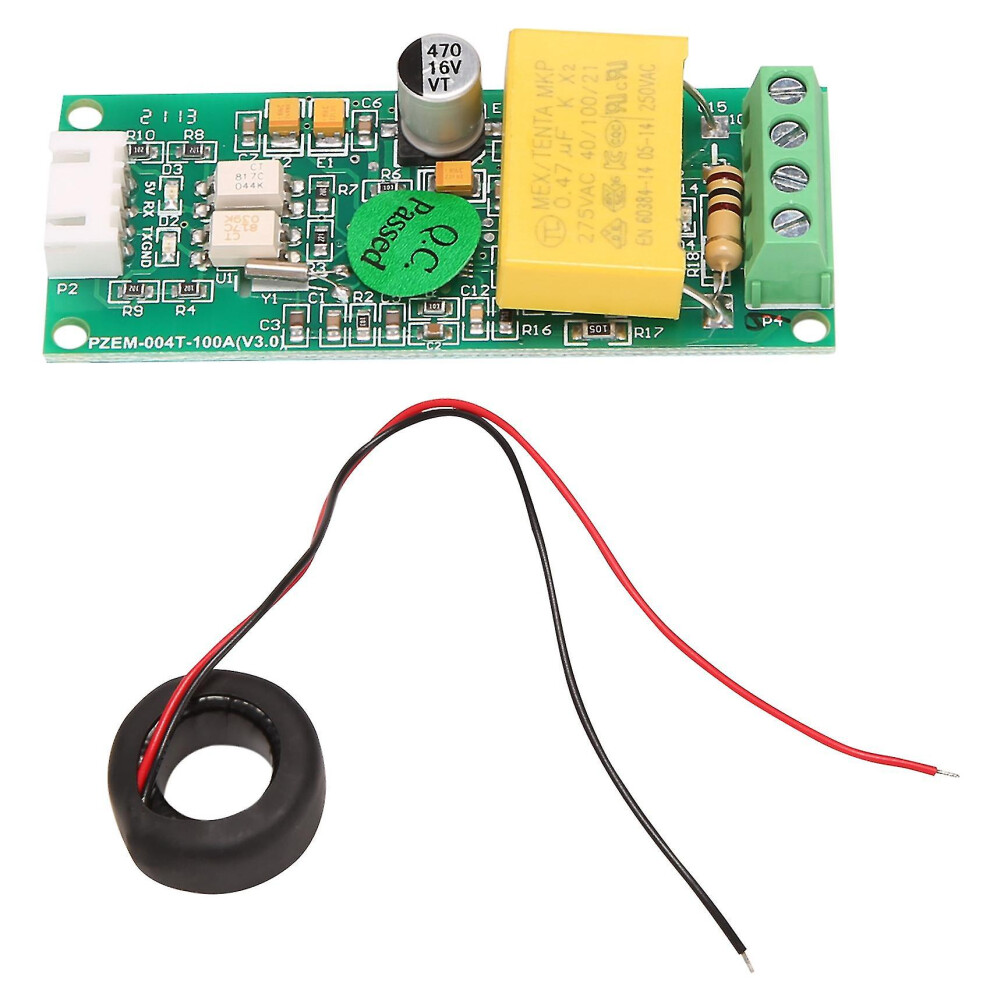

1 x Digital Multi-function Meter

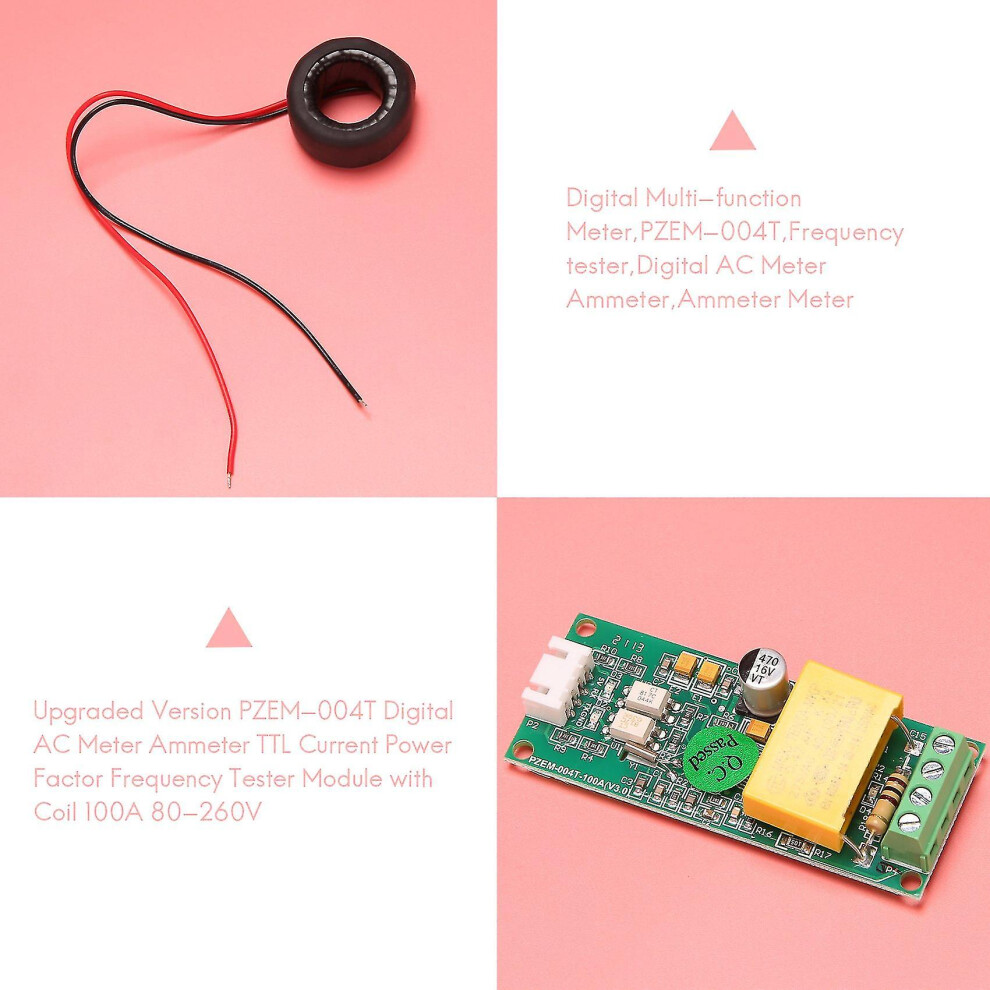

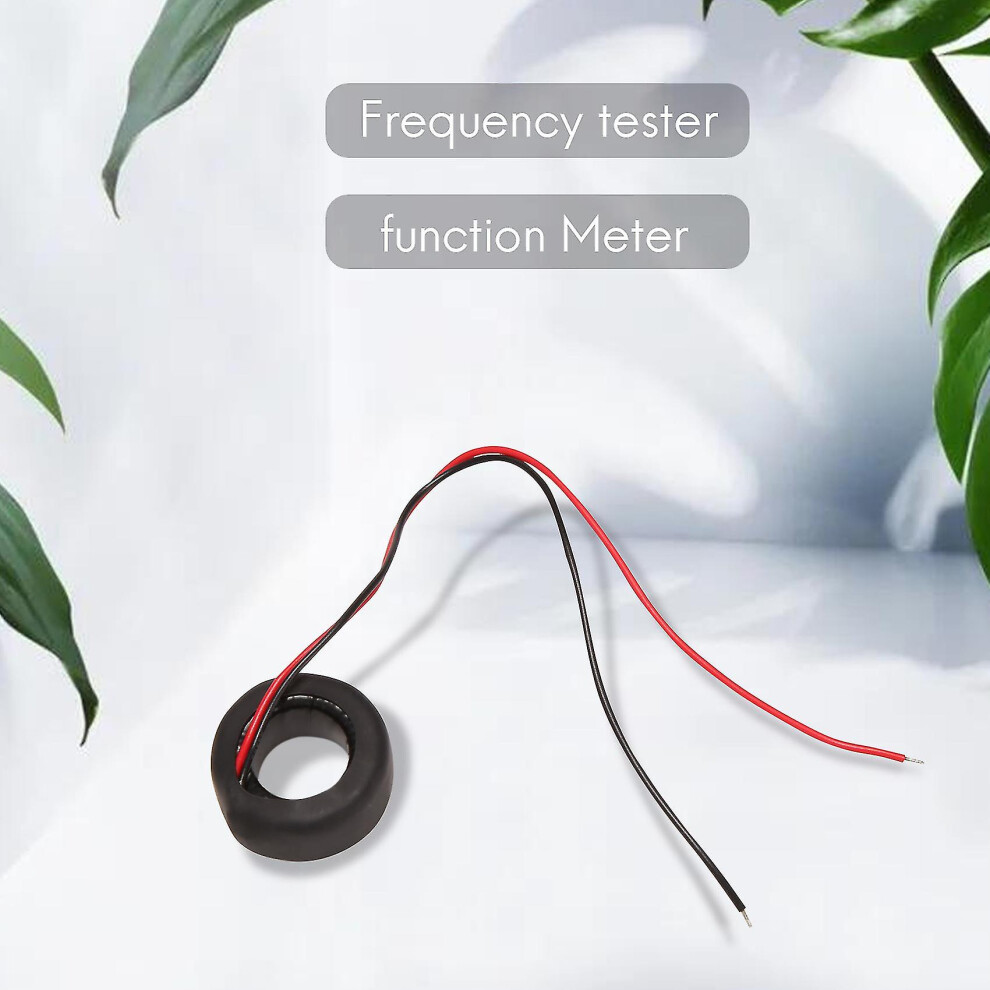

1 x Coil
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
