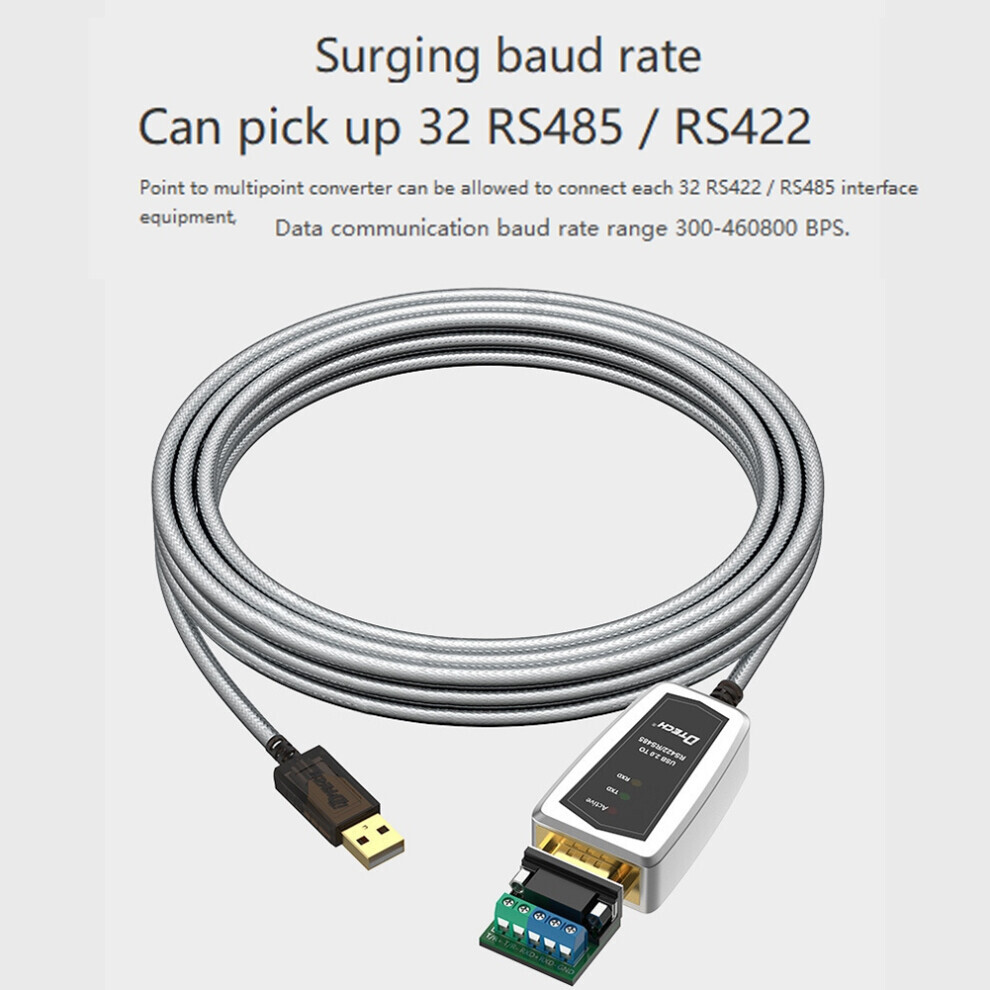

USB 2.0 to RS485 RS422 Serial Converter Adapter Cable

USB 2.0 to RS485 RS422 Serial Converter Adapter Cable Description

USB 2.0 to RS485 RS422 Serial Converter Adapter Cable Description: Specific: Serial Protocol: RS485 / RS422 Specification: USB 2.0; EIA/ RS485 and RS422 Standard Chip: Maximum Baud Rate: 921600 bps Maximum Distance (RS485/422 end): 300 m at 921600 bps, 600 m at 38400 bps, 1.2 km at 9600 bps; Powered via USB bus, no external power supply required. Automatic handshake protocol is supported. Item Length: 45 cm Important Note: The USB end must be connected to a PC. Other USB devices such as digital cameras, scanners, and printers are not permitted. To avoid reflections on longer cables, suitable terminating resistors (120 Ω, 1/4 W) must be used. Please DO NOT connect the adapter to an RS422/RS485 device. Install the driver on your computer or .
4 types of operating modes: Asynchronous
Point-to-point / four-wire full duplex;
Point-to-multipoint / four-wire full duplex;
Point-to-point / two-wire half duplex;
Point-to-multipoint / two-wire half duplex.
Applications:
Factory automation system
Distributed control system
LED indicator devices
PLC control and management
CNC management
SCADA (Supervisory Control and Data Acquisition)
Automation of medical treatments/medication
Building automation
Work control attendance
Personnel management.
Measuring instruments and monitoring system
Data acquisition
Process control
Material: Plastic
Color as Pictured
Scope of delivery:

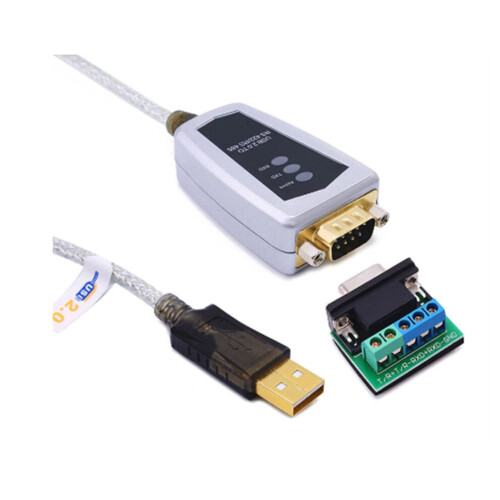

1 x USB to serial converter cable
1 x RS422 RS485 serial DB9 to terminal block adapter
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The permissible measurement error is +/- 1-3 cm.
