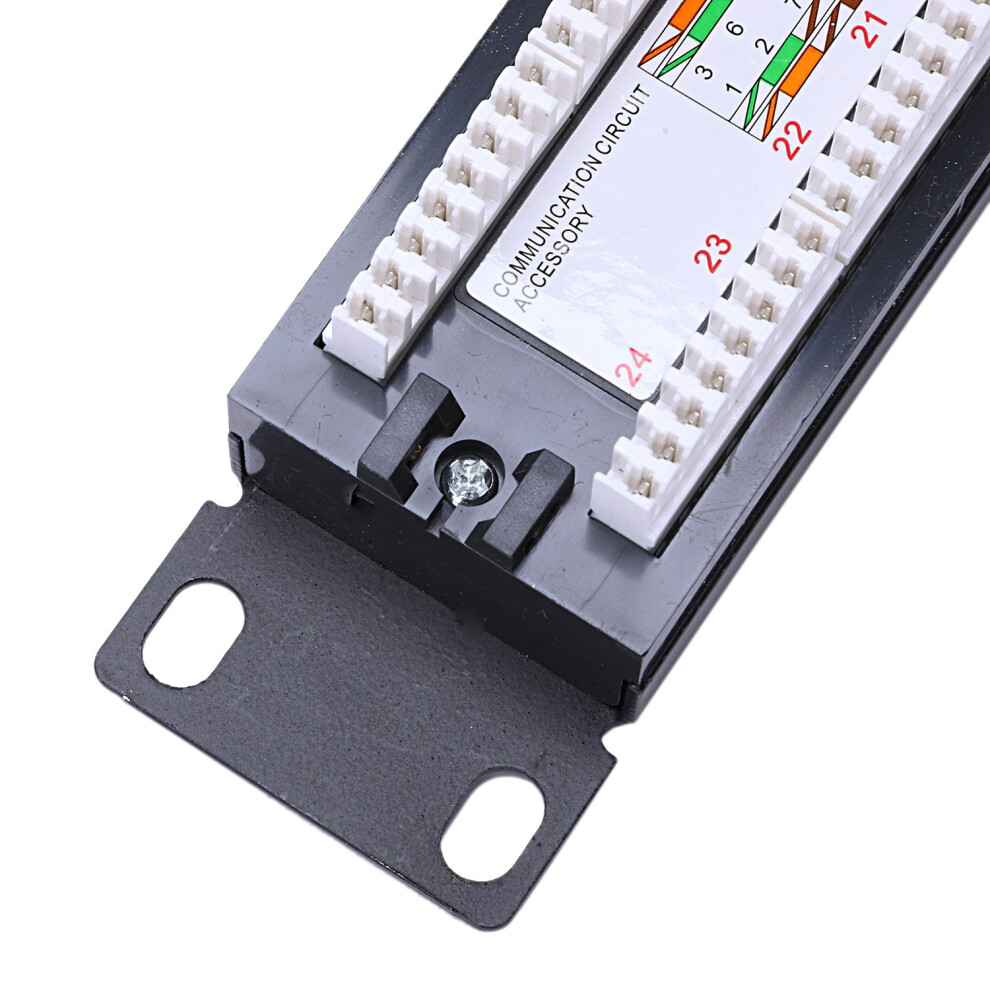

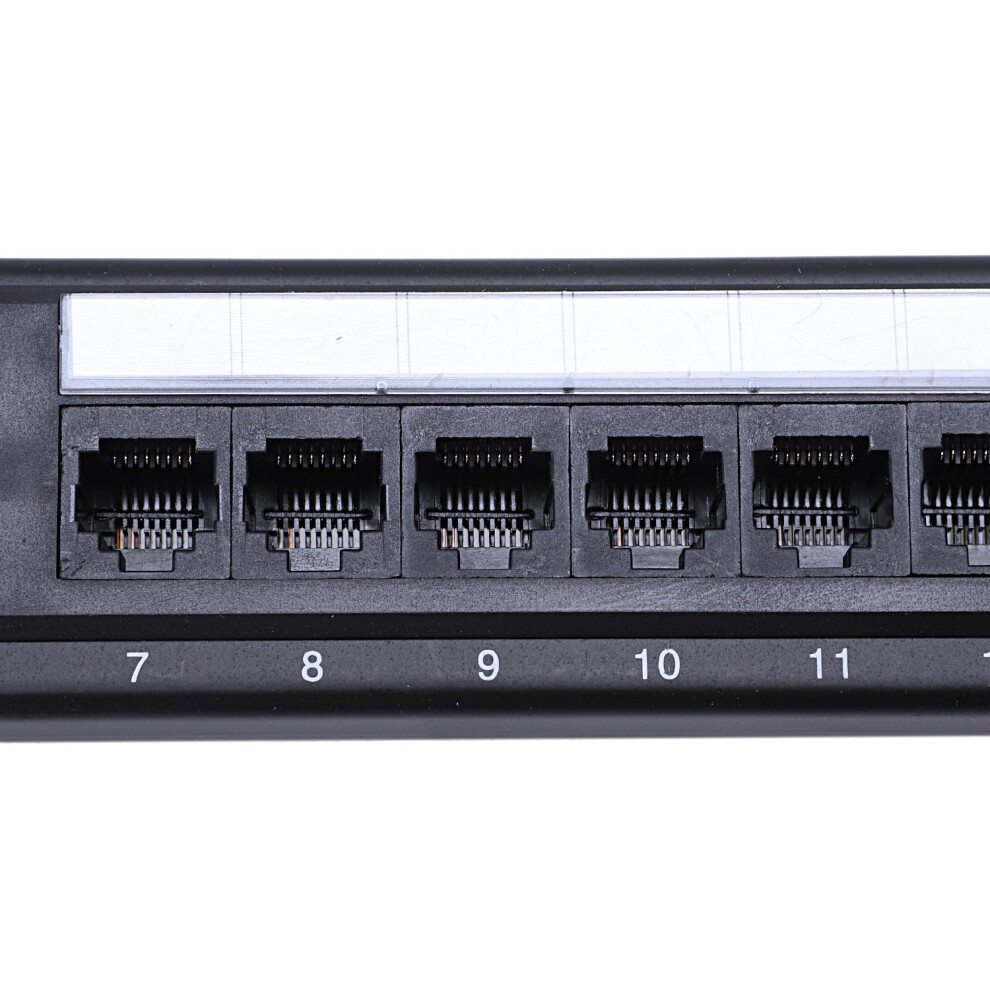

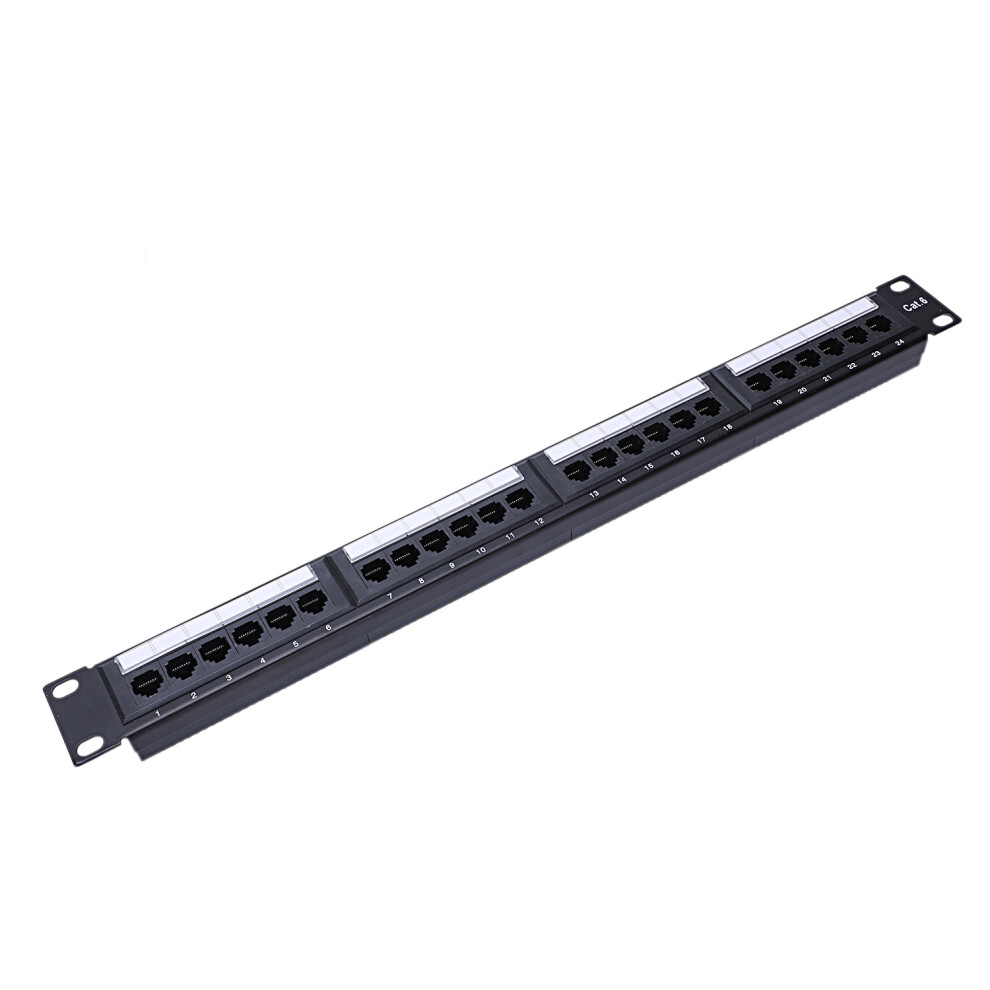

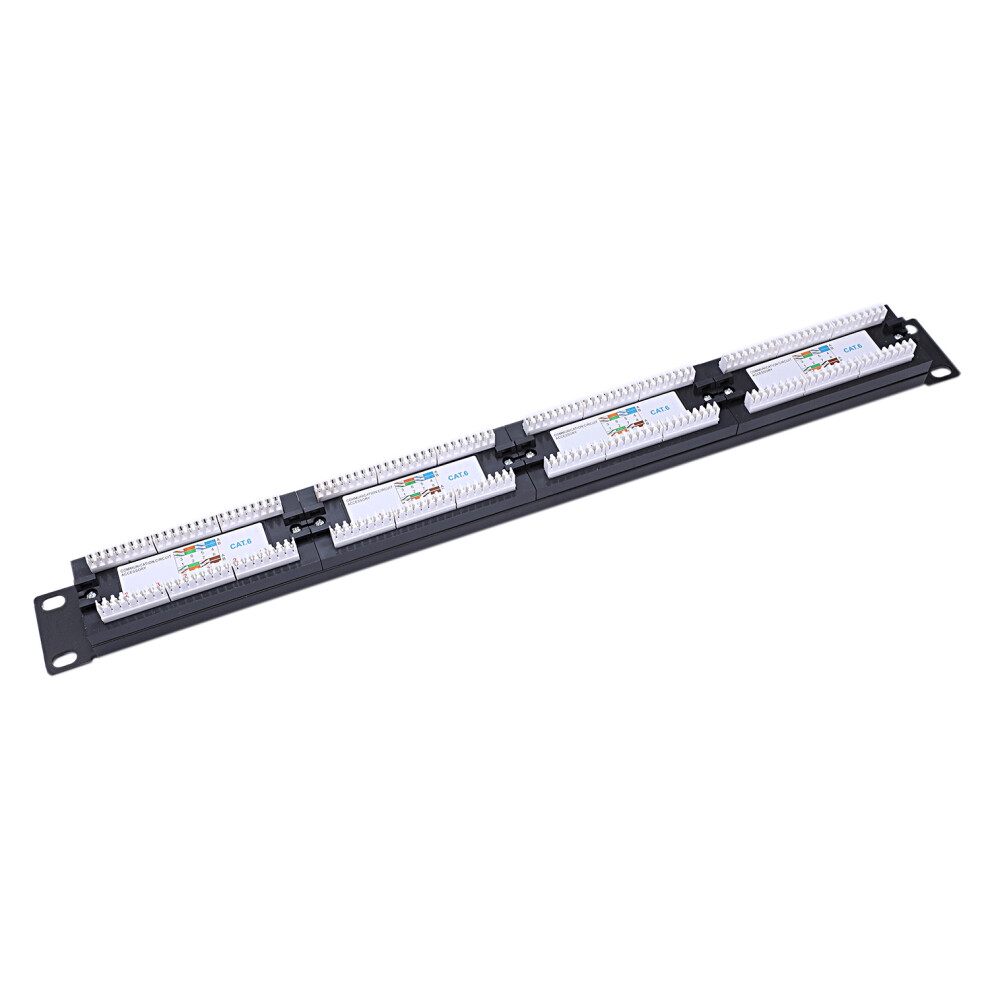

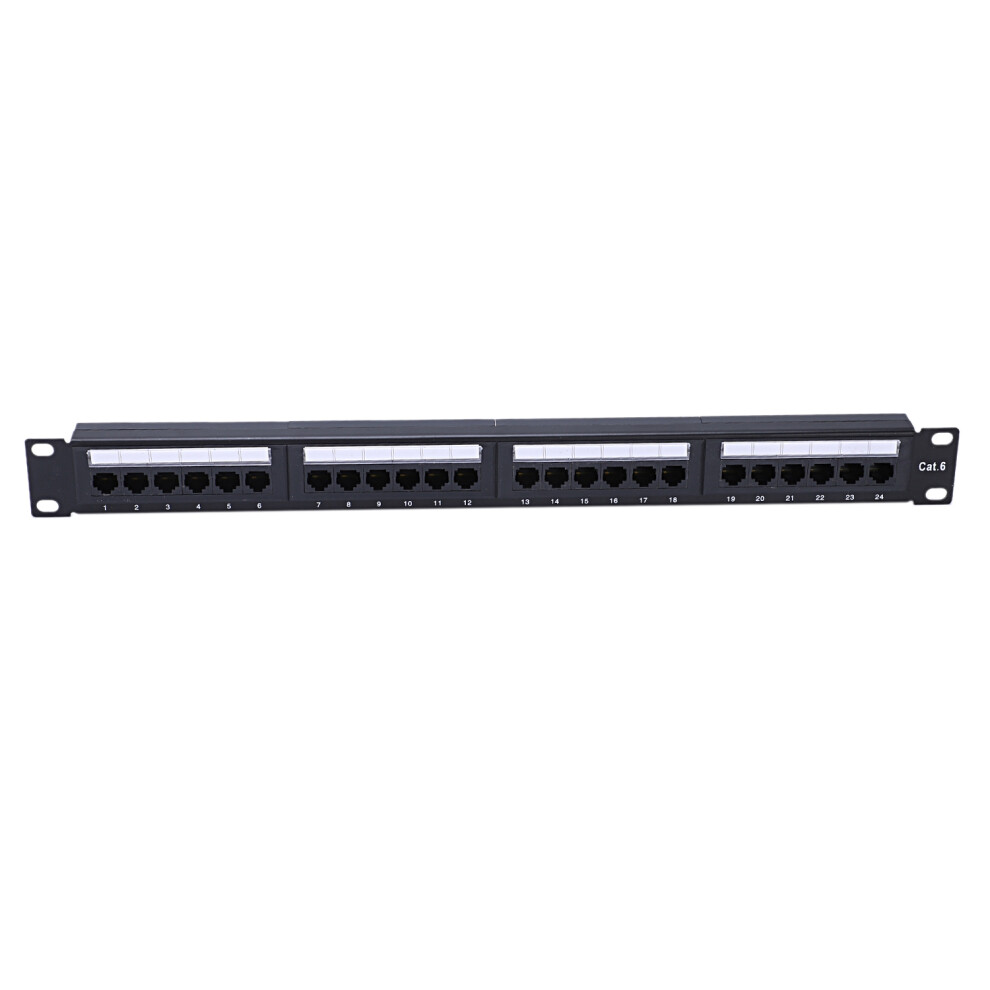

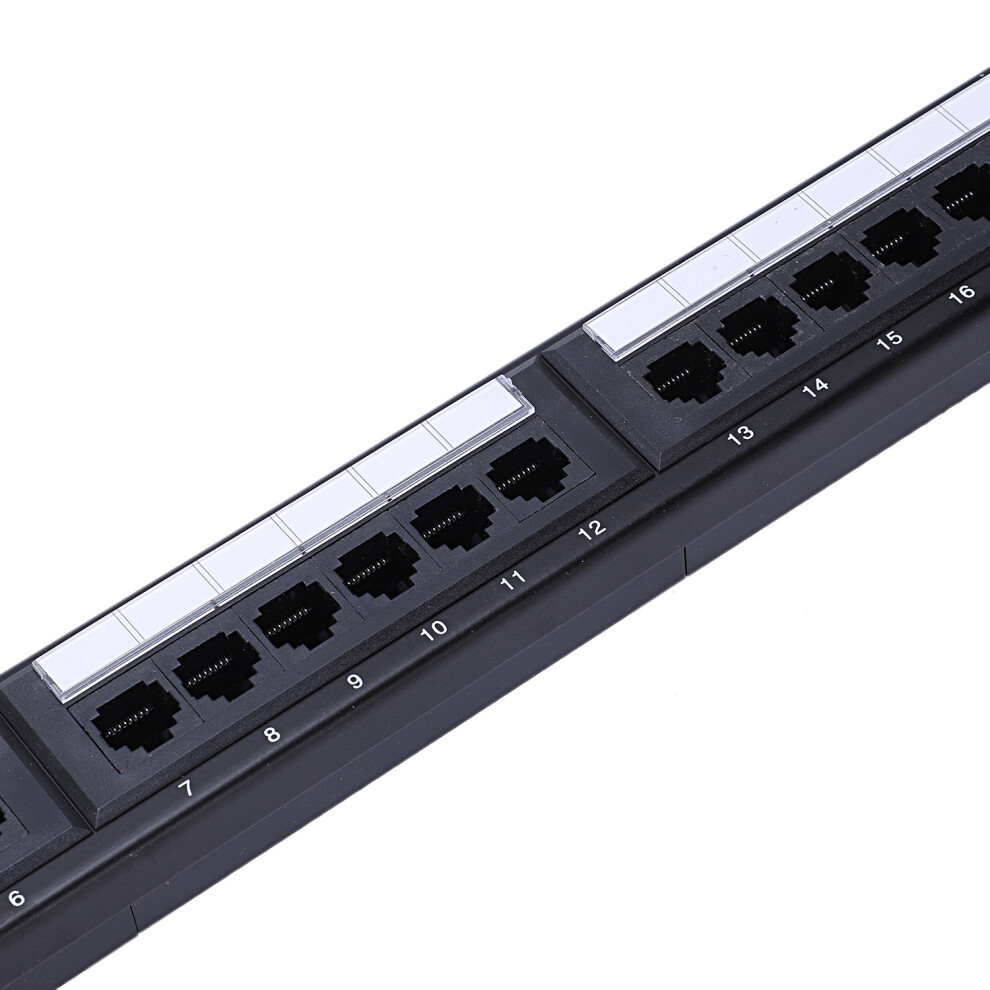

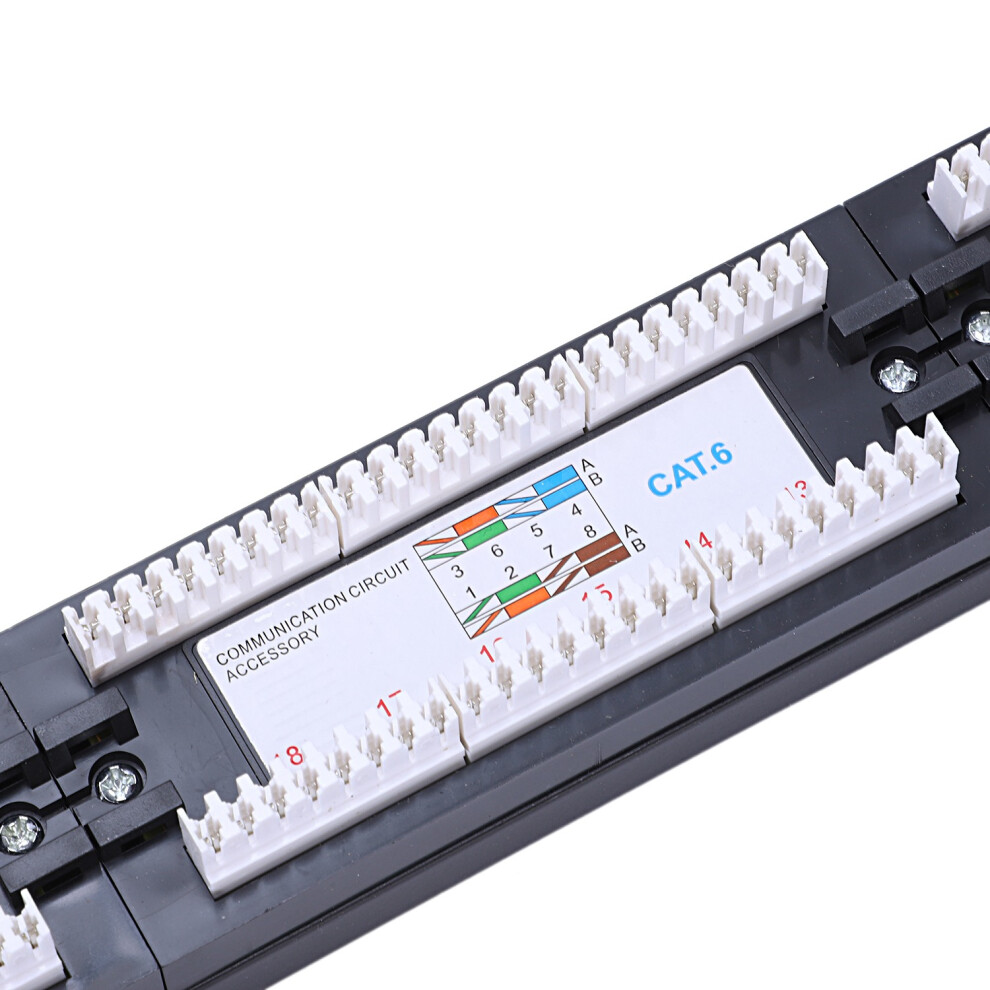

UTP 24 Port Rj45 Patch Panel Rack Cable Wall Mount

UTP 24 Port Rj45 Patch Panel Rack Cable Wall Mount Description

24 Port CAT6 Network distribution frame
Terminal material: phosphor bronze plating nickel, the number of insertions and is not less than 300 times
Eight-needle material: phosphor bronze bronzed, the number of insertions and is not less than 800 times
Contact resistance: no more than 2.5mΩ under normal atmospheric conditions
Insulation resistance: not less than 1000MΩ under normal atmospheric pressure
Electric strength: DC 1000V (AC, 750V) No breakdown and arcing in 1 minute
Design standard: designed and manufactured according to standard ISO / IEC11801; / EIA568
AWG 22-24 C6 cable wires are recommended for this instalation, this patch panel does not contain the rear fixed line bracket
colour:Black
Material:plastic & metal
Size:48.5*5*4.5cm
Package Contents:
1* 24 Port CAT6 Patch Panel
4* Screws
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
