Vinyl Stylus Alignment Protractor Angle Calibration Gauge Tool Phonograph Adjustment Detection Ruler

Vinyl Stylus Alignment Protractor Angle Calibration Gauge Tool Phonograph Adjustment Detection Ruler Description

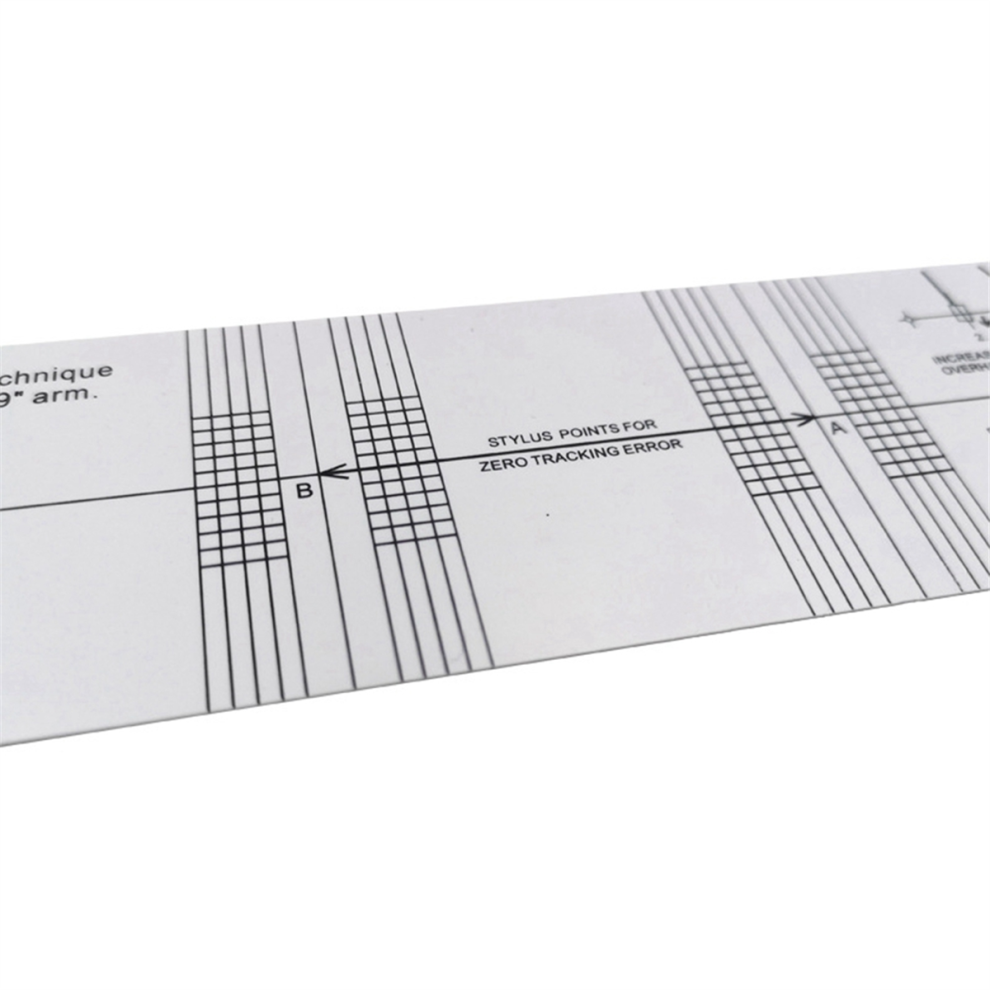

High contrast alignment protractor improves visibility and eliminates tracking errors.
Avoids overshoot distortion to maintain high quality sound
Link to turntable setup guide with instructions printed directly on the protractor.
Suitable for S-arm and any 1/2 inch mount .

Colour:As Shown
Material:Acrylic
100% New, High Quality.
Dimensions: Length 21cm/8.27inch, Width 5cm/1.9inch

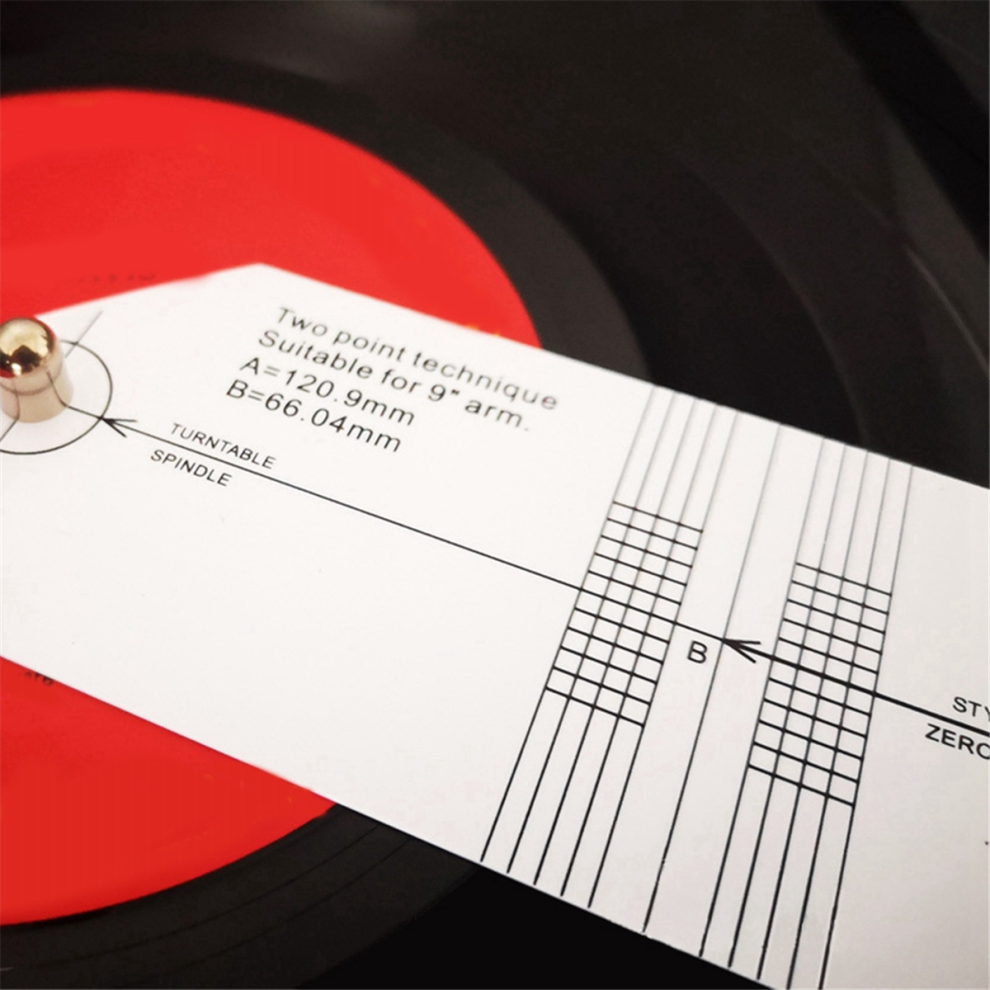

1. Place the protractor on the turntable plate with the hole on the spindle.

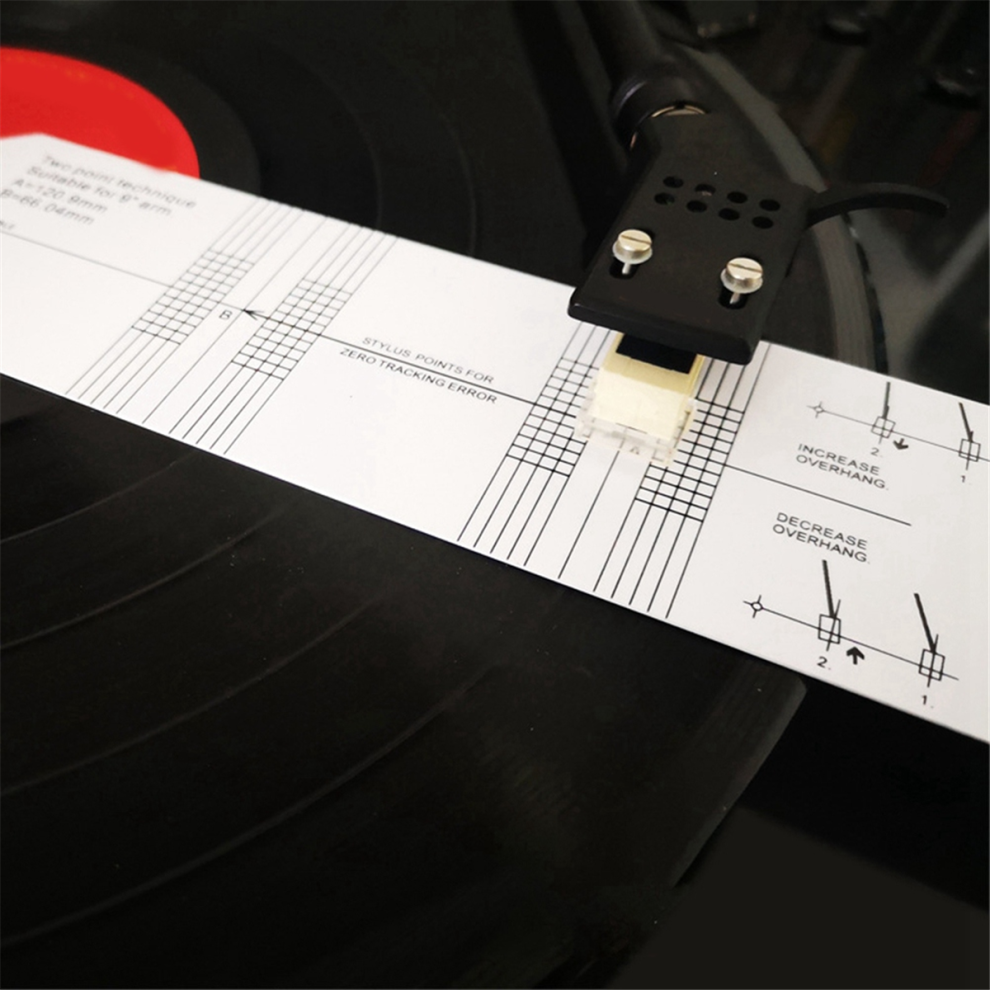

2. Move the /tonearm until the stylus is exactly in the center of the . Check that the is square to the outer grid lines. - If not, loosen the mounting screws and gently twist the until it is square.
3. Move the /tonearm until the stylus is exactly in the center of the inner , twisting the protractor as needed. Check that the is square to the inner grid lines. - If not, change the overhang (move the inward or outward along the ) until the is square.
4. Repeat steps 2 and 3 until the is square at both points. Tighten the mount and recheck as above. Remove the protractor. Relax and enjoy!

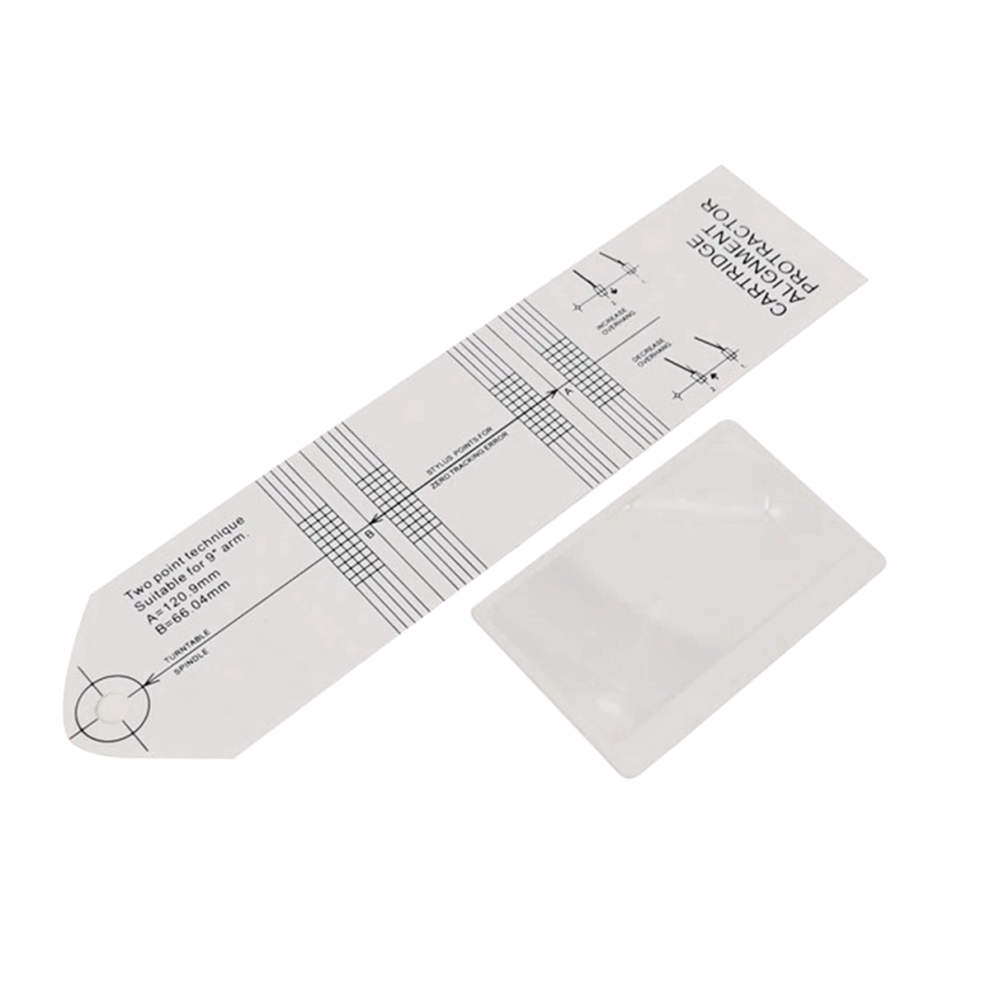

Package Contents:
1 * Vinyl calibration ruler
1 * Magnification card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
