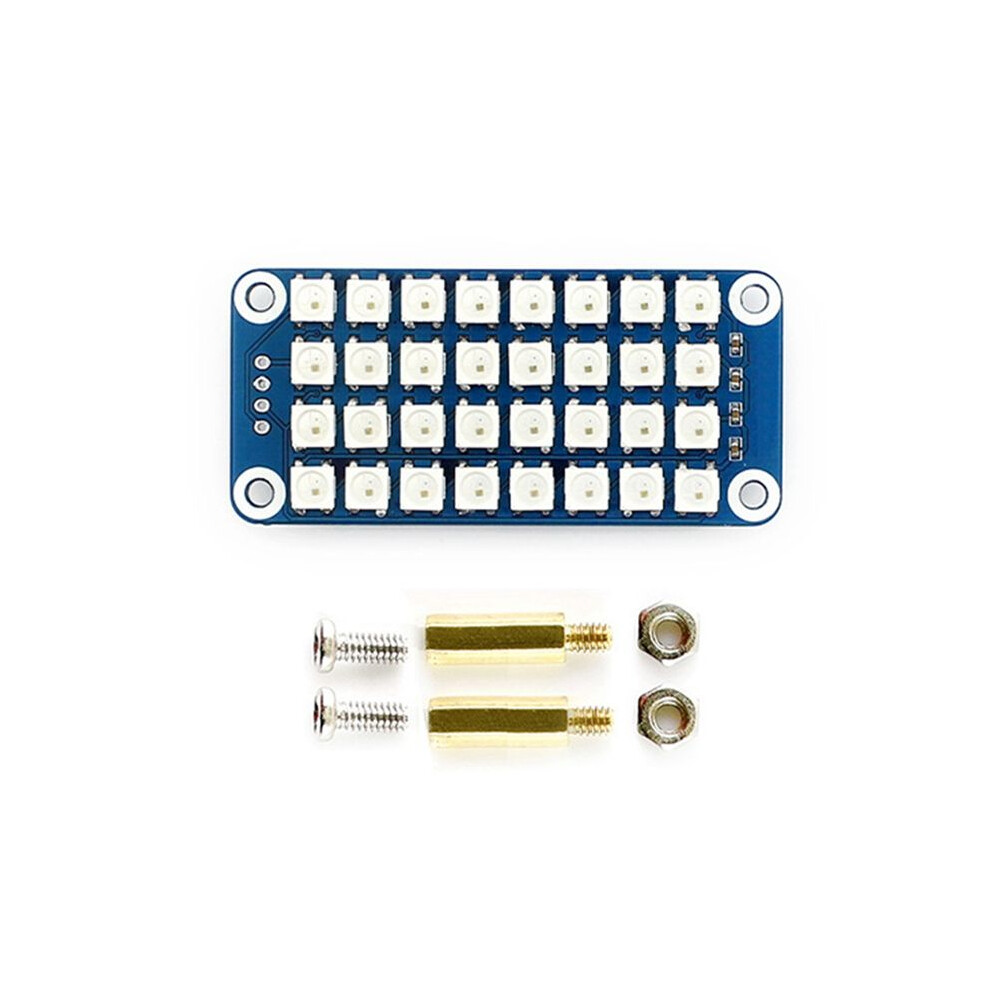

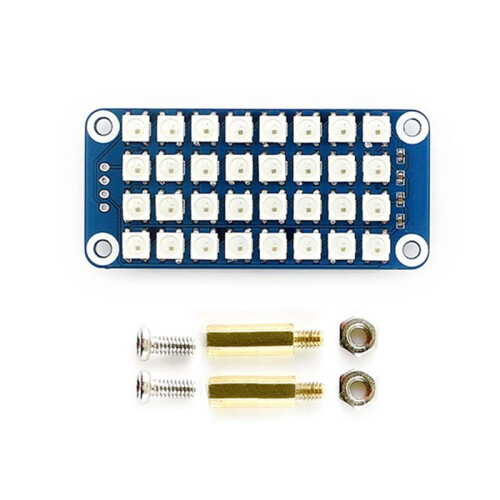

Waveshare Extension Board Module for Raspberry Pi Full Color RGB Light Programming Controller for Raspberry Pi 5/4B/3B+ Module
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 17th - Mon 22nd Jun
Sold by: Papishop
Returns: 30 days
180-day payment protection
Most Popular in LED Strips
Summary
- Features: 1. Compatible and can be directly plugged into any version of Raspberry Pi
- 2. Onboard 4*8 RGB LEDs (WS2812B)
- 3. Different pins of the Raspberry Pi can be selected for control through a 0 ohm resistor.
- 4. Lead out the control pins to facilitate the use of other microcontrollers for control
- 5. The RGBLED expansion board specially designed for Raspberry Pi can be programmed and controlled through a signal line to display color images.
Waveshare Extension Board Module for Raspberry Pi Full Color RGB Light Programming Controller for Raspberry Pi 5/4B/3B+ Module Description
Features: 1. Compatible and can be directly plugged into any version of Raspberry Pi
2. Onboard 4*8 RGB LEDs (WS2812B)
3. Different pins of the Raspberry Pi can be selected for control through a 0 ohm resistor.
4. Lead out the control pins to facilitate the use of other microcontrollers for control
5. The RGBLED expansion board specially designed for Raspberry Pi can be programmed and controlled through a signal to display color images.
Description:
1. Working voltage: 5V
2.Brightness: 256 levels adjustable
3. Color depth: 24 Bits (8 Bits each for R/G/B, which can be combined to produce 256x256x256=16777216 Colors)
4. Data transmission speed: 800Kbps (typ)
5. Product size: about 65mm x 30.2mm
6.Fixing hole diameter: 3.0mm
[Interface Description]
The following is an example of connecting to other MCUs:
5V: Connect to 5V power supply
GND: Connect to GND
DIN: signal input terminal
DOUT: signal output terminal (optional)
Material: PCB
colour: As shown
Package Contents:
1 x LED Expansion Board Module
1 Set x Copper Post Package Installation Accessories
Details
| OPC | PV87RPY |
|---|---|
| Brand | Typecat |
| Codes | 4712522518579 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 12cm |
| Weight | 0.036kg |
| Colour | As Shown |
| Material | PCB |
